QUICK START GUIDE
This article contains the Quick Start Guide for the NV355 Series Shark® Navigator® Lift-Away® Professional. This article supports the following product SKUs NV355, NV355C, NV355CFS, NV355WM1, NV356E, NV356K, NV356Q, NV357, NV358, NV358Q, NV370, NV370_26, NV391, NV391C, UV541CCO, UV550, and UV564.
WHAT’S INSIDE
| A. Handle with Stretch Hose | E. Portable Lift-Away® Canister |

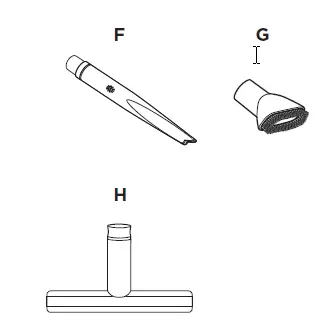

| B. Floor Nozzle | F. 8″ Crevice Tool |
| C. Extension Wand | G. Dusting Brush |
| D. Accessory Holder | H. Wide Upholstery tool |
ASSEMBLY

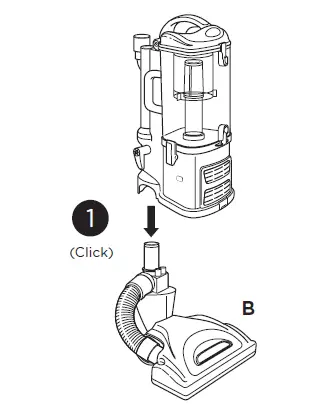

Insert canister into motorized floor nozzle.

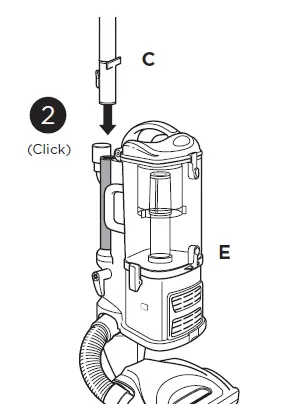

Insert wand into the canister.

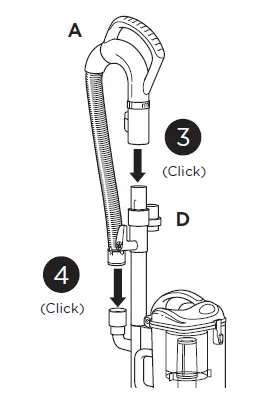

Connect handle to the wand, pressing until it clicks into place. Connect hose to the back of the canister pressing until it clicks into place.
MAINTENANCE
Empty dust cup after each use
Pull up on Dust Cup Release latch and lift dust cup off canister.
Hold Dust Cup over a trash bin and press the empty-release latch on the bottom
Press top Dust Cup Release latch to access dust screen and remove built-up debris as required.
Cleaning Filters
TIP:
Wash filters every 3 months to keep the suction strong.
Rinse filters and allow to air-dry completely.
Tap loose dirt from foam filters as needed between washes.

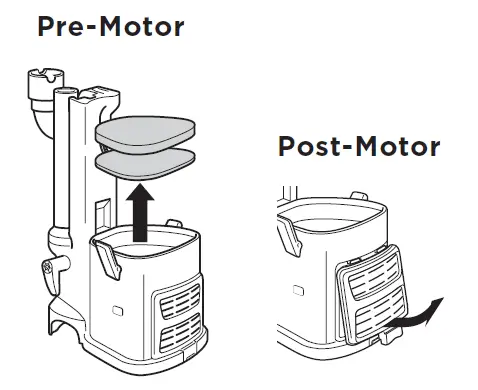

Pre-Motor (foam and felt):
With the dust cup removed, take out and rinse the foam and felt filters with water only.
Post-Motor (HEPA):
To access the HEPA filter, reach under the grill and pull the Filter Access latch to remove the grill. Remove and rinse the HEPA filter with water only. Let all filters air-dry completely before reinstalling.

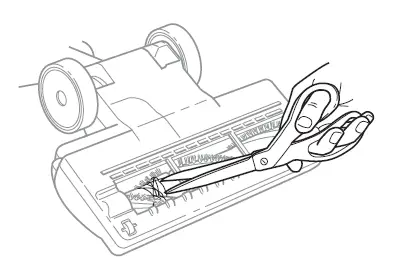

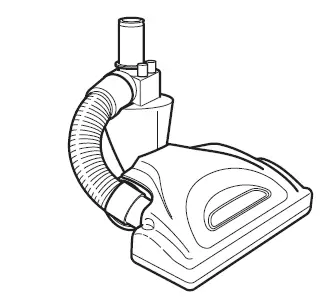

Easy brushroll maintenance
Detach the motorized nozzle from the portable Lift-Away canister
Remove any string, carpet fibers, or hair that may be wrapped around the brushroll.
VERSATILE FLOOR-TO-CEILING CLEANING
FLOOR CLEANING

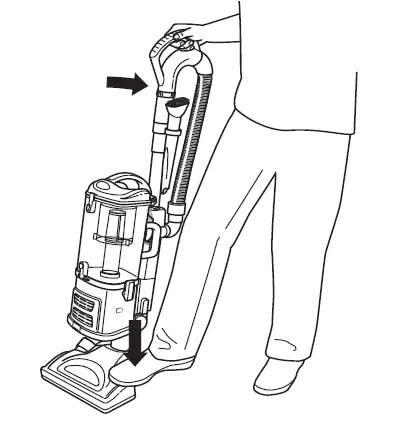

1. Plug In Vacuum
Then place your foot gently on the floor nozzle and tilt the handle back.
2. Choose Setting
Slide the power switch to the appropriate floor setting and start cleaning.
BRUSHROLL ON/OFF:
1. Press the ON/OFF switch at the top of the canister to the I position to vacuum bare floors (straight suction only) or use Lift-Away® mode. To vacuum carpets and rugs, set the switch to the II position to engage the motorized brushroll.
2. Press the floor nozzle down with your foot and tilt the handle back towards you to engage the brushroll.

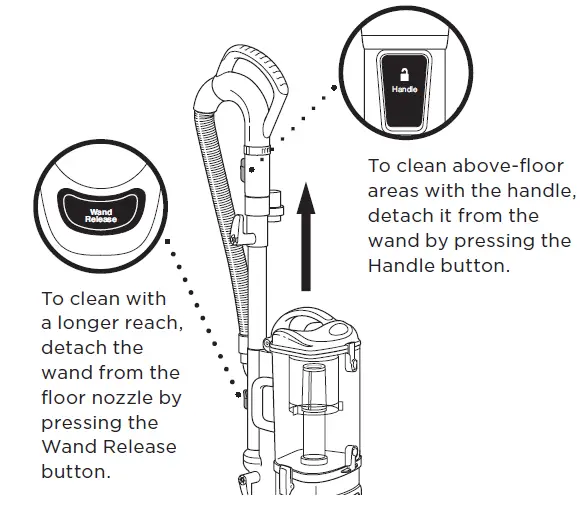

PORTABLE LIFT-AWAY® MODE
1. Plug In Vacuum
Press Lift-Away button to lift canister off floor nozzle. You are now ready to clean those hard-to-reach places.

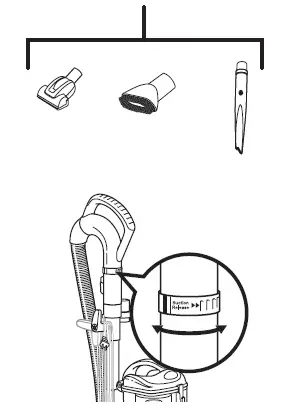

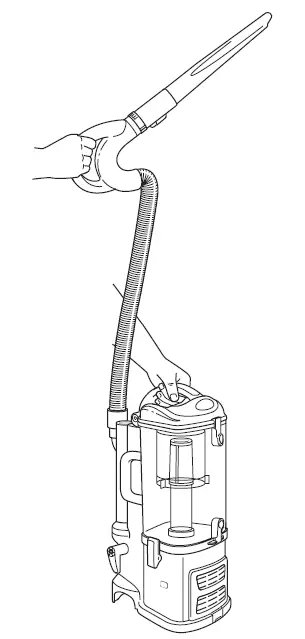

2. Attach desired cleaning accessory.
Attach any of the specialized cleaning accessories to the handle or wand.
SUCTION CONTROL
Adjust the suction by rotating the suction release collar on the handle counterclockwise to reduce the suction or clockwise to increase suction.
For questions or to register your product, contact us at 1-800-798-7398 or visit us online at sharkclean.com
©2018 LIFT-AWAY and SHARK are registered trademarks of SharkNinja Operating LLC. NAVIGATOR is a trademark of SharkNinja Operating LLC
