QUICK START GUIDE
[ Please be sure to read the enclosed Shark® Owner’s Guide prior to using your unit. ]
A. Vacuum Pod
B. Motorized Floor Nozzle
C. Handle & Hose
D. Wand
E. Accessory Holder
F. 8″ Crevice Tool
G. Dusting Brush
ASSEMBLY
NOTE: For proper operation, ensure all parts are firmly CLICKED into place.
TWO WAYS TO CLEAN

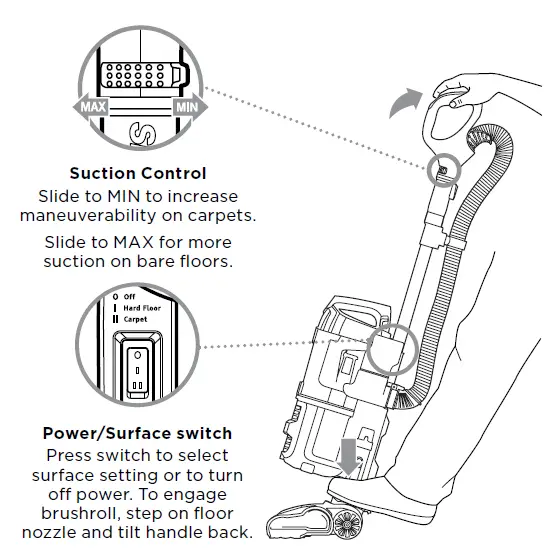

UPRIGHT
LIFT-AWAY®
Press release buttons to lift pod off nozzle, or to release handle or wand.

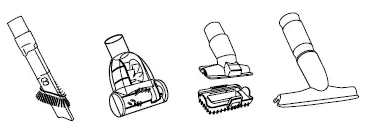

Attach accessories to handle or wand.
For additional parts and accessories, visit sharkaccessories.com

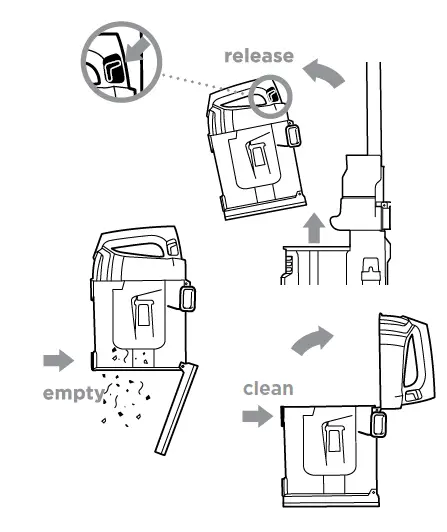

EMPTYING THE DUST CUP
Empty the dust cup after each use.
MAINTENANCE:
Rinse pre-motor filters every 3 months, and HEPA filter once a year.
Rinse with water only, and allow to air-dry completely before reinstalling.
See enclosed Owner’s Guide for more information on how to clean and replace the filters.
TIPS:
For quick cord access, rotate upper hook down and remove cord.
Move cord hook to upright position to secure cord in place.
To store your vacuum, wrap cord around upper and lower hooks.
CHECKING FOR BLOCKAGES

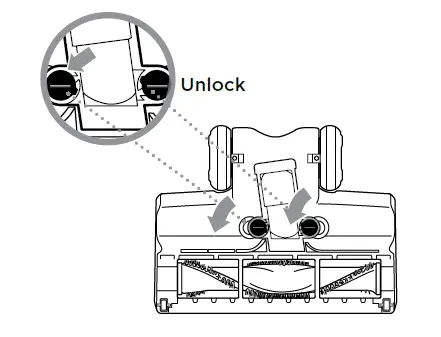

Brushroll access
1. Using a coin, turn locks counterclockwise to open, then lift off cover to access brushroll.
2. Clear blockages from airway.
3. Replace cover, pressing down firmly on all sides before turning locks clockwise to close.
For questions or to register your product, visit us online at sharkclean.com
© 2019 SharkNinja Operating LLC.
UV650_QSG_EB2_Mv6
