Model: NV42 Series
QUICK START GUIDE
[Please be sure to read the enclosed Shark® Owner’s Guide prior to using your unit.
WHAT’S INSIDE
A. Vacuum Body
B. Motorized Floor Brush
C. Handle Assembly
D. Super Stretch Hose
E. Cleaning Wand
F. Cleaning Attachments
ASSEMBLY

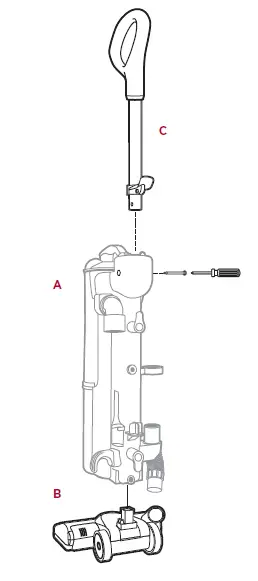

ASSEMBLE VACUUM

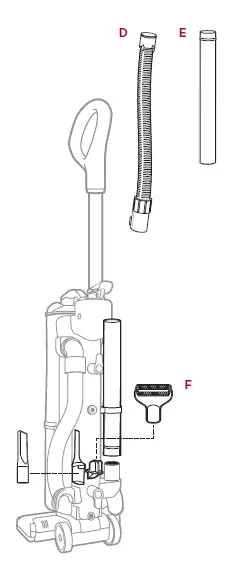

ATTACH TOOLS

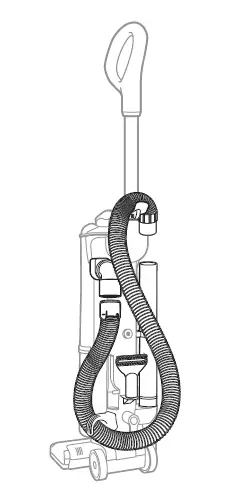

ATTACH STRETCH HOSE
For additional parts and accessories, visit sharkaccessories.com
FLOOR SETTINGS

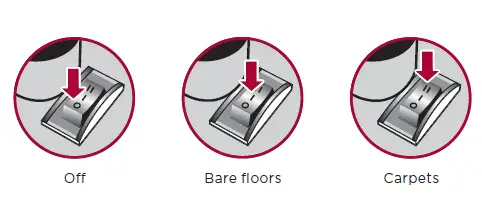

CHOOSE FLOOR SETTING

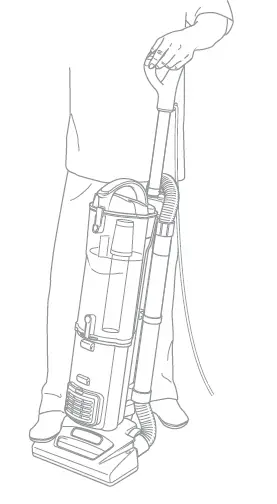

Pull handle toward you to release the motorized floor brush a the brushroll.
MAINTENANCE

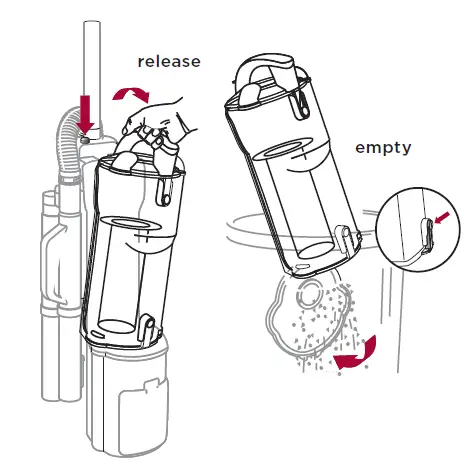

Empty the dust cup after each use.

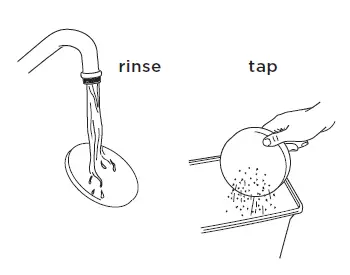

Wash filters every 3 months Rinse filters and allow to air dry completely.
Tap loose dirt from foam filters as needed between washes.
Note: The foam filters may discolor over time. This is normal
TIP:
Wash filters every 3 months.
Rinse filters and allow to air-dry completely.
Tap loose dirt from foam filters as needed between washes.
Note: The foam filters may discolor over time.
This is normal.
For questions or to register your product, contact us at 1-800-798-7398 or visit us online at sharkclean.com
DOWNLOAD
Shark NV42 Series Navigator Deluxe:
Quick Start Guide – [Download PDF]
Owner’s Guide – [Download PDF]
