Introduction

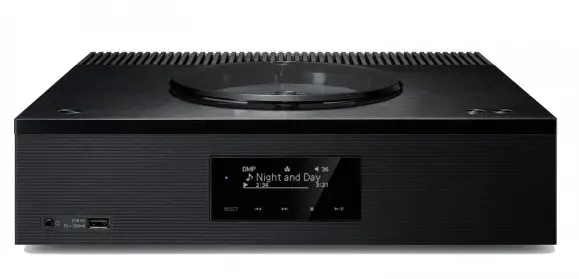

The Network CD Receiver SA-C600 brings you a wealth of music content with a single device—everything from records, CDs, and radio to music streaming and more—and a luxurious audio environment courtesy of Technics’ superior sound engineering.
Key Features
JENO Engine (Jitter Elimination and Noise-shaping Optimization)
In order to faithfully transmit the massive amount of audio data sent to the speakers without loss, the SA-C600 uses full digital amplification employing the JENO Engine. The JENO Engine transmits and processes audio with minimal jitter from the input stage to the power stage.
Space Tune™

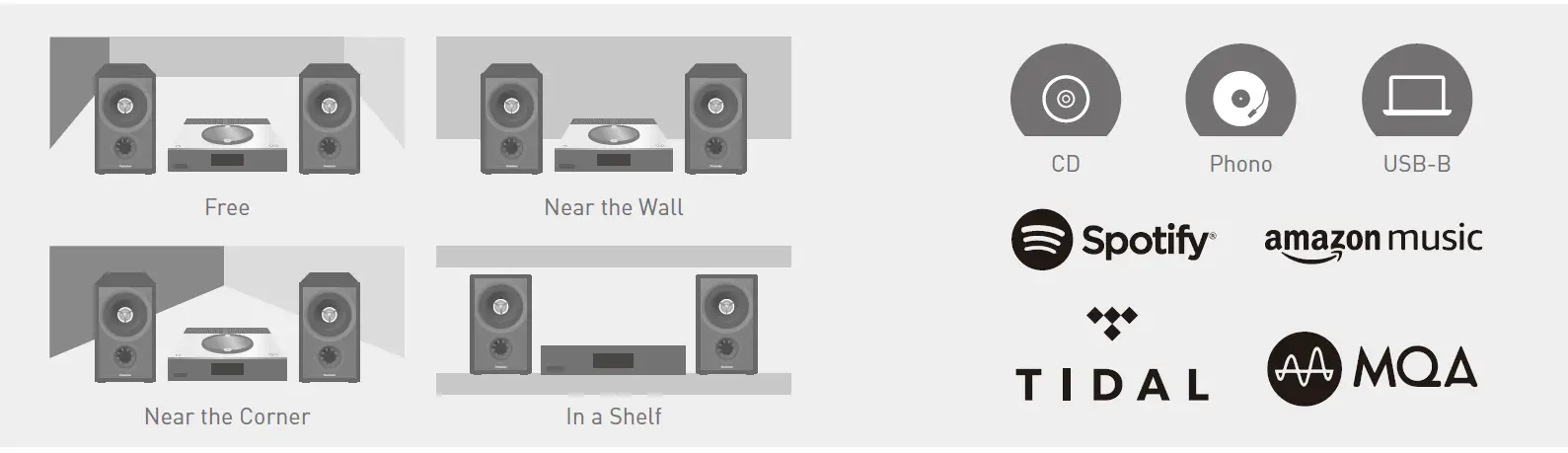

Space Tune™ delivers optimized sound for your listening environment. This function includes 4 presets (Free, Near the Wall, Near the Corner and In a Shelf) for easy setting, and the L/R Custom feature allows users to enter separate settings for each individual speaker. The Technics Audio Center app also allows you to precisely adjust your sound.*
*Available for iOS devices only
Complete Compatibility
The SA-C600 supports a variety of music sources including CD, radio, phono input, optical digital input, coaxial digital input and USB input. It also supports a range of streaming services such as Spotify Connect®, TIDAL, Amazon Music, and more. You can also playback MQA-CD and MQA files with outstanding sound quality.
Specifications
| Specifications | ||
| Output Power | 60 W + 60 W (1 kHz, T.H.D. 1.0 %, 4 Ω, 20 kHz LPF) | |
| FTC Output Power | 40 W + 40 W (1 kHz, T.H.D. 1.0 %, 4 Ω, 20 kHz LPF) | |
| Load Impedance | 4 Ω – 16 Ω | |
| Frequency Response | PHONO (MM) | 20 Hz – 20 kHz (RIAA DEVIATION ±1 dB, 8 Ω) |
| LINE | 20 Hz – 80 kHz (-3 dB, 8 Ω) | |
| DIGITAL | 20 Hz – 90 kHz (-3 dB, 8 Ω) | |
| Input Sensitivity / Input Impedance | PHONO (MM) | 2.5 mV / 47 kΩ |
| LINE | 200 mV / 22 kΩ | |
| Analogue Input Terminal | PHONO (MM) ×1, LINE × 1 | |
| Digital Input Terminal | Optical Digital ×1, Coaxial Digital ×1, USB-A ×1, USB-B ×1 (PC) | |
| Analogue Output Terminal | Sub Woofer ×1 | |
| Headphone Output | • (Stereo Ø3.5 mm) | |
| Disc Compatibility | Audio CD, CD-R / CD-RW (CD-DA, Discs recorded and finalized on recording devices) | |
| USB-A | iPod / iPhone / iPad | — |
| Support Codec | WAV (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit) | |
| FLAC (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit) | ||
| DSD (2.8 MHz, 5.6 MHz, 11.2 MHz) | ||
| AIFF (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit) | ||
| ALAC (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit) | ||
| AAC (32, 44.1, 48, 88.2, 96 kHz / 16-320kbps) | ||
| MP3 (32, 44.1, 48 kHz / 16-320 kbps) | ||
| PC (USB-B) | USB Audio Class Specification | USB 2.0 high-speed, USB Audio Class 2.0, Asynchronous mode |
| Support Codec | LPCM (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit), DSD (2.8 MHz, 5.6 MHz) | |
| DSD Contol Mode | ASIO Native mode, DoP mode | |
| MQA Decorder | • | |
| LAN (DMR) | WAV (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit) | |
| FLAC (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit) | ||
| DSD (2.8 MHz, 5.6 MHz, 11.2 MHz) | ||
| AIFF (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit) | ||
| ALAC (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit) | ||
| AAC (32, 44.1, 48, 88.2, 96 kHz / 16-320kbps) | ||
| MP3 (32, 44.1, 48 kHz / 16-320 kbps) | ||
| Ethernet Interface | LAN (100 Base-TX / 10 Base-T) | |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac, 2.4 GHz / 5 GHz Band | |
| Chromecast built-in AirPlay 2 Bluetooth® (Support codec) | • • • (AAC, SBC) | |
| Tuner | FM | |
| Power Supply | AC 120 V, 60 Hz | |
| Power Consumption | 46 W | |
| Dimensions (W×H×D) | 340 mm × 94 mm × 341 mm (13-25/64 × 3-45/64 × 13-7/16 inch) | |
| Weight | Approx. 4.8 kg (Approx. 10.6 lbs) | |
| Accessories | AC Cord, Remote Control, Batteries for Remote Control, Owner’s Manual | |
Technics is a brand name of the Panasonic Corporation
Panasonic Consumer Electronics Company
Division of Panasonic Corporation of North America Two Riverfront Plaza
Newark, NJ 07102-5490
(201) 348-7000
www.panasonic.com
www.technics.com
Design and specifications subject to change without notice.
