SU8190C
CAN analyzer
User Manual
File Version: V21.8.21
SU8190C uses the standard USB, easy access to PLC， DCS, and other instruments or systems for monitoring CAN1 state quantities. The internal use of high-precision sensing core and related devices to ensure high reliability and excellent long-term stability can be customized
RS232,RS485,CAN,4-20mA,DC0~5V\10V,ZIGBEE,Lora,WIFI,GPRS and other output methods.
Technical Parameters
| Technical parameter | Parameter value |
| Brand | SONBEST |
| Input Interface | CAN BUS |
| Default Rate | 50kbps |
| Communication Interface | USB |
| Default baud rate | 9600 8 n 1 |
| Power | DC5V 1A |
| Running temperature | -40~80°C |
| Working humidity | 5%RH~90%RH |
Product Size

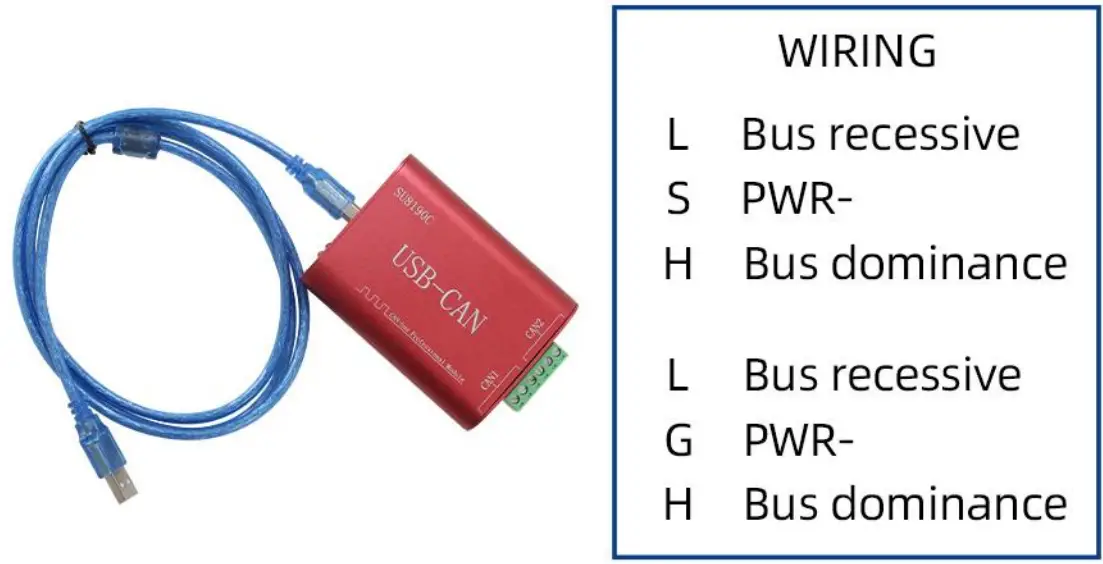

How to wiring?
><Note: When wiring, connect the positive and negative poles of the power supply first, and then connect the signal wire

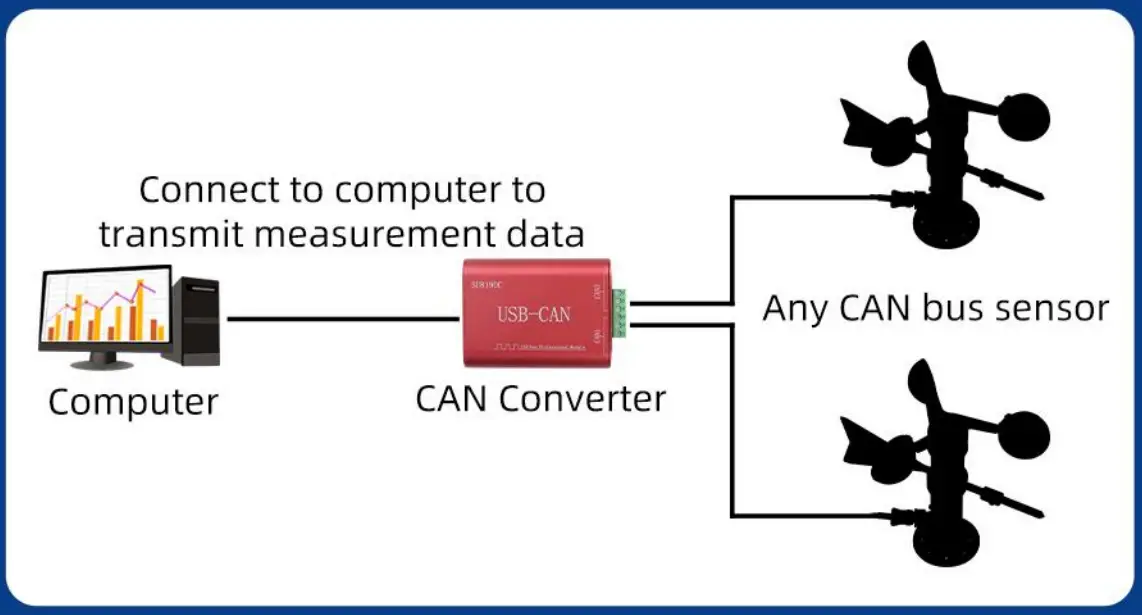

Application solution
How to use it?
