LG 32SM5J Digital Signage Smart LED Monitor

BASIC

NOTE

The accessories provided with your product may vary depending on the model or region.
Product specifications or contents in this manual may be changed without prior notice due to upgrade of product functions.
SuperSign Software & Manual
Visit http://partner.lge.com to download the latest SuperSign software and manual.

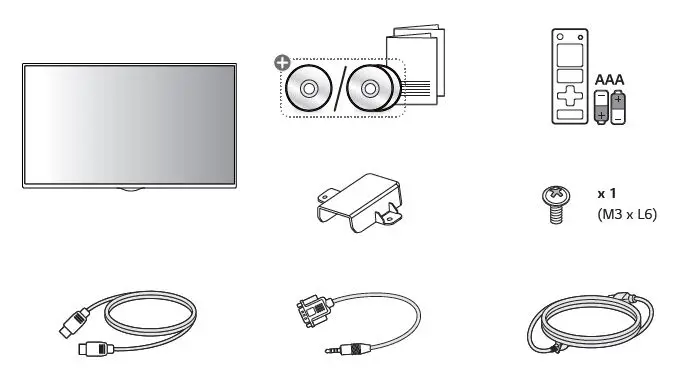

Checking the Accessories

Checking the Optional Accessories

In order to improve product performance, optional accessories are subject to change without prior notice. The illustrations in this manual may differ from the actual product and its accessories. Refer to the product manual for the components of the optional accessories.

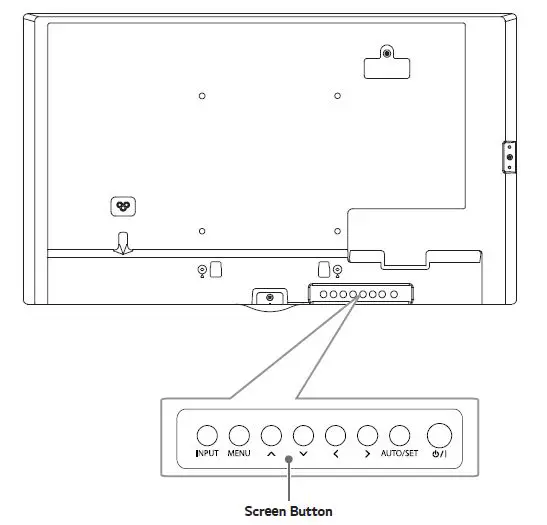

Learning the Buttons
The illustrations may differ depending on the model.

INPUT Changes the input signal.
MENU Opens the main menu or saves the input selection and exits the menu.
Adjusts up and down.
Moves left or right.
AUTO/SET Shows the signal and mode information currently set and allows the user to select a menu.
Turns the power on and off.

GETTING READY

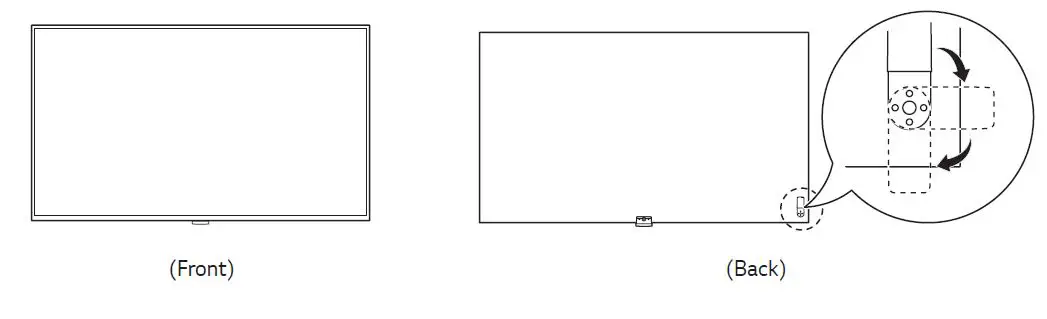

Connecting the IR Sensors
Connecting the cable to the product allows it to receive signals from the remote control. Rotate the IR sensor according to horizontal or vertical use. The illustrations may differ depending on the model.

Default Mount – Horizontal Use

Vertical Use

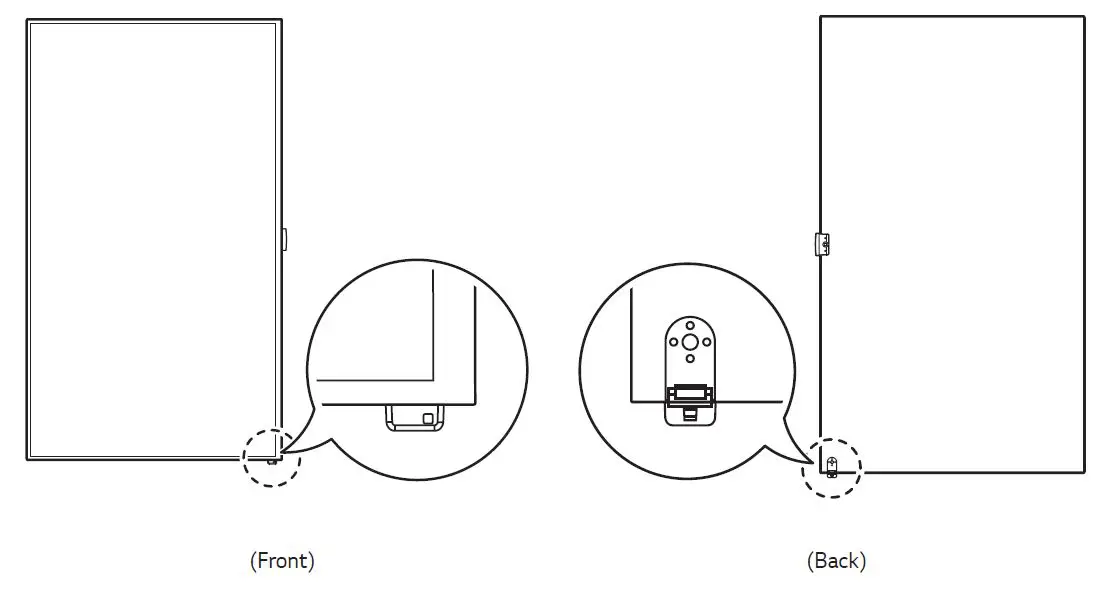

Mounting and Removing the LG Logo Bracket

Applies only to some models.
The illustrations may differ depending on the model.

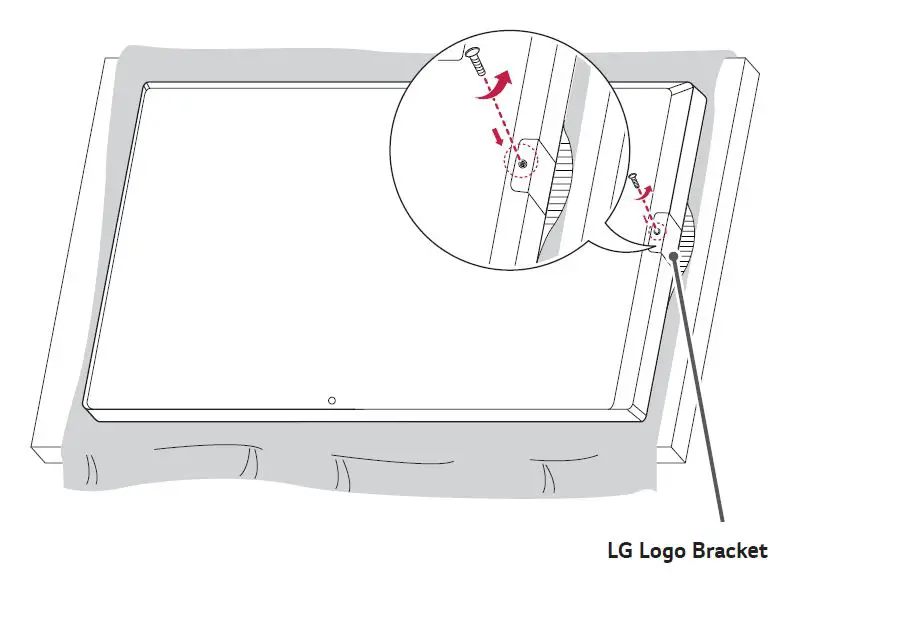

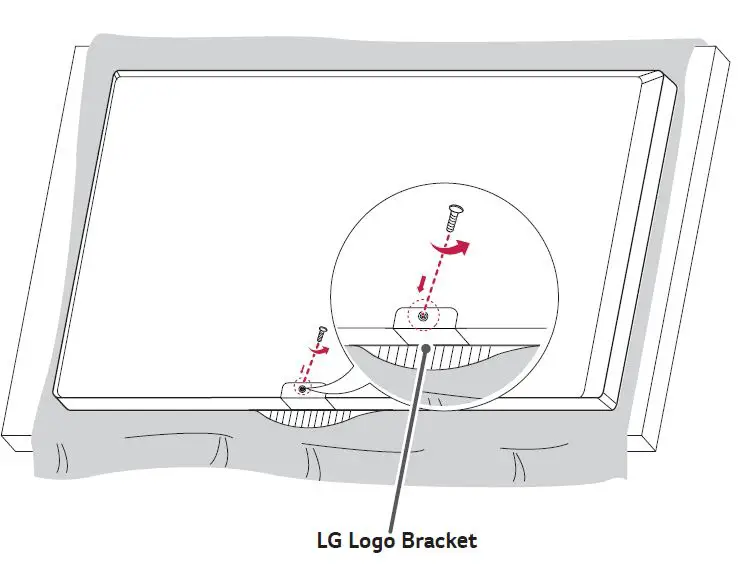

Removing the LG Logo Bracket
Place a clean cloth on the floor, and remove one screw from the LG logo bracket on the lower back of the monitor with a screwdriver.

Mounting the LG Logo Bracket on the Right
Screw the LG logo bracket into the hole on the right

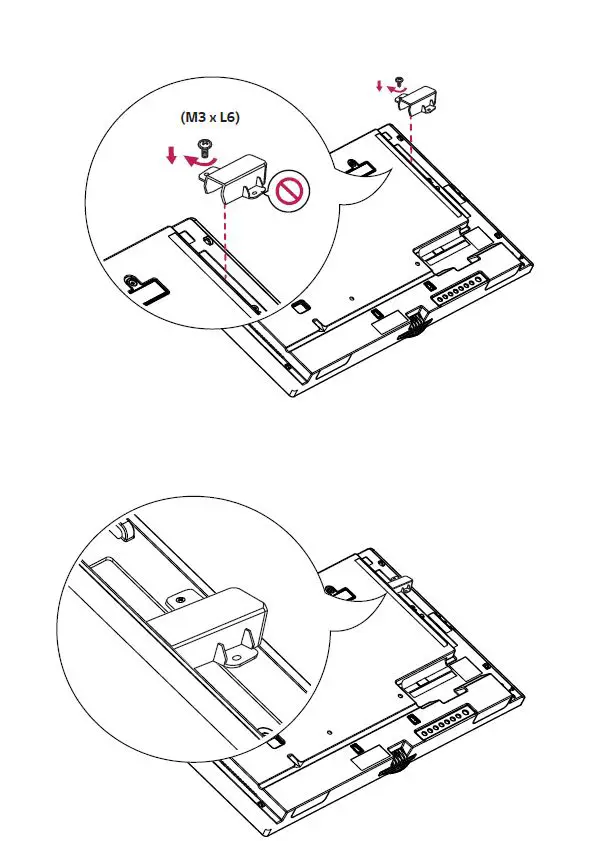

Assembling the Memory Cover

After attaching the USB memory, use a screw to assemble the cover, as shown in the illustration, to prevent theft.

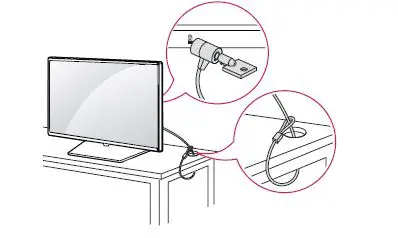

Kensington Lock Device

(This feature applies only to some models.) The Kensington lock device connector is located on the back of the monitor. For more information on installation and use, refer to the user manual provided with the locking device. Connect the Kensington security system cable between the monitor and a table.

NOTE

The Kensington lock device is an optional specification.
This is a general illustration of installation and may look different from the product held by the customer.

CHECKING BEFORE INSTALLATION

We are not responsible for product damage caused by failure to follow the guide.

Installation Orientation

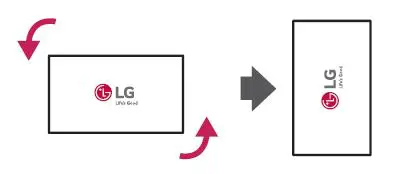

Using Vertically
When installing vertically, rotate the monitor 90 degrees anti-clockwise while facing the front of the screen.

Tilt Angle

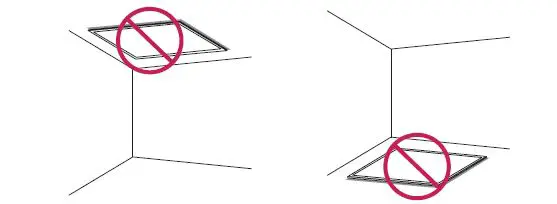

Ceiling, Floor Orientation

Installation Location

We are not responsible for product damage caused by failure to follow the guide.

Indoor

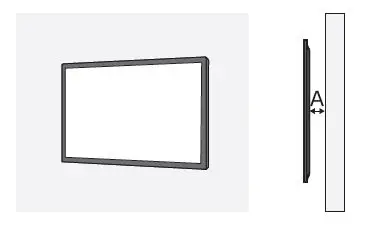

Installing on a Wall

A : 40 mm or more
The warranty will not cover any damage caused by using the product in direct sunlight on the front panel.

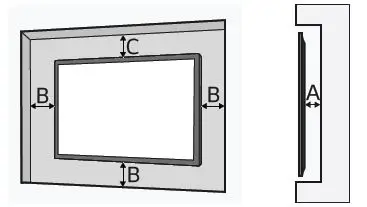

Installing on a Recessed Wall

A : 40 mm or more
B : 50 mm or more
C : 70 mm or more
The warranty will not cover any damage caused by using the product in direct sunlight on the front panel

Outdoor

Outdoor Enclosed

Wall Mount Holder

To install the monitor on a wall, attach a wall mount holder (optional) to the back of the monitor.
Take caution, and ensure that the wall mount holder (optional) is securely fixed to the monitor and to the wall.
The VESA dimensions of the wall mount by model are as follows
Model VESA Dimensions (A x B) (mm) Standard Dimensions Length (Maximum) (mm) Quantity
32SM5J 200 x 200 M6 21.3 4

CAUTION

Disconnect the power cord first, and then move or install the monitor. Otherwise, it may result in electric shock.
If the monitor is installed on a ceiling or inclined wall, it may fall and result in injury.
Damage to the monitor by tightening the screws too tightly may void your warranty.
Use screws and wall mount plates conforming to VESA standards. Breakage or personal injury due to use or misuse of inappropriate components is not covered by the warranty of this product.

NOTE

Using screws longer than the indicated depth may damage the inside of the product. Be sure to use the proper length.
For more information on installation, please refer to the user manual for the wall mount.

PRECAUTIONS FOR USE

Dust
The warranty will not cover any damage caused by using the product in an excessively dusty environment.

Afterimage

After-image appears when the product is turned off.
Pixels may be damaged rapidly if a still image is displayed on the screen for a long period of time. Use the screensaver function.
Switching from a screen with high differences in luminance (black and white or grey) to a darker screen may cause an afterimage. This is normal due to the display characteristics of this product.

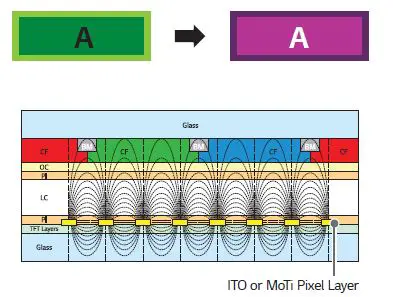

When the LCD screen is in a still pattern for extended periods of use, a slight voltage difference may occur between the electrodes that operate the liquid crystal (LC). The voltage difference between the electrodes increases over time and tends to keep the liquid crystal aligned in one direction. At this time, the previous image remains, which is called an afterimage.
Afterimages do not occur when continuously changing images are used but take place when a certain screen is fixed for a long time. The following are operational recommendations for reducing the occurrence of afterimages when using a fixed screen. The maximum recommended time for switching the screen is 12 hours. Shorter cycles are better for preventing afterimages.
Recommended Usage Condition
Change the background colour and text colour at equal intervals.
Afterimages occur less when the colours to be changed are complementary to one another.

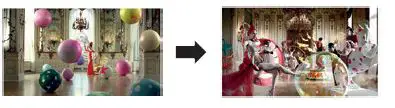

Switch the screen at equal time intervals.
Take caution, and ensure that text or images from before the screen change are not left in the same location after the screen change.

PRODUCT SPECIFICATIONS

Without prior notice, all product information and specifications contained in this manual are subject to change to improve the performance of the product.

Input/Output Ports	HDMI1, HDMI2, HDMI3, IR & LIGHT SENSOR, AUDIO OUT, LAN IN, RS-232 IN/OUT, USB 2.0 IN
Resolution	Recommended Resolution	1920 x 1080 @ 60 Hz (HDMI1, HDMI2, HDMI3)
Resolution	Max Resolution	1920 x 1080 @ 60 Hz (HDMI1, HDMI2, HDMI3)
Power Voltage	AC 100-240 V ~ 50/60 Hz 0.8 A
Environmental Conditions	Operating Temperature Operating Humidity	0 °C to 40 °C 10 % to 80 % (Condition for preventing condensation)
Environmental Conditions	Storage Temperature Storage Humidity	-20 °C to 60°C 5 % to 85 % (Condition for preventing condensation) * Product box packaging storage conditions
Audio	Input Sensitivity	0.7 Vrms
Power Consumption	On Mode	55 W (Typ.)
Power Consumption	Sleep Mode / Standby Mode	≤ 0.5 W

*Model Name*	*Size (Width x Height x Thickness) (mm)*		*Weight (kg)*
32SM5J	Head	729.4 x 428.9 x 55.5	5.7
32SM5J	Head + Stand	729.4 x 481 x 154.2	6.5

HDMI (PC) Support Mode

*NGLISH*	*Resolution*	*Horizontal Frequency (kHz)*	*Vertical Frequency (Hz)*	*Note*
	800 x 600	37.879	60.317
	1024 x 768	48.363	60
	1280 x 720	44.772	59.855
	1280 x 1024	63.981	60.02
	1680 x 1050	65.29	59.954
	1920 x 1080	67.5	60

HDMI (DTV) Support Mode

*Resolution*	*Horizontal Frequency (kHz)*	*Vertical Frequency (Hz)*	*Note*
480/60p	31.5	60
576/50p	31.25	50
720/50p	37.5	50
720/60p	45	60
1080/50i	28.1	50
1080/60i	33.75	60
1080/50p	56.25	50
1080/60p	67.432	59.94
1080/60p	67.5	60

*Wireless module (LGSBWAC92) Specifications*		*ENGLISH*
*Wireless LAN (IEEE 802.11a/b/g/n/ac)*
*Frequency range (MHz)*	*Output power (Max.) (dBm)*
2400 to 2483.5 5150 to 5725 5725 to 5850	18 18 12
*Bluetooth*
*Frequency range (MHz)*	*Output power (Max.) (dBm)*
2400 to 2483.5	8

As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table.
For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm between the device and the body.

Only Nigeria)
Connection and use of this communication equipment is permitted by the Nigerian Communications Commission.

(Only Hong Kong)

*Wireless module (LGSBWAC92) Specifications*
*Wireless LAN (IEEE 802.11a/b/g/n/ac)*
*Frequency range (MHz)*	*Output power (Max.) (dBm)*
2400 to 2483.5 5150 to 5350 5725 to 5850	18 18 12
*Bluetooth*
*Frequency range (MHz)*	*Output power (Max.) (dBm)*
2400 to 2483.5	8

As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table.
For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm between the device and the body.

(Only Vietnam)

*NGLISH*	*Wireless module (LGSBWAC92) Specifications*
	*Wireless LAN (IEEE 802.11a/b/g/n/ac)*
	*Frequency range (MHz)*	*Output power (Max.) (dBm)*
	2400 to 2483.5 5150 to 5350 5725 to 5850	17.5 17.5 12
	*Bluetooth*
	*Frequency range (MHz)*	*Output power (Max.) (dBm)*
	2400 to 2483.5	8

As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table.
For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm between the device and the body.

(Only Philippines)

*Wireless module (LGSBWAC92) Specifications*
*Wireless LAN (IEEE 802.11a/b/g/n/ac)*
*Frequency range (MHz)*	*Output power (Max.) (dBm)*
2400 to 2483.5 5150 to 5725 5725 to 5850	18 18 18
*Bluetooth*
*Frequency range (MHz)*	*Output power (Max.) (dBm)*
2400 to 2483.5	8

As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table.
For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm between the device and the body.
FCC ID: BEJLGSBWAC92 / IC: 2703H-LGSBWAC92

LICENCE

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. Manufactured under license from Dolby Laboratories. Dolby, Dolby Vision, Dolby Audio, Dolby Atmos, and the double-D symbol are trademarks of Dolby Laboratories.

Bluetooth

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by LG Electronics Inc. is under license. Other trademarks and trade names are those of their respective owners.
