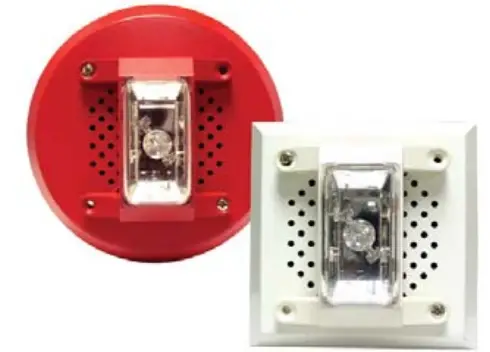

SFH47-75110 SPEAKER/SELECT-A-STROBE COMBINATION
FEATURES
- Designed to meet or exceed NFPA/ANSI standards and ADA accessibility guidelines
- UL Listed for ceiling or wall mount
- Field selectable taps from ¼ W – 2 Watts
- Available in 25V RMS and 70.7V RMS models
- Screw terminals capacity up to AWG12
- Two fi eld selectable settings, 75cd or 110 cd
- Polarized strobes with wide operating voltage range using fi ltered DC or unfi ltered FWR input voltage

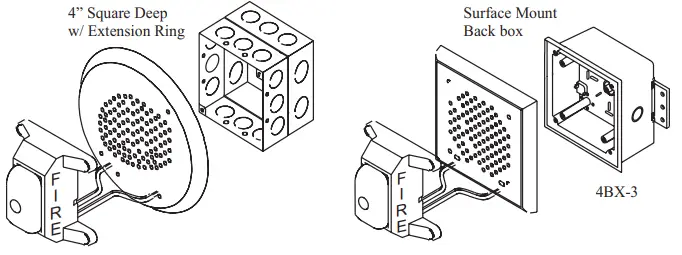

- Mounts to 4” square back box
- Tamper-proof candela selector switch
- Synchronization requires Sync Module (SMD10-3A)
- Available in red or white housing
DESCRIPTION
Amseco’s low profi le fi re alarm speakers are designed to generate attention grabbing tones and voice commands for emergency signaling evacuation applications. The SFH47-75110 Series are designed with the exclusive Select-A-Strobe, which features a unique candela intensity fi eld selector switch for alternating the candela output from 75cd to 110cd. The strobe housing is clearly labeled with vertical “FIRE” lettering. It is polarized for connecting to supervised fi re alarm circuits. The strobe is also designed with a xenon fl ash tube and provides a candela intensity fi eld selector switch for maximum performance. These highly effi cient speakers are available with fi eld selectable taps from ¼ W – 2 Watts. The speakers are available in two input voltage models of 25V RMS and 70.7V RMS.
The speaker/strobe can be synchronized by using the SMD10-3A Sync Module to comply with NFPA recommendations concerning photosensitive epilepsy when installing two or more visual appliances within the fi eld of view. The strobe signals are listed for indoor use, ceiling or wall mount, under UL 1971 standard.
Ordering Information
| Model Number | Stock Number | Housing Color | Grille Type | Voltage Rating (V RMS) | Input Voltage | Operating Voltage Range | Selectable Strobe Output (cd) | Selectable Wattage | Temperature Operating Range |
| SFH47-75110R-25S | 4650055 | Red | Square |
25 |
Regulated 24V DC/ FWR |
16-33V DC 16-33V FWR |
75 or 110 |
¼, ½, 1, 2 |
32°F – 120°F (0°C – 49°C) |
| SFH47-75110W-25S | 4650059 | White | |||||||
| SFH47-75110R-25R | 4650054 | Red | Round | ||||||
| SFH47-75110W-25R | 4650058 | White | |||||||
| SFH47-75110R-70S | 4650057 | Red | Square |
70.7 | |||||
| SFH47-75110W-70S | 4650061 | White | |||||||
| SFH47-75110R-70R | 4650056 | Red | Round | ||||||
| SFH47-75110W-70R | 4650060 | White |
Specifications
| Strobe Light | Maximum RMS Operating Current (mA) | |
| Regulated 24V DC (Typical) | Regulated 24V FWR (Typical) | |
| 75cd | 260 (190) | 368 (249) |
| 110cd | 387 (250) | 489 (320) |
| Under CAN/ULC 526 | ULC Current (mA) | |
| Regulated 24V DC | Regulated 24V FWR | |
| 75cd | 264 | 596 |
| 110cd | 324 | 732 |

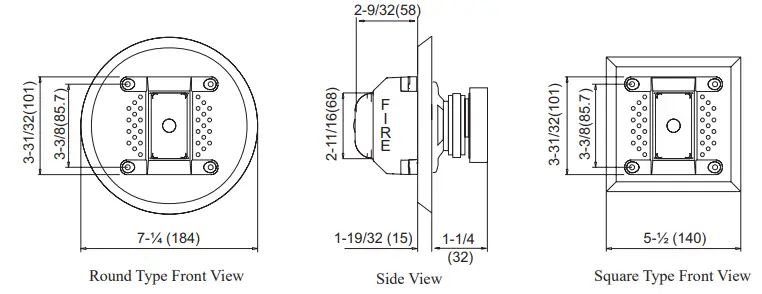

Dimensions

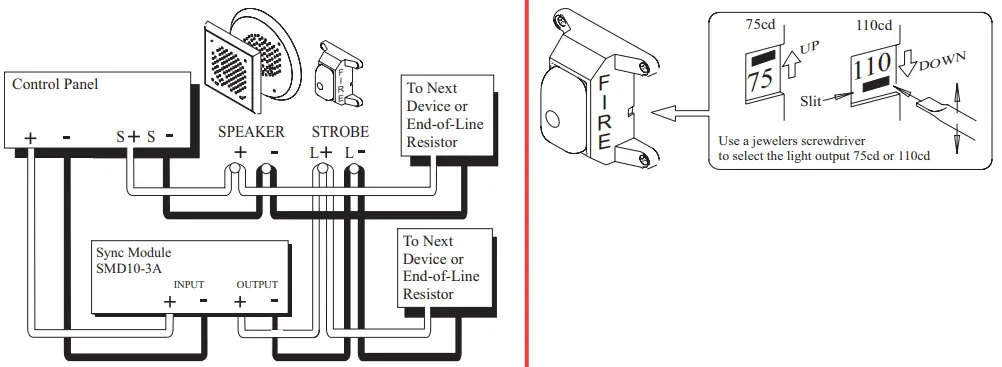

Wiring Diagram
Installation
| UL Required Minimum Light Output | Horizontal | Vertical | |||
| DEGREES | 75cd | 110cd | 75cd | 110cd | |
| 0 | 75.00 | 110.00 | 75.00 | 110.00 | |
| 5-25 | 67.50 | 99.00 | 67.50 | 99.00 | |
| 30 | 56.25 | 82.50 | 67.50 | 99.00 | |
| 35 | 56.25 | 82.50 | 48.75 | 71.50 | |
| 40 | 56.25 | 82.50 | 34.50 | 50.60 | |
| 45 | 56.25 | 82.50 | 25.50 | 37.40 | |
| 50 | 41.25 | 60.50 | 20.25 | 29.70 | |
| 55 | 33.75 | 49.50 | 16.50 | 24.20 | |
| 60 | 30.00 | 44.00 | 13.50 | 19.80 | |
| 65 | 26.25 | 38.50 | 12.00 | 17.60 | |
| 70 | 26.25 | 38.50 | 11.25 | 16.50 | |
| 75 | 22.50 | 33.00 | 9.75 | 14.30 | |
| 80 | 22.50 | 33.00 | 9.00 | 13.20 | |
| 85-90 | 18.75 | 27.50 | 9.00 | 13.20 | |
| Compound 45 | 18.00 | 26.40 | 18.00 | 26.40 | |
| Speaker Specifications | ||||||||
| Rated Input Voltage | 25V RMS | 70.7V RMS | ||||||
| Input Power (Watts) | ¼ | ½ | 1 | 2 | ¼ | ½ | 1 | 2 |
| Impedance (Ohms) | 2.5k | 1250 | 620 | 310 | 20k | 10k | 5k | 2.5k |
| Sound Pressure Level (dB/10ft) | 75 | 78 | 81 | 84 | 75 | 78 | 81 | 84 |
| Frequency Response | 400-4000 Hz | |||||||
| Low Frequency Cut-off | 200 Hz | |||||||
| Operating Temperature Range | 14°F – 140°F (-10°C – 60°C) | |||||||
WARNING
High voltage may be present inside the light assembly even though power is not connected. If access to the component board is required, the capacitor must be discharged by touching a wire to both ends of the fl ashtube. DO NOT attempt to touch or move the assembly until the capacitor has been discharged.
For indoor use only.
Engineering Specifi cations
The speaker and visual alarm indicating appliances shall be Amseco model SFH47-75110 or equivalent device. The speaker shall be listed under UL 1480 standard for audible and voice communications and shall be approved for fi re protective service. The fi re alarm speaker shall be capable of reproducing alarm tones or voice commands on 25V or 70V RMS. Speakers shall provide incremental tap settings of ¼, ½, 1, 2 Watts, and they shall have a frequncy range of 400 to 4000 Hz, and shall produce UL sound pressure level at 10 feet up to 84dBA. The strobe shall be listed under UL 1971 standard for signaling devices for the hearing impaired and shall be approved for fi re protection service. The candela output shall be fi eld selectable, having a dual setting 75cd or 110cd intensity output. The signaling strobe shall operate on 24V DC from a non-coded regulated DC supply or full-wave rectifi ed, unfi ltered supply. The strobe shall be designed to produce one signal fl ash per second with continuously applied minimum voltage. The speaker is capable of ceiling or wall mounting to a 4” x 4” deep back box. When strobe synchronization is required, the strobe shall be compatible with the Amseco SMD10-3A (daisy chain) or other source of Amseco sync protocol. Audible and signaling devices shall be installed in accordance with current NFPA guidelines.
