Orvibo S2 Smart Door Lock User Manual

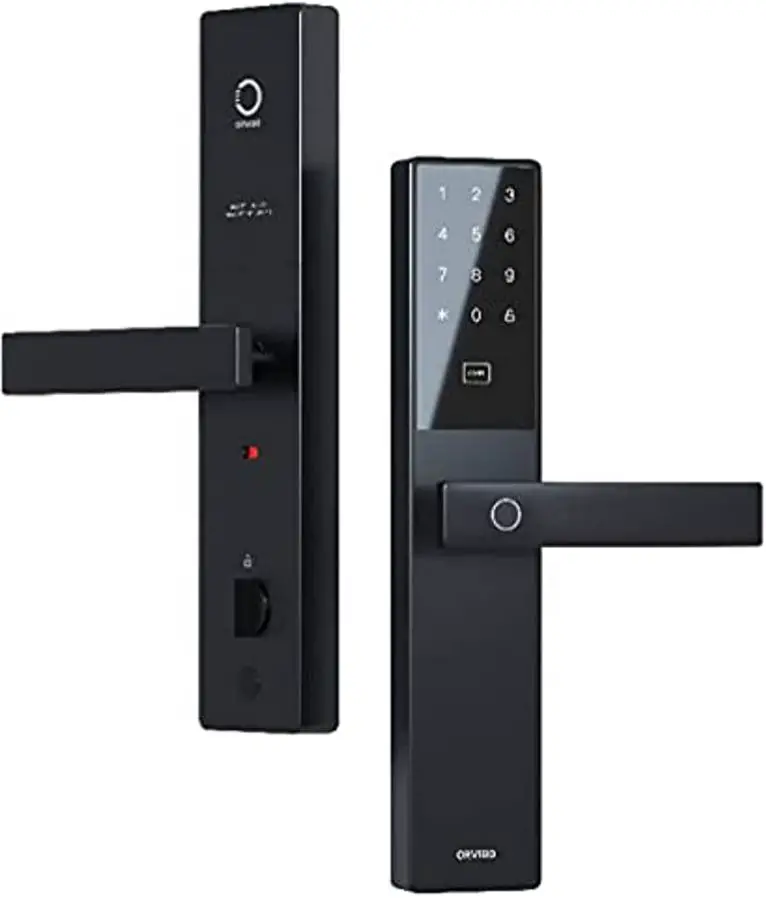

ORVIBO S2 Smart Door Lock

Special Attention:

1. Mechanical keys please keep outdoor, just in case keys lock in doors.
2. Please replace for the battery when low wattage alarm.
3. Reading this manual carefully before installation, and keep it for future reference.

Introduction

Lock structure

Packing List

Check the following drawing to check whether the package contains all the parts

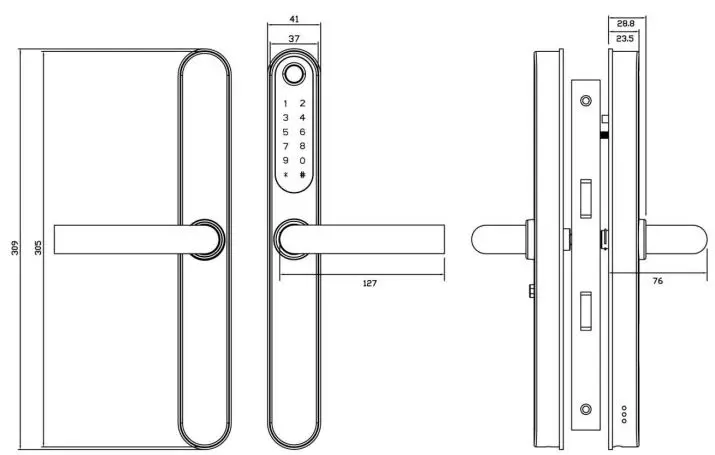

Specifications

System Initialization

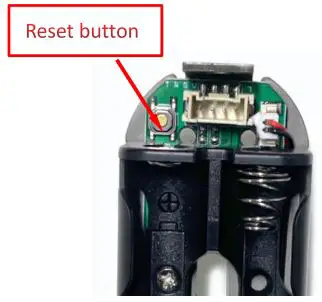

Open the cover plate of the front panel ,long press the “Reset” button on the back panel for 5s, press “000#”,and the initialization is complete

Replace Battery

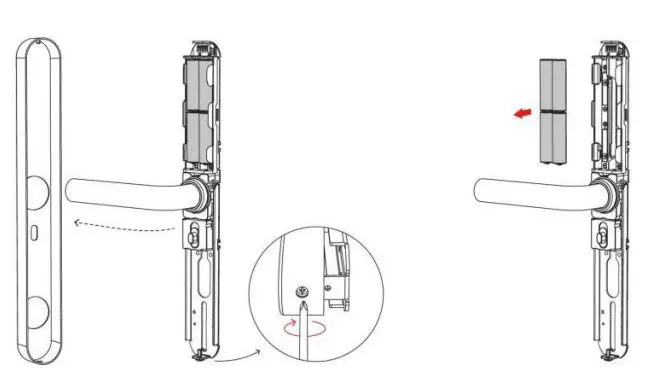

Loosen the screws at the bottom of the rear panel clockwise

Installation

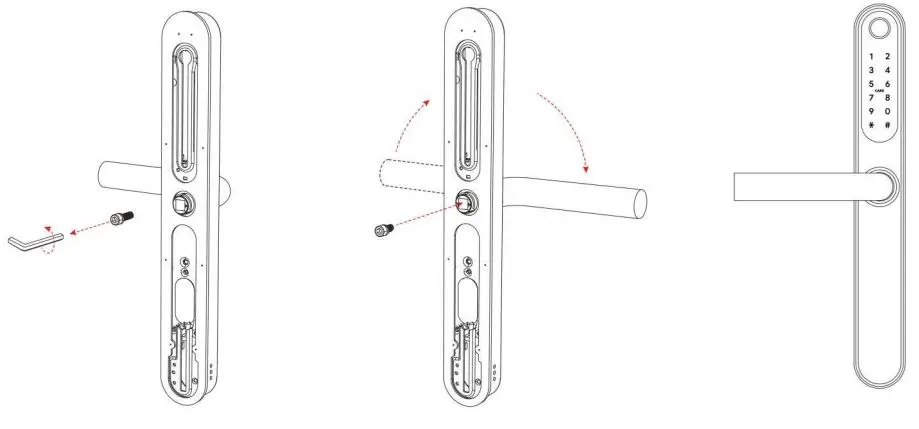

Turn the handle

Notice:  Adjust the handle according to the direction you open the door.

For Front Panel:

1. Turn the handle on the front panel loosen the screws on the handle counterclockwise
2. Remove the handle
3. After adjusting the direction of the handle insert it into the handle seat and re-lock the screw of the handle to the complete the turning

For Back Panel:

1. Turn the handle on the front panel loosen the screws on the handle
2. Remove the handle
3. After adjusting the direction of the handle insert it into the handle seat and re-lock the screw of the handle to the complete the turning

Installation Diagram(For 3585)

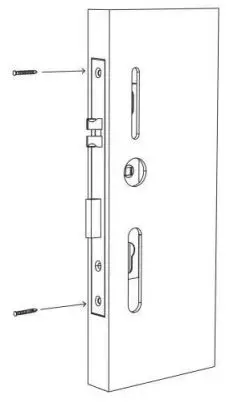

• Step 1 Install MortiseInsert the screw into the hole and fix it

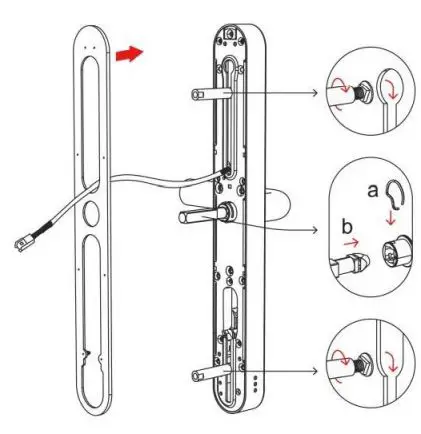

• Step 2 Install Sliding Screw Casing and Square Shaft
  1. Choose a screw column suitable for the thickness of the door install it on the front panel
  2. Install waterproof in alignment with the holes
  3. Install the square shaft, put on the U-Clip, The arrow is in the same direction as the handle
• Step 3 Install Front Panel Align the front panel of the installed accessories with the holes of the door and install
• Step 4 Install Back Panel
  Install another waterproof pad to the rear panel

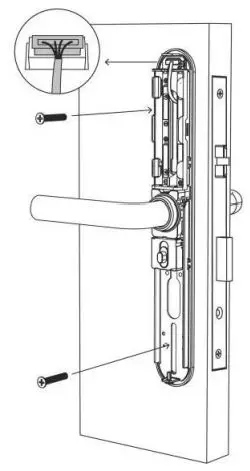

• Step 5 Connect Front and Back Panels Wires
  1. Fix the front and back panels with screws suitable for the thickness of the door
  2. Connect the front power cord to the back panel

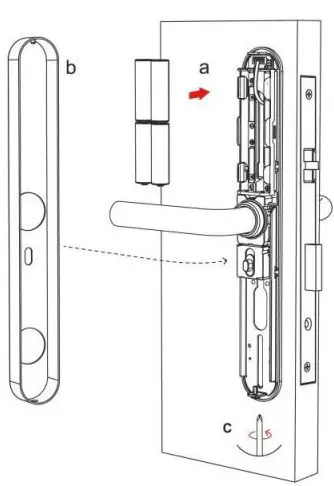

• Step 6 Install the Battery
  1. Install 4* AA batteries
  2. Install the battery cover

Operation

Registration

The software (iOS version) can be downloaded from the app store, and the Android versio n can be downloaded from the application store of Google play.

Connect lock to the phone

1. please scan the QR code to download the app
2. You can also search for TTLock in the APP store(Google Play)to download

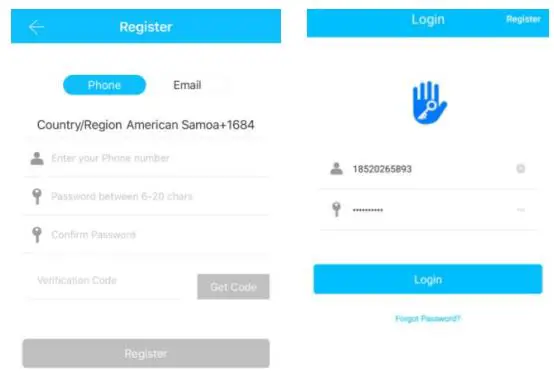

3. Register a new account (phone number or email) or login with an existing account.

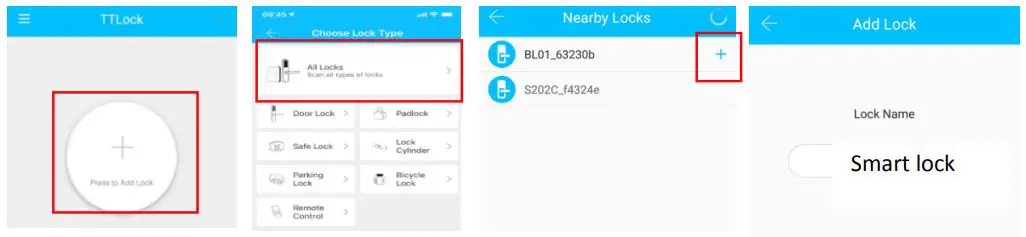

4. Touch the lock screen to light, click “+ Add Lock”
5. The lock nearby will appear on the phone screen, Click “+”
6. Re-name the lock
7. The lock added successfully
   TTlock users can register the account by mobile phone and Email which currently support 200 countries and regions on the world. The verification code will be sent to user’s mobile phone or email, and the registration will be successful after the verification.

Add locks
TTLock supports multiple types of lock devices. The lock needs to be added by the app after entering the add mode. Generally, a lock that has not been added, as long as the lock keyboard is touched, it will enter the add mode. The default password is 123456 if not added by the phone.

User Management

Bluetooth management
Make sure there is no problem with Bluetooth communication. After connecting the phone to the door lock as above, Click “ “to unlock.(the phone is within 5meters from the door lock)

Setting Passcode

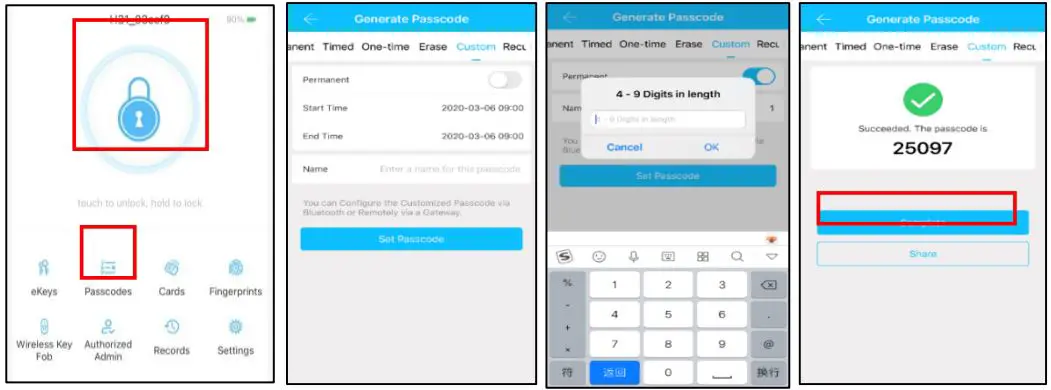

Passcodes are also a way to unlock. After entering the passcode on the locked keyboard, press the unlock button in the lower right corner to unlock. Passcodes are divided into permanent, time-limited, single, clear, cycle, and custom.(You can share the Passcode to other user via WeChat、SMS、Email、Messenger、WhatsApp)

Send e-Key

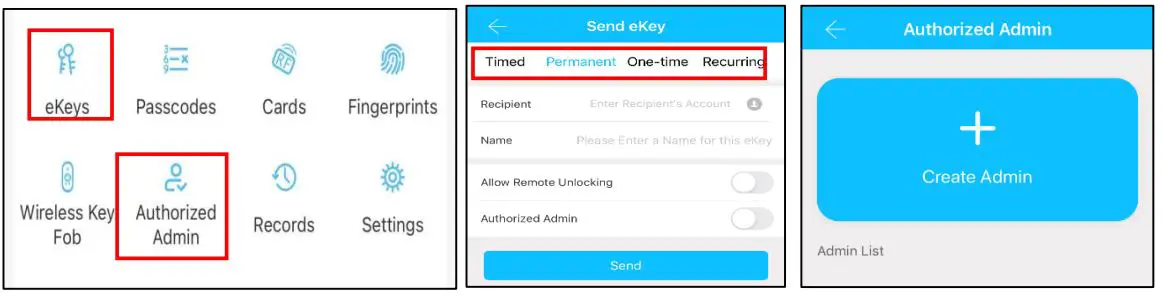

Click on the “ ” as shown in figure, you can send the eKey to other users of TTlock to authorize the unlock(the receiver must be download the APP and set up an account)→ Select e-key format (Timed, permanent, One-time, Recurring) → Enter recipient’s account of TTlock,set the name and effective time of the eKey, Can choose to allow remote unlocking or disallowing, authorized administrator or not authorized, as shown in figure →Send→The recipient’s account has Bluetooth unlock permission.

Add card
Supports opening doors through various IC cards. Before an IC card is used to open the door, it needs to be added first. The adding process needs to b e performed by the app beside the lock.The validity period of the IC can be set, it can be permanent, or it can be limited in time.

Add fingerprint

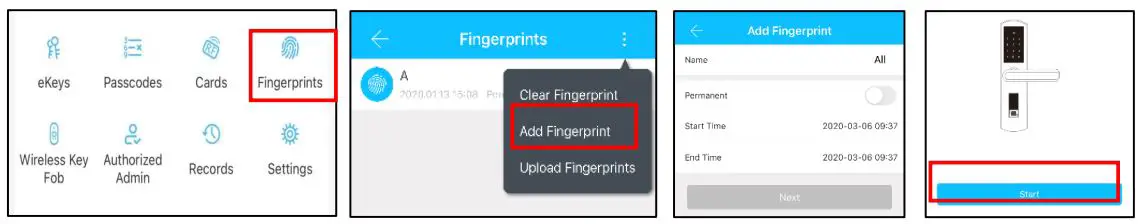

The premise that a fingerprint can be used to open a door is that it needs to be added first. The adding process needs to be performed by the APP beside the lock. The fingerprint expiration data can be set, it can be permanent, or it can be limited. After setting ,you can modify its validity period.

E-Key management

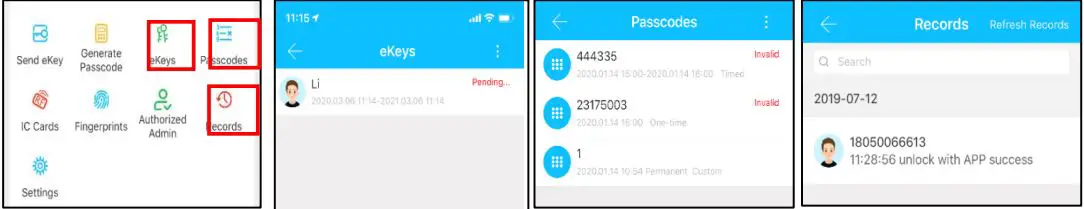

Click “ “ The manager can delete ekey, reset ekey, send and adjust the ekey,  meanwhile he can search the lock record.

Passcode management
Click “ ” .All generated passwords can be viewed and managed in the password management module. This includes a password change, password deletion, password reset, and password unlock record.

Unlock records

Click “ “you can query your unlock record as shown in figure

Gateway management(Optional)
The TT lock is directly connected via Bluetooth, that is why it is not attacked by the network. The gateway is a bridge between smart locks and home WIFI networks. Through the gateway, the user can remotely view and calibrate the lock clock, read the unlock record. Meanwhile, it can remotely delete and modify the password.

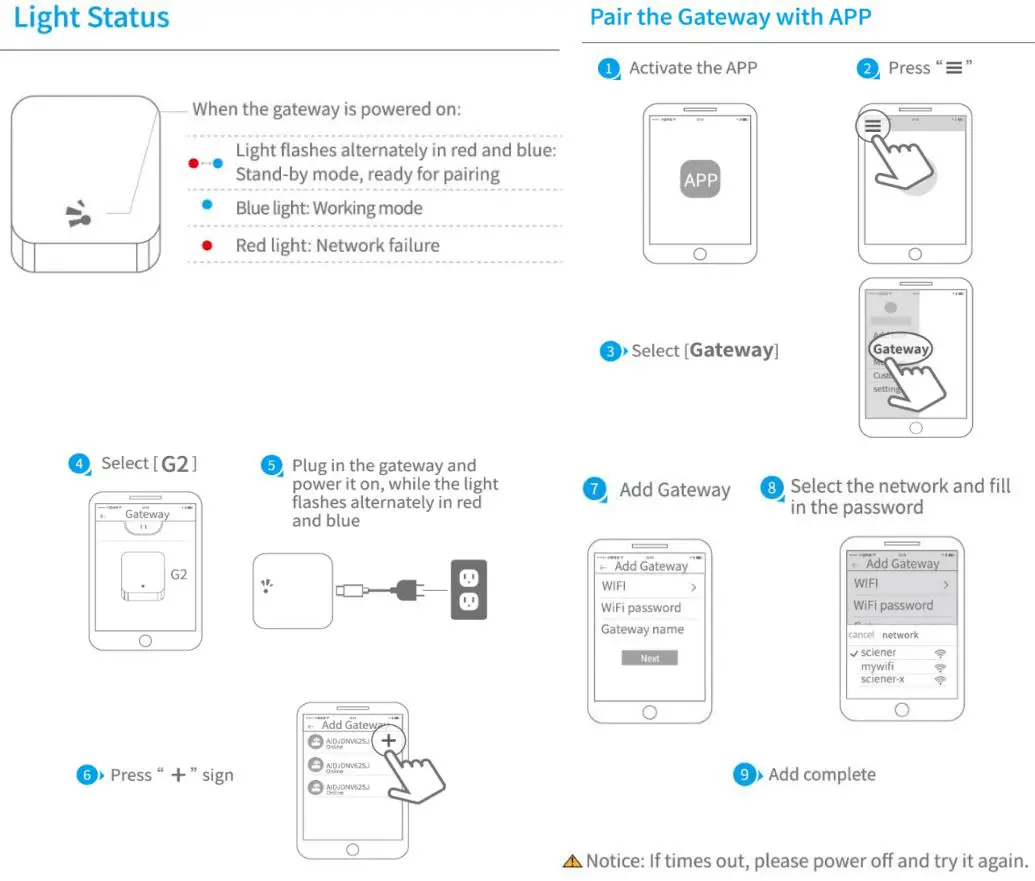

Add Gateway

Manual
After a short period of time, you can see which locks are in their coverage in the app. Once the lock is bound to the gateway, the lock can be managed through the gateway

FAQ

FCC

FCC WARNING
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
  To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum 20cm distance between the radiator and your body: Use only the supplied antenna.

Guarantee

• Customer Name：
• Customer Calls ：
• Purchase Date ：
• Product Name ：
• Product Model ：

Note:

1. Please keep this card so that you can use it when you need warranty service.
2. We provide you with a one-year warranty from the date of purchase.
3. This warranty service is valid for customers in any country in the world.
