ATU-620 Battery Operated Asset Tracking Device
Instruction Manual

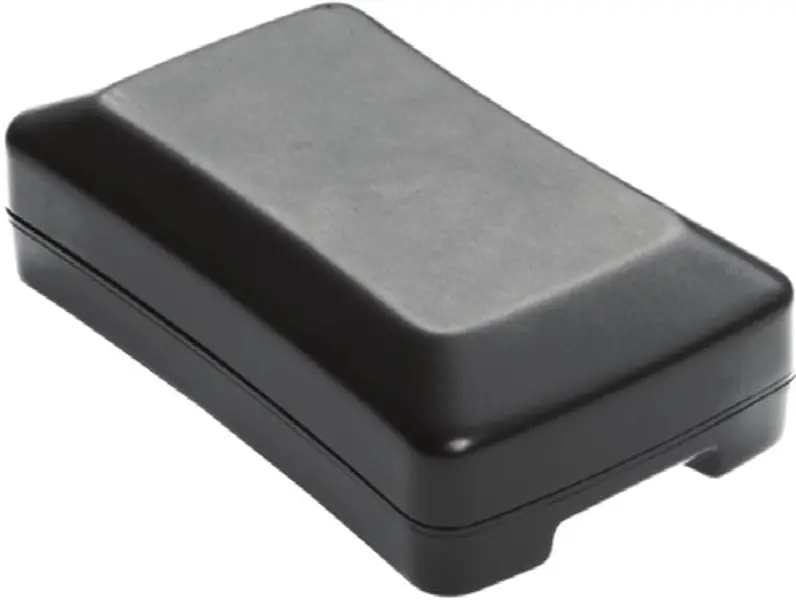

Battery Operated Asset Tracking Device
Field Replaceable AA Battery Operated Asset Tracking Device for Simple and Quick Installations
The ATU-620™ is a battery-operated asset tracking device engineered for reliable, long-term deployments. It is an ideal solution for managing assets in the field that requires nominal maintenance.
Technical Specifications
Cellular/Network
| Global Variant | |
| HSPA/UMTS | 900 (VIII)/800 (VI)/850 (V)/1700 (IV)/1900 (II)/2100 (I) MHz |
| GSM/GPRS | 850/900/1800/1900 MHz |
Data Support
SMS, UDP Packet Data
| Satellite Location (GNSS) | |
| Constellation Support | Hybrid GPS, SBAS Engine (WAAS, EGNOS, MSAS, GAGAN) |
| Channels | 50 Channel |
| Tracking Sensitivity | -162 dBm |
| Acquisition Sensitivity | -147 dBm |
| Location Accuracy | ~2.0m CEP Open Sky (GPS SBAS 24 hours static) |
| Certifications | |
| Industry Certifications | FCC, CE, IC, PTCRB, RoHS |
| Cloud/Software Services¹ | |
| PULS™ | Monitor, manage, upgrade firmware, configure and troubleshoot devices remotely |
| CTC | Device data stream via RESTful APIs |
| Edge Intelligence¹ | |
| PEG™ | Behavioral scripting (8-bit support) |
| Electrical | |
| Operating Voltage | 4.5V internal battery |
| Power Consumption | Typical <200μA @ 4.5V (deep sleep) Typical 122mA @ 4.5V (continuous transmit) Typical 38mA @ 4.5V (GPS only radio off) Typical 26mA @ 4.5V (radio only) Typical 26mA @ 4.5V (radio on with SMS and UDP) |
| Battery Pack | |
| Field replaceable AA batteries | |
| Battery Options | 3 or 6 (1.5V AA Alkaline Cells) |
| Environmental | |
| Temperature | -30° to +75° C (connected to primary power) -40° to +85° C (storage) |
| Humidity | 95% RH @ 50° C non-condensing |
| Shock and Vibration | U.S. Military Standards 202G, 810F, SAE J1455 |
| ESD | SAE J1113, FCC-Part 15B |
| Physical/Design | |
| Dimensions | 2.9 x 4.9 x 1.4” (74 x 124 x 36mm) |
| Weight | 11 oz. (325g) |
| Connectors/SIM Access | |
| GPS Antenna | Internal |
| Cellular Antenna | Internal |
| SIM Access | Internal (2FF SIM) |
¹ Subscription service enabled. Contact sales rep for additional details.
CALIFORNIA PROPOSITION 65
WARNING:
This product can expose you to chemicals including Carbon black and Nickel, which are known to the State of California to cause cancer, and Bisphenol A and 1,3-Butadiene, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
A620Q319DS V2
© 2020 CalAmp. All specifications are typical and subject to change without notice.
