Quick Reference Guide seca 480
RS-232 adapter box
for product combinations based on seca 651/650 and seca 655/654
from firmware version R1.4

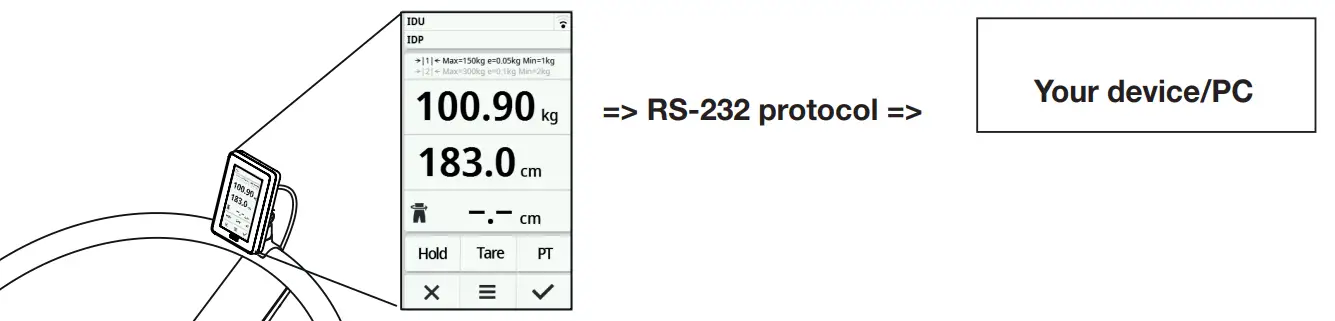

INTENDED USE

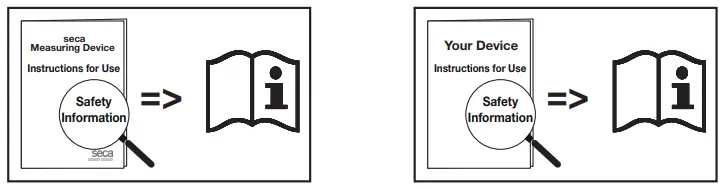

SAFETY PRECAUTIONS
WARNING! Injury from falls
► Route connecting cables in such a way that neither user nor the patient can trip over them.
CAUTION!
Patient hazard, damage to the device
Additional devices which are connected to medical electrical devices must provide evidence of compliance with the relevant IEC or ISO standards (e.g. IEC 60950 for data-processing devices). Furthermore, all configurations must comply with the requirements of standards for medical systems (see IEC 60601-1-1 or section 16 of edition 3.1 of IEC 60601-1 respectively). Anyone connecting additional devices to medical electrical devices is considered a system configured and is therefore responsible for ensuring that the system complies with the requirements of standards for systems. Your attention is drawn to the fact that local laws take precedence over the above-mentioned requirements of standards. In the event of any queries, please contact your local specialist dealer or Technical Service.

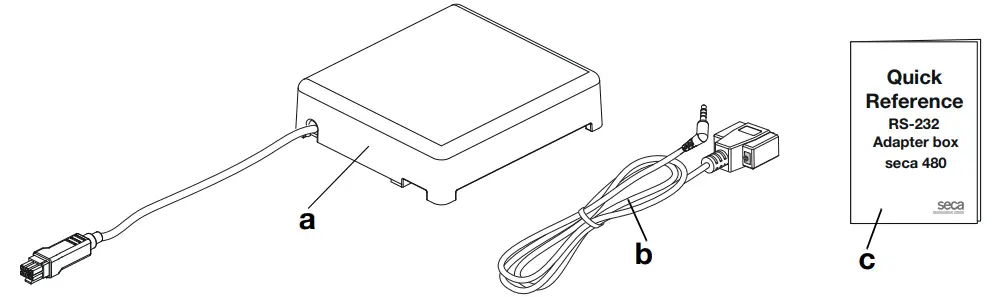

SCOPE OF DELIVERY
| Pos. | Pcs. | |
| a | RS-232 adapter box | 1 |
| b | • Standard: interface cable for PC • Option: Interface cable for dialysis system | 1 |
| c | Quick reference Note: The “RS-232 Specifications (G3E)“ Art.-No. 30-35-00-019 are also required for proper setup. The document is available from such Service or as a download from the Seca website (user account and password required) | 1 |

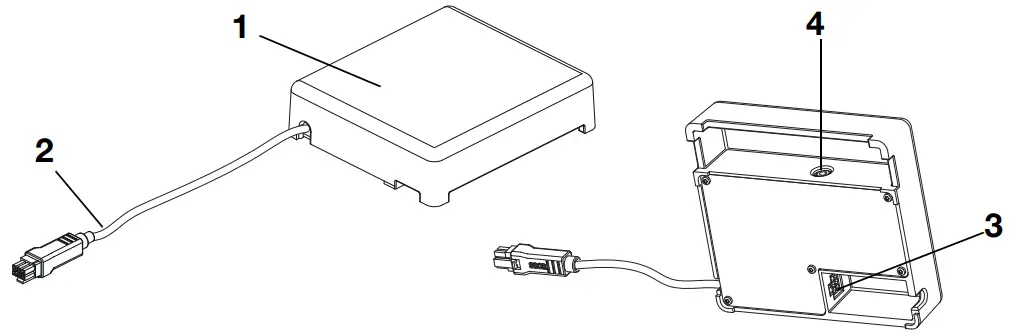

DEVICE OVERVIEW
| No. | |
| 1 | RS-232 adapter box |
| 2 | SDB input cable (SDB: seca Device Bus) |
| 3 | SDB output to display (for seca 651/650 only) |
| 4 | RS-232 output |
MARKINGS
| Symbol | Product |
 | Name and address of the manufacturer, date of manufacture |
 | Unique Device Identification |
 | Model number |
 | Serial number, consecutive |
| ProdID | Product identification number, consecutive |
| Mat.No | Variant number |
| TempRg | Temperature range for operation |
| IP21 | Type of protection in accordance with IEC 60529: • Protection against ingress of solid foreign bodies with a diameter of over 12.5 mm • Protection against access with fingers • Protection against drips |
 | The device conforms to EU directives |
 | Medical Device according to Regulation (EU) 2017/745 |
 | Do not dispose of devices with household waste |
 | Follow instructions for use |
| Packaging | |
 | Fragile. Do not throw or drop. |
 | Arrows indicate top of the product. Transport and store in an upright position. |
 | Protect from moisture |
 | Packaging material can be disposed of through recycling programs |
 | Permitted min. and max. temperature for transport and storage |
 | Permitted min. and max. moisture for transport and storage |
 | Permitted min. and max. air pressure for transport and storage |

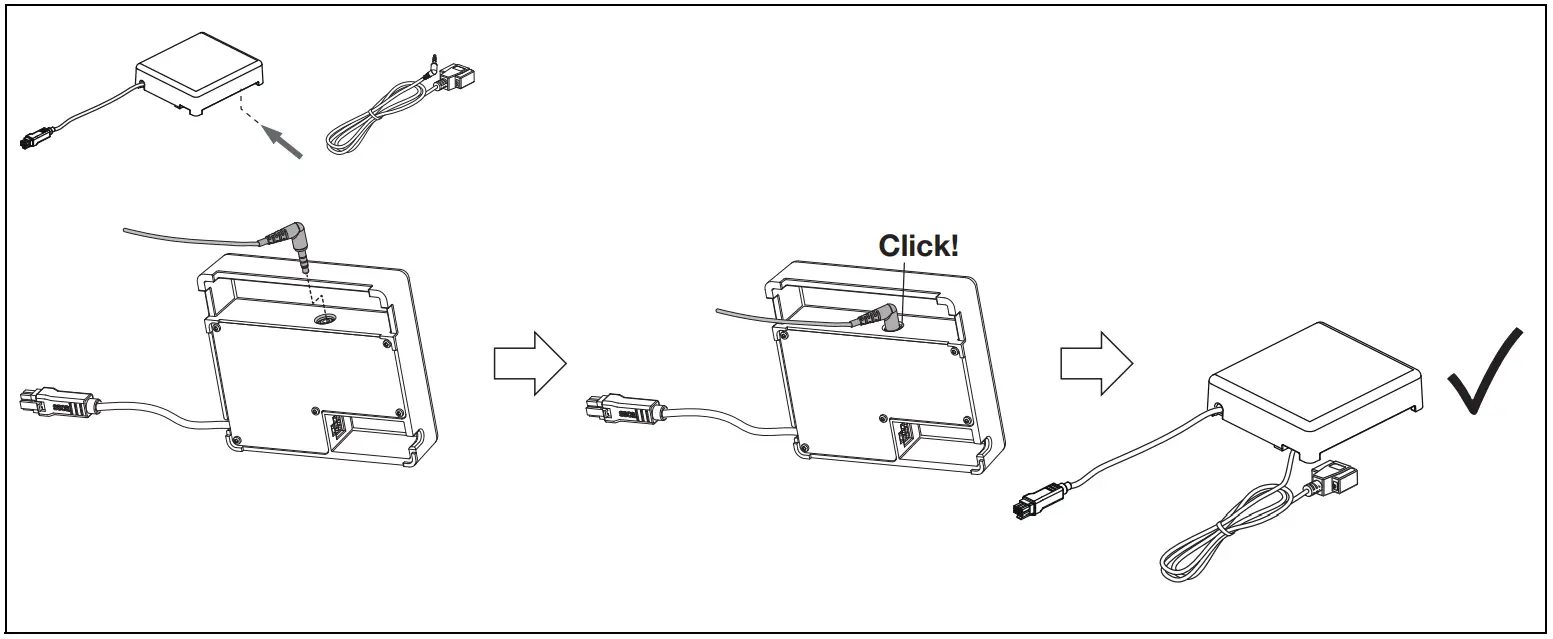

CONNECTING RS-232 CABLE

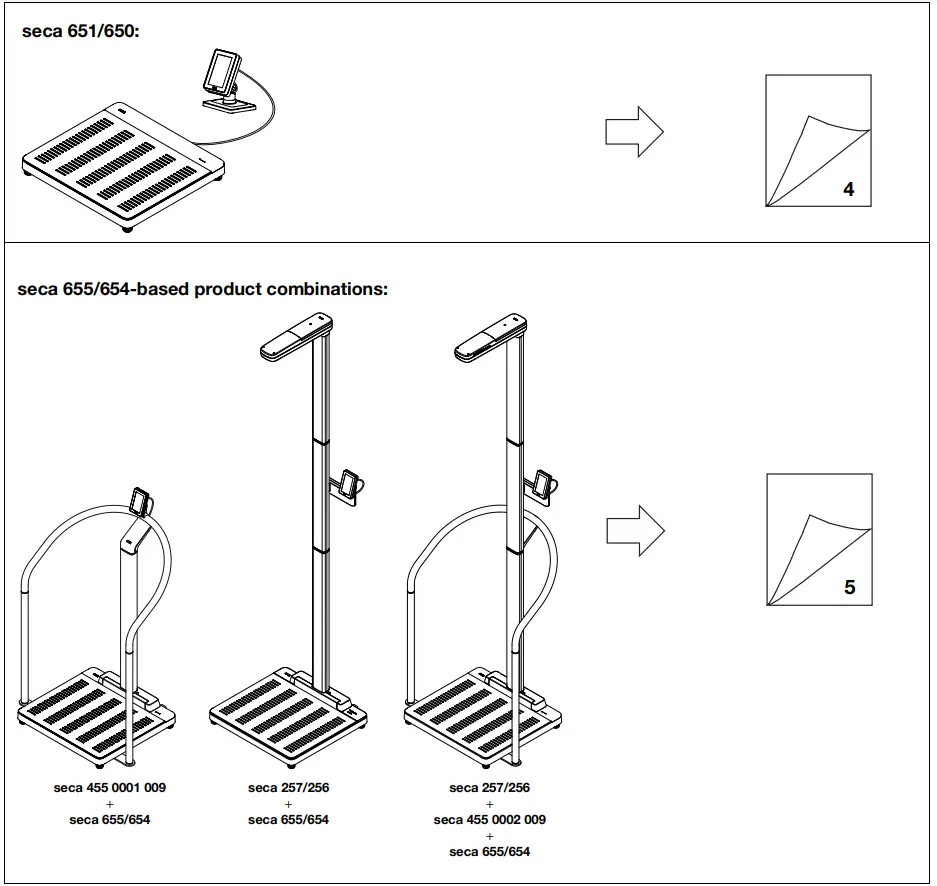

COMPATIBLE SCALES AND PRODUCT COMBINATIONS

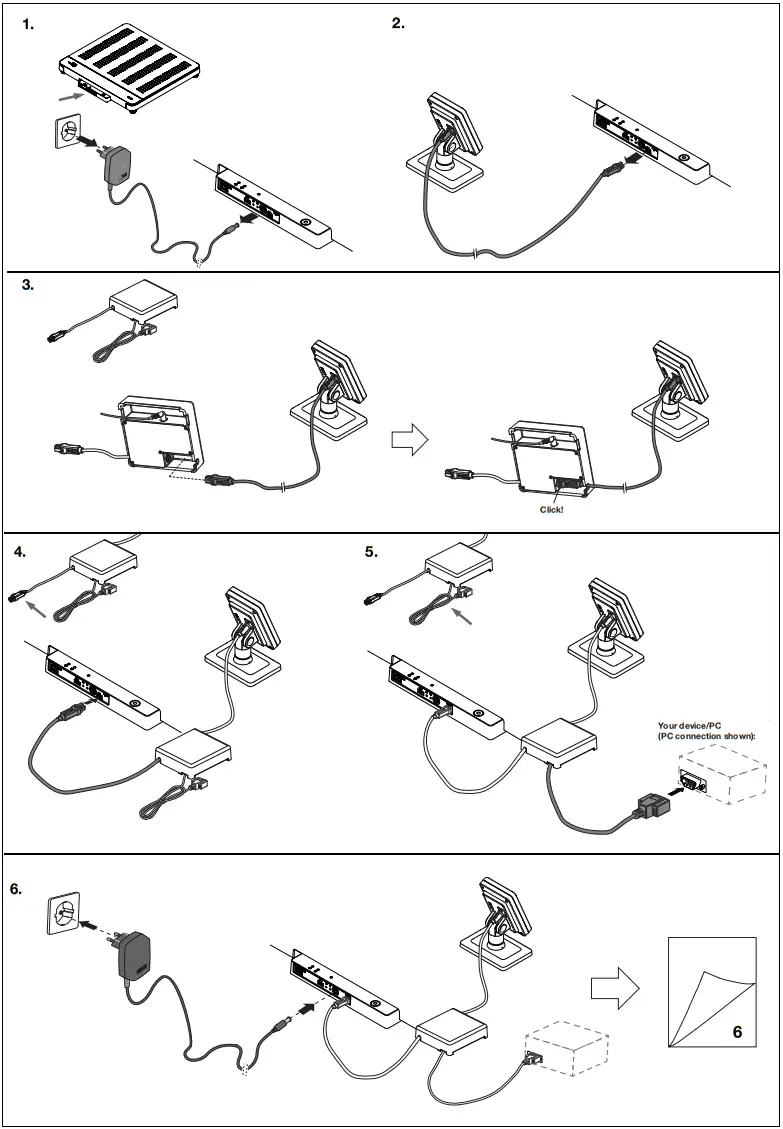

CONNECTING SECA 651/650

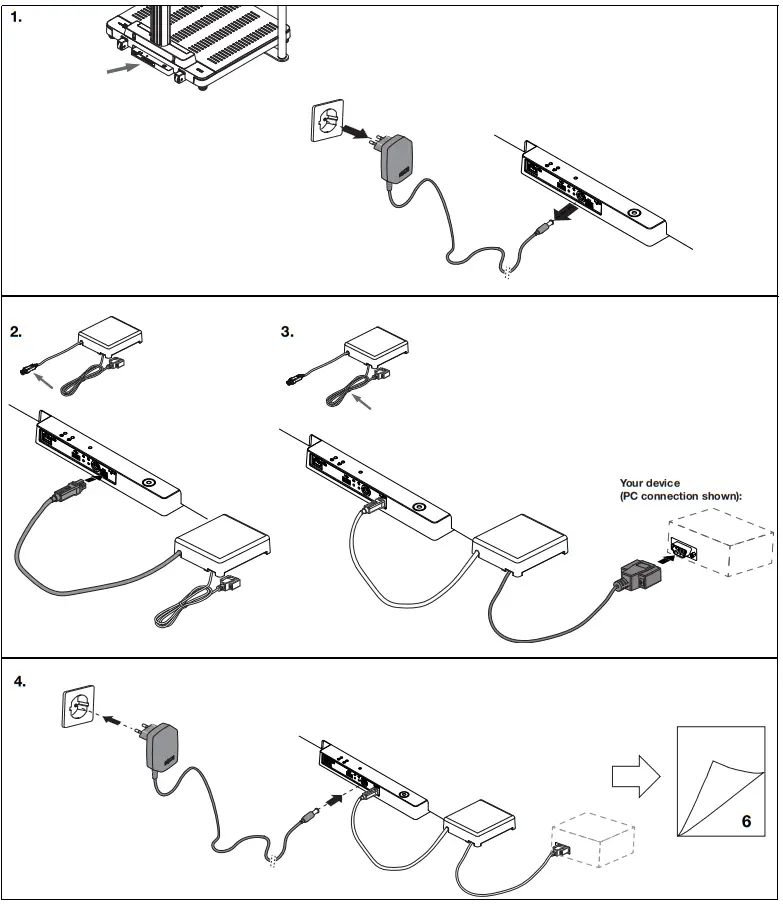

CONNECTING SECA 655/654-BASED PRODUCT COMBINATIONS

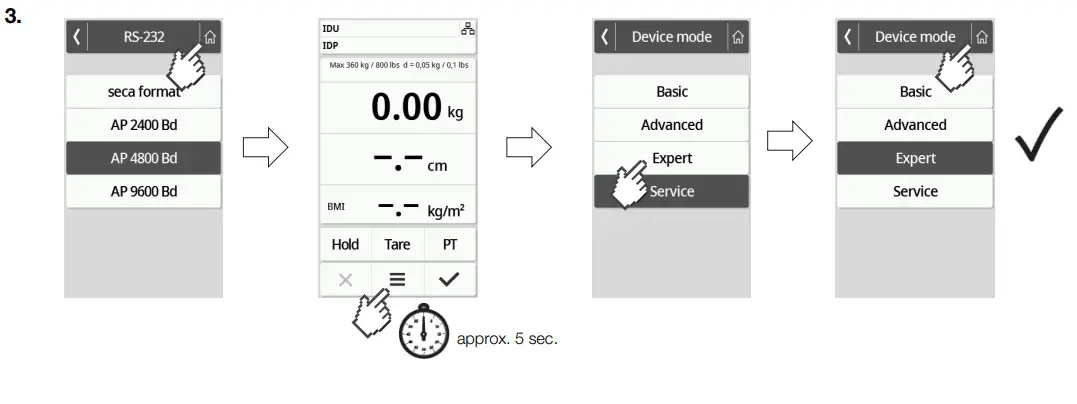

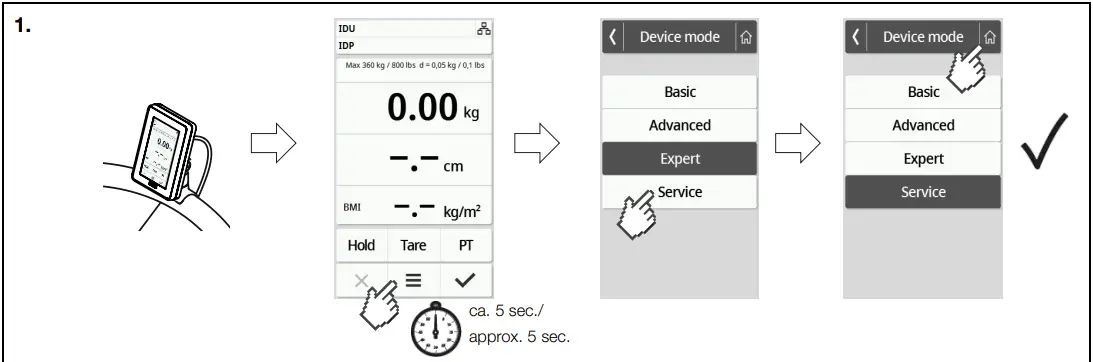

SETTING DATA FORMAT
NOTE:
The setting shown is an example. The required data format depends on the device/PC connected.
NOTE:
You can also select the device mode „Basic“ or „Advanced“ here. For details refer to the instructions for use of the measuring device.

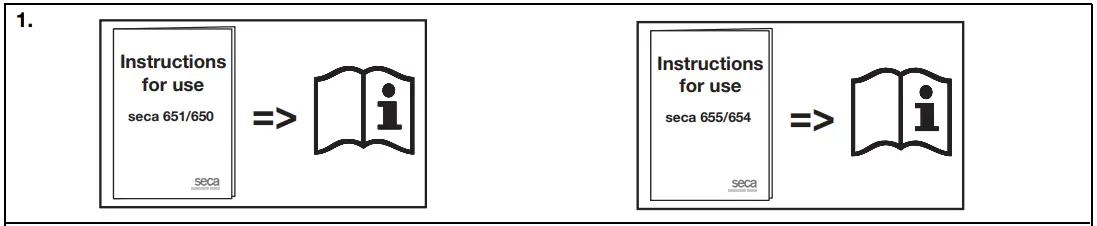

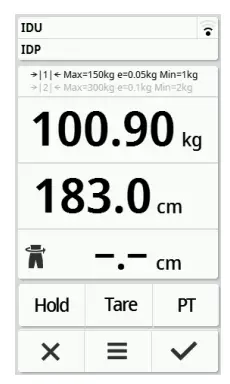

MEASURING
NOTE:
- When using the RS-232 adapter box, measuring results are displayed and transmitted in SI units only.
- Data transmission starts automatically as soon as stable measuring results are displayed.
HYGIENIC TREATMENT

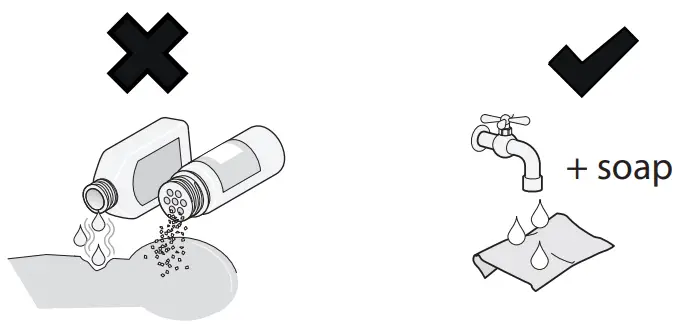

Cleaning
NOTICE:
► Do not use aggressive or abrasive cleaning agents.
► Use a soft cloth dampened with mild soapsuds to wipe down the device with it.

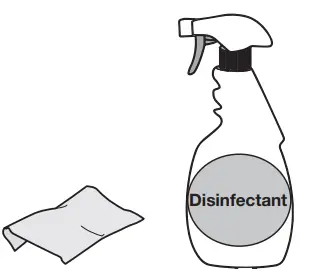

Disinfecting
NOTICE:
► Use alcohol-based disinfectant (e.g. 70 % ethanol) exclusively
► Follow the instructions on the disinfectant.
► Moisten a soft cloth with disinfectant and wipe down the device with it.
TROUBLESHOOTING
Entry RS232 not shown in scale menu:
• Scale still connected to power supply while connecting the adapter box
– Restart scale as described in corresponding instructions for use Measuring results are not transmitted:
• Faulty cable connections
– Check cables for damage
– Ensure that plugs clicked properly into place
• Faulty data connection
– Refer to instructions for use of device/PC connected
– Refer to “RS-232 Specifications (G3E)“ Art. No. 30-35-00-019
TECHNICAL DATA
| Dimensions •Length: •Width: •Height: | 110mm 100mm 29 mm |
| Weight: | 0.2 kg |
| Ambient conditions, operation •Temperature: •Air pressure: •Humidity | +10 °C to +40 °C 700 hPa – 1060 hPa 20%-80% no condensation |
| Ambient conditions, storage •Temperature: •Air pressure: •Humidity: •Warm-up time from lowest storage temperature to operational temperature – At ambient temperature 20 °C: – At ambient temperature 20 °C and with condensation: •Cooling time from highest storage temperature to operational temperature (at ambient temperature 20 °C) | -10 °C to +65 C 700 hPa – 1060 hPa 0% – 95 % no condensation 8 h 24 h 8 h |
| Ambient conditions, transport •Temperature: •Air pressure: •Humidity: | -10 *C to +65 °C 700 hPa – 1060 hPa 0%-95% no condensation |
| Power supply: | seca Device Bus |
| Type of protection in accordance with IEC 60529: | IP21 |
| Duty cycle: | Continuous Duty |
| A medical device in accordance with Regulation (EU) 2017/745: | Class I |
| Compatibility: •seca 474 •seca 651/650 •seca 655/654 | Firmware version 1.0 from Firmware version 1.4 from Firmware version 1.4 |
| Interlaces Adapter box: •SDB (Seca Device Bus) – Input – Output •RS-232: RS-232 cable: | 1 x cable with plug lx socket 3,5 mm jack socket 3,5 mm jack plug D-SUB plug (depending on variant: female/male) |
SPARE PARTS
| Interface cable for PC (3,5 mm jack plug/D-SUB plug, female): | 08-06-16-085 |
| Interface cable for dialysis system (3,5 mm jack plug/D-SUB plug, male): | 08-06-16-167 |
