Squiggles Stander af Leckey til børn

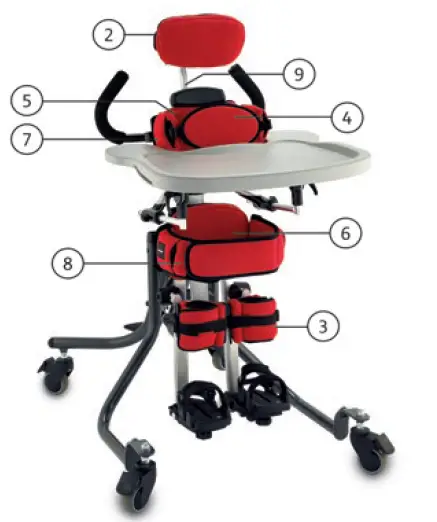

Squiggles+ Spare Parts – Covers
| Pos. | Leckey Sales Code | Description | Colour Options | |||
| (Replace XX with colour) | Blue | Purple | Red | Red Vinyl | ||
| 1 | 184-1800-XX | Full Cover Pack | -02 | -04 | -09 | -09VIN |
| 3 | 184-1820-XX | Knee Support [Pair] | -02 | -04 | -09 | -09VIN |
| 3 | 184-2820-XX | Knee Support [Pair] Size 2 | -02 | -04 | -09 | -09VIN |
| 4 | 184-1822-XX | Support Harness | -02 | -04 | -09 | -09VIN |
| 5 | 184-1824-XX | Chest Cushion | -02 | -04 | -09 | -09VIN |
| 6 | 184-1826-XX | Hip Cushion | -02 | -04 | -09 | -09VIN |
| 7 | 184-1828-XX | Chest Lateral Covers | -02 | -04 | -09 | -09VIN |
| 8 | 184-1836-XX | Pelvic Support Harness | -02 | -04 | -09 | -09VIN |
| 9 | 184-1838-XX | Spine Cap Cover | -02 | -04 | -09 | -09VIN |
Squiggles+ Spare Parts – Handlebar
| Pos. | Leckey Sales Code | Description |
| 1 | 184-621 | Push Handle Assembly |
| 2 | SF53 | Round Tube Insert [Single] |
| 3 | SF95 | Adjustable Handle |
| 4 | 118-154 | Extrusion Outer Cap |

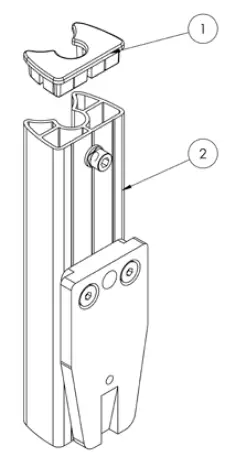

Squiggles+ Spare Parts – Outer Spine
| Pos. | Leckey Sales Code | Description |
| 1 | 118-154 | Extrusion Outer Cap |
| 2 | 184-610 | Outer Spine Assembly |

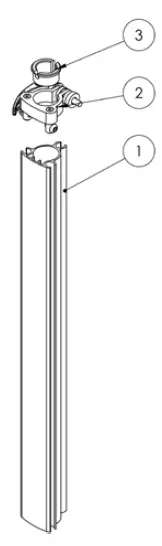

Squiggles+ Spare Parts – Inner Spine
| Pos. | Leckey Sales Code | Description |
| 1 | 184-611 | Inner Spine Assembly |
| 2 | 184-712 | Head Support Clamp Assembly SQ+ |
| 3 | 118-166 | Head Support Collar |

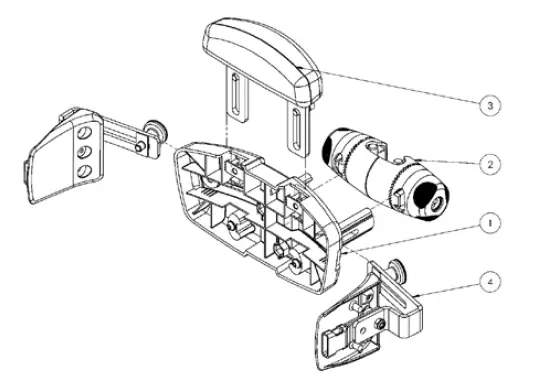

Squiggles+ Spare Parts – Chest Pad and Orb
| Pos. Leckey Sales Description Code | ||
| 1 | 118-663 | Chest Pad Assembly |
| 2 | 118-680 | Orb Assembly |
| 3
4 | 118-664
118-666 | Sternum Pad
Lateral Assembly [Single] |

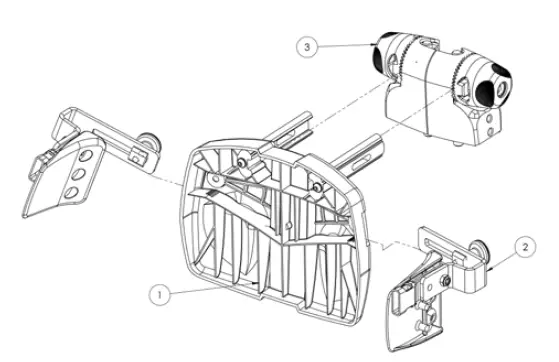

Squiggles+ Spare Parts – Knee Support
| Pos. | Leckey Sales Code | Description |
| 1 | 184-612 | Hip Pad Assembly |
| 2 | 118-666 | Lateral Assembly [Single] |
| 3 | 184-660 | Orb Assembly |

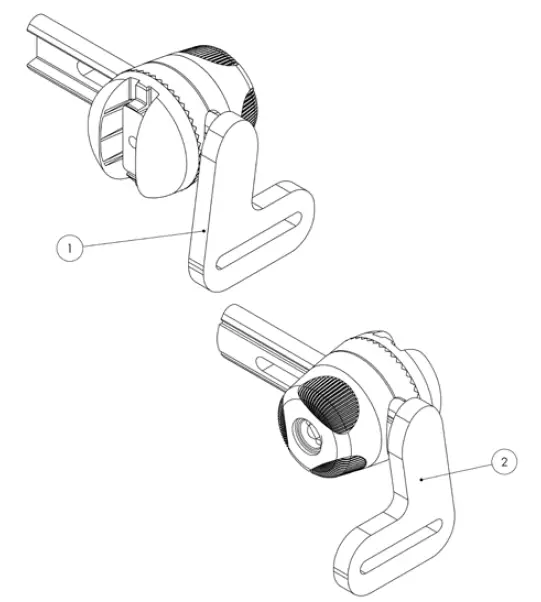

Squiggles+ Spare Parts – Knee Support
| Pos. | Leckey Sales Code | Description |
| 1 | 184-613-LHS | Knee Block Assembly Left |
| 2 | 184-613-RHS | Knee Block Assembly Right |

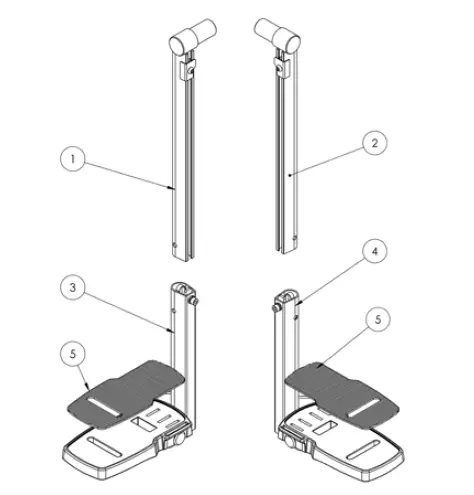

Squiggles+ Spare Parts – Footrest
| Pos. | Leckey Sales Code | Description |
| 1 | 184-692 | Calf Inner Support Assembly RH |
| 2 | 184-693 | Calf Inner Support Assembly LH |
| 3 | 184-654 | Calf Outer Support Assembly RH |
| 4 | 184-655 | Calf Outer Support Assembly LH |
| 5 | 117-156 | Footplate Rubber Matting (One Piece Only) |

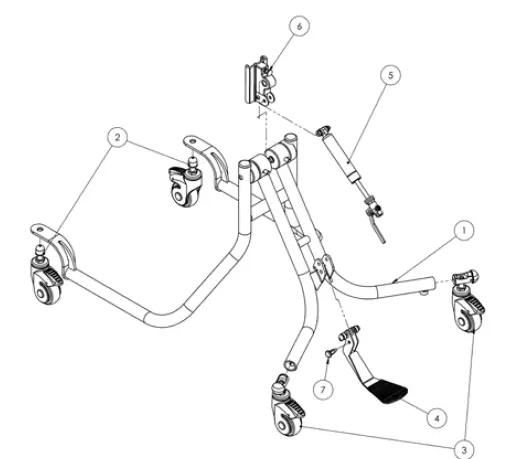

Squiggles+ Spare Parts – Pivot Chassis
| Pos. | Leckey Sales Code | Description |
| 1 | 188-764 | Pivot Chassis |
| 2 | 184-715 | Castor Assembly – Front [Pair] |
| 3 | 184-716 | Castor Assembly – Rear [Pair] |
| 4 | 184-625 | Pedal Assembly |
| 5 | 188-717 | Gas Spring Assembly |
| 6 | 118-713 | Pivot Interface Assembly |
| 7 | IA19 | Pull Pin [Single] |

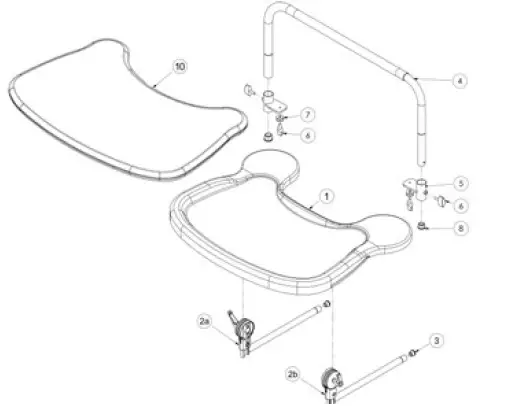

Squiggles+ Spare Parts – Tray
| Pos. | Leckey Sales Code | Description |
| 1 | 118-619 | Tray Assembly |
| 2a | 118-710 | Tray Depth Adjustment Assembly LH |
| 2b | 118-618 | Tray Depth Adjustment Assembly RH |
| 3 | SF51 | Round Tube Insert [Single] |
| 4 | 117-769 | Tray Grab Rail |
| 5 | 118-646 | Tray Grab Rail Height Adjuster [Single] |
| 6 | SF48 | Locking Key M6 [Single] |
| 7 | SI09 | M6 Washer [Single] |
| 8 | SF52 | 3/4″ Round Tube Insert [Single] |
| 9 | SF53 | 7/8″ Round Tube Insert [Single] |
| 10 | 120-270 | Padded Tray Insert |

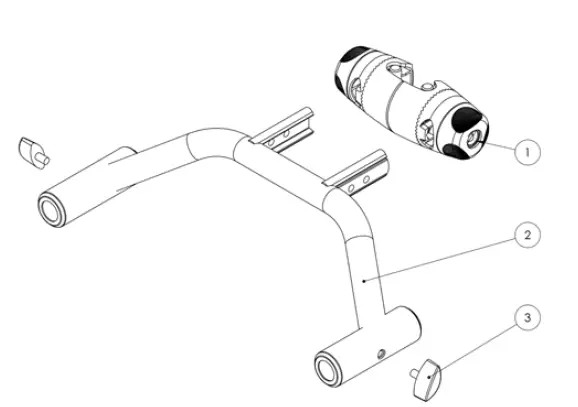

Squiggles+ Spare Parts – Tray Support
| Pos. | Leckey Sales Code | Description |
| 1 | 118-660 | Orb Assembly |
| 2 | 184-689 | Tray Horn Assembly |
| 3 | SF48 | Locking Key (M6x16) [Single] |
