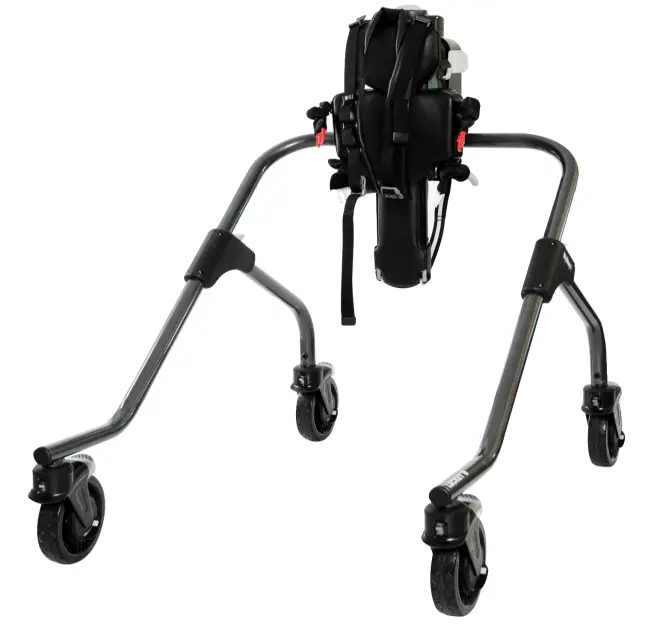

Leckey 173-1705 Myway+ Supportive Gait Training Walker User Manual

173-1705 MyWay+ Supportive Gait Training Walker
User Manual

Supporting Children

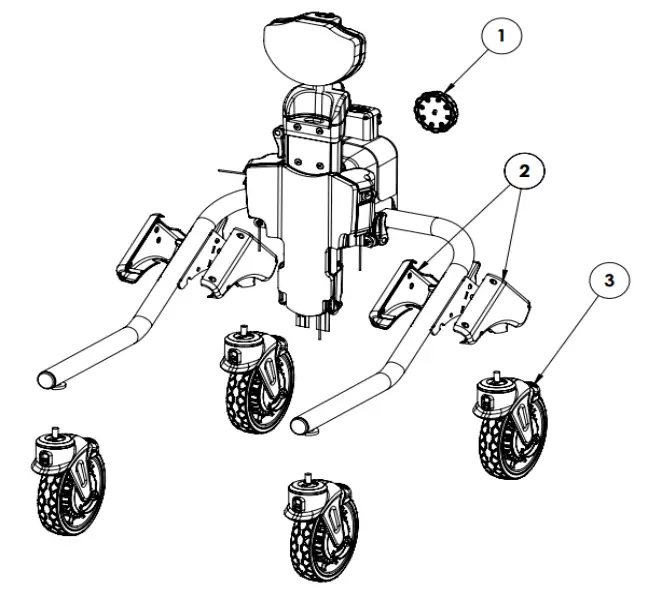

Main Frame

				Compatible with
Pos	Leckey Code	Description	Qty	Size 1	Size 2	Size 3
1	173-1705	Angle Wheel Asm	1
2	173-1706	Frame Moulding	1
3	209-1660	MyWay+ Castor	1

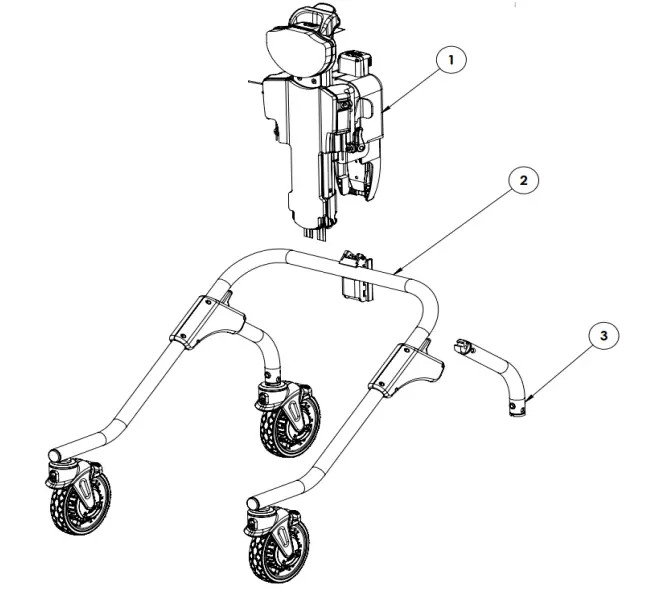

			Compatible with
Pos	Leckey Code	Description	Qty	Size 1	Size 2	Size 3
1	209-2788	S2 MyWay+ Spine	1
1	209-3788	S3 MyWay+ Spine	1
2	209-1787	S1 MyWay+ Chassis	1
2	209-2787	S2 MyWay+ Chassis	1
2	209-3787	S3 MyWay+ Chassis	1
3	209-1789	S1 Frame Leg Only	1
3	209-2789	S2 Frame Leg Only	1
3	209-3789	S3 Frame Leg Only	1

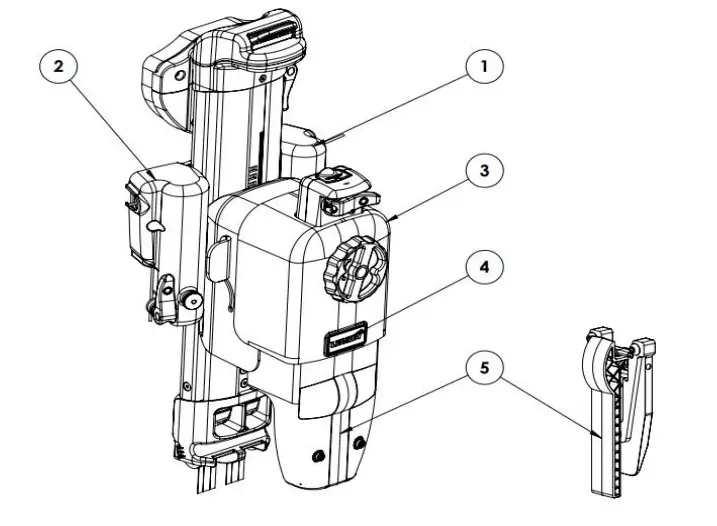

Moulding Covers

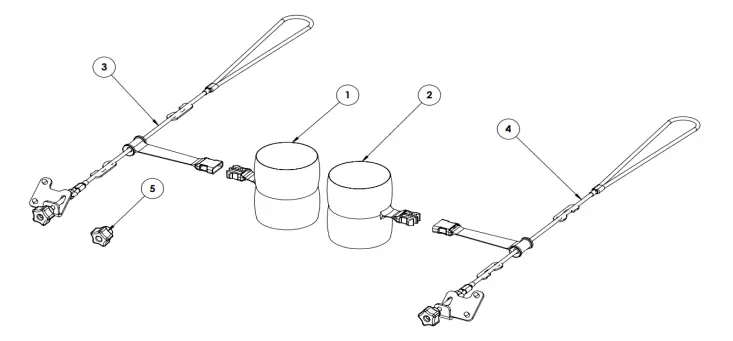

Ankle Guides

			Compatible with
Pos.	Leckey Code	Description	Qty	Size 1	Size 2	Size 3
1	209-1782	S1 RH Pulley Shroud (Cover Only)	1
1	209-2782	S2 RH Pulley Shroud (Cover Only)	1
1	209-3782	S3 RH Pulley Shroud (Cover Only)	1
2	209-1783	S1 LH Pulley Shroud (Cover Only)	1
2	209-2783	S2 LH Pulley Shroud (Cover Only)	1
2	209-3783	S3 LH Pulley Shroud (Cover Only)	1
3	209-1784	S1 Parallelogram Sliding (Cover Only)	1
3	209-2784	S2/S3 Parallelogram Sliding (Cover Only)	1
3	209-1785	S1 Parallelogram Sliding Cover Asm	1
3	209-2785	S2/S3 Parallelogram Sliding Cover Asm	1
4	IE901	Leckey Logo Sticker	1
5	209-1786	Rear Handle Lever Asm	1

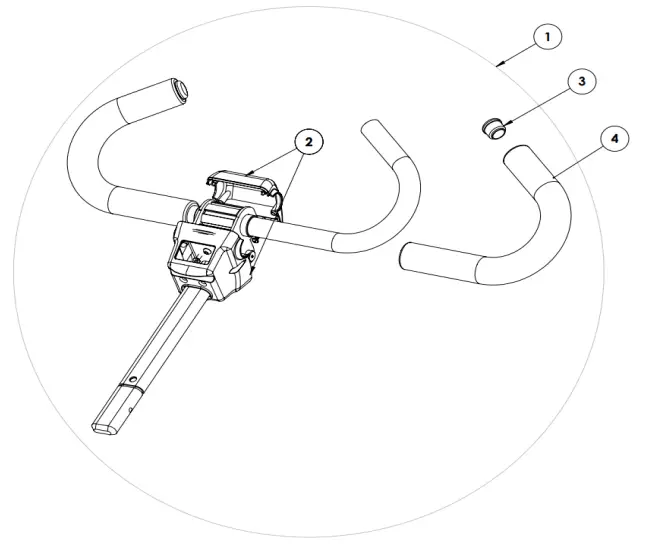

Adult Handle

			Compatible with
Pos.	Leckey Code	Description	Qty	Size 1	Size 2	Size 3
1	209-1691	S1 Adult Handle	1
1	209-2691	S2/S3 Adult Handle	1
2	209-1742	Adult Handle Covers	1 SET
3	209-1743	Adult Handle End Bungs	PAIR
4	SL114	Adult Handle Grip	PAIR

Basic User Handles

			Compatible with
Pos.	Leckey Code	Description	Qty	Size 1	Size 2	Size 3
1	209-1665	S1 RH Handle	1
1	209-2665	S2 RH Handle	1
1	209-3665	S3 RH Handle	1
2	209-1666	S1 LH Handle	1
2	209-2666	S2 LH Handle	1
2	209-3666	S3 LH Handle	PAIR
1 & 2	209-1667	S1 Handles	PAIR
1 & 2	209-2667	S2 Handles	PAIR
1 & 2	209-3667	S3 Handles	PAIR
3	209-1765	Top Bung	PAIR
4	SC891	End Bung	PAIR
5	SC879	Underside Bung	PAIR
6	SI49	Tubular Foam Sleeve

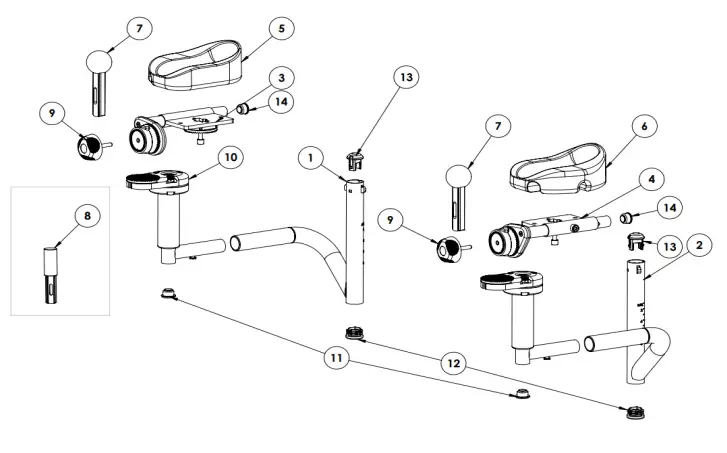

Complex User Handles

			Compatible with
Pos.	Leckey Code	Description	Qty	Size 1	Size 2	Size 3
1	209-1769	S1 RH Spine Tube Asm	1
1	209-2769	S2 RH Spine Tube Asm	1
1	209-3769	S3 RH Spine Tube Asm	1
2	209-1770	S1 LH Spine Tube Asm	1
2	209-2770	S2 LH Spine Tube Asm	1
2	209-3770	S3 LH Spine Tube Asm	1
3	209-1771	S1 RH Forearm Asm	1
3	209-2771	S2 RH Forearm Asm	1
3	209-3771	S3 RH Forearm Asm	1
4	209-1772	S1 LH Forearm Asm	1
4	209-2772	S2 LH Forearm Asm	1
4	209-3772	S3 LH Forearm Asm	1
5	209-1773	S1 RH Armpad Asm	1
5	209-2773	S2 RH Armpad Asm	1
5	209-3773	S3 RH Armpad Asm	1
6	209-1774	S1 LH Armpad Asm	1
6	209-2774	S2 LH Armpad Asm	1
6	209-3774	S3 LH Armpad Asm	1

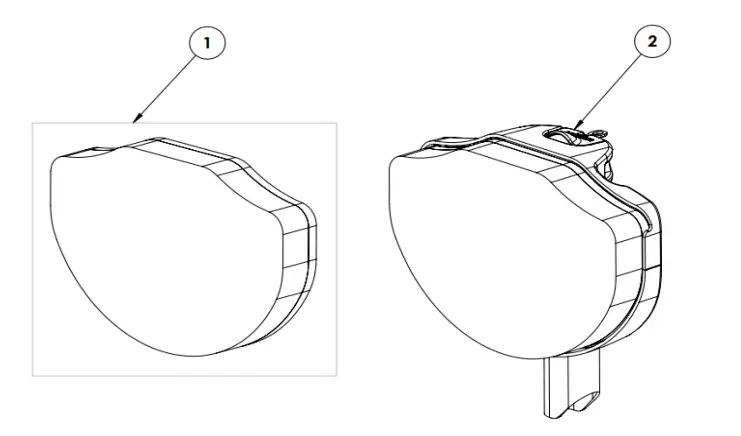

Headrest

			Compatible with
Pos.	Leckey Code	Description	Qty	Size 1	Size 2	Size 3
1	173-1683	Head Pad Asm	1
2	173-1710	Headrest Attachment Asm	1

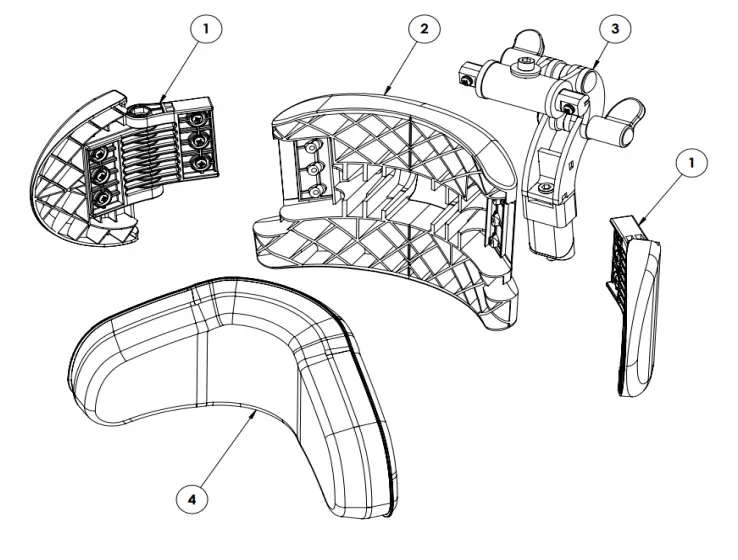

Complex Headrest

			Compatible with
Pos.	Leckey Code	Description	Qty	Size 1	Size 2	Size 3
1	150-5091	Headrest Wing	PAIR
2	150-5092	Headrest Central Moulding	1
3	209-1760	Headrest Attachment Asm	1
4	209-1761	Headrest Cover	1

Shoulder

			Compatible with
Pos.	Leckey Code	Description	Qty	Size 1	Size 2	Size 3
1	209-1790	S1 Shoulder Pad (Foam & Vinyl)	1
1	209-2790	S2 Shoulder Pad (Foam & Vinyl)	1
1	209-3790	S3 Shoulder Pad (Foam & Vinyl)	1
2	209-1791	S1 Shoulder Asm	1
2	209-2791	S2 Shoulder Asm	1
2	209-3791	S3 Shoulder Asm	1

James Leckey Design Limited has made every effort to ensure that the information contained in this document is accurate and up to date.
At the time of going to print, the information presented is accurate to the best of the company’s knowledge.
James Leckey Design Limited however, cannot accept responsibility for changes to product information after going to print.

James Leckey Design Limited
19 Ballinderry Road
Lisburn, BT28 2SA
Northern Ireland
leckey.com
Date of preparation:
(+44) 28 9260 0750
[email protected]

March 2023
