Enersys Wi-iQ Battery Monitoring Device
SPECIFICATION
- Protect assets and productivity
- Reduce unplanned downtime
- Cut Total Cost of Ownership (TCO)
- Optimize battery fleet operations
| Part No. | Battery | Current Sensor |
| 6LA20743-EOE | Flooded | SINGLE |
| 6LA20743-E3E | Gel, TPPL | SINGLE |
| 6LA20743-E1E* | All-With CAN | SINGLE |
| 6LA20743-E2E* | All-With CAN | DUAL |
INTRODUCTION

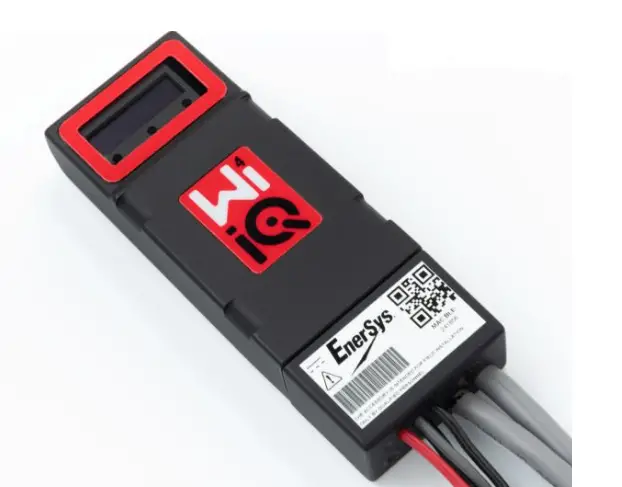

At the core of EnerSys® power management, the latest Wi-iQ® battery monitoring device features a slim design for easy installation on the battery harness and combines battery monitoring expertise with the latest in wireless communication. Featuring a LED display screen and integrated alarms, the Wi-iQ device issues visible and audible alerts when it’s time to charge the battery.
The Wi-iQ device communicates with remote sensors on the battery to capture and continuously share battery operating data via Bluetooth with all EnerSys battery operations management tools. By providing a real-time window into the early warning signs of battery abuse, the Wi-iQ battery monitoring device allows operators to identify and correct developing issues before they lead to premature battery failures and costly unplanned downtime.
THE HEART OF POWER MANAGEMENT
The Wi-iQ® battery monitoring device delivers the first step in the transformation of data into actionable intelligence that supports higher reliability and longer battery life. Along with storing all battery operating data on the device itself, the Wi-iQ device wirelessly communicates with our Truck iQ™ smart battery dashboard, our E Connect mobile app, EnerSys® modular chargers and Xinx™ battery operations management system.
Wi-iQ device captures and monitors key battery operating data:
- Amp-hours (AH) charged/discharged
- Temperature levels
- Voltage levels
- Electrolyte levels (via an optional external sensor)
Transform data captured by the Wi-iQ device into actionable intelligence with Wi-iQ and Xinx reporting systems. Enable your battery operation to achieve and sustain your productivity and profitability goals.
Display Guide
| Display | Comment | |
| SOC 100% | State of Charge | |
| 24.0V | VDC | |
| +21°C | Temperature | |
| 50A | Current (amps) | |
| Bluetooth | Connection to smartphone | |
| LED | Flash | Lit |
| Red | >55°C | >60°C |
| Orange | Warning DOD | Alert DOD |
| Blue | V unbalance | Low Electrolyte |
| All | Flash for normal operation | |
| Buzzer | Warning low SOC | Alert SOC |
 |  /20s |  /5s |
© 2021 EnerSys. All rights reserved. Trademarks and logos are the property of EnerSys and its affiliates except CE and and UKCA, which are not the property of EnerSys. Subject to revisions without prior notice. E.&O.E. EMEA-EN-PG-WiQ-0721
