Hunter 19729 Dukestown Light Wall Sconce Instruction Manual

Hunter 19729 Dukestown Light Wall Sconce Instruction Manual

Hunter logo

Dukestown
For Models:
19729/19730

1Light Wall Sconce
Fixture weight ±2 lbs:
Peso ±2 lb: Poids fixe ±2 lbs:
5.46 lbs (2.48 kg)

Hardware Service Kit

Part #: KG20601872
Model: 19729/19730
Finish: Natural Iron

Here are the tools you’ll need to complete your installation:

Hunter 19731 Dukestown Eight Light Pendant - fig2Hunter 19731 Dukestown Eight Light Pendant - fig3Hunter 19731 Dukestown Eight Light Pendant - fig4Hunter 19731 Dukestown Eight Light Pendant - fig5Hunter 19731 Dukestown Eight Light Pendant - fig6

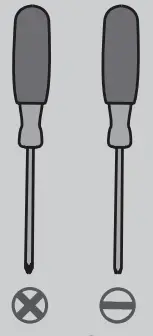

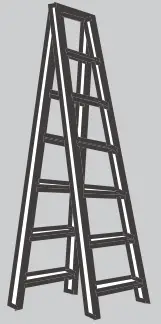

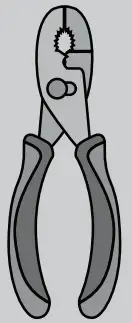

LadderScrewdriverPliersWire StrippersDrill

INSTALLATION INSTRUCTIONS

warning 2 WARNINGMAYTAG UMV1160CS Microwave Hood Combination - icon

  • To avoid possible electrical shock, before installing your light fixture, disconnect the power by turning off the circuit breakers to the outlet box associated with the wall switch location.
  • The lighting fixture must be grounded. If the ground wire for the installation site is not present, immediately STOP installation and consult a qualified electrician.
  • All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring or in doubt, consult a qualified electrician.

READ AND SAVE THESE INSTRUCTIONS
These instructions are provided for your safety. It is very important that they are read carefully and completely before beginning the installation of the lighting fixture.

PREPARING FOR INSTALLATION

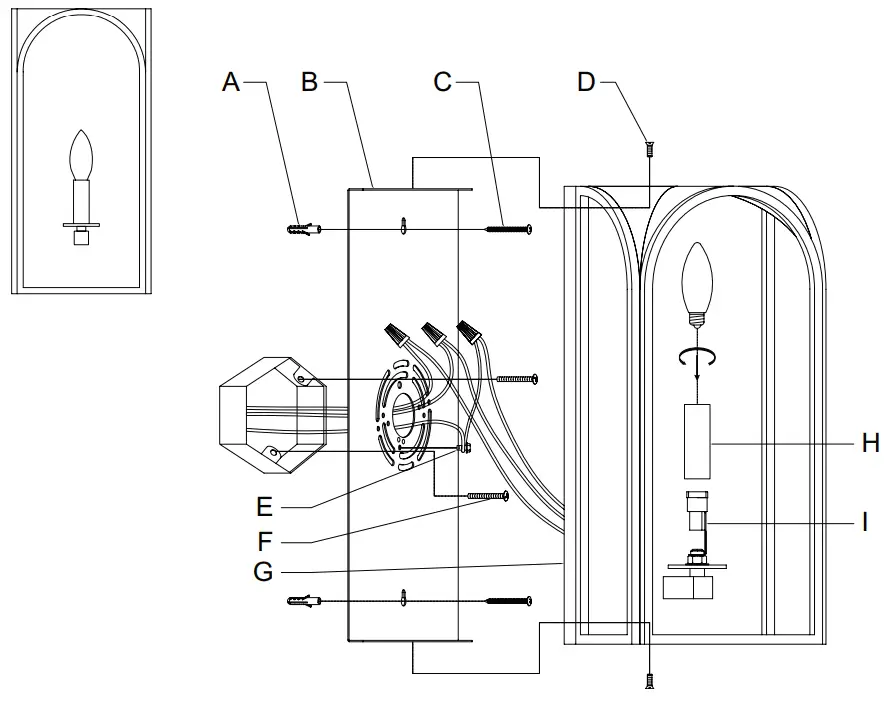

Carefully remove all contents from the carton. Shut off the power at the circuit breaker and completely remove the old fixture from the wall, including the old mounting bracket. Remove the new mounting bracket assembly from the bag. Then remove screws (D) from the top and bottom of the back plate (G). Put the drywall anchor (H) inside the hole in the wall. Secure mounting plate (B) to the junction box by tightening the screws (F) and then inserting the drywall screw (I) through the mounting plate (B) into the drywall anchor (H). Pull the house wires through the center of the mounting plate (B).

Hunter 19729 Dukestown Light Wall Sconce - fig1

CONNECTING THE WIRES

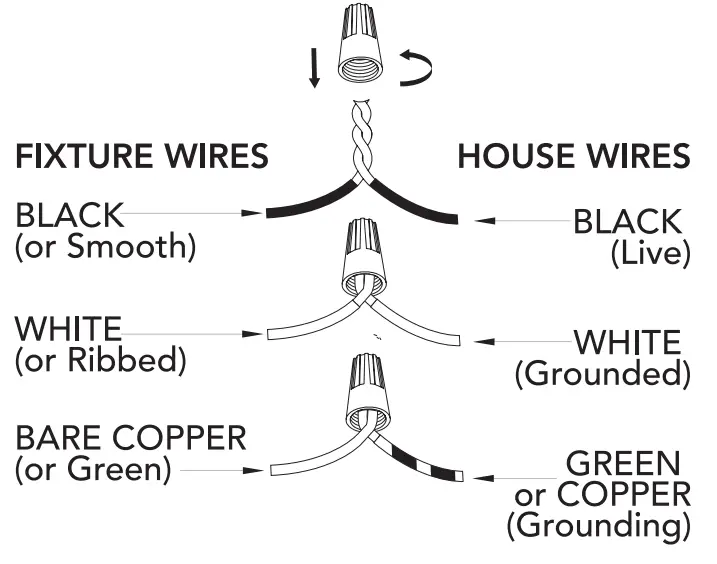

Have a helper support the fixture’s weight while completing the wiring. Attach the fixture’s wires to the power supply wires from the junction box. Connect black to black (Live); white to white (grounded); grounding to grounding (green or copper). Twist the ends of the wire pairs together. Then, twist on a wire connector. Make sure all twists are in the same direction. Loop fixture’s ground wire around grounding screw (E) and tighten. If there is no ground wire (green or copper) from the junction box, contact a qualified electrician.

FINISHING THE INSTALLATION
Place the back plate (G) on the mounting plate (B) and secure the back plate with the flat head screws (D). Slide candle sleeve (H) onto socket (I). Install light bulb (not included) in accordance with the fixture’s specifications. Do not exceed the recommended wattage. Your installation is now complete. Turn on the power and test the fixture.

CLEANING TIPS

Treat the fixture gently! Regular cleaning will reduce the need for deep cleaning. For regular cleaning, turn off the light and wipe down the fixture with a clean lint-free cotton or microfiber cloth. Never spray cleaner directly onto the fixture.

NOTICE
Drill 9/64″ pilot holes in the support structure to aid in securing the light fixtures.
