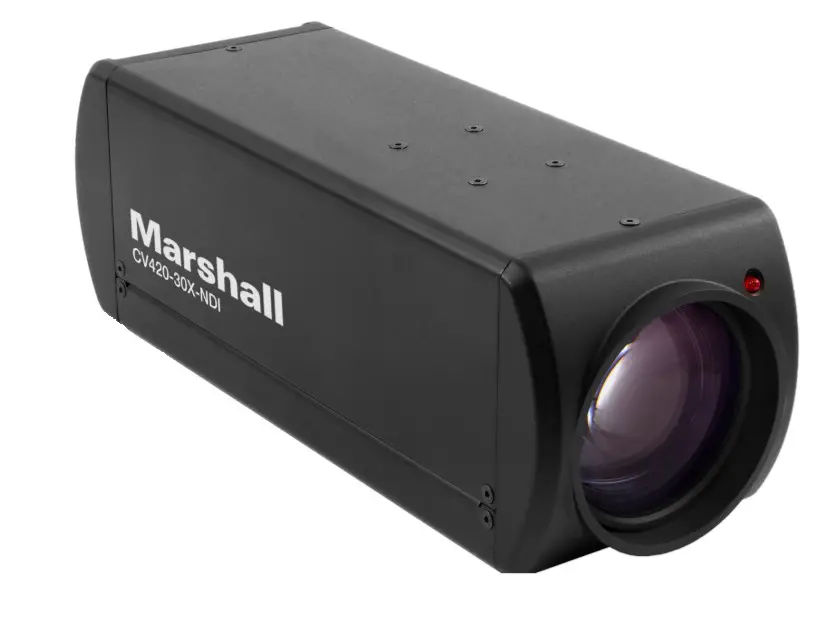

CV420-30X-NDI
30X NDI®|HX Camera

User Manual

Copyright Information
Copyrights © Marshall Electronics Incorporated. All rights reserved.
Marshall Electronics is a trademark of Marshall Electronics incorporated copying, reproducing, or transmitting this file is not allowed if a license is not provided by Marshall Electronics Inc. unless copying this file is for the purpose of backup after purchasing this product.
In order to keep improving the product, Marshall Electronics Inc. hereby reserves the right to make changes to product specifications without prior notice.
The information in this file is subject to change without prior notice. To fully explain or describe how this product should be used, this manual may refer to names of other products or companies without any intention of infringement.
Disclaimer of warranties: Marshall Electronics Inc. is neither responsible for any possible technological, editorial errors or omissions, nor responsible for any incidental or related damages arising from providing this file, using, or operating this product.

Understanding Quick setup of CV420-30X-NDI with NDI®|HX
This section explains how to quickly configure the Marshall CV420-30X-NDI camera with NDI®|HX.
It also explains how to update the device, and where you can find additional NDI software to extend my workflow. Complete NDI® Tools can be found here: https://www.ndi.tv/tools/ Here you will choose whether you will require NDI® Tools for Windows or Mac and download. After completing this short section, you will be all set to begin using your new NDI®|HX camera.
OVERVIEW: Unlike typical cameras, CV420-30X-NDI leverages the easy plug-n-play benefits of the NDI-basic workflow supported by leading video software and hardware developers around the globe.
GETTING READY: Your new CV420-30X-NDI uses the NDI®|HX protocol for audio/video transmission, amore.
Your first step will be to install NDI|HX drivers if using a TriCaster, or Microsoft HEVC decode on noTriCaster systems, as appropriate for your computer platform or device.

Navigate to ndi.tv/formats in your web browser and follow the relevant directions to download and install drivers for your computer platform. NOTE: The NDI|HX driver also installs NewTek’s NDI StuMonitor application, which will not only display the output of your camera but also provide ease to its settings. Also contains built-in PTZ controls.
NDI Studio Monitor and other useful NDI tools can be found here: https://www.ndi.tv/tools/
Then simply plug the Ethernet (NDI) port into the same Network your computer or Newtek equipment plugged into and off you go.

NOTE: The End User License Agreement under which you use the NDI|HX driver specifies that “you may up to five (5), and no more than five, copies on separate machines at one time.”
OPTIONAL – for Microsoft Windows® users, downloading and installing the NewTek NDI® Tools available at no cost from ndi.tv/tools/, the download pack will provide learning tools and utilities to maximum NDI®|HX experience.
FINAL NOTE – if you are experiencing any problems with the NDI® platform, NDI® software, NDI® drive please contacts Newtek for technical assistance or join the NDI community to review HOW-TO videos, media, forums, blogs: www.ndi.tv/community
If you are having a hardware problem, and need assistance please contact Marshall Electronics. Marshall Customer Support Toll-Free: 800-800-6608 or 310-333-0606
Email: [email protected]

Contents hide

1 Safety Instructions

2 Package Contents

3 Function Introduction

3.1 I/O functions Introductions

3.2 Tally Indicator Light Function Description

4 Installation Instructions

4.1 Installation Basics

4.2 Connecting devices

5 Network Function Settings

5.1 Web System Requirements

5.2 Connecting Camera to Network

5.3 Web Page Function Description

6 Specifications

7 Troubleshooting

8 Warranty

9 Documents / Resources

9.1 References

10 Related Posts

Safety Instructions

Operation
1.1 Use camera in the recommended operating environments.
1.2 Do not place the camera in a tilted position.
1.3 Do not place the product on an unstable cart, stand, or table.
1.4 Do not use this product near water, extreme humidity, or high heat.
1.5 Use recommended ¼”-20 mounts and attachments.
1.6 Use the power supply that is provided inbox.
1.7 Always take the following precautions when handling the power plug. Failure to do so may result in sparks, shock, or fire:
• Ensure the plug is free of dust before inserting it into a socket.
•Ensure that the plug is inserted into the socket completely and securely.
1.8Do, not overload wall sockets, use long extension cords, or plug the camera into multi-output power strips.
1.9 Do not block vents on the camera body as they provide ventilation and prevent the product from overheating.
1.10 Do not open or remove the camera body, camera warranty is void if opened.
1.11 Unplug the product from the wall outlet and consult a licensed service technician when the following conditions arise:
• If the power cords are damaged or frayed.
• If the liquid is spilled into the product or the product has been exposed to rain or water.
Installation
2.1 For security consideration, please make sure any mounts that are used are standard UL or CE safety certified and installed by technician personnel.
Storage
3.1 Do not mount a camera where the power cord can be stepped on, as this may result in fraying or damage to the lead or the plug.
3.2 Never allow debris or objects of any kind to penetrate the camera body. Never allow liquid of any kind to spill onto or into the camera body.
3.3 Unplug this product during thunderstorms, during electrical surges, or if it is not going to be used for an extended period of time.
3.4 Do not place cameras or accessories on top of vibrating equipment or heated objects.
Cleaning
4.1 Unplug all the cables before cleaning. Use a damp cloth for cleaning. Do not use liquid or aerosol cleaners or allow any liquids to enter the camera body.

Precautions
Warning: To reduce the risk of fire or electric shock, do not expose this camera to rain, moisture, debris, or liquids.
If the HD camera will not be used for an extended time, unplug it from the power socket.
Caution: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to licensed service personnel. Please do not open it by yourself
This symbol indicates that this equipment may contain dangerous voltage which could cause electric shock.
This symbol indicates that there are important operating and maintenance instructions in this User Manual with this unit.

FCC Warning
This product has been tested and found to comply with the limits for a Class B computing device, pursuant to Article 15-J of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus” ICES-003 of Industry Canada.
Cet appareil numerique especte les limites de bruits radioelectriques applicables aux appareils numeriques de Classe B prescrites dans la norme sur le material brouilleur: “Appareils Numeriques, ” NMB-003 edictee par l’Industrie.
EN55032 (CE Radiation) Warning
The operation of this equipment in a residential environment could cause radio interference.

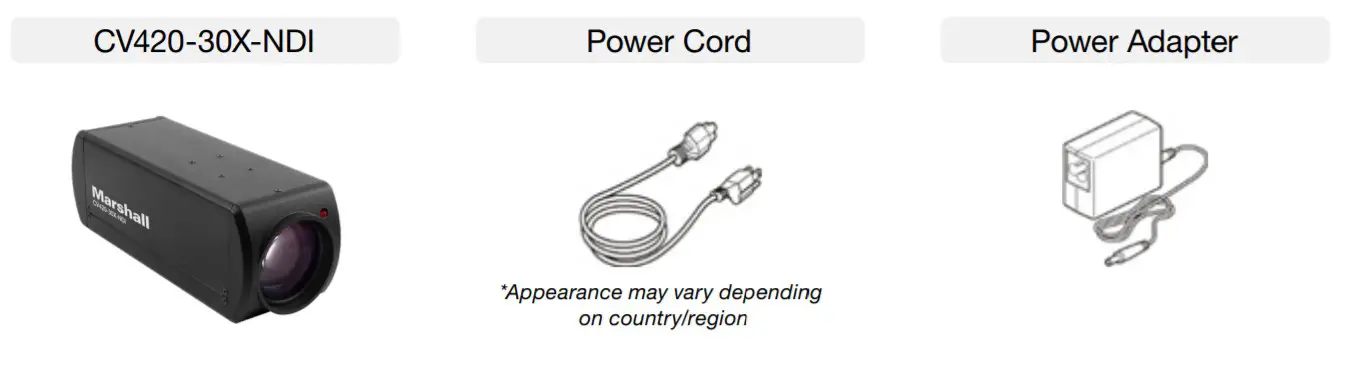

Package Contents

Function Introduction

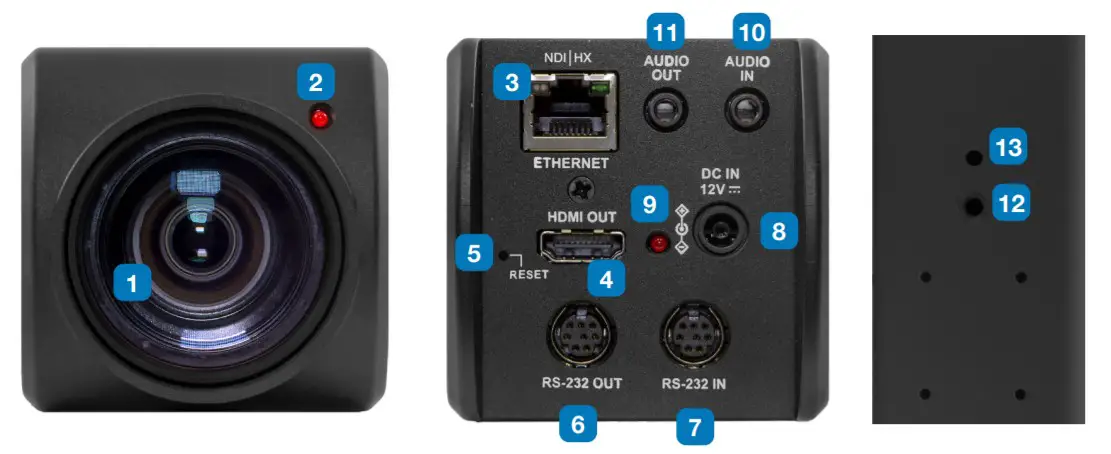

I/O functions Introductions

No.	Item.	Function Descriptions
1	Lens	30x HD/UHD camera lens
2	Tally indicator light	Tally light displays the status of the camera
3	Network port	Network port. Support routers or hubs (IEEE 802.3 af) with PoE power supply support
4	HDMI output	The factory output resolution is 4K/30. Please make sure that the connected display
5	Reset	the device supports 4K resolution
6	RS232 output	Push for factory default and IP address reset
7	RS232 input	RS232 output port. At most 7 cameras can be connected in a serial connection
8	DC 12 V power	RS232 input port. At most 7 cameras can be connected in a serial connection
9	connector	AC power supply connecting port
10	Power indicator light	After power is on, the indicator light will display in red
11	Audio input	3.5mm Audio Input supports Line-level or Mic-level Stereo/Mono input
12	Audio output	Loop-through 3.5mm Output

Tally Indicator Light Function Description

2.2.1 The tally indicator light function may be enabled through the control of the RS232 command. The setting method is as follows:

Tally Mode : 8x 01 7E 01 0A 01 0p FF
p = 0 : OFF
p = 4 : On (half-brightness)
p = 5 : On (full-brightness)

Installation Instructions

Installation Basics

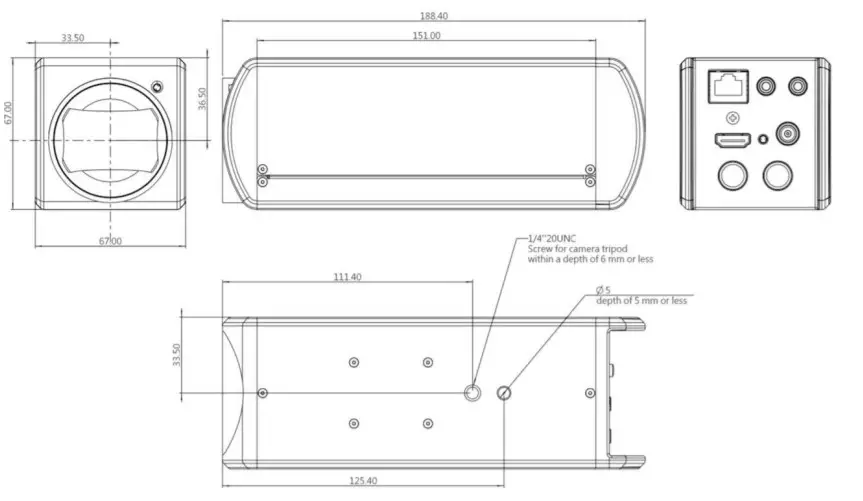

3.1.1 CV420-30X-NDI Dimensions

Connecting devices

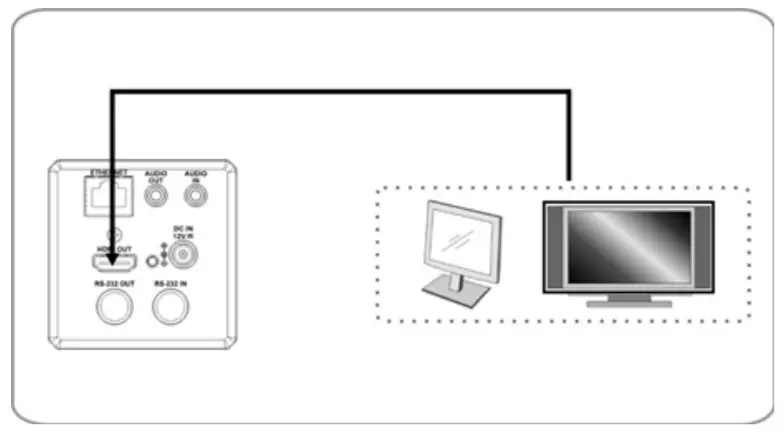

3.2.1 HDMI connection to TV/display screen

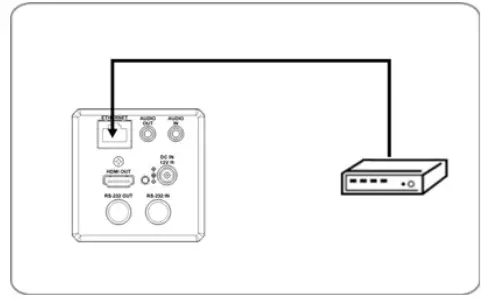

3.2.2 Connecting to the Internet

For details of web page connection setting and description, please refer to Chapter 5 Network
Function Settings Description.

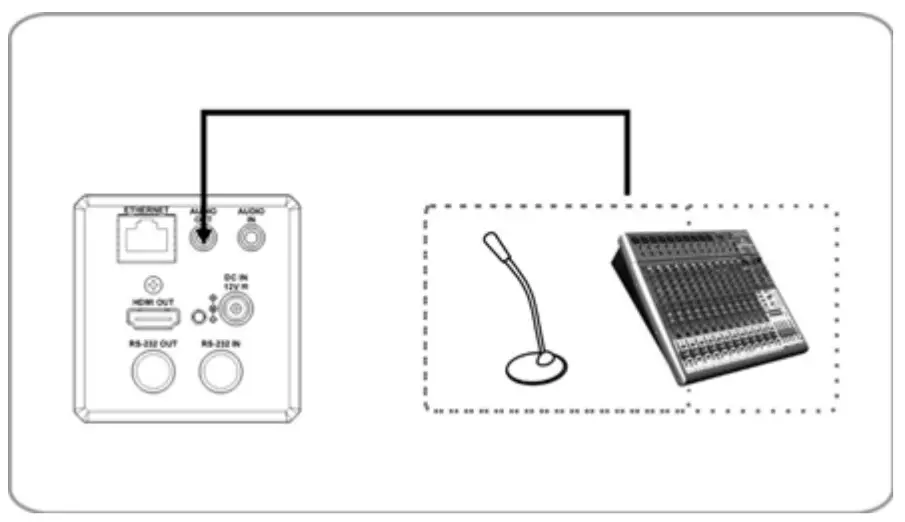

3.2.3 Connecting AUDIO IN

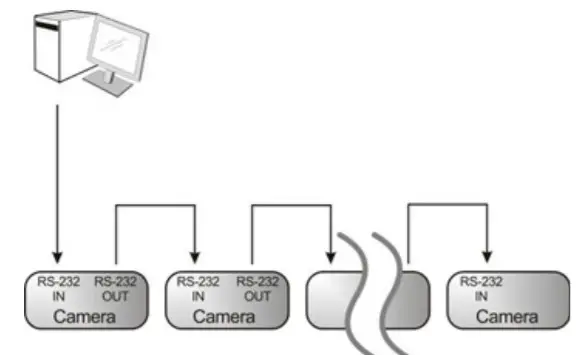

3.2.4 Connecting RS-232
CV420 camera includes RS232 IN and OUT for Daisy Chain style connections or can be set up via home run using splitters (use CV620-CABLE-07 extenders to convert to CAT RJ45 cables for longer runs).

• RS-232 pin definition description

Network Function Settings

Web System Requirements

4.1.1 Web Browser :

Internet Explorer 11 or above
Firefox 66.0.3 or above
Chrome 73 or above
Edge 42.17134 or above
Safari 12.1 or above

Connecting Camera to Network

4.2.1 Connecting to the Internet

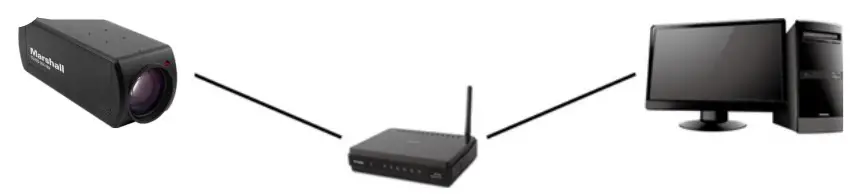

Two common connection methods are shown below

Connecting via switch or router
If the camera is connected to the computer directly, the computer IP address must be modified to have the same network segment as the camera
For example, the factory-preset default IP address of CV420-30X-NDI is 192.168.100.100. The computer IP address must be set with the same subnet, such as 192.168.100.101 so that the computer can be connected correctly to the camera
• Connection Diagram
• Change network settings
Suggested minimum system requirement for HEVC 4K60 IP Streaming:
• Windows 10
• CPU: Intel i5 (7th gen and above)
• GPU: intel (7th gen and above) or Nvidia GTX 1050 and above
• Memory: 8GB(64-bits) RAM
• Ethernet: Gigabyte
• 1GB Free Disk Space

4.2.2 Using the Browser to View the Images

Open the browser, and enter the URL of CV420-30X-NDI in the IP address bar e.g.: http://192.168.100.100 (default IP address)
Enter administrator’s account and password
Account: admin (Default)
Password: 9999 (Default)

Web Page Function Description

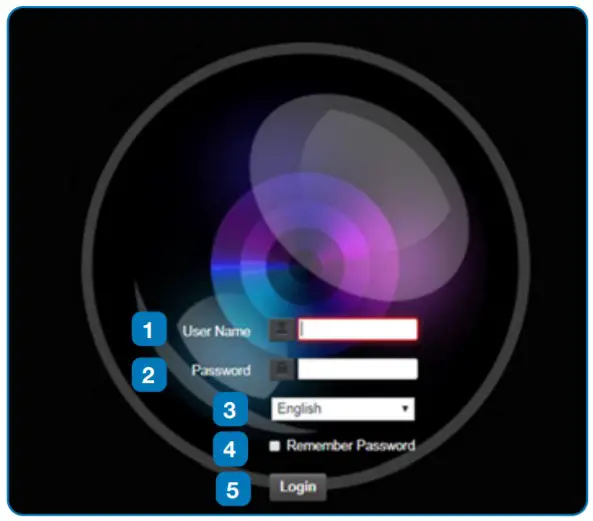

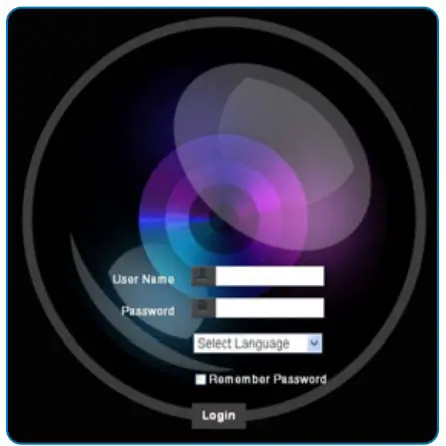

4.3.1 Login Screen

No.	Item.	Function Descriptions
1	Username	Enter a user account name (default: admin)
2	Password	Enter the user password (default: 9999)
3	Language selection	The system currently supports English, Traditional Chinese, and Simplified Chinese
4	Remember password	Saves user account name and password to the browser.
5	Login	Log in to the administrator screen on the website

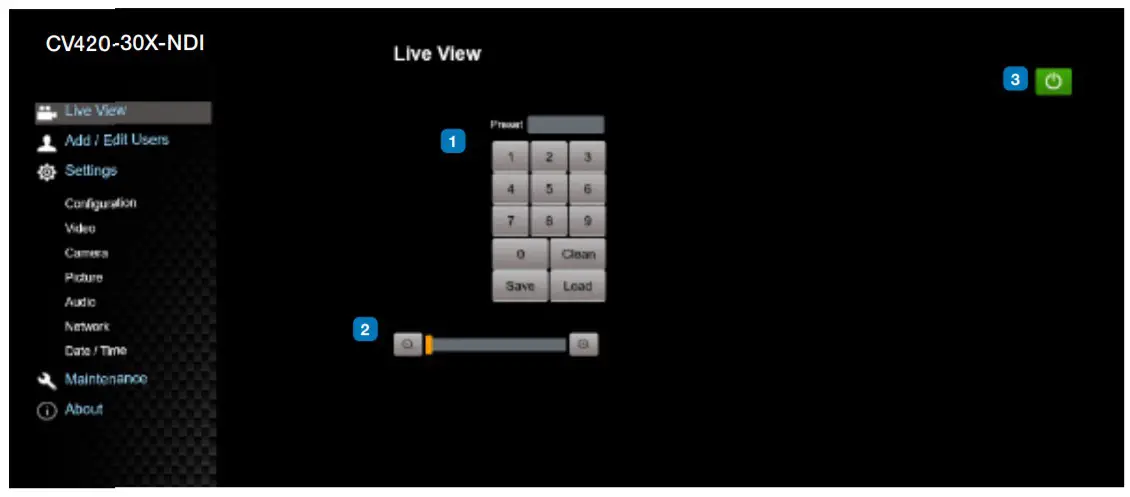

4.3.2 Viewing In Real-Time

No.	Item.	Function Descriptions
1	Preset setting	Select the number first and then select SAVE or LOAD
2	Zoom ratio	Adjust the zoom-in or zoom-out ratio via scroll bar
3	Power button	Turn on or turn off the camera power

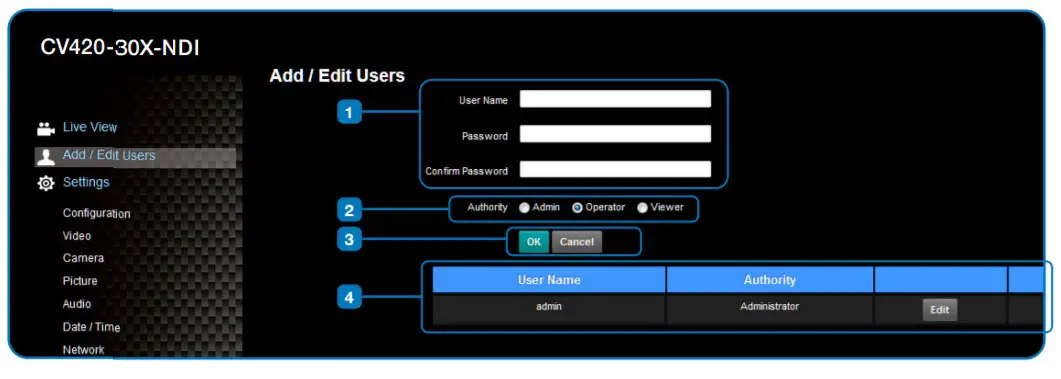

4.3.3 Account Management

No.	Item.	Function Descriptions
1	Add user account	Enter a username and password to add a new user
2	Permission setting	Set the new account management permissions
		User Type	Admin	Operator	Viewer
		View images	Y	Y	Y
		Settings	Y	Y	N
		Account	Y	N	N
3	Applying to set	Add the newly created user to the account list
4	List of accounts	Edit: Modify the user password and permissions

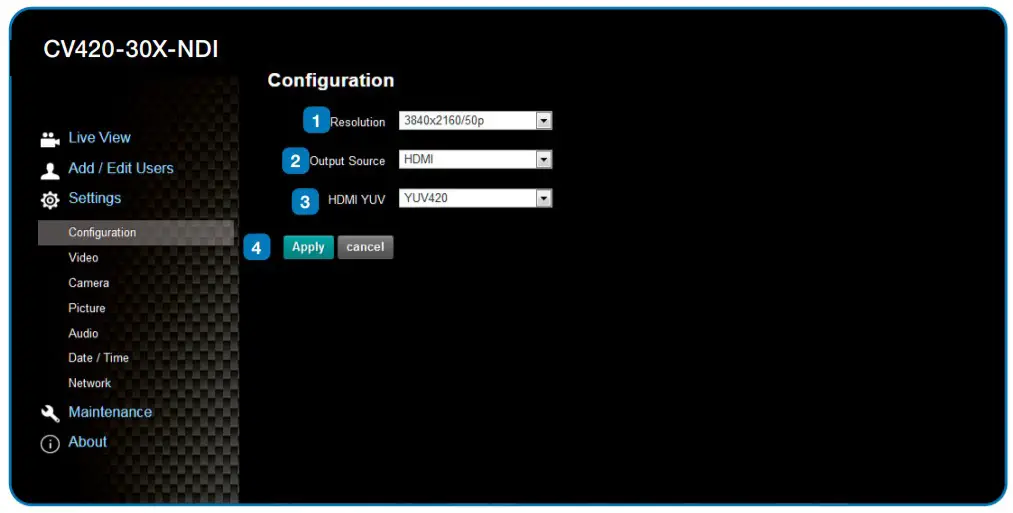

4.3.4 System Configurations

No.	Item.	Function Descriptions
1	Resolution	Set the resolution of the camera. Resolutions supported by the camera are as follows: 3840x2160P 59.94/50/29.97 fps 1080P 59.94/50/29.97/25 fps 720P 59.94/50/29.97/25 fps After switching to the resolution, the camera will restart. Please refresh the browser username and password to add a new user
2	Output signal	According to the output resolution, selections are available for HDMI output, streaming output, or HDMI + streaming output. For output signals supported by different resolutions, please refer to the following table:
		Resolution	Available output modes
		3840×2160/59.94p	HDMI or streaming single output
		3840×2160/50p	HDMI or streaming single output
		3840×2160/29.97p	Simultaneous HDMI and streaming outputs
		3840×2160/25p
		1080p/59.94
		1080p/50
		1080p/29.97
		1080p/25
		720p/59.94
		720p/50
		720p/29.97
		720p/25
3	HDMI YUV	Select YUV422 or YUV420 (This function is only available for these two resolutions, 3840×2160/59.94p and 3840×2160/50p, and remains in a display mode for all other resolutions)
4	Apply	After the setting has been modified, select this button to apply the setting

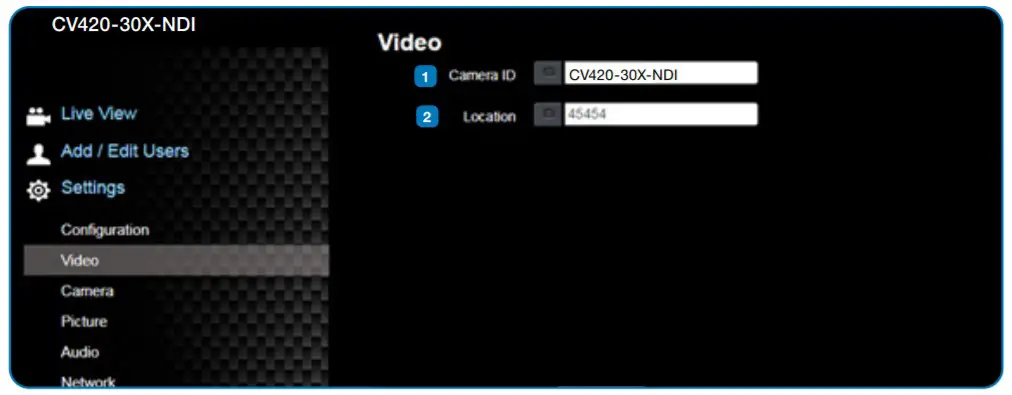

4.3.5 Video Settings

No.	Item.	Function Descriptions
1	Camera name	Modify the camera name • Camera names are limited to 1-12 characters • Please use a camera name by mixing uppercase and lowercase letters and numbers. Do not use “/” and “space” or special symbols
2	Camera location	Modify the location of the camera, such as Meeting Room 1 • Camera locations are limited to 1-12 characters • Please use a camera name by mixing uppercase and lowercase letters and numbers. Do not use “/” and “space” or special symbols

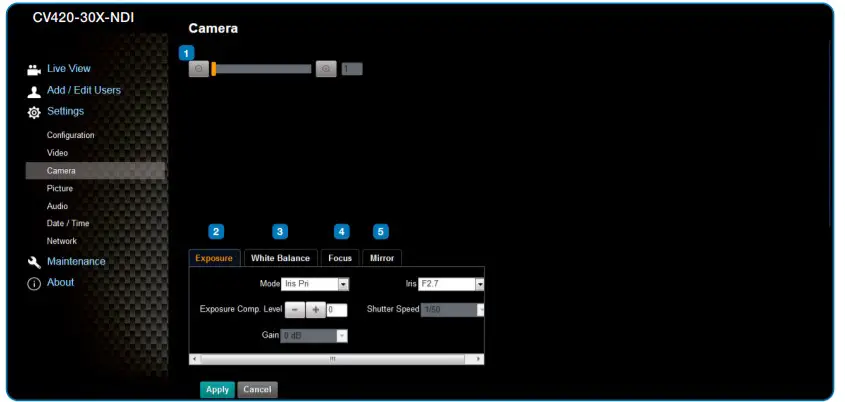

4.3.6 Camera Settings

No.	Item.	Function Descriptions
1	Zoom ratio	Adjust the zoom-in or zoom-out ratio via scroll bar
2	Exposure	Mode: Select exposure mode (Automatic/Shutter Priority/Aperture Priority/Manual ) Exposure Comp. Level: Select exposure compensation level Gain: The gain limit is adjustable when the exposure mode is set to “Manual” Iris: The size of the aperture is adjustable when the exposure mode is set to “Manual” or “Aperture Priority” WDR: Set the level of wide dynamic range (WDR) in order to obtain better images in dynamic lighting environments. Shutter Speed: The shutter speed is adjustable when the exposure mode is set to “Manual” or “Shutter Priority”
3	White balance	Mode: Select the color temperature mode • Auto • Indoor • Outdoor • One Push WB • ATW • Manual • Sodium Lamp Open Push Trigger: One push color temperature is adjustable when the white balance mode is set to “One Push Trigger” Manual Red/Blue: Manually adjust blue/red color temperature
4	Focus	Mode: Select manual/automatic focus Focus Range: The focusing range is adjustable when the focus mode is set to “Manual” AF Sensitivity: Set automatic focus sensitivity AF Frame: Set automatic focus range
5	MIRROR	Mirror: Set automatic flip mode

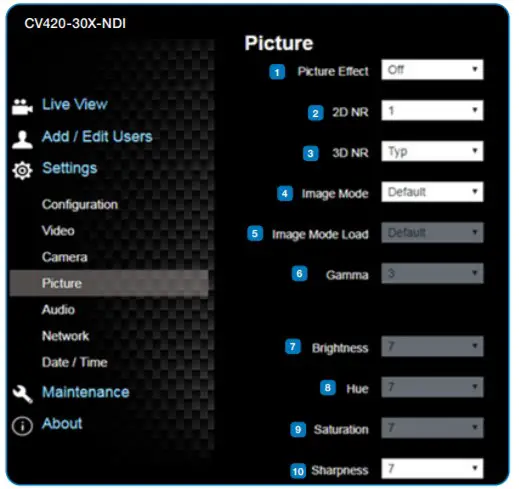

4.3.7 Picture Settings

No	Item	Function Descriptions
1	Picture effect	Set picture effect, Off / Film / Black and White
2	2D noise reduction settings	2D noise reduction settings
3	3D noise reduction settings	3D noise reduction settings
4	Image mode	The user may customize his/her desired image mode
5	Image mode load	When no custom setting is needed, reset the picture parameters back to the factory default by selecting this item
6	Gamma	Gamma Level adjustment; Adjustable when the image mode is set to Custom
7	Brightness	Brightness adjustment; Adjustable when the image mode is set to Custom
8	Contrast	Contrast adjustment; Adjustable when the image mode is set to Custom
9	Saturation	Saturation adjustment; Adjustable when the image mode is set to Custom
10	Sharpness	Adjust the sharpness of the image

4.3.8 Camera Settings

No	Item.	Function Descriptions
1	Open audio	Turn on / off sound
2	Soundtrack effect setting	Set MIC In / Line In
3	Audio Volume	Adjust Volume
4	Encode sample rate	Set Encode sample rate 48 kHz(AAC) 44.1 kHz(AAC) 16 kHz(G.711) 8 kHz(G.711)

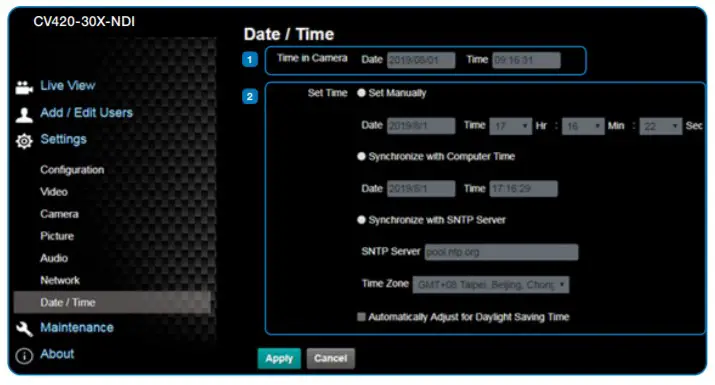

4.3.9 Time Settings

No	Item.	Function Descriptions
1	Camera Time	Display the date and time of the camera
2	Set the Time	Set Manually: Set time manually Synchronize with computer time: Set the camera time according to the computer time Synchronize with SNTP server: Set the camera time synchronously with the SNTP server <Remark> SNTP server address: Please change in a network setting

4.3.10 Network Settings

No	Item.	Function Descriptions
1	Network	Network setting of the camera. Change of setting is available only when the DHCP function is closed.
2	SNTP Setting	Set SNTP Server IP
3	Port Setting	Set HTTP and HTTPS ports. The default values are Port 80 and Port 81 respectively <Remark> Change of setting is available only when DHCP function of the camera is closed

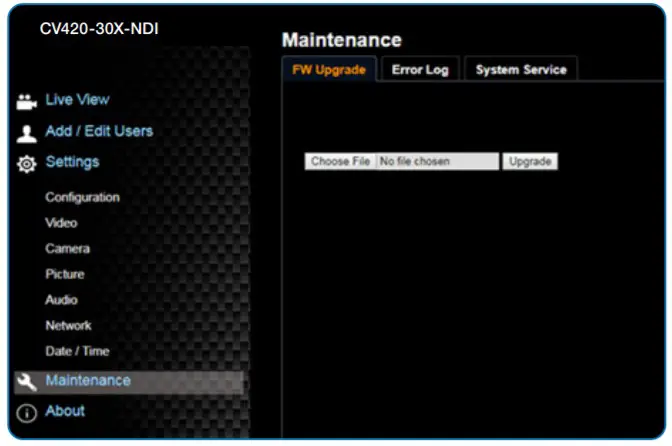

4.3.11 Maintenance and Updating Firmware

No	Item.	Function Descriptions
1	Firmware Update	The camera firmware may be upgraded via a web page. For the upgrade method, please download the FW upgrade manual from Marshall website

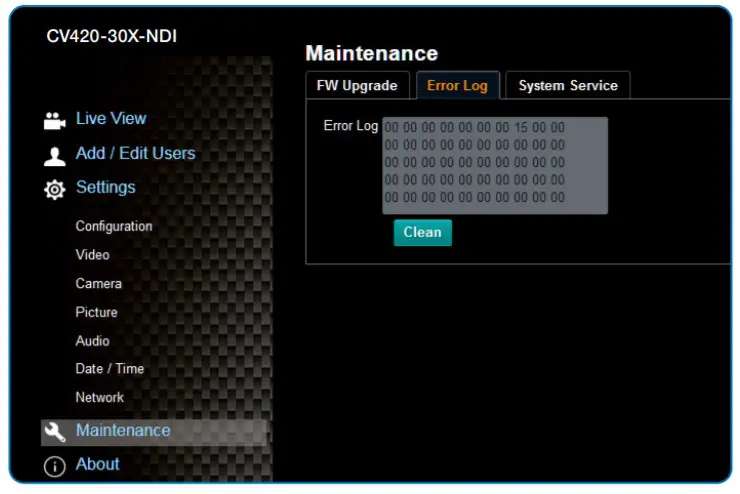

4.3.12 Incident/Error Logs

No	Item.	Function Descriptions
1	Event Logs	If the camera encounters errors, an error code log will be established

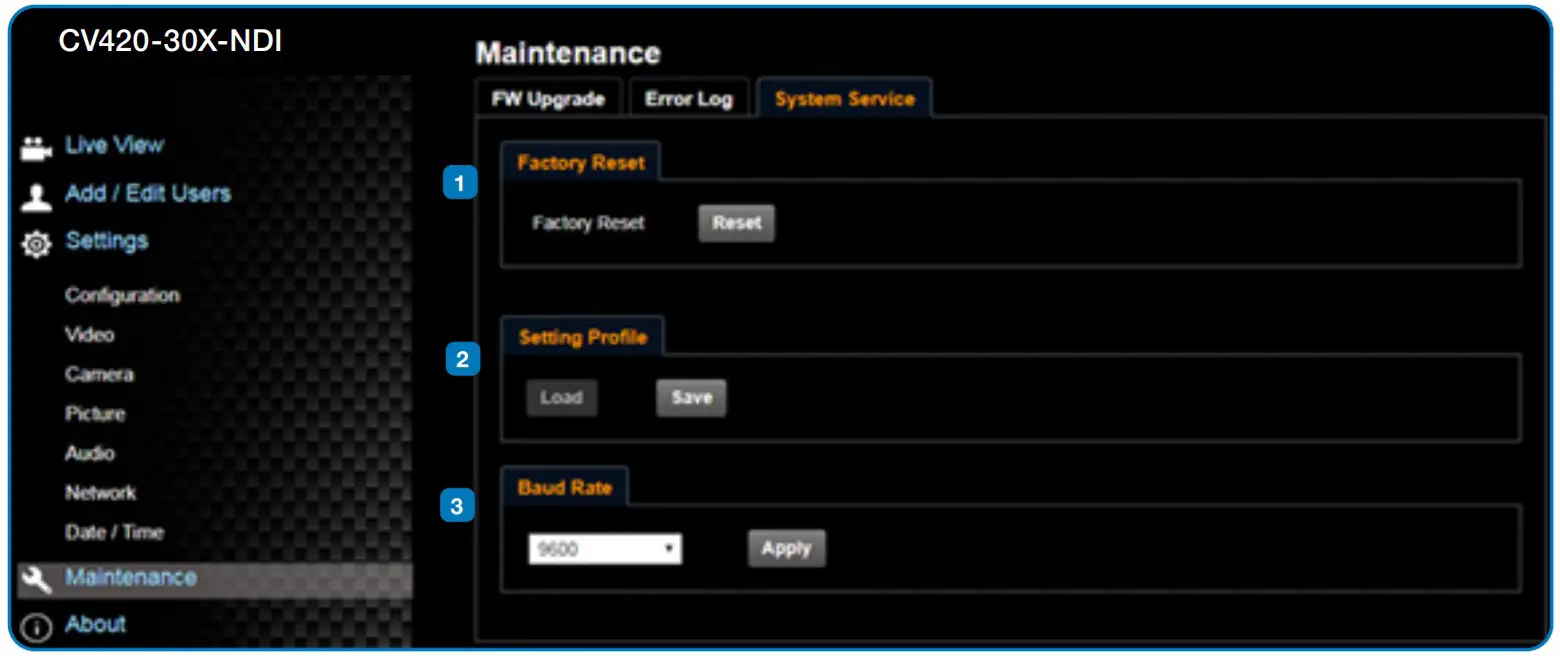

4.3.13 Additional Maintenance Settings

No	Item.	Function Descriptions
1	Reset to the default value	Select the reset button to resume the factory default setting as the web page setting
2	Setting File	The web page setting parameters can be exported from the computer and imported/applied to another camera
3	Baud Rate	Set the camera Baud Rate for the use of connecting RS-232 communication

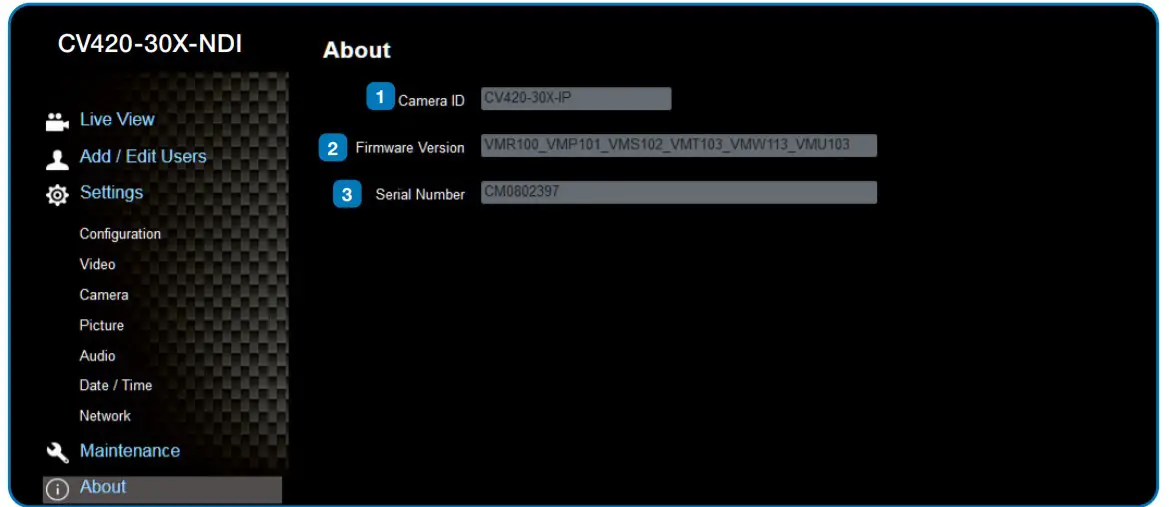

4.3.14 About

No	Item.	Function Descriptions
1	Camera ID	Display the camera name
2	Firmware Version	Display the firmware version of the camera
3	Serial Number	Display the camera serial No.

Specifications

Sensor	1/2.5″ 8MP CMOS
Video Format	“Resolution: 3840x2160p (UHD), 1920x1080p (HD), 1280x720p
Frame-rate : 59.94/50/29.97/25 fps”	30x
Optical Zoom	30x
Focal Length	4.6mm – 135mm
Angle-of-View (Horizontal)	68° – 3.5°
Aperture	F1.5 – F3.4
Shutter Speed	1/1 – 1/10,000 sec
M minimum Object Distance	1.5m (Wide/Tele)
Video S/N Ratio	> 50dB
Color	Color: 0.1 Lux, F1.6, 50 IRE, AGC on
Night	BW: 0.02 Lux, F1.6, 50 IRE, AGC on
Day and Night	Mechanical IR Cut Filter
Day and Night Control	Modes: Auto, Color, Black/White
Preset Points	256
Iris Control	Auto or Manual (remote control)
Lens Control	Autofocus: Auto, One-Push fast AF, Interval AF, Zoom Trigger AF, Zoom Tracking, ICR Compensation AF
Exposure Control	“Auto mode:
Manual mode: shutter speed 1/1-1/10000 Shutter-Priority mode: shutter speed 1/1-1/10000	“AGC Manual gain”
IRIS Pri	“Auto (2500K-7500K) ATW (2000K-10000K) Manual WB (R/B gain, One-push WB) Indoor (3200K) Outdoor (5800K)”
Gain Control	“AGC
Manual gain”	Yes
White Balance	“Auto (2500K-7500K) ATW (2000K-10000K)
Manual WB (R/B gain, One-push WB) Indoor (3200K)	Yes
Outdoor (5800K)’	Configurable
Backlight Compensation	On/Off
Defog	Yes
EV Compensation	Auto/IRIS Pri/Shutter-Priority Mode: -5-+5
Gamma Correction	Yes

Sharpness	Configurable
Noise Reduction	2D/3D NR
Dynamic Range	WDR
Video Orientation	OFF, Flip, Mirror, Both
Video Standard	HEVC, H.264
Multiple Video Stream	Two streaming structure
HEVC 4K6Ofps + H.264 640×360 30fps	ONVIF profile S
Audio Compression Format	AAC
Protocols	DHCP, DNS, HTTP, HTTPS, IPv4, UDP, NDI
Internet Security	“IEEE 802.1X HTTPS”
Control Interface	RS-232 and NDI
HDMI Output	HDMI 2.0
Audio Out	Line Out, 3.5mm (Stereo/Mono)
Audio in	Line In, 3.5mm (Stereo/Mono)
RS-232 In	8 Pin Mini-Din
RS-232 Out	8 Pin Mini-Din
DC In	12V +/- 20%
PoE	802.3 of
Power consumption	< 12W
Storage Temperatures	-20°C – 60°C (-4°F – 140°F)
Operating Temperatures	0°C – 40°C (32°F – 104°F)
Weight	1 kg
Dimension	188.4mm (L) x 67mm (H) x 67 mm (W)

Troubleshooting

This chapter describes problems you may encounter while using CV420-30X-NDI. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem remains, please contact your distributor or the service center.

No.	Problem	Solution
1	Boot without power signal	Make sure you have plugged in the power cord. When using a PoE connection. ensure that the power supply supports IEEE 802.3af hubs
2	There is no image output from CW20-30X- NDI	Check the power supply or PoE supply functions. Confirm the output signals are in streaming output. If the camera is connected to a monitor. confirm the monitor equipment supports 41( output Replace the cables and make sure they are not faulty.
3	CV420-30X-NDI image is severely delayed	Please use 41(. ICN3Op or 720p 60/50 Hz signals rather than 25/30 Hz signals.
4	RS-232 cannot be controlled	Confirm the connection is correct (RS-232 Input / Output). Please make sure the Baud rate setting is the same as the control equipment.
5	Whether the Internet can be used for the operation	Please reef to Chapter 5 Network Function Description for Internet usage or call marshal! tech support.

Warranty

Marshall Electronics warranties to the first consumer that this device will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of two years from the purchase date. This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty. If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above. Therefore, labor and parts may be charged to the consumer. This warranty does not apply to the product exterior or cosmetics. Misuse, abnormal handling, alterations, or modifications in design or construction void this warranty. No sales personnel of the seller or any other person is authorized to make any warranties other than those described above, or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period described above.
Due to constant effort to improve products and product features, specifications may change without notice.

20608 Madrona Avenue, Torrance, CA 90503
Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688
www.marshall-usa.com
[email protected]
www.marshall-usa.com
