Stylewell Crf-002-wh 42 Inch W Craft Storage Hutch In White User Manual

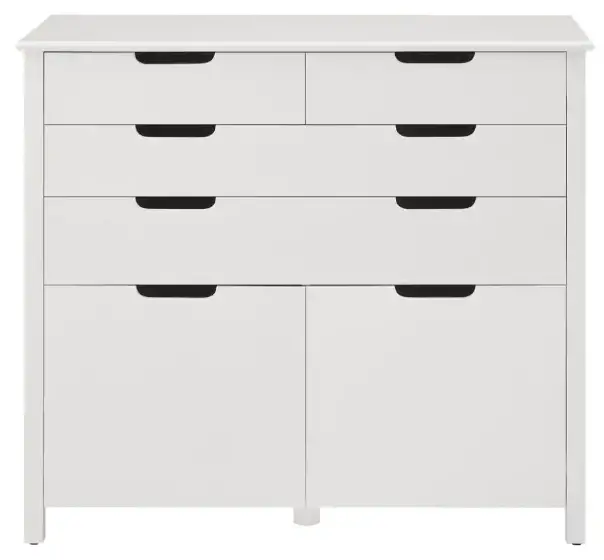

StyleWell CRF-002-WH 42 Inch W Craft Storage Hutch in White

Questions, problems, missing parts? Before returning to the store, call Customer Service. 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday

THANK YOU
Weappreciate the trust andconfidence you have placed in StyleWell through the purchase of this Craft 42 in.White Storage Hutch. Westrive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing StyleWell

Safety Information

• Keep small parts away fromchildren during assembly.
• Read and follow instructions carefully

WARNING

• Read these instructions carefully and keep in a safe place. TOGUARANTEE THE SAFE USE OF THIS PRODUCT, FOLLOW
• THE WARNINGS, GUIDELINES AND RECOMMENDATIONS IN THIS MANUAL.
• Adult assembly required.
• Small parts may present choking hazard prior to assembly.
• Do not stand, step or climb on unit.
• Unit must be placed on a level surface or leveled with included hardware (when applicable).
• Do not sit or stand on or allow children to climb, sit or stand on the assembled product.
• For safety reasons, it is imperative that this unit be mounted on the wall or floor.
• Do not use without installing the tip restraint.
• Unit can tip over causing severe injury or death
• Never open more than one drawer at a time.
• Do not exceed the recommended weight limits.
• Evenly distribute the weight on each level and always keep the heavier loads on the bottom.
• Before cutting, drilling or hammering into any wall or floor surface, verify the location of electrical, plumbing and gas lines.
• Cutting may cause serious injury.

CAUTION

• Do not use power tools to assemble your item. Power tools may strip or damage parts/product.
• Do not over tighten connectors (screws, bolts, etc.) Overtightening can lead to product damage.
• Be sure to check all packing materials carefully for small parts that may have come loose inside the carton during shipment. If parts are missing, contact THE HOME DEPOT to obtain any missing parts.
• DO NOT USE SUBSTITUTE PARTS.
• This product should only be used on a flat, level surface. Assembly requires 2 people; assembly alone may cause injury.

Warranty

• 1 YEAR WARRANTY

WHAT IS COVERED

We guarantee this product to be free of manufacturing defects to the original purchaser for one year.

WHAT IS NOT COVERED

This warranty does not cover commercial use, acts of nature, and abusive use.

Pre-assembly

PLANNING ASSEMBLY

Keep children and pets away from build area. Make sure your area is large enough to unpack, sort and assemble the unit.

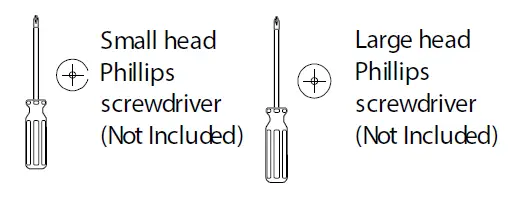

TOOLS REQUIRED

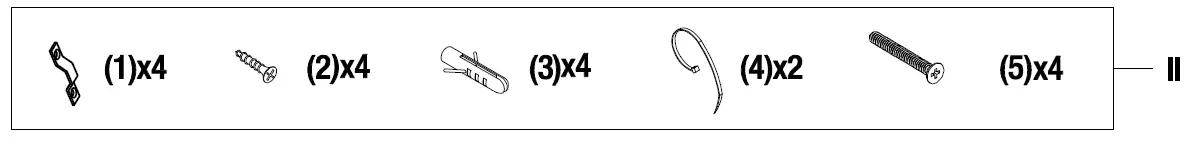

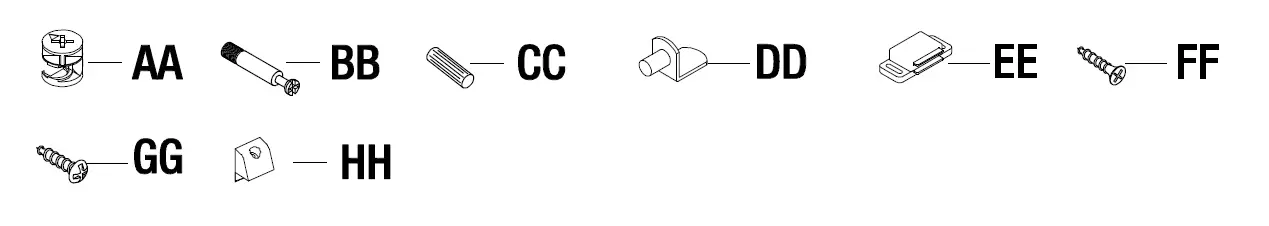

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size

PACKAGE CONTENTS

Notification

NOTE: UPON OPENING THOROUGHLY CLEAN ALL WOODS SURFACES TO REMOVE DUST AND DIRT THAT MAY HAVE SETTLED ONTO FINISH DURING SHIPMENT. IN ORDER TO PREVENT DAMAGE DURING ASSEMBLY, PLEASE ASSEMBLE THIS ITEM WITH AT LEAST TWO PEOPLE.

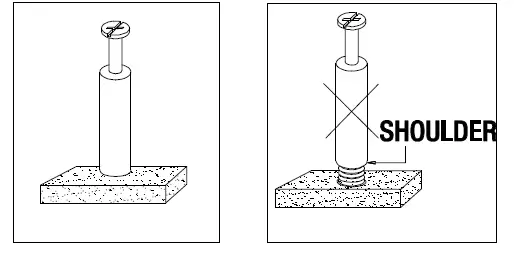

NOTE: TURN THE CAM-BOLT SCREWS UNTIL THEY ARE TIGHT,THE SHOULDER SHOULD BE AGAINST THE SURFACE OF THE PART.

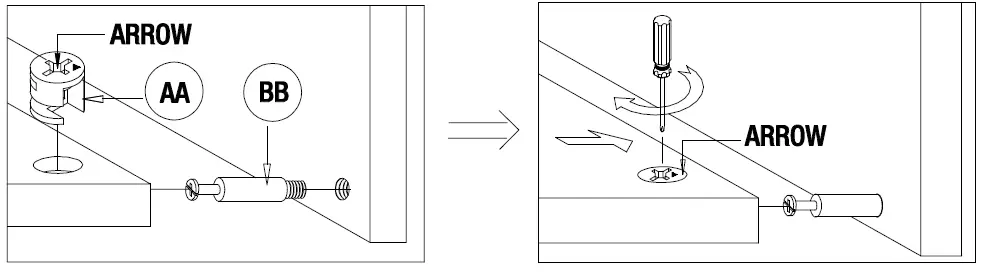

HOW TO USE THE CAM TOOL

NOTE:THE ARROWS ON THE HIDDEN CAM-LOCKS SHOULD POINT TO THE CAM-BOLTS.

Assembly

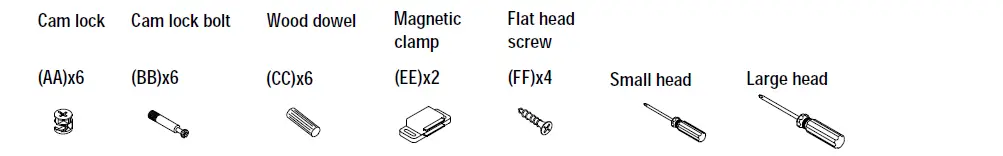

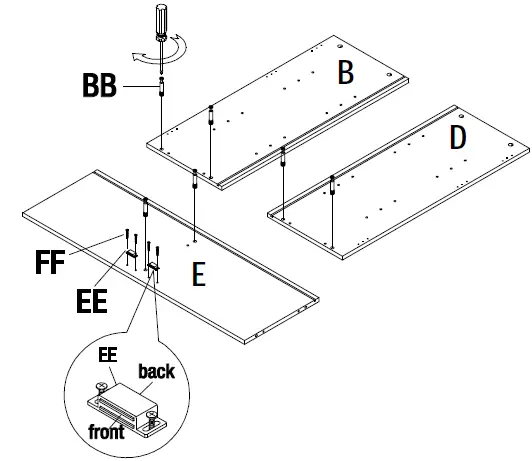

Assemble the panels(B/C/D/E)

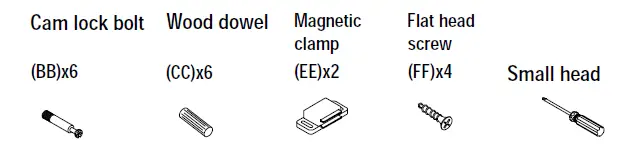

• Tighten the bolt(BB) onto the panels(B/D/E),then install the magnetic clamp(EE) with screw(FF).

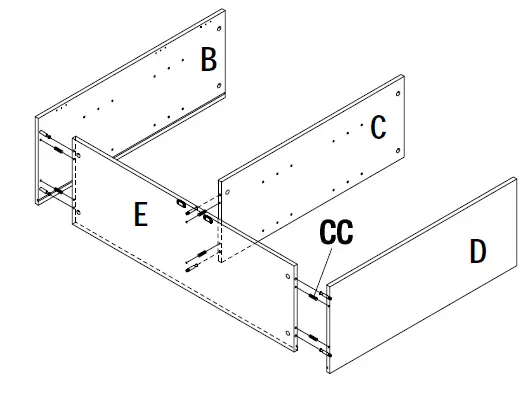

• Insert the wood dowels(CC) into the panels as shown.

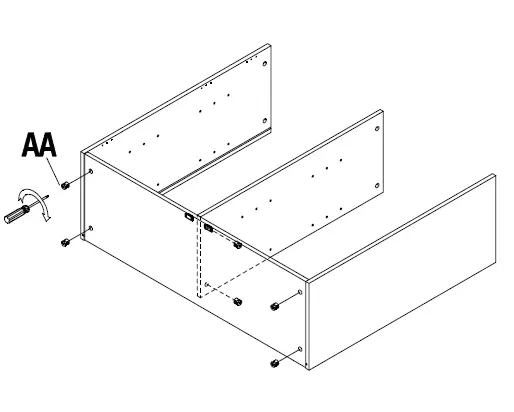

• Fix the panels(B/C/D/E) with cam lock(AA).

Assemble the panels(A/I)

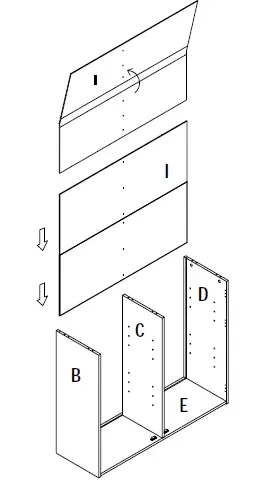

• Insert the back panel(I) into the side panels(B/D).

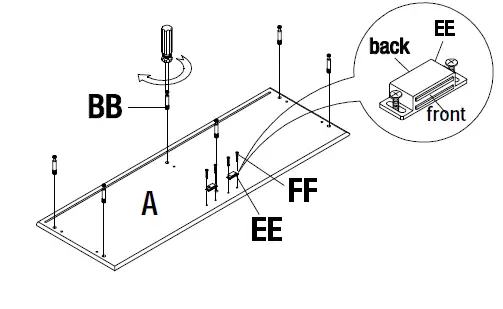

• Tighten bolt(BB) into panel(A), then install the magnetic clamp(EE) with screw(FF).
• Insert wood dowel(CC) into the holes as shown.

Go on assembling panels (A/I)

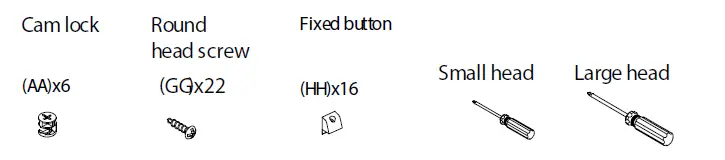

• Fix the panels with cam lock(AA) as shown.

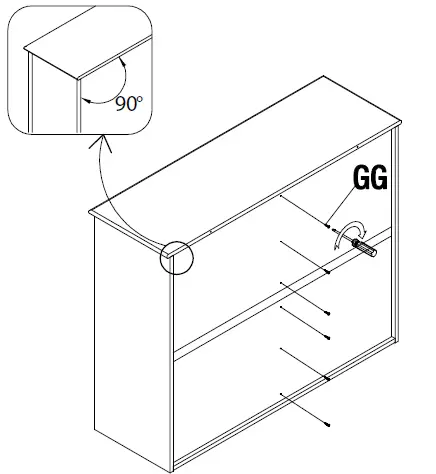

• Tighten screws(GG) into back panel.

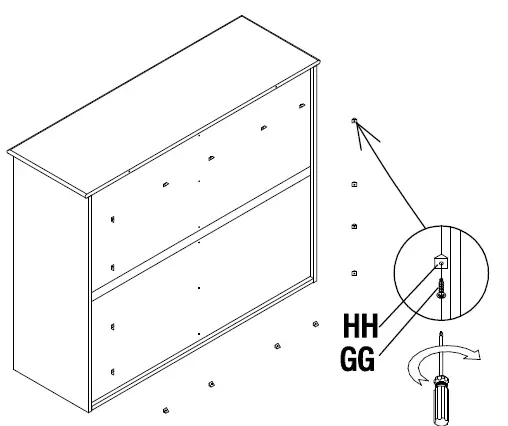

• Install the fixed button(HH) with screws(GG) as shown.

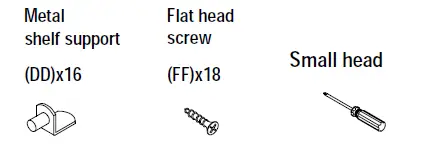

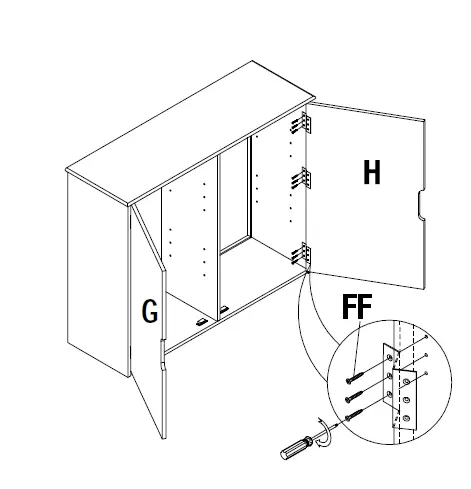

Assemble door panels(G/H) and shelf (F).

• Install the door panels(G/H) with screws(FF) as shown.

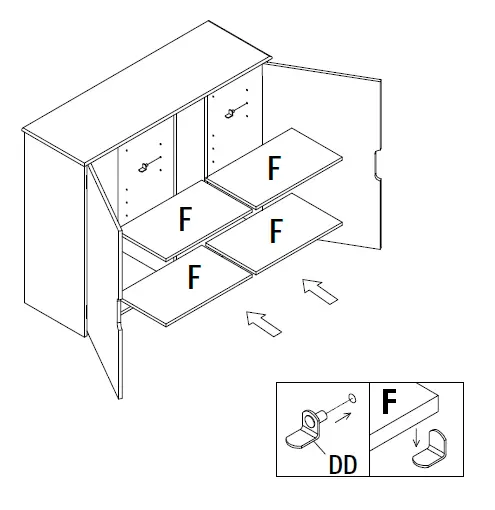

• Insert shelf supports(DD) into panels(B/C/D), then place panel(F) on supports(DD) as shown.

Finalizing the assembly

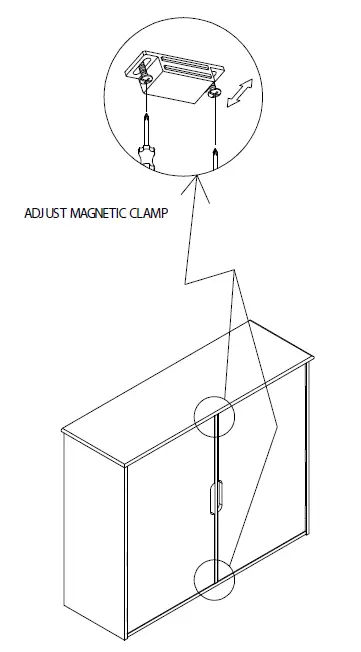

• Adjust door panels.

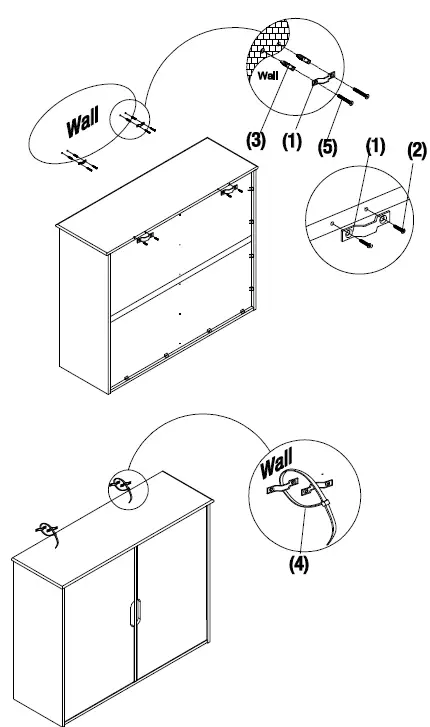

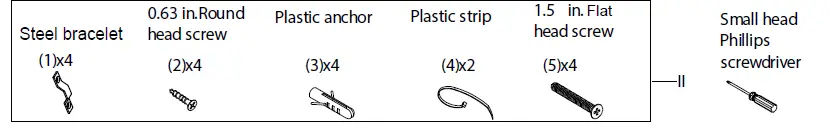

• Lock the two hardware on the product and the other two hardware lock on the wall, then lock the product with a plastic strip.

Maintenance

If your furniture is stained or otherwise damaged during use, contact a professional for repairs.

Care and Cleaning

• Use a soft, clean cloth that will not scratch the surface when dusting.
• Use of furniture polishes is not necessary. Should you choose to use polishes, test the polish in an inconspicuous area before using over the entire surface of the product.
• Using solvents of any kind on your furniture may damage the finish.
• Never use water to clean your furniture as it may cause damage to the finish.
• Always use coasters under beverage glasses and flowerpots.
• Liquid spills should be remove immediately. Using a soft, clean cloth, blot the spill gently avoid rubbing.
• Always use protective pads under hot dishes and plates. Heat can cause chemical changes that may create spotting within the furniture finish.
• Use care as stains or marks from crayons or ink markers will be difficult to remove.
• Be sure to immediately clean red wine or soda stains within 30 minutes or the surface will stain.

Troubleshooting

Questions, problems, missing parts?
Before returning to the store, call Customer Service.
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-877-527-0313
HOMEDEPOT.COM
Retain this manual for future use.
HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
