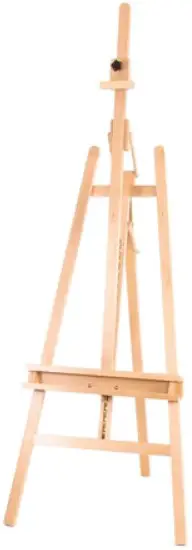

Kmart 43173532 161cm Studio Easel Instruction Manual
INSTRUCTION MANUAL

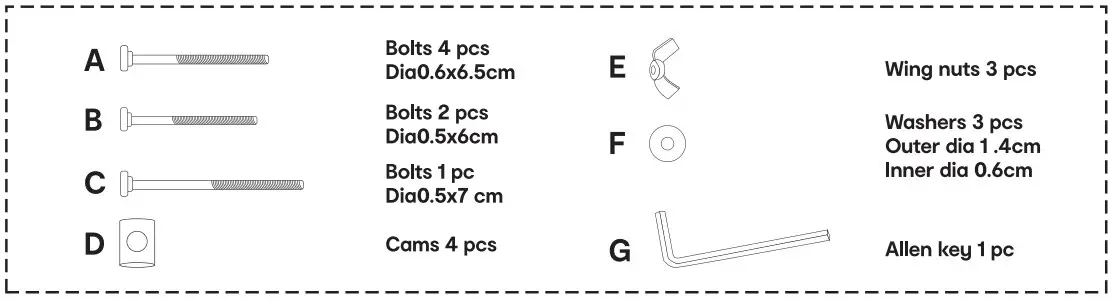

HARDWARE LIST

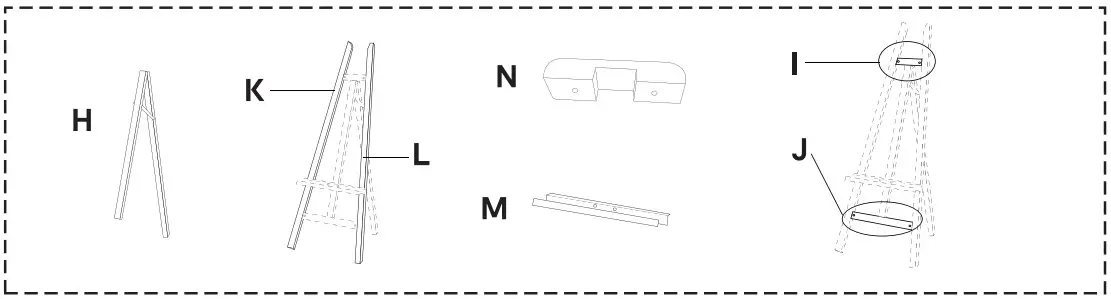

COMPONENTS

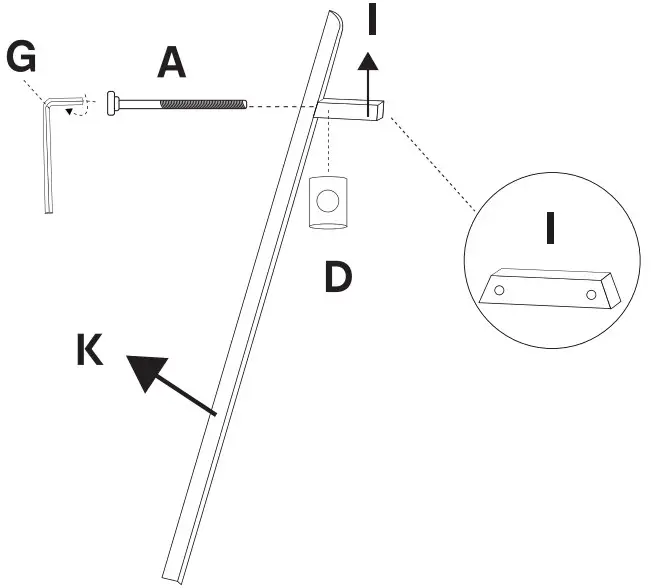

ASSEMBLE PART K AND I, USING BOLT A, WASHER AND CAM. DONOT TIGHTEN THE BOLT AT THIS MOMENT.

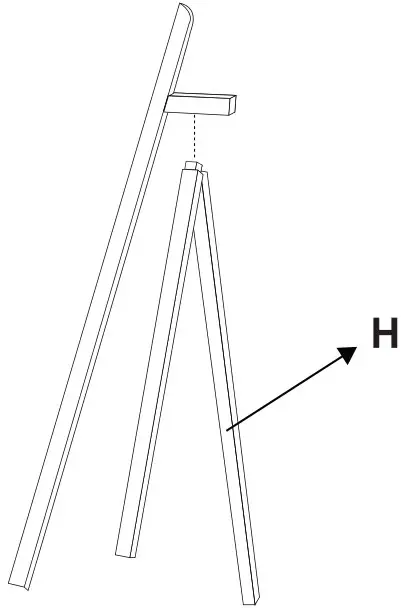

FIT PART H INTO ASSEMBLED UNIT AS SHOWN.

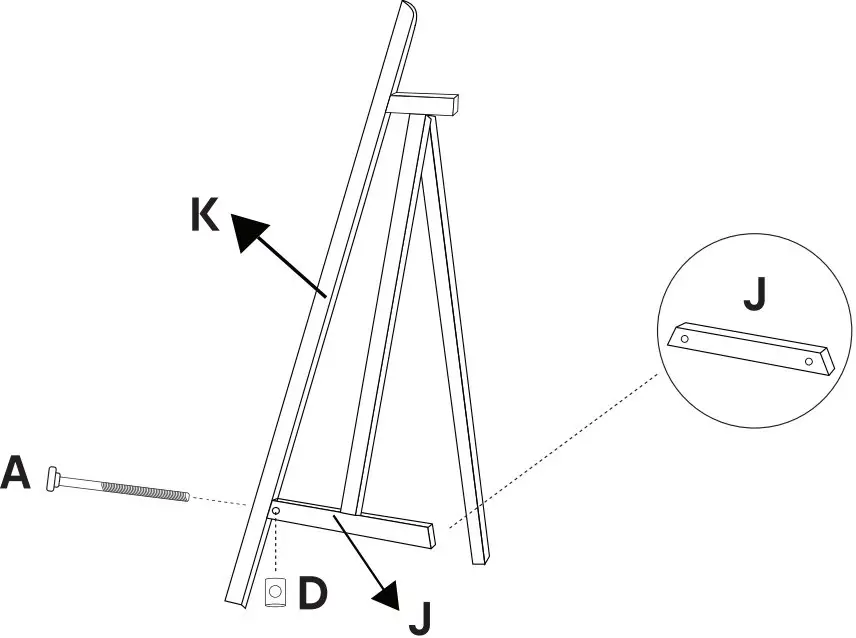

FIT PART J INTO ASSEMBLED UNIT AS SHOWN. SECURE PART K AND J USING BOLT A WASHER AND CAM. DO NOT TIGHTEN BOLT AT THIS MOMENT.

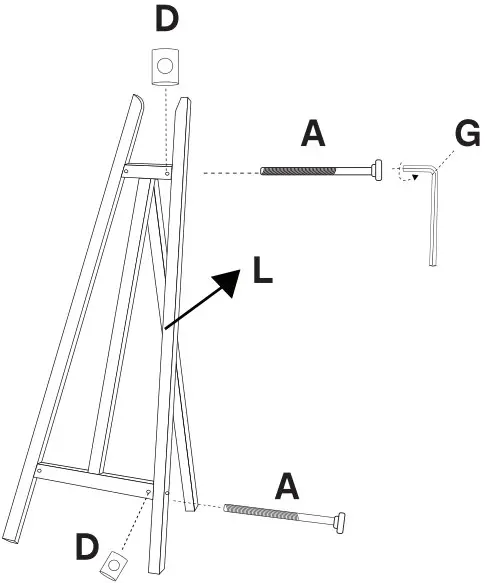

FIT PART L INTO ASSEMBLED UNIT AS SHOWN. SECURE USING BOLTS A, WASHERS AND CAMS. NOW TIGHTEN ALL BOLTS USING ALLEN KEY.

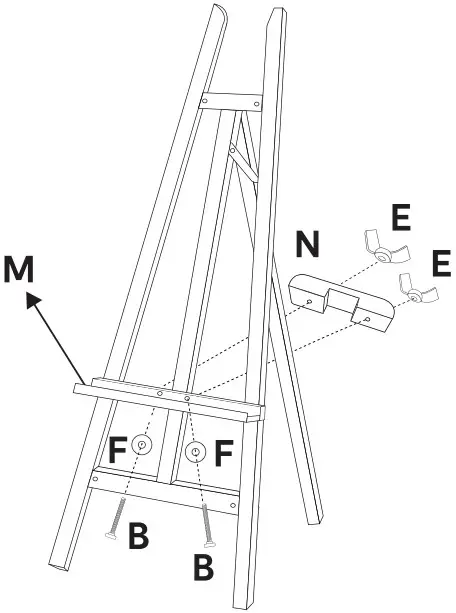

ATTACH THE CANVAS SUPPORT M AND N TO THE ASSEMBLED RNIT AS SHOWN. SECURE USING BLOTS B, WASHERS AND WING NUTS, BUT DO NOT OVER TIGHTEN THE BOLTS.

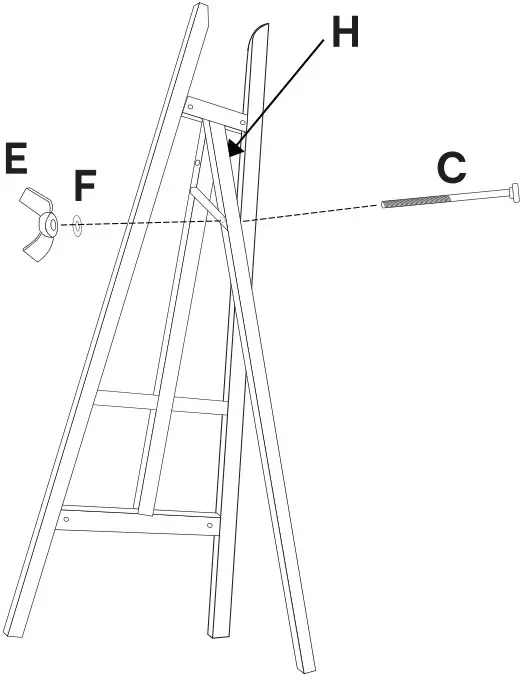

SECURE SUPPORT H, USING BOLT C, WASHER AND WING NUT, BUT DO NOT OVER TIGHTEN THE BOLT. ASSEMBLY IS NOW COMPLETE.
