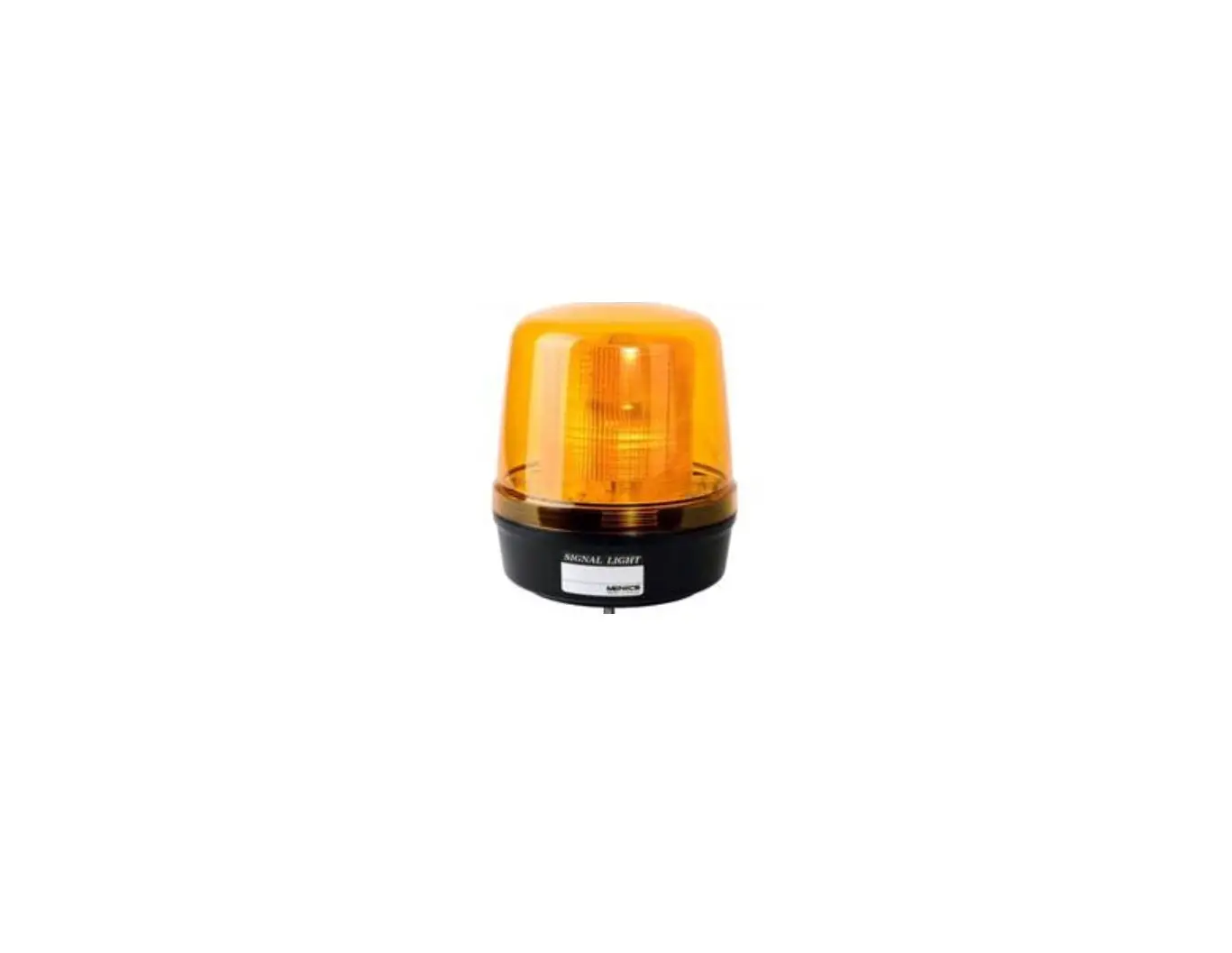

Autonics MS135 Series Large LED Warning Light

Product Features

MS135T series is a large 135mm LED Warning Light of multi-functional that is designed to inject LED Light effectively both indoors and out the door and both day and night securing excellent visibility. It secures excellent visibility for both distant places and just under the bottom of the even when mounted high.
LED flash is visible with the naked eye from a far place on a clear day.
One model covers both flashing and rotating and the buzzer and speaker are built-in to be used according to the user option.
It is a long-life LED of easy maintenance.

• Flashing pattern: an emergency signal (continuous flashes)
• Volume adjustable buzzer: 100+5dB
• Melody type/Siren type: Three built-in melody
• IP65 waterproof rating
• Good weather resistance that is not affected by ultraviolet light with a black body.

User Manual
Thank you for purchasing Menics products.
For the proper and safe use of this product, please read and fully understand this manual before use.

Instructions for safety

Instruction for safety is made to prevent accidents or risks in advance by using the product safely and correctly and be sure to observe it.
Instructions are divided into two categories as “Warning” and “Attention” and they are as follows.

Warning
If the instruction is violated, there is the possibility of serious injury or death.
Attention to injury or damage to the product.
If the instruction is violated, there is the possibility of minor
The meaning of the picture symbols used in the product and User manual is as follows.
A is the sign meaning attention needs to be paid because there is the concern of risk occurrence under certain conditions,

warning

1. In case it is used for the machines which make a greater impact on life or property (e.g. nuclear power control, medical equipment, railroad car, aerospace, combustion
   equipment, recreation equipment, etc., or safety devices), make sure to attach the safety devices bifariously before use.
   There is the possibility of causing huge losses resulting from fire, personal injury, and property damage.
2. Do not disassemble and renovate the product. Please contact the head office or regional office for internal inspection or repair.
   There is the risk of causing fire, electrical shock, and product damage.
3. While power is on, do not make wiring, maintenance, or repair.
   There is the danger of electrical shock.
4. The rated voltage range must be kept for the power input voltage.
   There is the danger of fire or electric shock.
5. Before powering on, make sure to check whether the connection is made correctly.
   There is the danger of fire, electrical shock, or product damage.
6. When replacing the lens, there might be remaining current.
   Make sure to replace the lens one minute after putting off the power.
   There is the danger of electric shock.
7. Do not operate this product with the dome removed, use at the cracked dome or being loosed dome.

Attention

1. Make sure that there is nothing blocking the flow of air circulating.
   There is the danger of deformation and product damage caused by heat.
2. When the product is in operation, do not touch the product for a while.
   There is the danger of burning.
3. In case an abnormality happens to the product, unplug the input power connection immediately. There is the danger of fire or product damage.
4. Do not use it in places with severe vibration.
   There is the danger of product damage.
5. When cleaning, do not use water, or organic solvent, and clean with a towel without moisture. There is the danger of electric shock or fire.

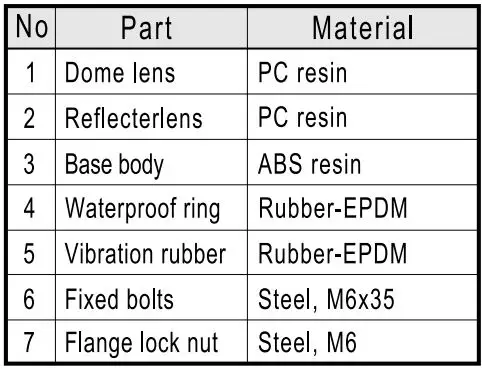

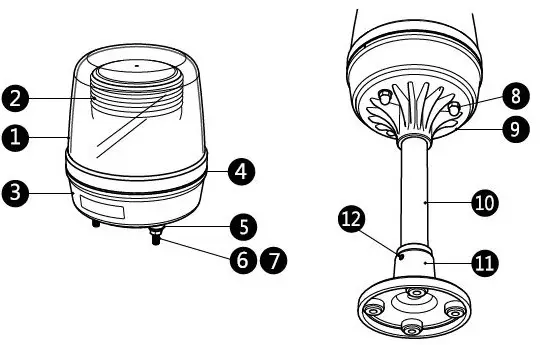

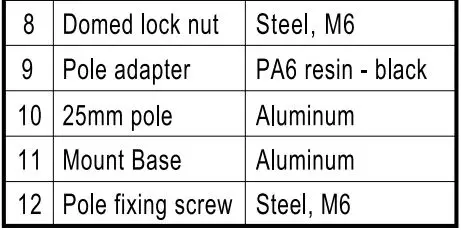

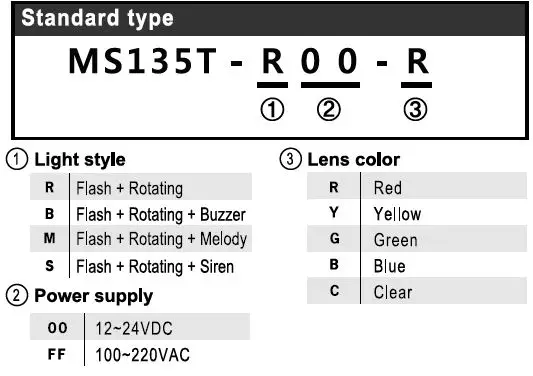

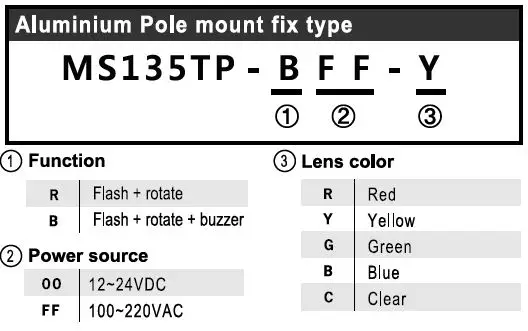

Ordering Information

Part name

Specifications

Current consumption

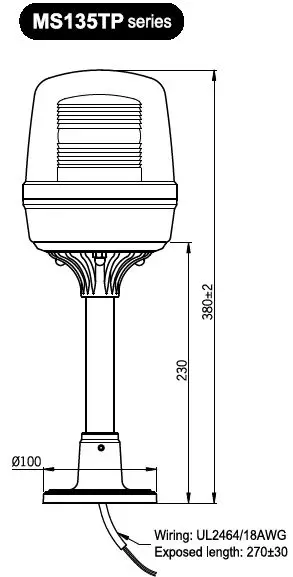

Dimensions

(unit: mm)

Product mounting hole dimension

Product mounting hole dimension

Installation

• Take steps to prevent water from entering the internal wiring terminal block before installation.

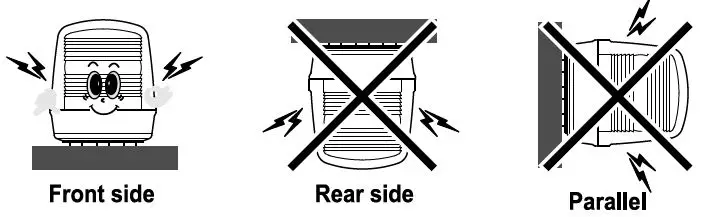

• Do not install in the reverse direction or the parallel direction.
• Install vertically (forward) in sufficient strength and in place of low vibration.
• Mount on a metal surtace to get the reliability of the product.
• Avoid if possible placing in a place with a lot of moisture or dust.
• Mount in a place well-ventilated to improve the heat dissipation effect.

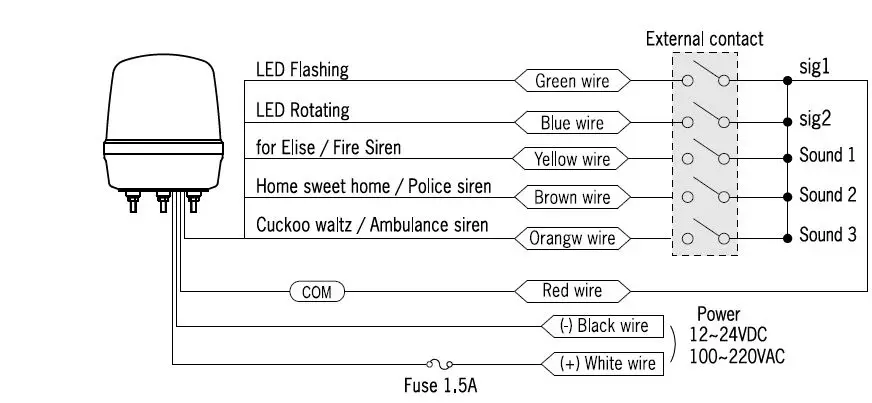

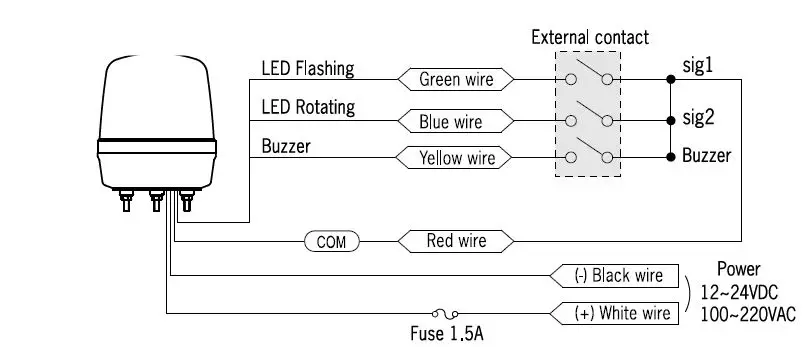

Wiring diagram

CAUTION

• Do not fail to disconnect the power supply before wiring connections.
• It can cause electric shock.
• Use only specified operating voltage range. Excess voltage hastens the degradation
• Make sure to set the fuse on the power supply side, please connect a fuse.
• When you use this product for security purposes, a routine inspection must be done.
• Do not contact or connect the red wire (COM) to the white or black wire. It may cause product damage.

It functions when connecting lead(outgoing) lines except power line (black, white) to the red line.

Standard/ Buzzer type

Melody/Siren type

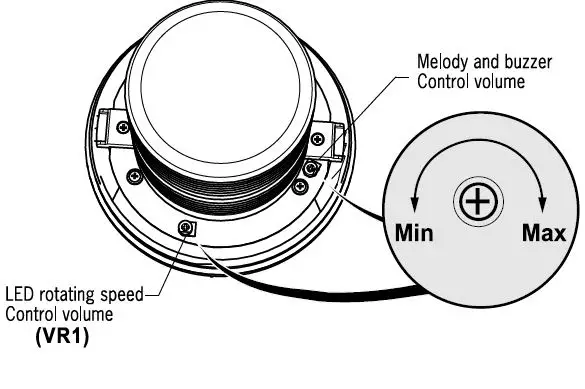

Control of sound pressure and LED rotating speed

• LED rotating speed control
  Min, 60- Max. 300+10rpm/min
• Buzzer sound pressure control
  Min. 80- Max. 100-5dB
• Sound pressure control
  Min.55 Max, 80+5dB

Fixed accessories

(unit: mm)

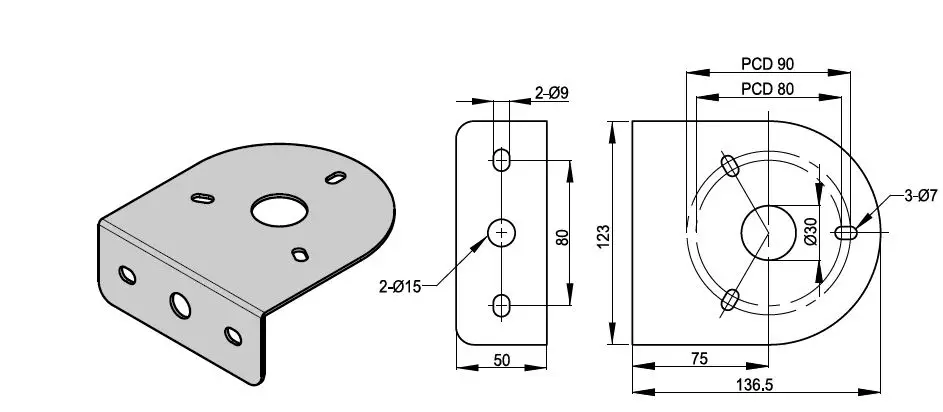

Wall mounting bracket

• Model: MAM-DS37
• Material: Steel

We are not in a position to be responsible for damage and trouble caused by handling against caution and warning described in this instruction manual. Specifications may change without notice due to continual product improvement.

118-1, Ungbigongdan-gil, Yangsan-si Gyeongsangnam-do, Korea, 50524
TEL 82-55-371-5200
http://www.menics.co.kr

FAX:82-55-371-5202
E-mail: [email protected]

Code No: 3703000090 MS135T-MAN-En-A3-201802D
