Delock 62794 3 Port In Desk Hub User Manual

Delock 3 Port In-Desk Hub USB 1 x USB Type-C™ and 2 x USB
Type-A + HD-Audio Ports

Description

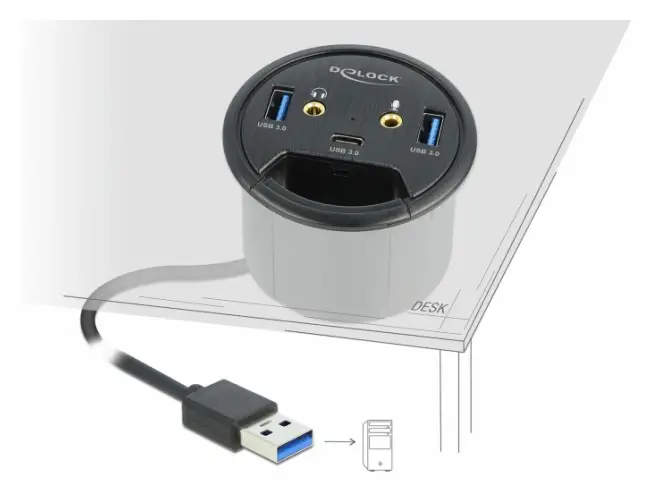

This hub by Delock can be installed into an existing cut-out of the desk with a diameter of 60 mmand can be connected to a computer via the USB Type-A interface. It expands the computer by two USB Type-Aports and one USB Type-C™ port.

Cover cap and cable entry
The hub has a cover capthat protects the ports from dirt. In addition, a cable entry is available, whereby existing cables for e.g. mouse, keyboard and monitor can still be passed through the recess.

Specification

• Connectors:
  top side:
  1 x SuperSpeed USB (USB 3.2 Gen 1) USB Type-C™ female
  2 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female
  1 x HD-Audio microphone 3.5 mm stereo jack female
  1 x HD-Audio speaker 3.5 mm stereo jack female bottom side:
  1 x SuperSpeed USB (USB 3.2 Gen 1) Type-A male
• Chipset: VIA VL812
• Data transfer rate up to:
  SuperSpeed USB 5 Gbps,
  Hi-Speed 480 Mbps,
  Full-Speed 12 Mbps,
  Low-Speed 1.5 Mbps
• 1 x LED indicator
• Power supply: Bus-powered
• Mounting diameter: 60 mm
• Mounting depth: 43 mm
• Cable length: ca. 150 cm
• Plug & Play

Item no. 62794

EAN: 4043619627943
Country of origin: China
Package: Retail Box

System requirements

• Linux Kernel 3.3 or above
• Mac OS 10.15.3 or above
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port
• 60 mm cut-out in the desk

Package content

• In-Desk Hub
• Cover cap
• User manual

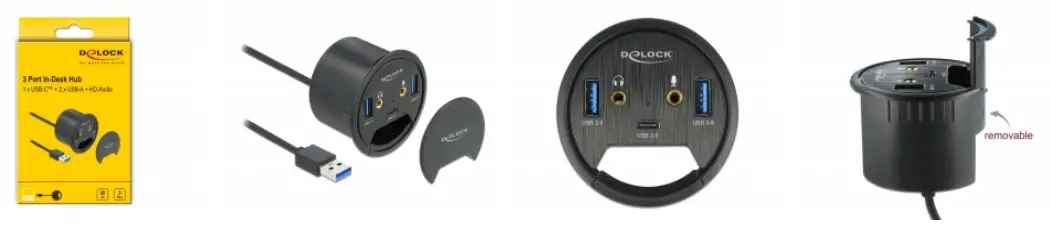

Images

General

Interface

Technical characteristics

Physical characteristics

© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.
www.delock.de
62794
28.04.2022
