Articulating, soft close hinge allows fully integrated, ﬂexible installations.
Produces up to 75lbs. of clear ice per day with a storage capacity of 28lbs.
Bin Level Control for entertaining ﬂexibility (50%, 65%, 70%, 85%, 100%).
Patented TruLumina LED lighting gently illuminates your product and allows you to choose from 14 different color options with the push of a button. ®
Concealed digital control located behind toekick.
Exclusive True Magna Scoop for easy storage on door.
Industry exclusive, standard built-in drain pump.
External water ﬁlter kit included – rated up to 1250 gallons.
Automatic cleaning system.
All undercounter models UL rated for outdoor use.
Environmentally friendly R290 refrigerant.
Energy Star rated.

Customize your True with a variety of ﬁnish and hardware options at true-residential.com/custom.

true RESIDENTIAL TUIADA 15 RS A O 15 Inch Overlay Panel Door Clear Ice Machine - BUILD YOUR TRUE 1

*NOTE: Overlay models have black powder coated steel exteriors.

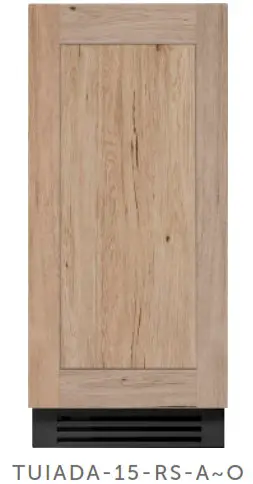

true RESIDENTIAL TUIADA 15 RS A O 15 Inch Overlay Panel Door Clear Ice Machine - BUILD YOUR TRUE 2

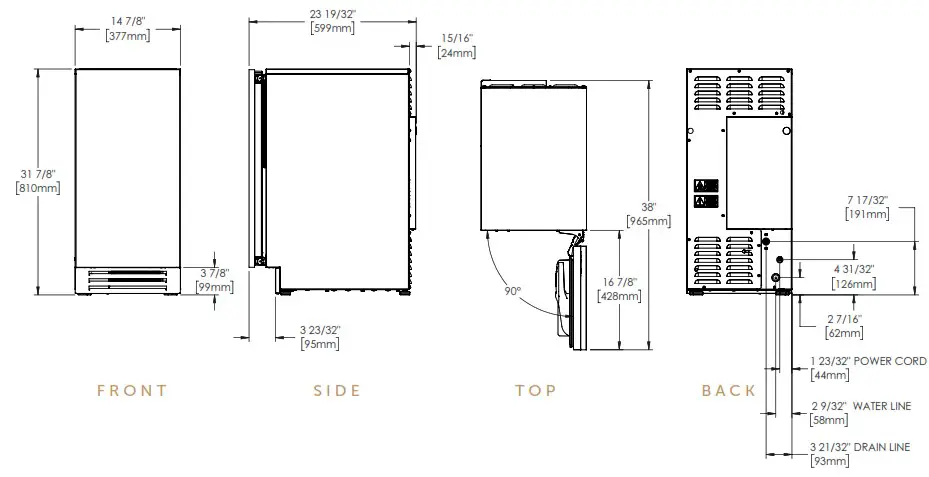

Dimensions (w x h x d)	14 7/8″ x 31 7/8″ x 23 19/32″

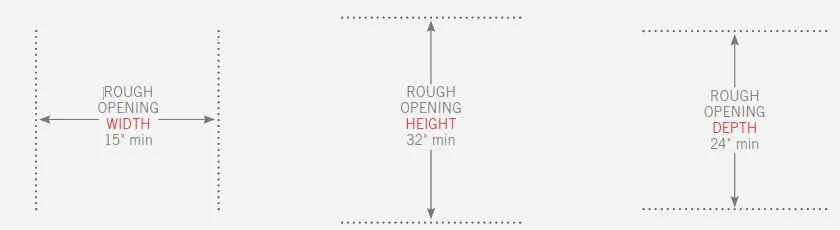

Cutout Dimensions (w x h x d)	15″ x 32″ x 24″
Standard Overlay Panel (w x h x d)	14 5 /8″ x 27 7 /8″ x 3/4″
Panel provided by others. Other installation options available. Consult install guide for details.
Operating Requirements Air Temperature Water Temperature Water Pressure (PSIG)	40˚F – 100˚F 40˚F – 100˚F 20 – 80
Maximum Ice Capacity (lbs/day) Rated Ice Capacity (lbs/day) Rated Ice Storage (lbs) Rated Energy Consumption (kWh/lbs) Rated Water Consumption (Gal/lbs)	75 75 28 6.65 / 100 24.2 / 100
Plumbing	Water Supply: ¼” OD copper, braided stainless steel or PEX tubing and compression ﬁttings (not included). Drain Pump Connection: 1/2″ NPT.
Weight (lbs.)	140
Voltage	115/60/1
Amps	2.85
Power Cord Length (ft.)	9
Energy Star Rated	Yes
