INSTALLATION INSTRUCTIONS
Applicable for: RDA8, RDC8, RDT8, RDF8

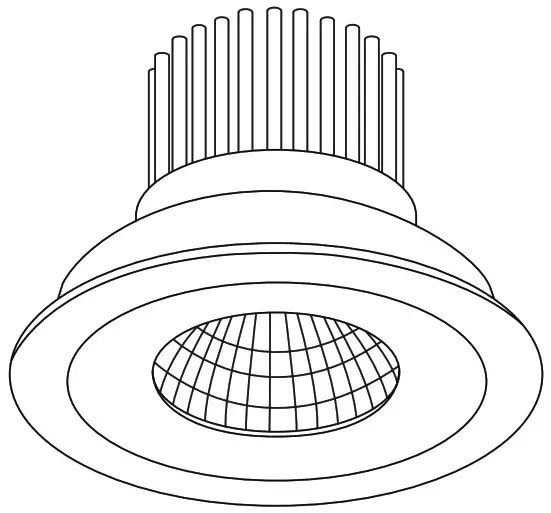

RDA8 Resi-LED 92mm 8W Led Downlight
| Model No | Input Voltage | Power (N) | Colour Temperature | CRI | Ingress Protection |
| RDA83 | 220-240 | 8.5 | 3000K | 90+ | IP20 |
| RDA84 | 220-240 | 8.5 | 4000K | 90+ | IP20 |
| RDC83 | 220-240 | 8.5 | 3000K | 90+ | IP20 |
| RDC84 | 220-240 | 8.5 | 4000K | 90+ | IP20 |
| RDT83 | 220-240 | 8.5 | 3000K | 90+ | IP20 |
| RDT84 | 220-240 | 8.5 | 4000K | 90+ | IP20 |
| RDF83 | 220-240 | 8.5 | 3000K | 90+ | IP65 |
| RDF84 | 220-240 | 8.5 | 4000K | 90+ | IP65 |
Step 1
Cut Out
| RDA8: 76mm | RDC8: 92mm |
| RDT8: 78mm | RDF8: 76-92mm |
Please note: Ensure cut-out corresponds with selected fitting.
Step 2

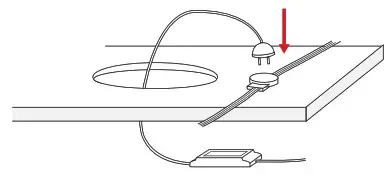

Connect driver to 240v mains
Step 3
Bend springs upward and install luminaire into ceiling.
To maintain IP65 rating on RDF8 luminaires, ensure the luminaire is installed on a flat, level ceilings and the silicone gasket has an adequate seal to the mounting surface.
Installation Notes
IC-4 Rated
The Resiled range is IC-4 rated and can be installed in locations where it is covered or abutted with thermally insulating material in accordance with AS/NZS 60598.2.2:2016 ( IC-4 test ).
Important Safety Information
This product must be installed by a licenced electrician in accordance with AS/NZS 3000 and local regulations.
To maintain IP65 protection on RDF8 luminaires, ensure the fitting is installed in accordanc.e with the installation instructions and the mounting surface is able to provide an adequate seal as per Step 3.
Approvals
The C-Tick marking of this product applies to AS/NZS CISPR15:2011 “Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment.” This product is designed to conform to AS/NZS60598 “Luminaires, general requirements and tests”.
288 Coward Street Mascot NSW 2020
Ph: (02) 9669 8888 / Fax: (02) 9669 8899 / Email: [email protected]
