USER MANUAL

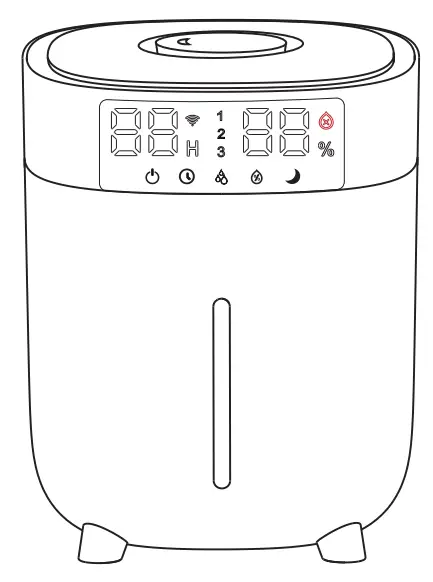

Smart Ultrasonic Humidifier
Model: WB-JS2101
If you have any questions, please feel free to contact [email protected]

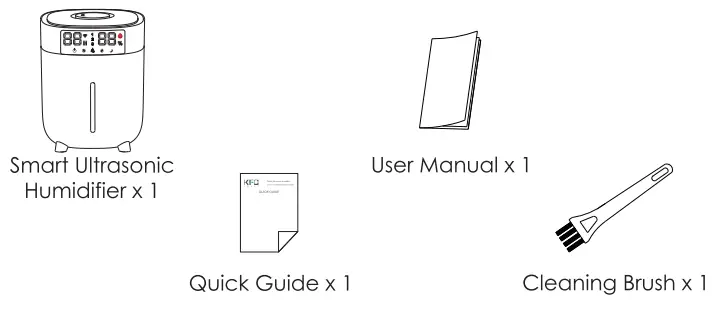

Product Accessories List
Product Specification
| Model | WB-JS2101 |
| Voltage | AC100-240V |
| Wattage | 25W |
| Capacity | 8.0L |
| Atomization Time | Max Mist: 30H |
| Mist Output | 1: 120mL/H 2: 180mL/H 3:260mL/H |
| Gross Weight | 3.61b |
| Product Size | 9.4 x 9.4 x 12in |
| Executive Standard | G84706.1-2005 GB4706.48-2009 |
Note: Use the additional smart humidifier function, and download the free ‘KFC Smart’ app (see page 13).
Important Tip

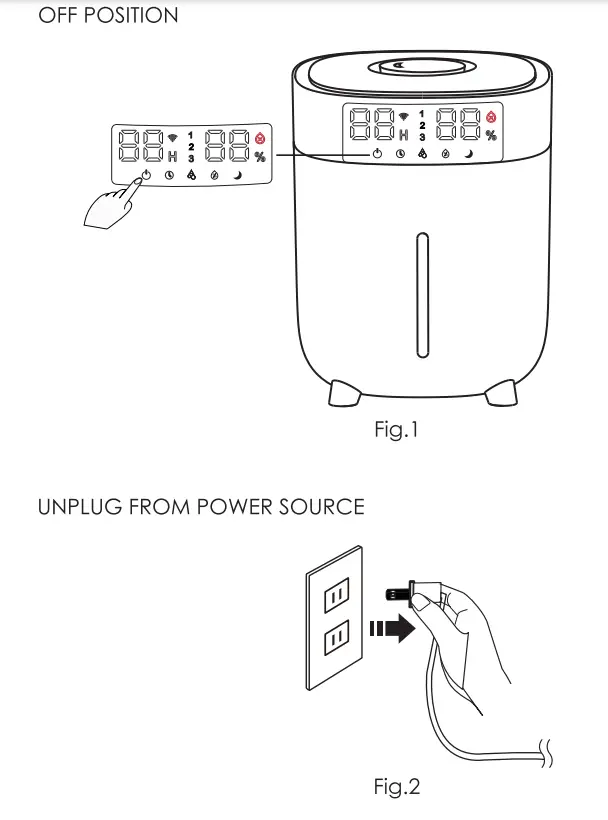

Important Tip: DO NOT leave the humidifier unused for a long time (i.e. several days or more). This maybe causes premature failure of the circuitry. When the humidifier is not in use, please press the power button ‘
‘ and unplug the power plug.
Safety Instructions
(Please Read Carefully Before Use)
- Please follow the operation steps in the user manual (See page 9) to operate the humidifier correctly at home;
- Keep the plug and power supply away from liquids;
- Please check the device before use for any cracks, chips, or damage that may cause leakage of the device. If you find any damage, DO NOT use it. Only professional or authorized maintenance personnel can repair the appliance. DO NOT replace parts or add other items as replacement parts by yourself;
- DO NOT pour out the remaining water in the base without unplugging
the power plug, otherwise, it will cause the atomizer to burn out; - DO NOT add essential oils directly to the water tank. The humidifier has specific locations where you can add essential oils (See page 10);
- When plugging in any power source, make sure your hands are dry to avoid the risk of electric shock;
- When adding water, please hold the water tank with two hands to prevent the water tank from falling. If the equipment is in working condition, DO NOT move the water tank;
- When unplugging the plug, DO NOT pull the power cord with your hands to unplug the plug. The disconnected part is prone to short-circuit and leakage, which may cause fire and electric shock.
- DO NOT let children clean or maintain the humidifier alone;
- DO NOT use this appliance in any kind of inflammable environment. Keep the equipment away from any heat sources (e.g. stoves, ovens, radiators) and avoid direct sunlight.

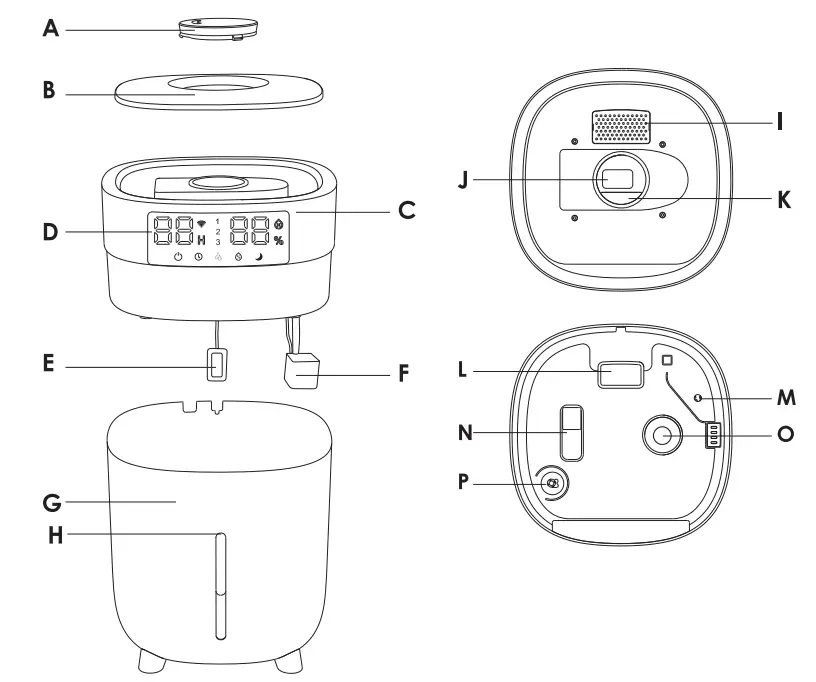

Product Components
A. Nozzle
B. Water Tank Cover
C. Upper Half Water Tank
D. Display
E. Humidity Sensor
F. Water Pump
G. Water Tank
H. Max Water Line
I. Water Inlet 1
J. Mist Outlet
K. Essential oil box
L. Water Inlet 2
M. Water Inlet
N. Air Outlet
0. Atomization Piece
P. Float
