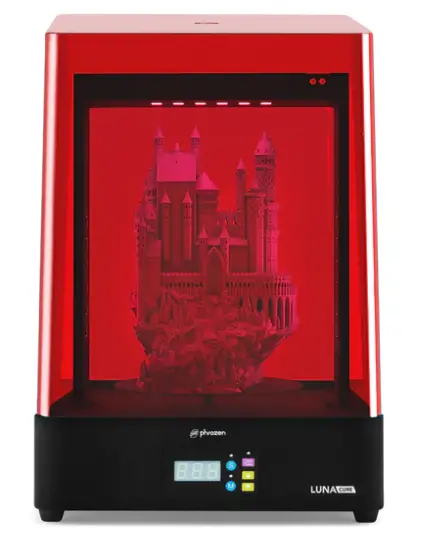

phrozen LUNA Cure UV Curing Lamp
Power Supply & Light Switch
Turn on the device

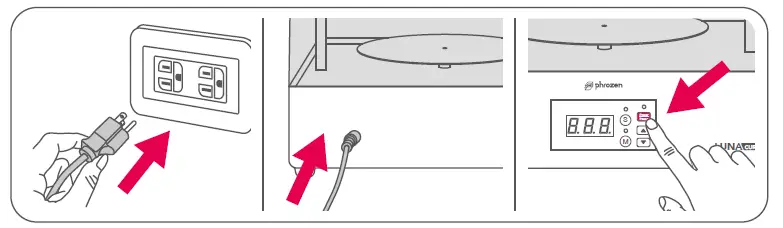

Connect the power cable. Press the Power button to turn on the device
Turn off the device
Long press the Power button. The curing lamp will turn off after a beep sound
To Set Curing Time

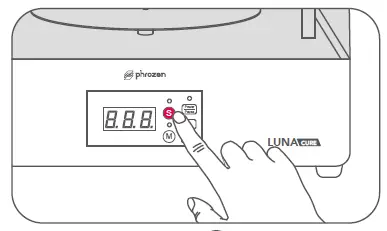

Click the button S for preset modes
This comes with three curing time settings: 5 min, 10 min, 20 min.

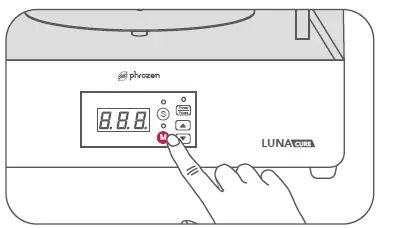

Click the button M for custom mode
Click on the up and down keys to increase or decrease 1 minute each time. Long press the keys to quickly increase or decrease the minutes
How to Operate the UV Curing Lamp

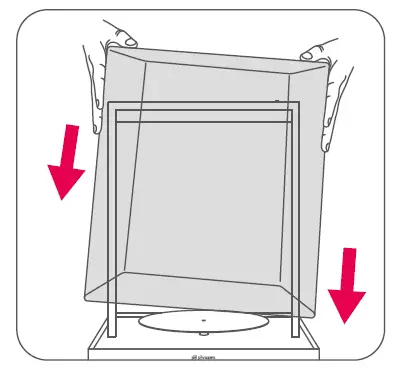

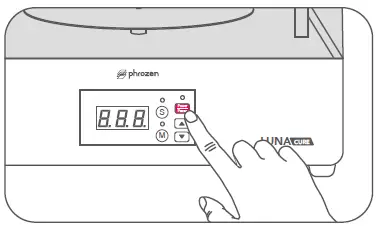

Close the UV lamp cover. Click on the Power button. The curing lamp will begin operation
Warning

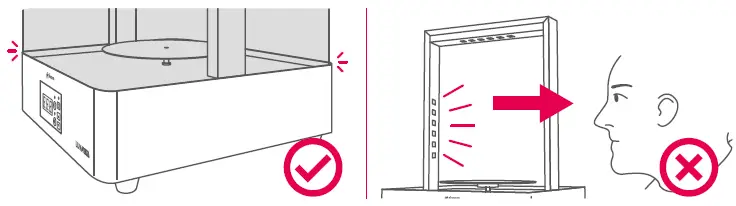

- The UV lamp cover needs to fit all four sides of the base perfectly for the device to begin operating
- Do not stare at the UV curing lights without closing the UV lamp cover, this may cause damage to your eyes.
- This appliance can be used by children aged 8 and above as well as by persons with reduced physical, sensory, or mental capabilities, if supervised or given instruction regarding the use of the appliance in a safe way, to ensure that the hazards involved are understood. Children are NOT allowed to play with the appliance.
- Children are NOT allowed to clean or provide maintenance without adult supervision
Standard Maintenance Procedure
Please use sanitizing alcohol to clean the outside of your device.Do not use any oily or corrosive liquids or to clean the device.
Please follow Phrozen’s social media accounts and subscribe to our YouTube channel to learn more about printing tips and share ideas with one another. Feel free to contact us if you have any questions
