Esatto ECG905WS 90cm Gas Cooktop with Wok Burner User Guide

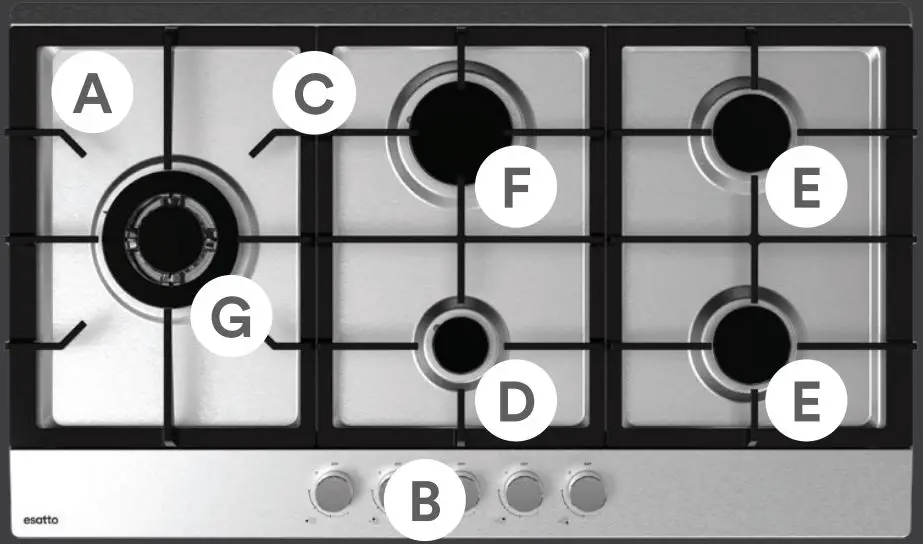

Your Cooktop
A Stainless Steel hob
B Knob Controls
C Cast Iron Trivets
D Auxiliary Burner
E Semi-Rapid Burner
F Rapid Burner
G Wok Burner
For a complete guide on operating your cooktop, refer to user manual on pages 6–10.
Get in Touch
Need help? Contact our friendly support team
via the contact details below.
Phone / 1300 11 4357
Email / [email protected]
Product Details
Dimensions (W, D, H mm) / 860 × 510 × 90
Cut-out (A, B mm) / 830 × 490
Warranty / 2 Years
Register your Esatto product online for a free additional year esatto.house/warranty
How to ignite the burners
- Press in the control knob of the burner that you wish to light and turn it anti-clockwise towards the ignition symbol.
- If you keep the control knob depressed, the automatic ignition for the burner will operate.
- Then adjust the knob between positions 1 & 9 to your required flame intensity.
- Once you have finished using the burner, ensure the knob is positioned upwards, with the indicator on the knob aligned to the Off knob control position.

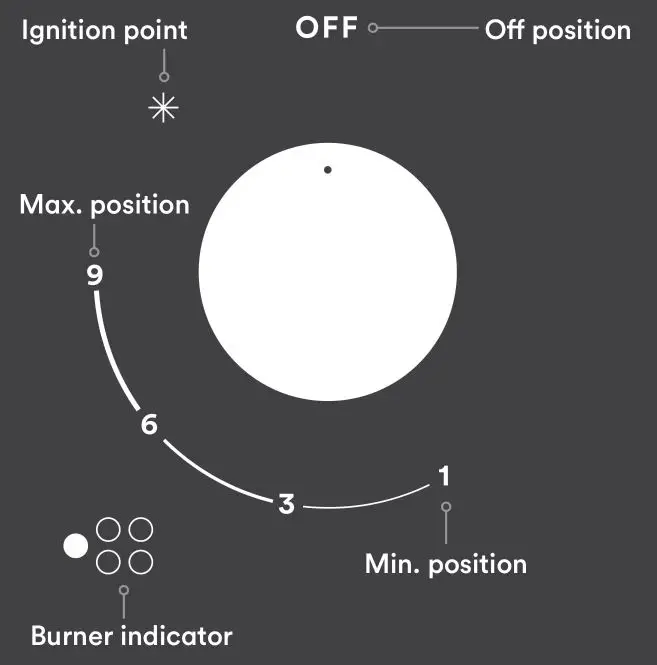

Knob Controls
