PRELIMINARY SPECIFICATION GUIDE
OVEN, 60CM
OVERVIEW
Designed to fit seamlessly into any kitchen with Minimal styling, this 60cm oven features a generous 85L total capacity. Achieve perfect results with 16 oven functions, plus a Wireless Temperature Sensor* for monitoring cooking in real time. Beautiful to use, the large 5” touchscreen interface features simple and intuitive guided cooking, while Pyrolytic self-cleaning breaks down grime and grease, to keep the oven pristine for the next use. *Selected markets and models
MODELS
Oven, 60cm, 16 Function
85L, Self-cleaning, Touchscreen, Dial

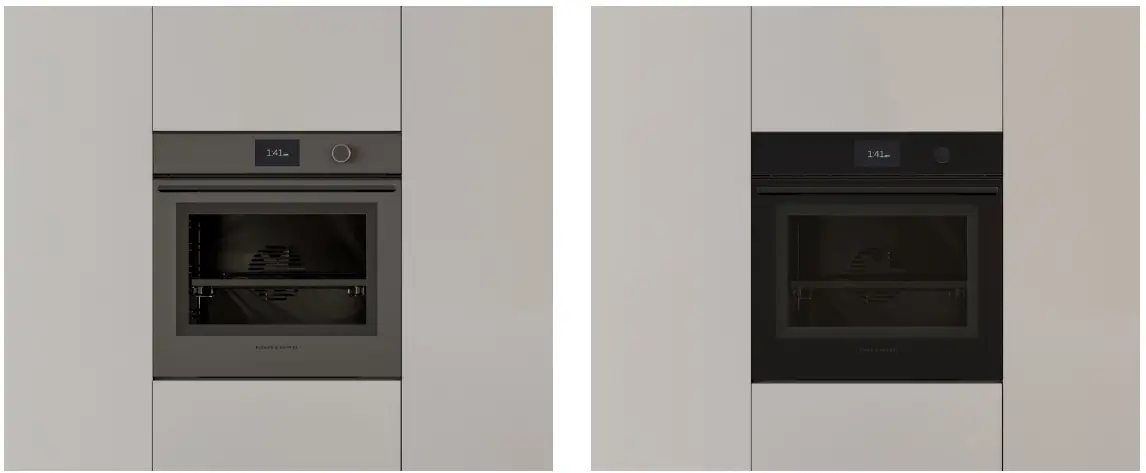

OB60SMPTDG1 (Grey), OB60SMPTDB1 (Black)
SERIES & STYLE
Series 9
Minimal
FEATURES
- Minimal style, designed to fit flush with cabinetry
- Generous 85L total capacity with six shelf positions
- Intuitive, large 5″ touchscreen display with illuminated dial
- 16 oven functions including Air fry, Fan Bake, and Roast
- Pyrolytic self-cleaning function breaks down food residue for an easy clean
- Wireless Temperature Sensor precisely monitors cooking in real time*
- Guided touchscreen cooking makes it simple to cook by food, function or recipe
- Moisture control and even heat distribution thanks to ActiveVent and AeroTech™ technology
- Automatic rapid pre-heat function for added convenience
- Soft open and close door
- Wi-Fi/Connected capability through the SmartHQ™ app* *Selected markets and models
ACCESSORIES
- Baking tray
- Roasting dish
- Grill grid
- Grill rack
- Step down wire shelf
- Full extension wire shelves
- Wireless Temperature Sensor*
*Selected markets and models
PRELIMINARY SPECIFICATION GUIDE
OVEN, 60CM
SPECIFICATIONS
| Model No. | OB60SMPTDG1, OB60SMPTDB1 |
| Dimensions | H 598mm W 596mm D 565mm |
| Total capacity | 85L |
| Weight | 32kg (unpackaged) |
| Electrical | 44kg (packaged) |
| Supply | 220-240VAC, 50Hz |
| Service | 15A circuit |

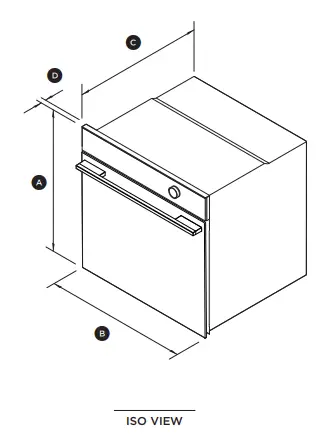

PRODUCT DIMENSIONS

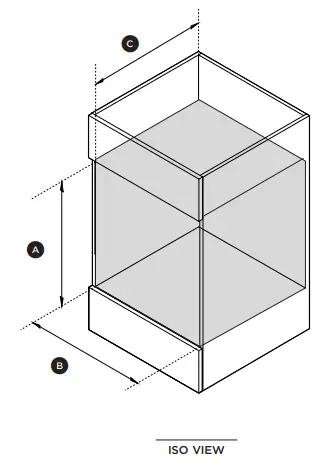

CAVITY DIMENSIONS
mm
| A Overall height | 598 |
| B Overall width | 596 |
| C Depth of chassis | 545 |
| D Depth from front frame (excludes dial and handle) | 20 |
| Depth of oven door when fully open (measured from front of control panel) | 460 |
| A Minimum inside height | 580 |
| B Minimum inside width | 560 |
| C Minimum inside depth | 550 |
90002643 Date: 1 August 2022 The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
