Portable Power Station
HS3600

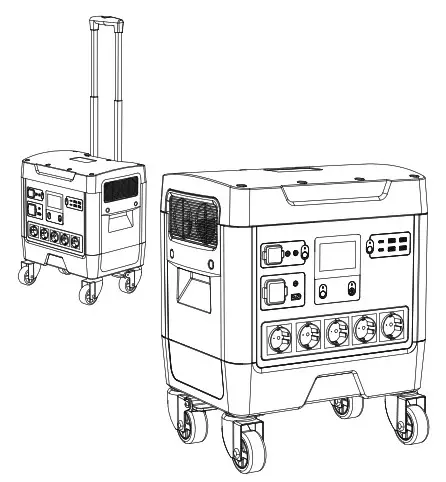

HS3600 Portable Power Station
User’s Manual
Thank you for purchasing our energy storage series products.
We are striving to create innovative products with extreme safety and excellent performance for you, and we are Please read the user’s manual carefully before using the product to ensure a safe and satisfactory operation.
CAUTION
- Please keep dry and stay away from fire.
- Do not disassemble, puncture or squeeze the portable power station.
- Please recycle and dispose of the product in accordance with local laws and regulations.
- Please hand it over to a professional recycling company to dispose this portable power station.
- Children and the disabled please use this product with guardian.
Safety Instructions and Maintenance
- Please read the manual carefully before using the product.
- To reduce the risk of injury,please pay more attention when using this product near children.
- Do not put fingers, palms or any part of your body into the product.
- Use the unrecommended accessories may cause fire, electric shock or personal injury.
- Do not use damaged or modified battery packs or devices.
- Do not operate the portable power station with a damaged cord, plug or output cable.Otherwise it may cause a short circuit and risk of fire.
- Please hand the power station to a qualified service provider for repair or maintenance.Do not disassemble the portable power station by yourself,as wrong disassembly method may cause the risk of fire or electric shock.
- In order to reduce the risk of electric shock when the product fails, disconnects the portable power station from the power supply before performing any instructive maintenance operations.
- Please charge the product in a well-ventilated place, do not obstruct the air circulation.
- Under some extremely harsh conditions, liquid may be ejected from the battery. Avoid contact with batteries and liquids.If contacted please rinse with plenty of water.If the liquid comes into contact with the eyes, please seek other medical help.
- Please do not expose the product to fire or excessive heat.
- Only repairs by qualified service personnel.
- Please do not exceed the specified input AC voltage. Otherwise it may cause product failure,we will not be responsible for providing free maintenance services. Please keep the safety instructions properly.
Introduction
- Faster Charging from the Wall
HS3600 offers multiple recharging options. Industry-leading 1500W High Power AC input lets you recharge in as little as 3 hours. or to recharge by car or solar panel up to 600W.Charge the HS3600 from the sun with our portable solar panels while away from the grid, and keep it topped off from a wall outlet when you’re home. Integrated MPPT charge controller ensures you’re getting the most efficient solar charge possible. - HS3600 is a gas-free solar powered generator with versatile port options,and it support to power a wide range of devices with different port options including fast-charging 100W USB-C Power Delivery, multiple fast quick charging USB-A ports, regulated 12V, and AC ports.

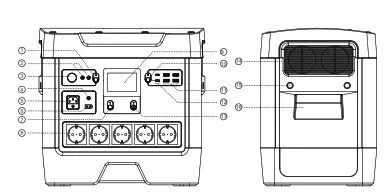

| 1. DC ON/OFF Switch 2. DC Output port 3. Car Cigarette Lighter Socket 4. DC Input port 5. AC Input port 6. Solar Panel Input Port 7. AC ON/OFF Switch 8. AC Output Port | 9. LCD Display 10. USB ON/OFF Switch 11. QC3.0 USB-A Output Port x4 12. PD100W USB-C Output Port x2 13. Main Power Button 14. Cooling Hole 15. Expansion Component Mounting Hole x4 16. Handle |
Specification
| Capacity: | 3248Wh (44.8V/ 72.5Ah) | ||
| Battery Type: | LiFePO4 battery cell | ||
|
Input: | AC | 1500W Max. | 220-240V~,50Hz |
| XT60 | 12-60V/10A Max.(600W Max.) Built-in MPPT Solar Charge Controller | ||
| DC 5521 | 12-60V/7A Max.(420W Max.) | ||
| Inverter Waveform: | Pure Sine Wave | ||
|
AC Output: | Rated Power: 2000W Peak Power: 3000W |
220-240V~,50Hz |
EU 5 ports. |
|
DC Output: | 2x USB-C | PD 100W ( 5V/9V/12V/15V/3A；20V/5A ) | |
| 4x USB-A | QC3.0 ( 5V/3A, 9V/2A,12V/1.5A) per port Max.18W | ||
| Car Socket | 13.6V/8A, 108.8W Max. | Total Share 8A Max. | |
| 2x DC5521 | 13.6V/8A, 108.8W Max. |
LCD Display
| Battery Information indication | a |  | Battery Power Level % | d |  | Battery failure/Low voltage indicate |
| b |  | Battery Power Level | e |  | Battery high/low temperature indication | |
| c |  | Battery lock protection | ||||
|
Input indication | k |  | AC Input | i |  | DC Input |
| j |  | Solar Input | s |  | Input power | |
|
Output indication | o |  | AC Output Icon | q |  | DC/ Car Output |
| p |  | USB Output Icon | r |  | Output power | |
| Remaining time indication | l |  | Remaining time | l | M | Minutes |
| l | H | Hours | ||||
| Protection indication | f |  | System failure indication | m |  | Overload protection |
| g |  | Over temperature indication | n | | Over temperature protection | |
| h |  | Low temperature indication |

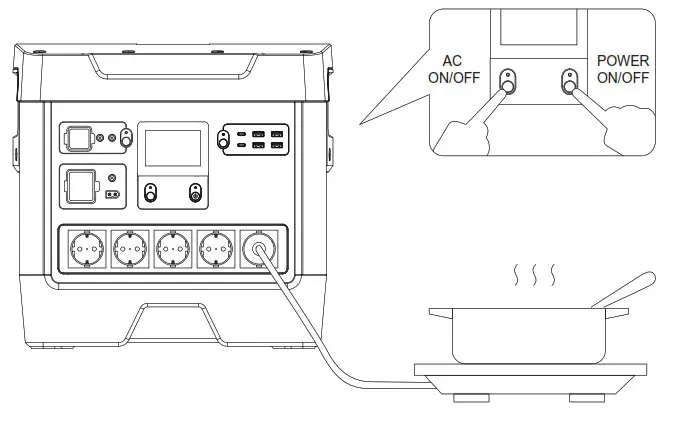

How to use the AC output function
Under the condition that the total power does not exceed 2000W, all ac outlets can work togehter at the same time.
- Long press the main power button 3S to turn on. The main power indicator and the screen lights up, enters the standby state.
- Plug in AC appliances.
- Tap the AC on/off switch to turn on the AC output function. The product starts to supply power to external AC appliances.
- Long press the AC power on/off switch to turn off the AC output.
- When not using the product for a long time ，please long press the main power switch for 3S to turn off to save power.
How to use USB output
- Long press the main power button to turn on.The main power indicator and the screen lights up, enters the standby status.
- Click the USB on/off switch to turn on the USB function.
- Plug in the USB devices and start to use.

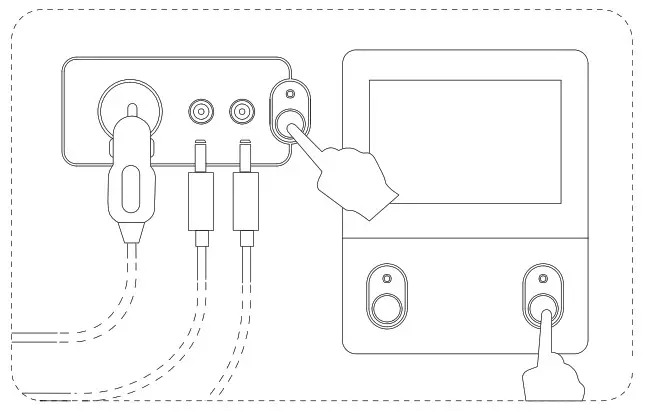

How to use DC output
- Long press the main power button to turn on.The main power indicator and the screen lights up, enters the standby state.
- Plug in the DC device.
- Click the DC on/off switch to turn on the DC function.
- After use, click the DC on/off switch to turn off the DC output.
- When not using the product for a long time, please long press the main power switch for 3S to turn off to save power.

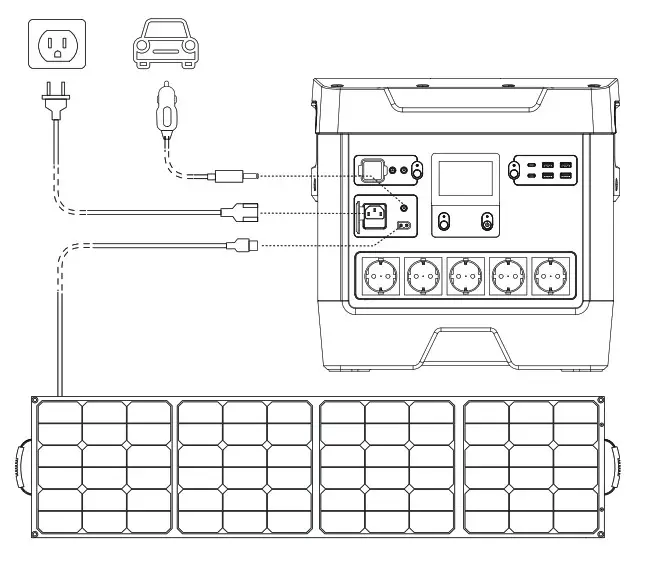

How to charge
- Please charge the HS3600 before using.
- Please fully charge the battery before long storage.Please check the HS3600 remaining power level every 3 months and full recharge it again.
- There have 3 input ports on the Portable Power Station: 1* AC Input Port, 1* solar panel input port and 1* DC5521 port.
1. Super Quick charging ：AC Input (AC power supply can be used to charge Portable Power Station with a maximum power of 1200W through the AC charging port.).
2. Solar charging.
3. Car charging.

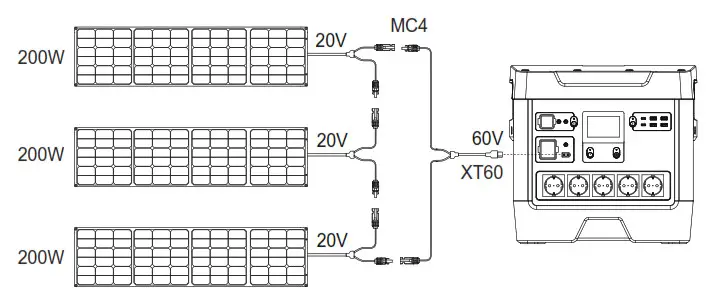

Solar Panel series/parallel charging
Portable Power Station support Solar Panel charging Max 600W.
You can purchase solar panels and dedicated cable accessories that match the Portable Power Station to achieve a high-power solar fast charging experience.
CAUTION ：
- The maximum voltage of solar panels that Portable Power Station can support is 60V,and the maximum current is 10A.
- It must be charged by solar panels with a voltage lower than 60V.
- The input voltage exceeding 60V has the risk of damaging the product.
FAQs
– No, because this product is a products with battery, according to international air transportation standards and regulations, battery capacity products cannot exceed 100Wh.
– Because the product has a low power, it needs to be fully recharged and used again.
– Because this product uses an air-cooled system, the built-in fan can better help the product to dissipate heat, so it is normal for a slight noise to occur during use.
– The portable power station needs to be stored in a dry environment, and the correct storage method can prolong the service life of the portable power station.
– Please use a dry non-abrasive cloth to wipe. Do not wipe directly with a wet cloth or chemical solvent. If you want to wipe it more cleanly, we recommend that you use a cotton swab with a small amount of absolute alcohol to wipe. Do not expose the product to large amounts of water.
