At Sage® we are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions.

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS BEFORE USE AND SAVE FOR FUTURE REFERENCE

A downloadable version of this document is also available at sageappliances.com
Before using the first time ensure your electricity supply is the same as shown on the label on the underside of the appliance. If you have any concerns, please contact your local electricity company.
Remove and safely discard any packaging materials before first use.
To eliminate a choking hazard for young children, safely discard the protective cover fitted to the power plug.
Position the appliance on a stable, heat resistant, level, dry surface away from the edge and do not operate on or near a heat source such as a hot plate, oven or gas hob.
Do not move the appliance while it is switched on.
Do not place the appliance on or near a hot gas or electric burner, or where it could touch any other source of heat.
Do not use on a sink drain board.
Keep the appliance clear of walls, curtains and other heat or steam sensitive materials.
Provide adequate space above and on all sides for air circulation around the appliance.
Fully unwind the power cord before operating.
Do not let the power cord hang over the edge of a bench or table, touch hot surfaces or become knotted.
The appliance is not intended to be operated by means of an external timer or separate remote control system.
Always ensure the appliance is properly assembled before use.
Follow the instructions provided in this book.
Do not touch hot surfaces. Use handles or knobs.
The appliance has been designed specifically for the purpose of foaming milk and other dairy milk alternatives and is not intended to whip, thicken or heat other food substances e.g. oil, eggs, butter, heavy whipping cream, soups, gravies etc.
The appliance is not designed to mix a large quantity of dry ingredients or melt large food pieces e.g. cubed chocolate, ground nuts, whole spices, fresh herbs, ice cubes etc.
The underside of the jug must always be clean and dry before placing onto the power base.
Attach the jug lid securely to the jug before operation.
Do not remove the jug lid during operation.
Use caution when pouring foamed milk from the jug as the jug and hot milk may scald.
Do not operate the appliance without liquid. Always fill to at least the ‘MIN’ marking and no more than the ‘MAX’ marking inside the jug.
The jug must only be used with the power base provided.
Do not use attachments other than those provided with the appliance as it may result in fire, electric shock or injury than those provided with the appliance as it may result in fire, electric shock or injury to persons.
Do not put metal or similar items into the jug as this may damage or affect the operation of the appliance.
To disconnect, press the START/STOP button (the button surround should stop flashing), then remove the plug from power outlet.
Always ensure the appliance is turned OFF, unplugged at the power outlet and has been allowed to cool before cleaning, attempting to move or storing.
Always turn the appliance to the OFF position, switch off at the power outlet and unplug at the power outlet when the appliance is not in use.
Keep the appliance and accessories clean. Strictly follow the care and cleaning instructions described in this book.
Do not use harsh abrasive, caustic cleaners or oven cleaners when cleaning the appliance.
This appliance is for household use only. Do not use the appliance for anything other than its intended use. Do not use in moving vehicles or boats.
Do not use outdoors. Misuse may cause injury.
The appliance and its cord should be kept out of reach of children aged 8 years and younger.
The appliance can be used by children aged 8 or older and persons with reduced physical sensory or mental capabilities or a lack of experience and knowledge, only if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children should not play with the appliance.
Cleaning of the appliance should not be carried out by children unless they are 8 years or older and supervised.
Any maintenance other than cleaning should be performed by an authorised Sage® service centre.

Regularly inspect the power cord, plug and actual appliance for any damage. If found to be damaged in any way, immediately cease use of the appliance and return the entire appliance to the nearest authorised Sage Service Centre for examination, replacement or repair.
WARNING
Always ensure the frothing disc is securely attached to the milk jug before use.
WARNING
Frothing disc is a choking hazard. Children must always be supervised and never left unattended with appliance.
WARNING
Never immerse the power base, power cord or power plug in water or allow moisture to come into contact with these parts

NOTE

This product has been tested and found to comply with the limits for ISM equipment.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This product generates, uses, and can radiate radio frequency energy and, if not used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation.

The installation of a residual current safety switch is recommended to provide additional safety when using all electrical appliances. Safety switches with a rated operating current not more than 30mA are recommended.
Consult an electrician for professional advice.
Apart from general care and cleaning of the product, no maintenance of the radio frequency system is required.
Changes or modifications to the product could void the user’s authority to operate the equipment.
If this product does cause harmful interference to radio or television reception – which can be determined by turning the product off and on – the user is encouraged to correct the interference by one or more of the following measures:
-Reorient or relocate the product.
-Increase the separation between the product and the receiver.
-Connect the product into an outlet on a circuit different from that to which the receiver is connected.
• For safety reasons it is recommended you plug your Sage® appliance directly into its own electrical outlet on a dedicated circuit separate from other appliances. If the electric circuit is overloaded with other appliances, your appliance may not function properly. Use in conjunction with a power strip or extension cord is not recommended.

SHORT CORD INSTRUCTIONS

Your Sage® appliance is fitted with a short power supply cord as a safety precaution to prevent personal injury or property damage resulting from pulling, tripping or becoming entangled with a longer cord. Do not allow children to use or be near this appliance without close adult supervision. Longer detachable power supply cords or extension cords are not recommended but may be used if care is exercised. If an extension cord is used, (1) the marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance, (2) the cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally and (3) the extension cord must include a 3-prong grounding plug.
The symbol shown indicates that this appliance should not be disposed of in normal household waste.
It should be taken to a local authority waste collection centre designated for this purpose or to a dealer providing this service.
For more information, please contact your local council office.
To protect against electrical shock, do not immerse the power cord, power plug or motor base in water or any other liquid, or allow moisture to come into contact with these parts

SAVE THESE INSTRUCTIONS

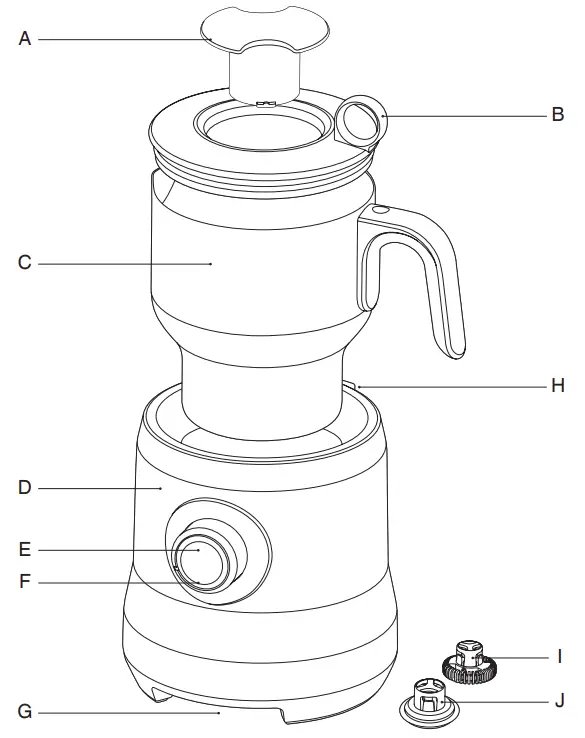

KNOW YOUR SAGE® MILK CAFÉ™

A. Measuring Cap
B. Jug Lid
C. Dishwasher Safe Milk Jug
D. Power Base
E. START | STOP Push-Dial
F. LED Indicator
G. Cord Wrap
H. ‘On Board’ Disc Storage
I. ‘Cappuccino’ Frothing Disc
J. ‘Latte’ Frothing Disc

Rating Information
220-240V ~50–60Hz 500W

OPERATING YOUR SAGE® MILK CAFÉ™

FROTHING HOT MILK

Place the milk frother on a flat level surface and plug the power cord into a 220–240V power outlet. The START | STOP button surround will illuminate.

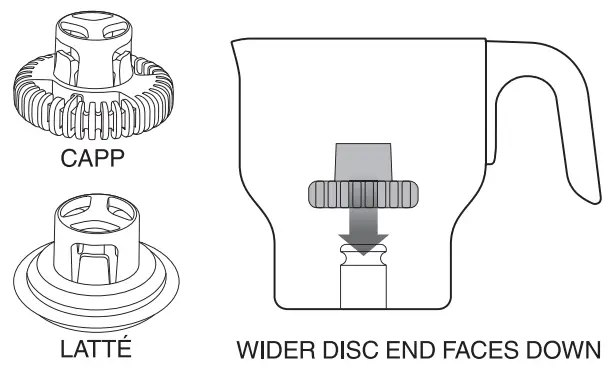

Select the ‘Capp’ or ‘Latté’ frothing disc. Choose the ‘Capp’ disc for thick and creamy froth or the ‘Latté’ disc for smooth and silky milk
Insert the frothing disc onto the shaft at the base of the milk jug. Ensure the disc is inserted the correct way with the wider part of the disc at the bottom of the jug. The disc should ‘click’ securely onto the shaft.
WARNING
Frothing disc is a choking hazard. Children must always be supervised and never left unattended with the appliance.

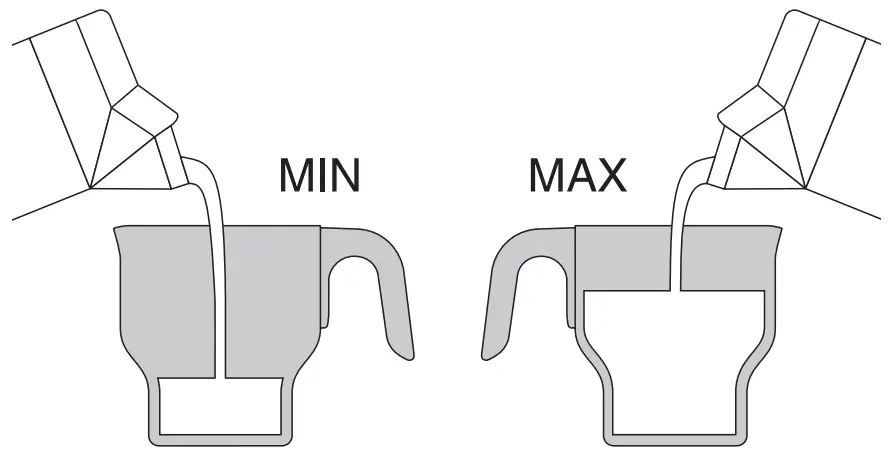

Pour the required amount of cold, fresh (or freshly opened) milk into the milk jug then cover with the jug lid.

NOTE

Never operate without the minimum level of liquid in the milk jug. The milk frother will automatically turn off if the milk jug is empty. If this occurs, you will need to wait for the milk frother to cool down before reuse, refer to page 8.

Ensure the jug lid is securely attached. Place the milk jug onto the power base.

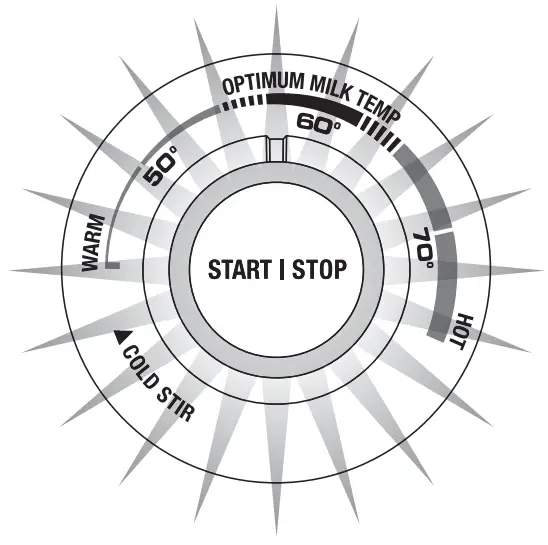

Turn the START / STOP push-dial to the desired temperature.

NOTE

Do not remove the milk jug from the power base during operation. Doing so may dislodge the frothing disc and cause a grinding noise. Always press the centre of the START / STOP push-dial before removing the jug. Operation has stopped once the button surround has stopped flashing.

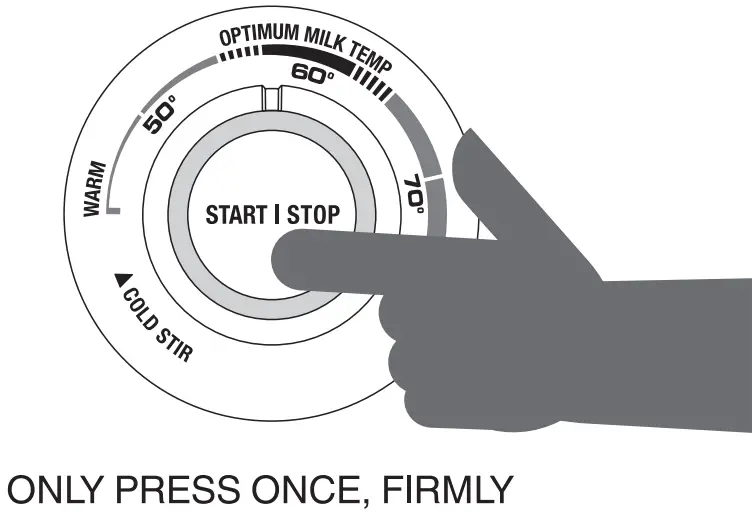

Only press the START / STOP push-dial once, firmly. Frothing has started once the milk frother beeps once and the button surround slowly flashes.
WARNING
Appliance surfaces will be hot during and after operation.

Clean the milk jug and frothing disc immediately after use. Refer to Care & Cleaning.

NOTE

When frothing multiple batches, to prevent the Boil Dry Protection from activating, we recommend allowing the milk jug to cool for approximately 5 minutes, or filling the milk jug with water for faster cooling.

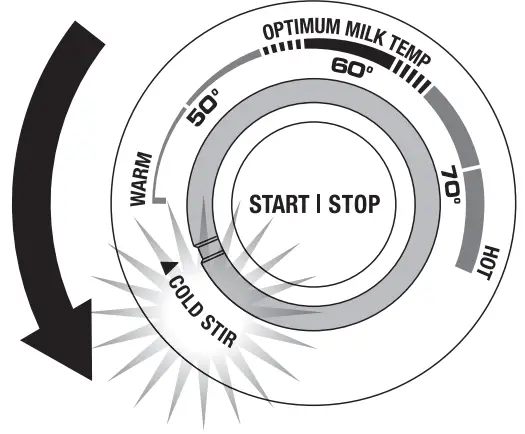

USING THE ‘COLD STIR’ SETTING

The ‘Cold Stir’ setting allows you to stir already cold or hot milk without additional heat.
Use it to froth milk for cold beverages such as an iced cappuccino; to blend in syrups and flavourings for an iced chocolate or mocha; or to stir in dissolvable instant drinking powders into milk or water.

NOTE

The milk frother has been designed specifically for the purpose of foaming milk and other dairy milk alternatives and is not intended to whip, thicken or heat other food substances eg. oil, eggs, butter, heavy whipping cream, soups, gravies etc.
The milk frother is not designed to mix a large quantity of dry ingredients or melt large food pieces eg. cubed chocolate, ground nuts, whole spices, fresh herbs or ice cubes.

ADDING INGREDIENTS

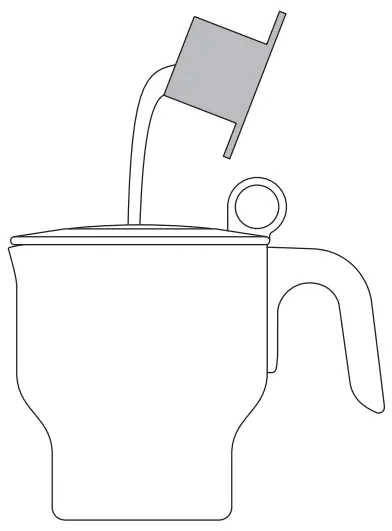

Always allow the milk frother to start for a few seconds before using the measuring cap to gradually add ingredients. Always add ingredients slowly and in small quantities.

NOTE

Frothing results differ depending on the ingredients used. For example, adding dense ingredients like thick syrups, heavy powders and large flakes can significantly reduce the amount of foam.

SAFETY FEATURES

Boil Dry, Overheating Protection

The milk frother will automatically cease to operate if the milk jug overheats. This can be caused if the milk jug is empty, if liquid is below the MIN measurement marking, or after consecutive uses. If this occurs, 3 alerts will sound. Unplug the power cord from the power outlet, wait approximately 5 minutes for the milk frother to cool down or fill the milk jug with water for faster cooling.

Thermal Fuse & Current Protection

This feature protects the milk frother in case of major fault. If this occurs, the milk frother will automatically turn off and will not reactivate.
Immediately cease use, remove the power plug from the power outlet and visit www.sageappliances.com or call Sage Consumer Service

CARE & CLEANING CARE & CLEANING FOR YOUR SAGE® MILK CAFÉ™

Both the milk jug and frothing disc should be cleaned immediately after each use to prevent build-up of milk residue.

Unplug the power cord from the power outlet before cleaning.
The milk jug and frothing disc will be hot immediately after use, so carefully remove the milk jug from the power base and fill with tap water. Once the milk jug and frothing disc have cooled completely, remove the frothing disc and rinse off any milk in warm water.
Wash the milk jug, jug lid, measuring cap and frothing disc in warm soapy water, rinse and dry thoroughly.
The seal from the lid can be removed and washed separately.
Wipe the exterior of the power base with a soft damp cloth. Dry thoroughly.

NOTE

Do not use alkaline or abrasive cleaning agents, steel wool or scouring pads on any part of the milk frother as these can damage the appliance surfaces.

NOTE

Never immerse the power base in water or any other liquid. The outside of the milk jug must always be clean and dry before placing on the power base prior to use.

NOTE

The milk jug, jug lid, measuring cap and frothing discs can be washed in the dishwasher (top shelf only). However to extend the life of the frothing discs, we recommend these are washed by hand.

TROUBLESHOOTING

PROBLEM	POSSIBLE CAUSE	WHAT TO DO
Milk is not foaming?	Milk is warm or too hot to foam.	Use cold, fresh (or freshly opened) milk. Do not re-foam already heated milk. Try reducing the quantity of milk in the milk jug. Try a different milk. Some milks and milk brands produce more froth than others. For example, we have found that some soy milks produce froth while others do not. Experiment with different milk options and frothing discs to achieve the desired result Adding dense ingredients like thick syrups, heavy powders and large flakes can significantly reduce the amount of foam. This is normal.
Milk is not heating?		Ensure the milk jug is correctly positioned onto the power base. Ensure that the milk frother has been properly activated. Frothing has started once the milk frother beeps once and the button surround slowly flashes. If the milk frother does not do this, re-push the START / STOP push-dial once, firmly Increase the temperature by turning the START / STOP push-dial to the right.
Frothing disc is not moving or is dislodged?	Frothing disc is not inserted correctly. Frothing disc has dislodged during operation. Ingredients have been added too quickly.	Stop operation. Remove liquid from milk jug. Ensure the frothing disc is securely and correctly attached. Refer to steps 2 & 3, page 7. Once attached, turn the frothing disc with your fingers, it should turn freely. If it doesn’t, contact Sage® Consumer Service. Refill milk jug with liquid. Start frothing. Add ingredients (if desired) slowly and in small quantities after the milk has already started swirling.
3 beeps?	The milk frother may be overheated.	Unplug the cord from the power outlet. Remove liquid from milk jug. Rinse the milk jug and frothing disc with cold water then dry thoroughly. Ensure the milk frother has not been operated for 5 minutes. This allows the internal components to cool. Ensure the frothing disc is securely and correctly attached. Refer to steps 2 & 3, page 7. Once attached, turn the frothing disc with your fingers, it should turn freely. If it doesn’t, contact Sage® Consumer Service. Recommence frothing.
Humming noise?	This is normal. It is the cooling fan preventing the milk frother from overheating.	During this time, you may still use the milk frother unless the Boil Dry Overheat Protection as been activated (3 beeps will be heard). Follow the instructions above.
Burnt milk?	Milk is not swirling correctly. Milk jug has not been cleaned properly and milk residue from previous use is burning.	Ensure the frothing disc is securely and correctly attached. Refer to steps 2 & 3, page 7. Once attached, turn the frothing disc with your fingers, it should turn freely. If it doesn’t, contact Sage® Consumer Service. Ensure the milk jug is thoroughly cleaned after each use and between consecutive uses.
Ingredients are not melting?	Ingredients have been added before milk has warmed up.	Always allow the milk frother to start for a few seconds before using the measuring cap to gradually add ingredients. Ensure ingredients are in small pieces.
	Ingredients are too large.
Milk is too cold / too hot?		Adjust the temperature to suit your personal preference. Always fill the milk jug between the MIN and MAX level markings.
Grinding noise?	Frothing disc is not inserted correctly. Frothing disc has dislodged during operation. The milk jug has been removed from the power base during operation.	Ensure the frothing disc is securely and correctly attached. Refer to steps 2 & 3, page 7. Once attached, turn the frothing disc with your fingers, it should turn freely. If it doesn’t, contact Sage® Consumer Service. Removing the milk jug during operation can dislodge the frothing disc. Stop operation. Reinsert the frothing disc correctly before recommencing.
Emergency stop?		To stop operation at any time, press the centre of the START/ STOP push-dial. Operation has stopped once the button surround has stopped flashing.

GUARANTEE

2 YEAR LIMITED GUARANTEE

Sage Appliances guarantees this product for domestic use in specified territories for 2 years from the date of purchase against defects caused by faulty workmanship and materials. During this guarantee period Sage Appliances will repair, replace, or refund any defective product (at the sole discretion of Sage Appliances).
All legal warranty rights under applicable national legislation will be respected and will not be impaired by our guarantee. For full terms and conditions on the guarantee, as well as instructions on how to make a claim, please visit www.sageappliances.com.

www.sageappliances.com
Registered in England & Wales No. 8223512
Registered in Germany No. HRB 81309 (AG Düsseldorf)
Registered in France No. 879 449 866 RCS
Due to continued product improvement, the products illustrated or photographed in this document may vary slightly from the actual product
