Ifi Audio Neo Streamer And Dac User Guide

Quick User Guide

NEO Streamer and DAC

https://ifi-audio.com/product-guides/

Wi-Fi Set- Up

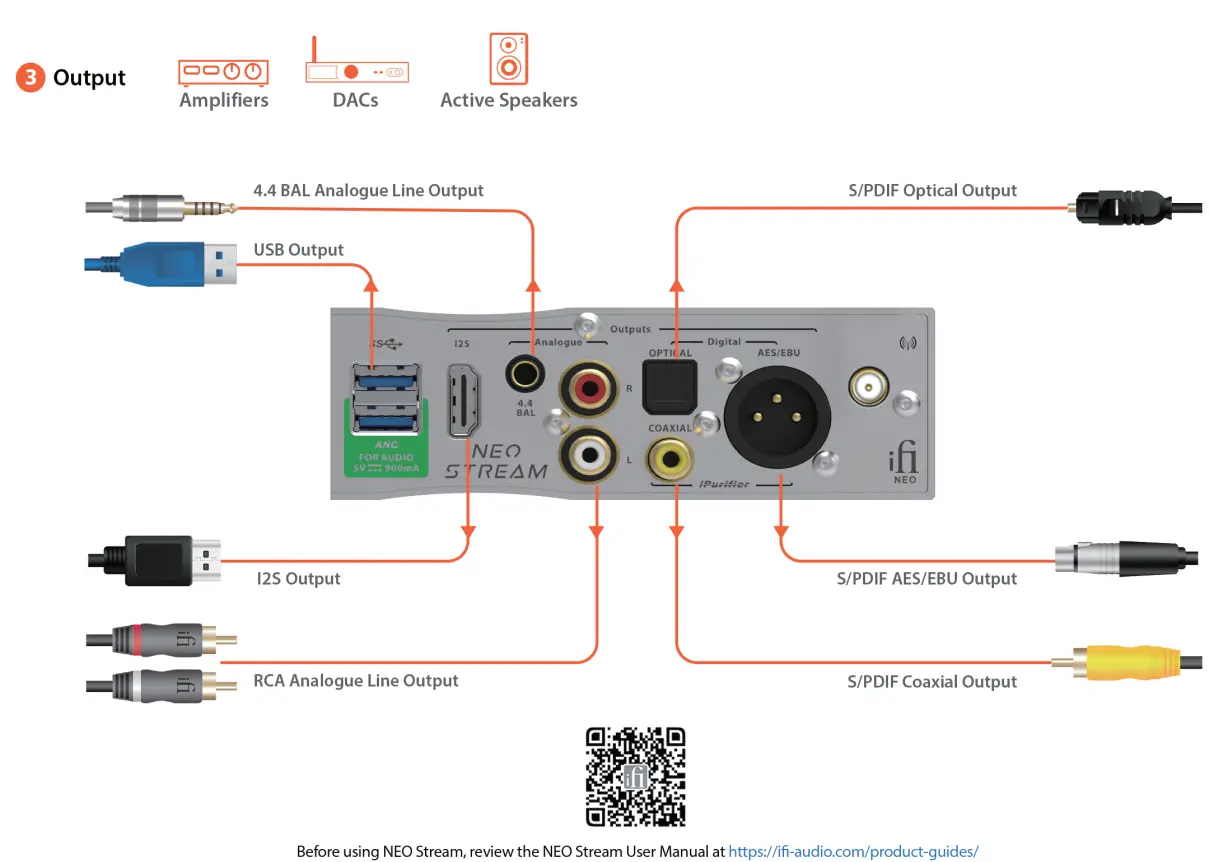

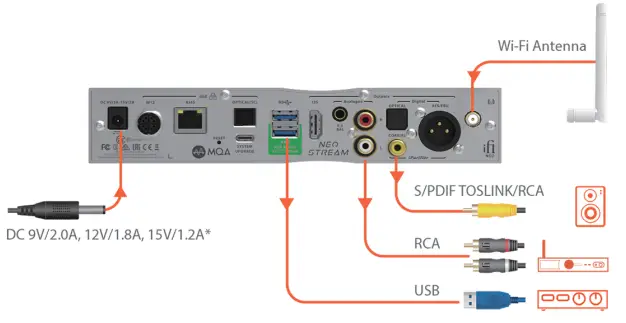

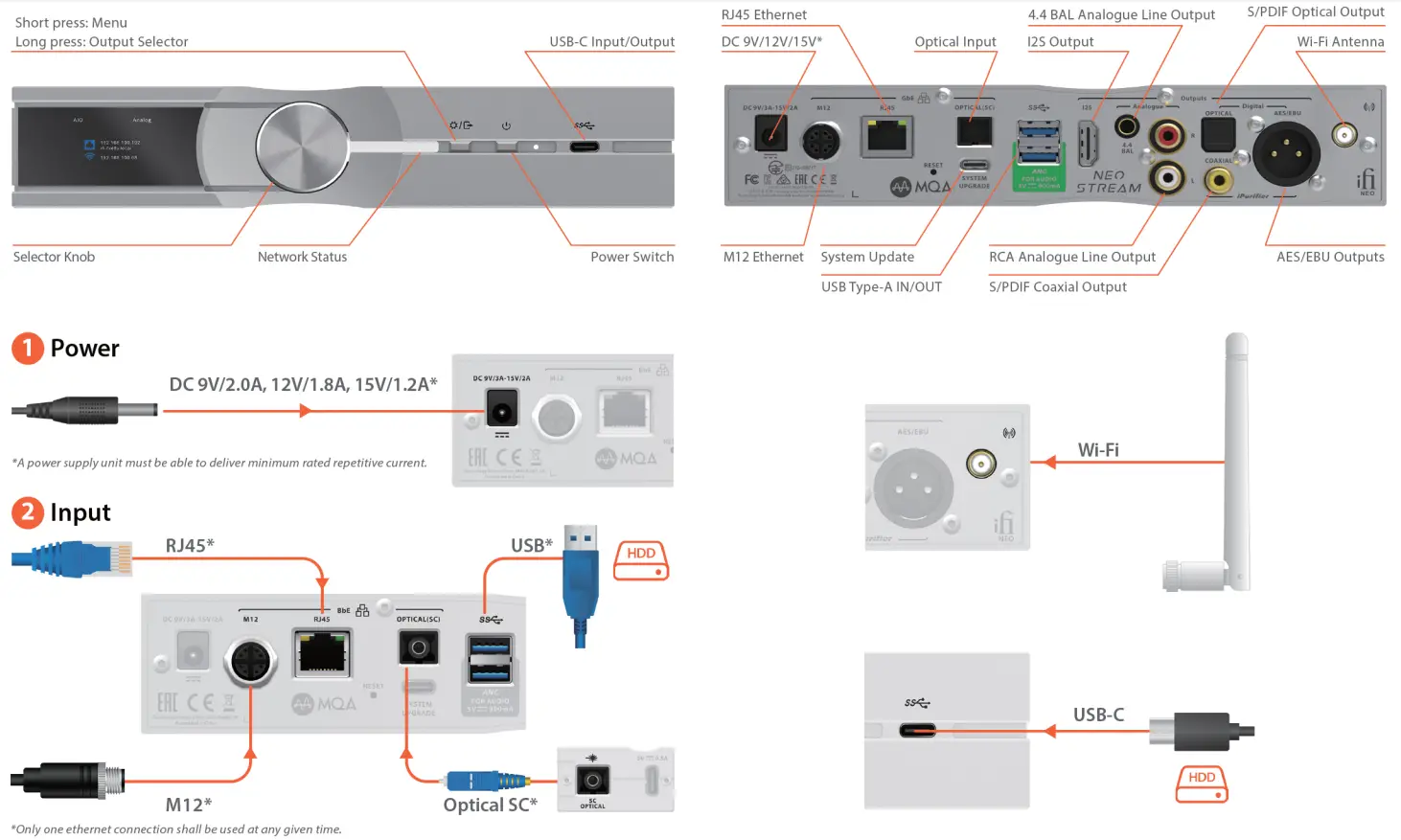

1. Connect Wi-Fi antenna and power supply DAC, Amplifier or Active Speakers via S/PDIF, RCA or USB
   The power supply unit must be able to deliver minimum rated repetitive current.
2. Power on

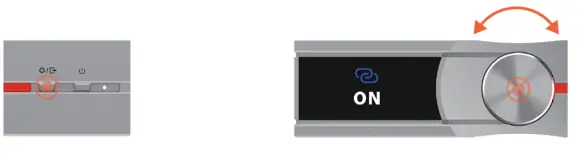

3. Select Hotspot and set to ON

4. In your device’s Wi-Fi setting, connect toIli-Streamer’

5. On your phone browser enter “192.168.211.1” into URL box (not the search box)

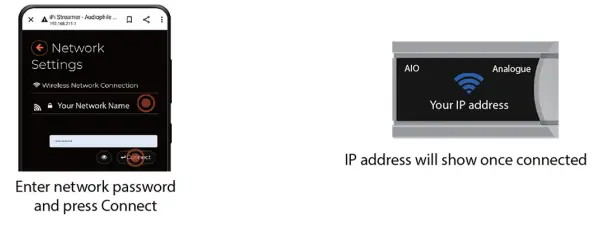

6. Connect the iFi-Streamer to your local Wi-Fi network

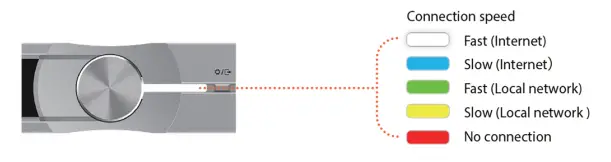

7. Network status LED

8. Connect your phone back to your local Wi-Fi network (If not already connected)
9. Go to the Music Streaming section

Ethernet Set-Up

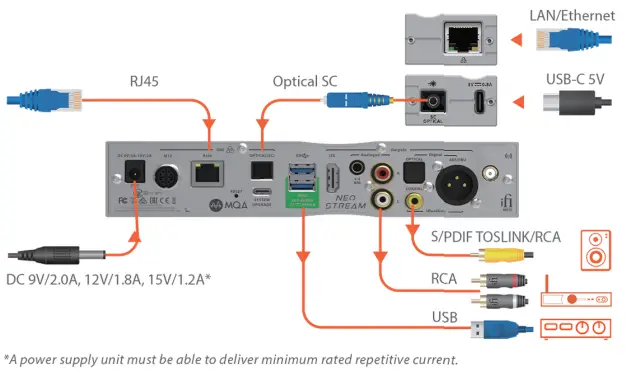

1. Connect LAN and power supply DAC, Amplifier or Active Speakers via S/PDIF, RCA or USB

2. Power on

3. Ready to connect

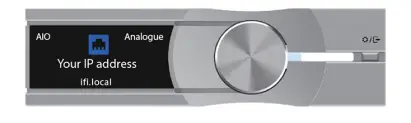

4. IP address will show once connected

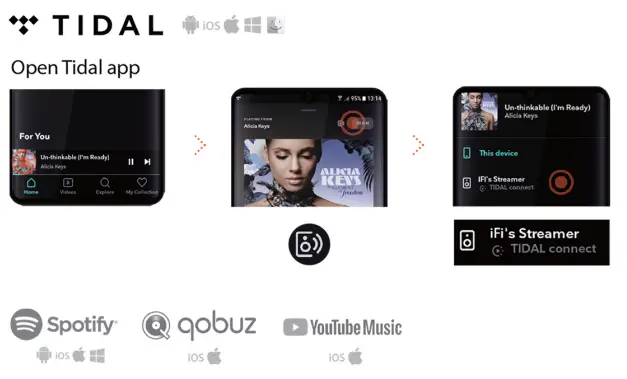

Music Streaming

Other compatible apps are available
