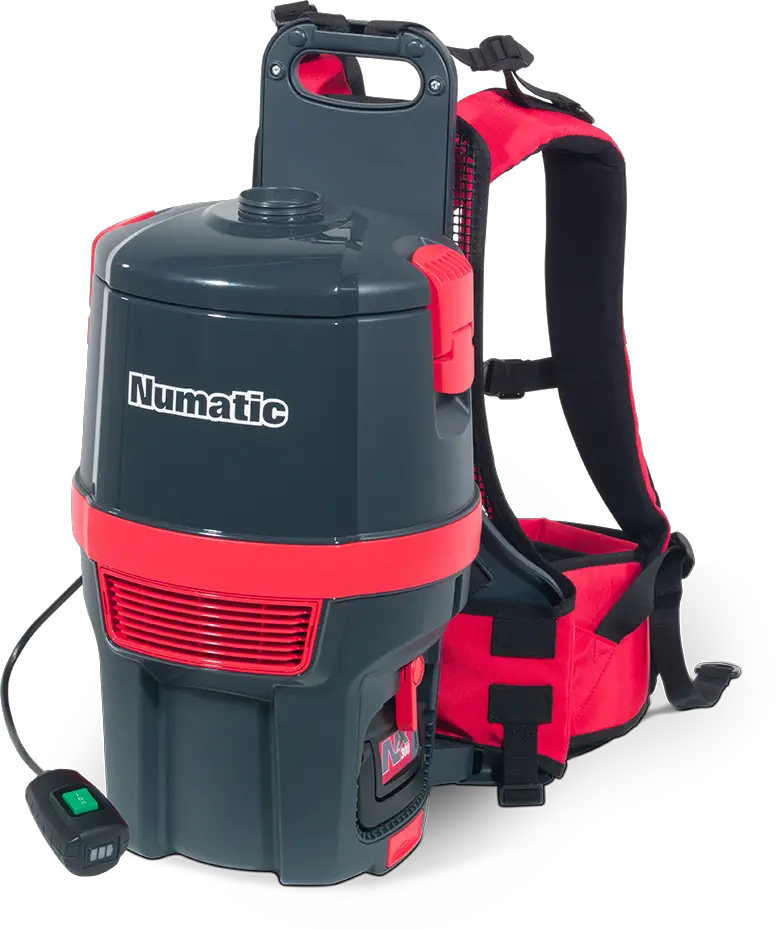

NACECARE RBV 150 Numatic Cordless Backpack Vacuum

Original Instructions
CAUTION, Read instructions before using the machine.

Standard Kit

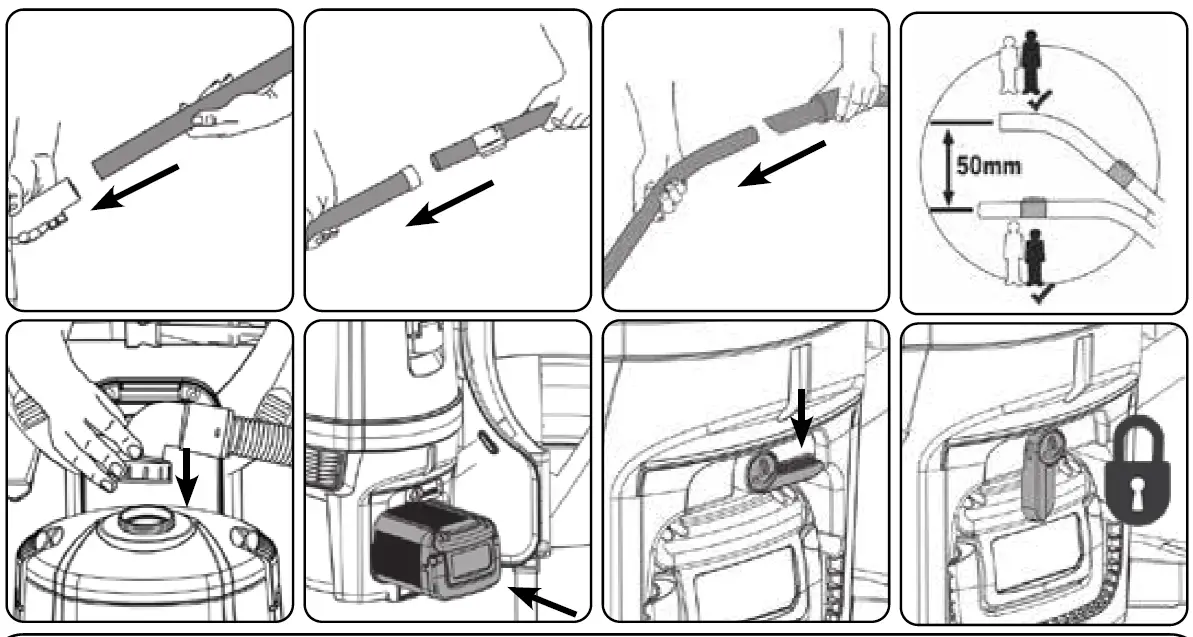

Assembly

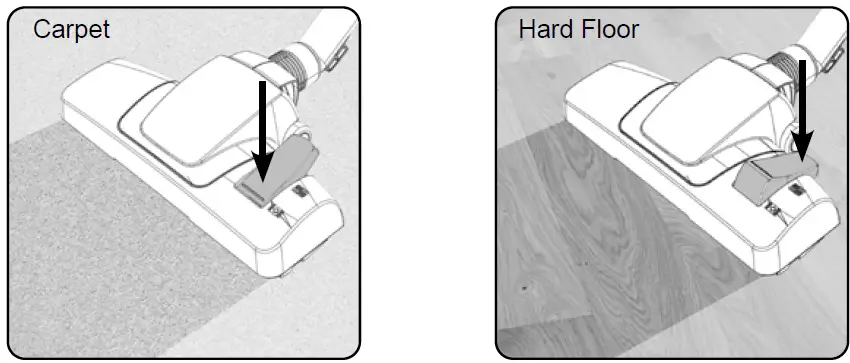

Floortool adjustment

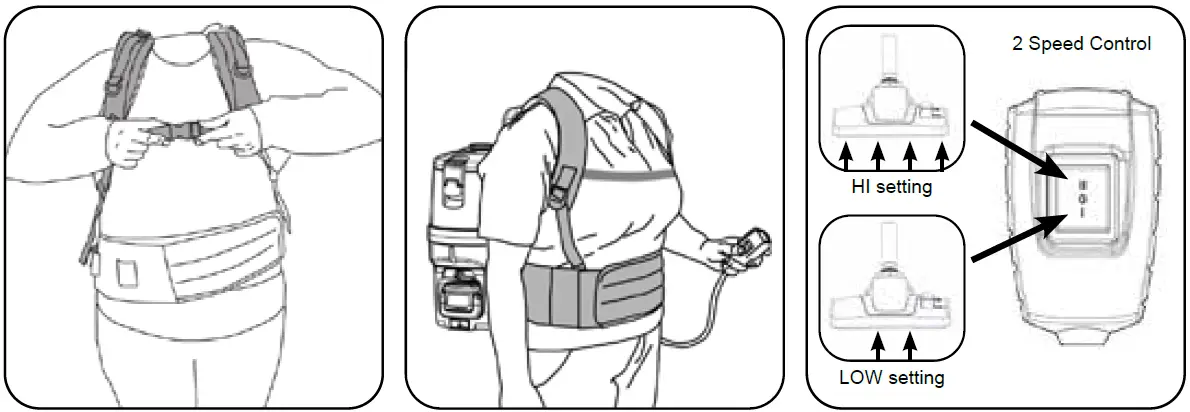

Using the machine

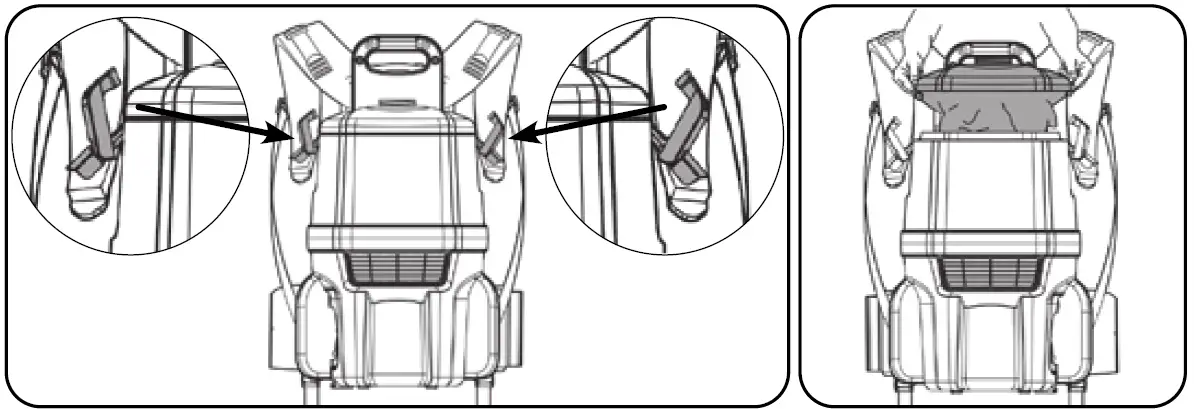

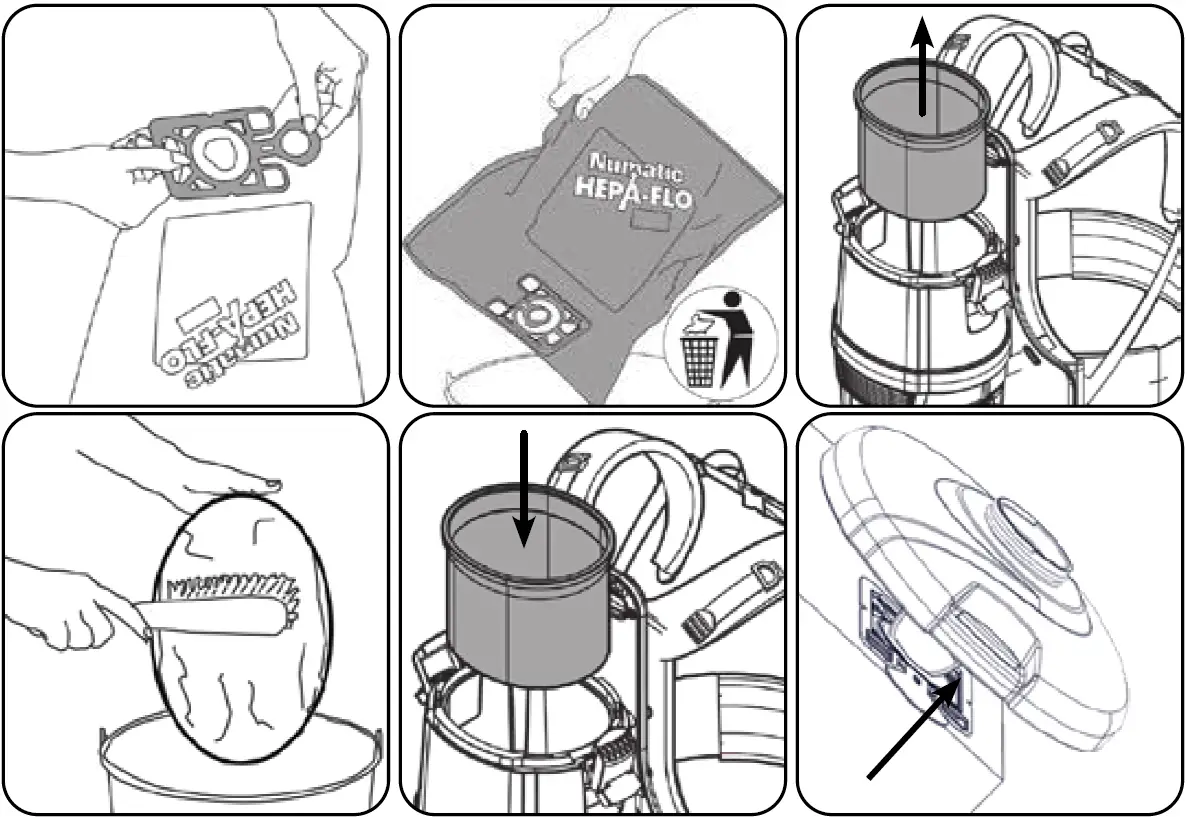

Cleaning your machine

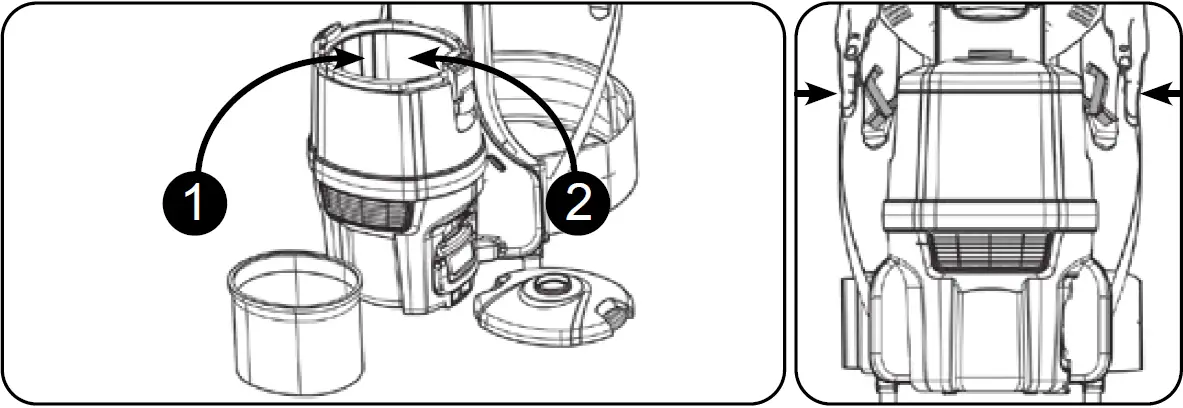

Replacing the Cartridge filter

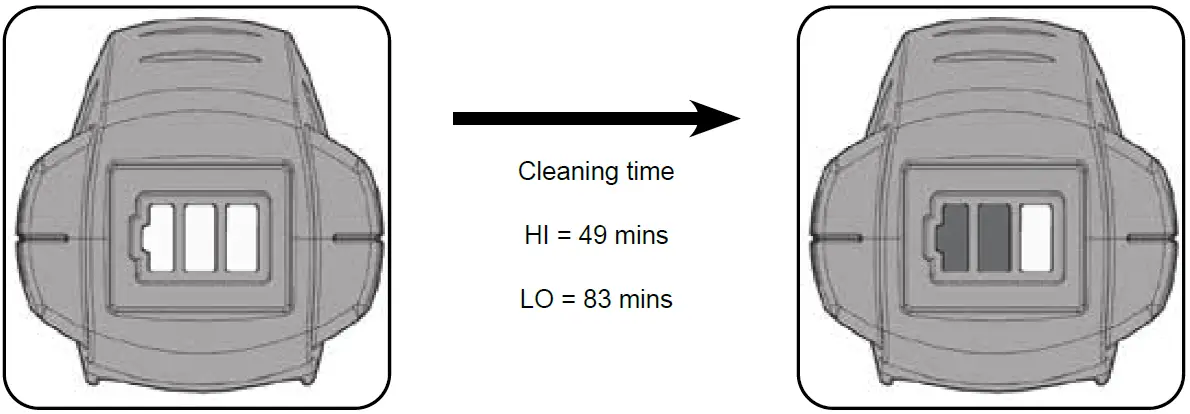

Charging your battery

For information relating to the operation and charging of your battery please refer to the battery and charger original operating instructions

Data

About your machine

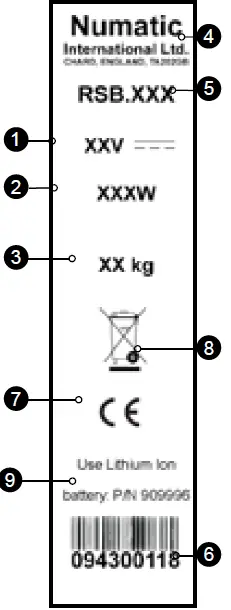

Rating Label

Maintenance

Daily
Keep the machine clean, including hoses and tubes.
Ensure the bag and filter are fitted. Regularly examine the power cord.
Check dust bag frequently. Check filters are clean.

Weekly – as daily and:-
Check for any worn or damaged parts and replace immediately.

WEEE (Waste, Electrical and Electronic Equipment)
Vacuum Cleaner Accessories and packaging should be sorted for environmentally-friendly recycling.

Only for EU countries.
Do not dispose of Vacuum Cleaner into household waste.
According to the European Directive 2012/19/EU on waste electrical electronic equipment and its incorporation into national law.
Vacuum cleaners that are no longer suitable for use must be separated, collected and sent for recovery in an environmentally-friendly manner.

PPE (Personal protective equipment) that may be required for certain operations.

NOTE: A risk assessment should be conducted to determine which PPE should be worn.

Information for DRY use vacuum cleaners

WARNING Read the instruction manual before using the machine.
Operators shall be adequately instructed on the use of these machines, as with all electrical equipment, care and attention must be exercised at all times during use, you must also make certain that routine and preventative maintenance is carried out periodically to ensure safe operation.

• Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility in this respect.
• This machine is for DRY USE only.
• You must remove the battery from the machine BEFORE cleaning or maintenance and when replacing parts or converting the machine to another function.
• This appliance is intended to be assembled, cleaned and maintained by an adult.
• This machine is not suitable for the collection of biological hazards, hazardous or explosive dusts.
• Contact your local distributor if you require a machine capable of performing these tasks.
• This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
• Children should be supervised to ensure that they do not play with the appliance.
• This machine is not a toy; children shall not play with this machine.

CAUTION: This machine must not be stored outside, or used in wet environments, or to collect wet materials. The vacuum cleaner should be stored in a dry place and is for indoor use only.
You must ensure that the filtration system fitted to the machine is suitable for the material being collected.

NOTE:

• The primary use for this machine is commercial, for example in hotels, schools, hospitals, factories, shops and offices. This product complies with the requirements of clause 20 of EN/IEC 60335-2-69 Stability and Mechanical Hazards. This vacuum cleaner is fitted with a thermal protection device.
• If the vacuum cleaner has a blockage, remove the battery and inspect the floor tool, tubes and hose for debris.
• If the floor tool, tubes and hose are clear, replace the dust bag and clean the filter.
• The vacuum cleaner should be inspected after use for damage.
• The vacuum cleaner should be stored in a dry place.

DO

• Keep your machine clean including hoses and tubes.
• Change dust bag frequently.
• Keep filters clean.
• Keep diffuser filter (where fitted) clean.
• Use filter bags, they will enhance performance and help keep machine clean.
• Use a Numatic Original filter bag under fine dust conditions.
• Keep hoses and tubes clear.
• Replace any worn or damaged parts immediately.

DON’T

• Use to suck up hot ashes or lighted cigarette ends.
• Use steam cleaners or pressure washers to clean the machine or use in the rain.
• Immerse in water for cleaning.
• Attempt machine maintenance or cleaning unless battery has been removed from the machine.
• Do not use in wet environments or to collect wet materials.
• Under any circumstances place foreign objects including (but not limited to) air fresheners, air freshener capsules or scented beads of any type into the top filter of the machine. Doing so can be dangerous and risk damage to the machine and may invalidate the machine warranty.

Replacement parts

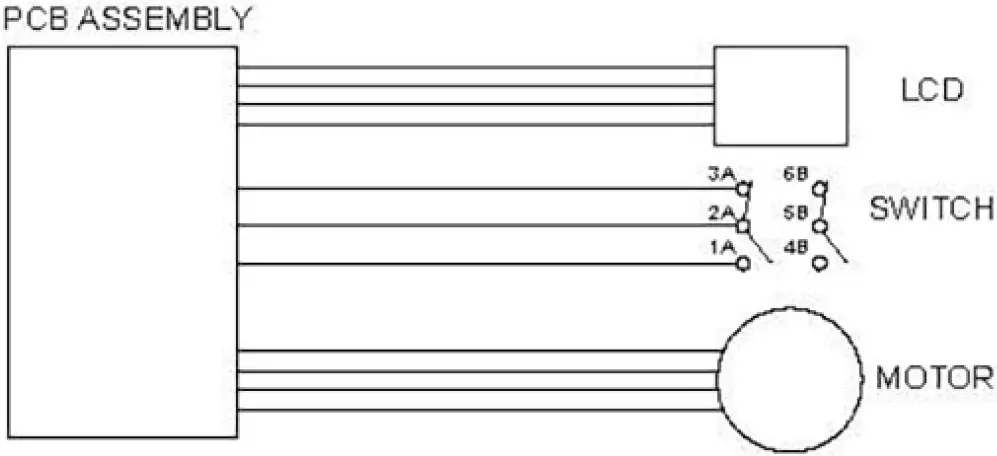

Schematic diagram

WARRANTY

Numatic International Limited warranty to the original purchaser that its products are free of defects in both material or workmanship for the period shown below:-
Homecare and Cloancaro Vacuum cleaners…………………………………….. 2 Years
Rotary Floor Machines……………………………………………………………………. 2 Years
Twintech Auto Scrubber Dryer…………………………………………………………… 1 Year
Vario Ride-On Scrubber Dryer……………………………… 1 Year/ 1500 hours
Mopping, Compacts, Combi and Servocare Products………………………… 1 Year
Individual Accessories and Spare Parts …………………………………………. 6 Month
