DXA-PRE Low Noise Preamplifier for Cinema Cameras
User Manual
DXA-PRE Reference Card
Low-Noise Preamplifier for Cinema Cameras

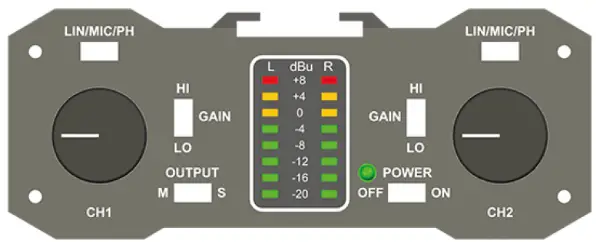

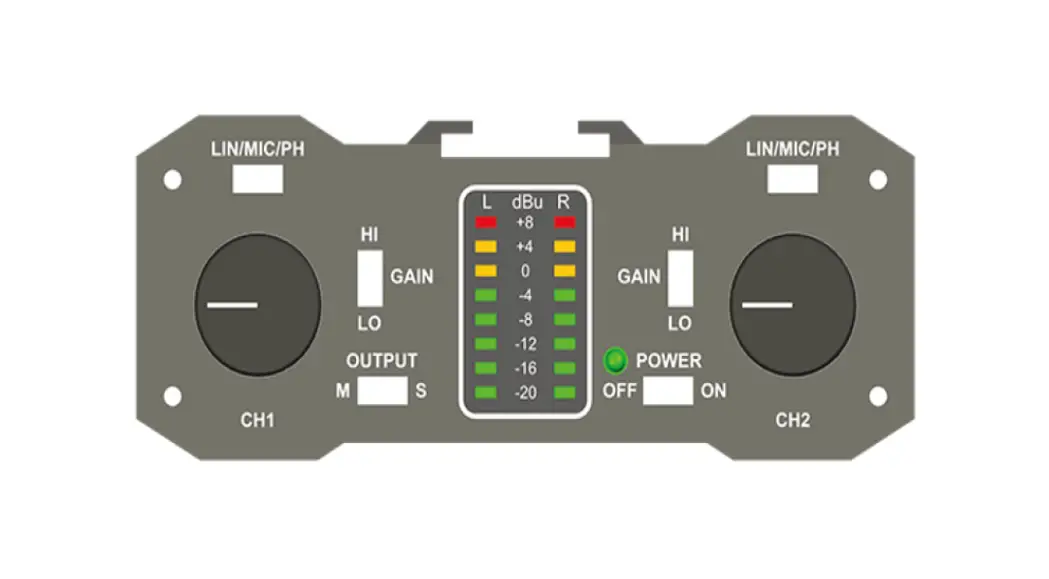

Preamplifier Controls
| POWER | Main Power Switch |
| OUTPUT | Selects M for MONO or S for STEREO output |
| GAIN | HI: 60dB LO: 40dB |
| LN/MIC/PH | LIN: Line level input MIC: Mic level input PH: Mic level input with 48V phantom |
| CHI / CH 2 | Trim controls for each channel |

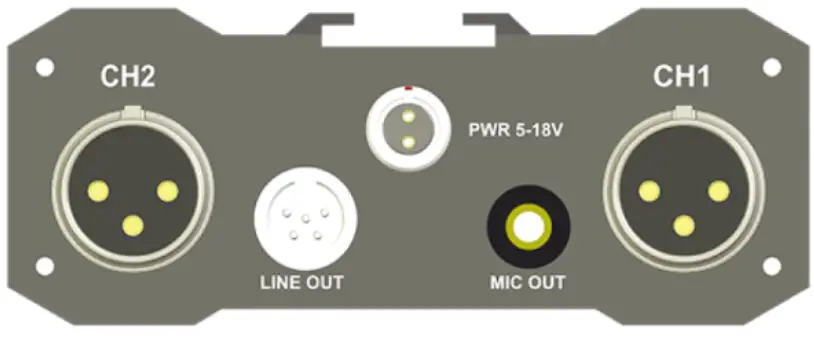

Preamplifier Connectors
| CHI CH2 | XLR balanced inputs |
| LINE OUT | 5-pin mini XLR balanced output |
| MIC OUT | 3.5mm TRS unbalanced output |
| PWR | 2-pin LEMO 5 to 18 volts DC in |
Mounting Options
Here are a few ways to mount the DXA-PRE to your camera
1) Cheese Plate Mount
Use the included V-CLI K to attach the unit to any convenient area on the camera cage or cheese plate
2) Hot Shoe Mount
Use the included brass mounting foot to attach the unit to a hot or cold shoe bracket
3) Rail Mount
Use a third party accessory such as the Redrock Micro Baseplate
Connection Configuration
RED DSMC2 cameras: all models
Output cable: included SC35, or Beachtek BT-35 for higher output
RED DSMC3 cameras: V-RAPTOR, V-RAPTOR XL
Output Cable: Beachtek BT-SPIN
IMPORTANT Be sure to set camera to LINE IN only
ARRI Cameras: ALEXA Mini
Output Cable: Beachtek BT-5PIN
ARRI Cameras: ALEXA MINI LF, ALEXA 35
Output Cable: Beachtek BT-6PIN
Other Cameras: DSLR, Mirrorless, Camcorders
Output Cable: Included SC35
