Heating Green Versa 120v Hardwiring Instructions

heating green Versa 120V Hardwiring

WALL WIRE

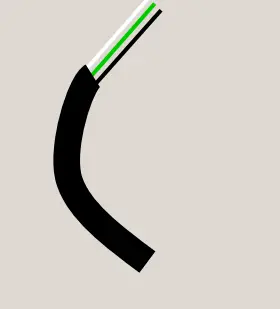

GLASS HEATER WIRE

• REMOVE THE OUTLET OF THE GLASS HEATER

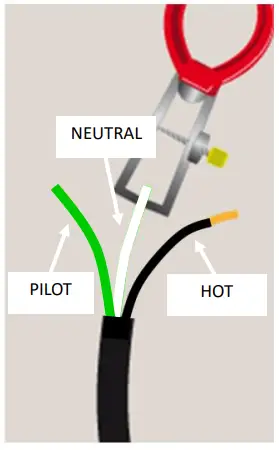

• STRIP THE BLACK AND THE WHITE WIRES ONLY. THE GREEN ONE  IS THE PILOT WIRE, LEAVE IT.

FINAL STEP

• SCREW THE 2 WIRES INSIDE THE CONNECTOR BOX. LEAVE THE GREEN WIRE UNSTRIPPED AND UNSCREWED
