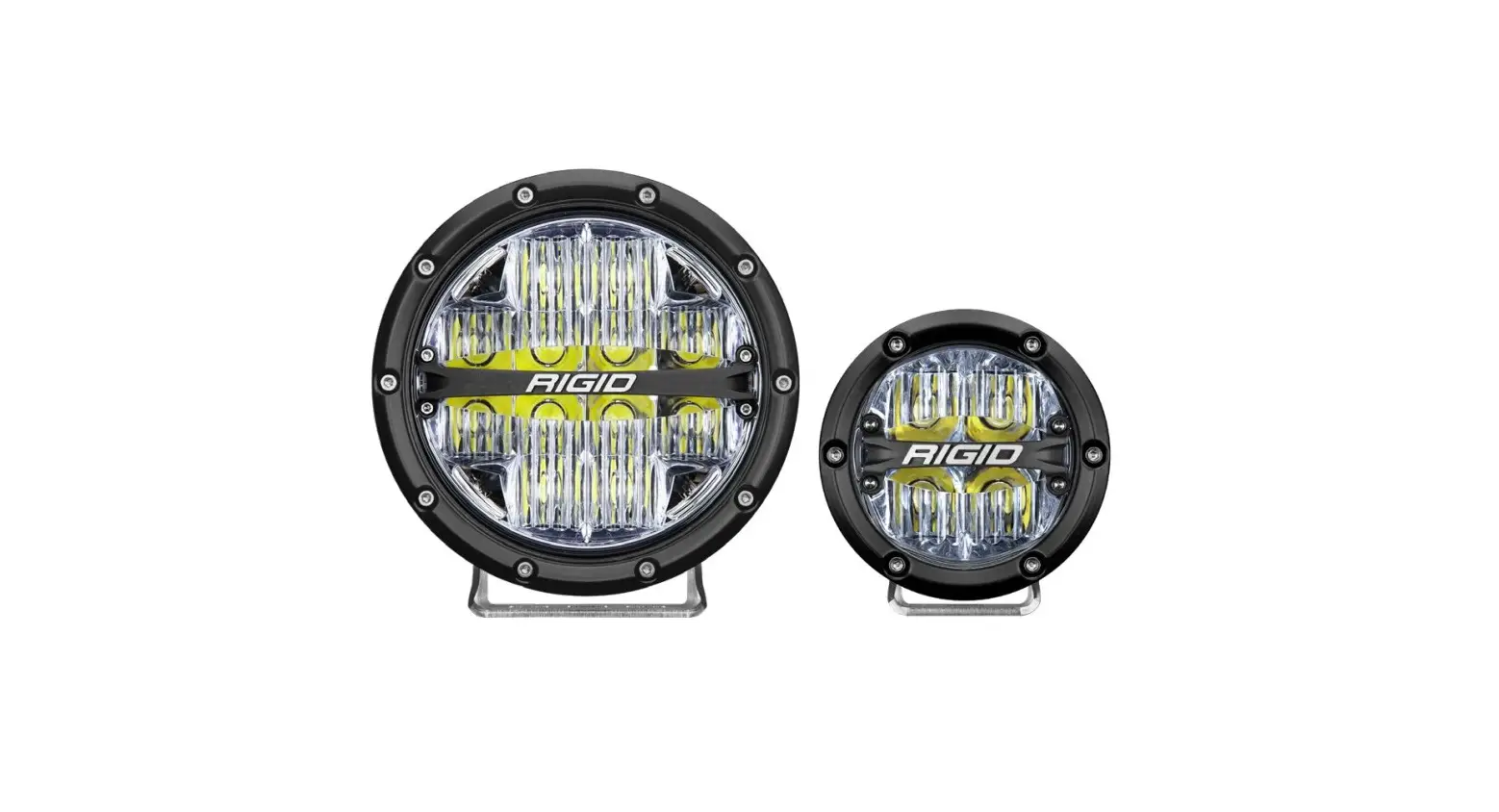

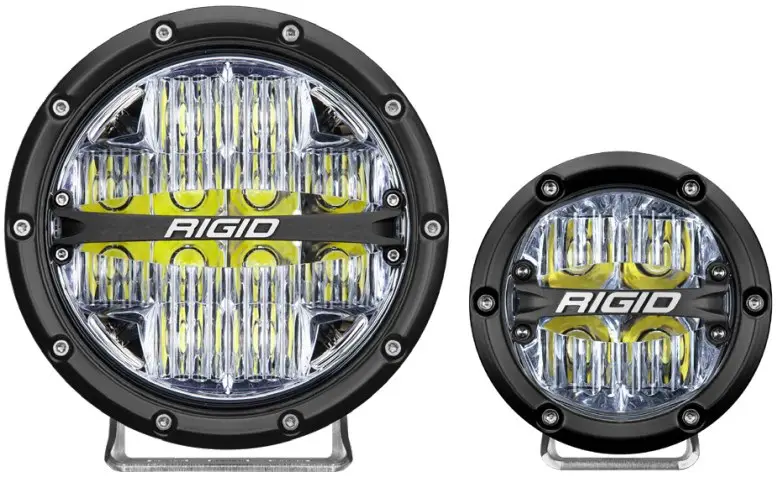

RIGID 360 Series 6 Inch LED Off Road Drive Optic with Amber Backlight Pair Instruction Manual
IMPORTANT
THANK YOU FOR PURCHASING RIGID INDUSTRIES’ PRODUCTS FOR YOUR VEHICLE.
Please read through all of these Instructions and tips before proceeding with the installation.
We do our best to provide a simple installation process for all applications however a professional installation is always recommended.
Always disconnect any power sources connected to your vehicle before servicing fuses or electrical systems.

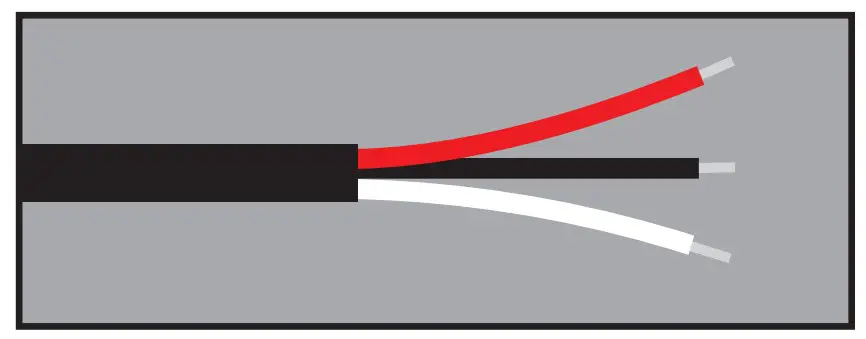

WIRING LEADS
- RED WIRE = PROJECTING TRIGGER
- BLACK WIRE = GROUND
- WHITE WIRE = BACK-LIGHTING TRIGGER

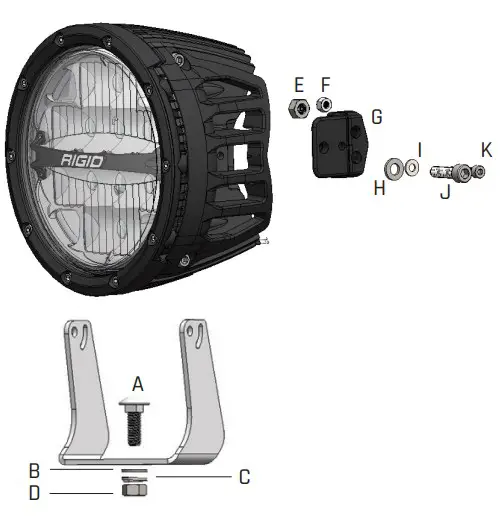

4” 360-SERIES ASSEMBLY DIAGRAM
| A | M8x25mm Carriage Bolt | Place through bracket |
| B | M8 Flat Washer | Place on carriage bolt |
| C | M8 Lock Washer | Place on carriage bolt |
| D | M8 Nut | Tighten light to bracket |
| E | M6 Ny Lock Nut | Place in Heatsink |
| F | Mounting Bushing | Slide into Heatsink |
| G | 6-32x.375” Socket Head | Tighten mount bushing to Heatsink |
| H | M6 Flat Washer | Place on item I prior to install |
| I | M6x22mm Socket Head | Tighten the bracket to the light (Torque 32in-lbs) |
6” 360-SERIES ASSEMBLY DIAGRAM
| A | M8x25mm Carriage Bolt | Place through bracket |
| B | M8 Flat Washer | Place on carriage bolt |
| C | M8 Lock Washer | Place on carriage bolt |
| D | M8 Nut | Tighten light to bracket |
| E | M6 Ny Lock Nut | Place in Heatsink |
| F | M4 Ny Lock Nut | Place into mounting bushing |
| G | Mounting Bushing | Slide into Heatsink |
| H | M6 Flat Washer | Place on J prior to install |
| I | M4 Flat Washer | Place on K prior to install |
| J | M6x22mm Socket Head | Tighten bracket to the light (Torque 32in-lbs) |
| K | M4x22m Socket Head | Tighten the bracket to the light (Torque 9in-lbs) |
Your installation is now complete.
Welcome to the Rigid Nation!
WARRANTY INFORMATION
For warranty information, visit www.rigidindustries.com/about/warranty 779 N Colorado St, Gilbert, AZ 85233 • 855-760-5337
www.rigidindustries.com
RIGID, 360-Series and Rigid Industries are registered and/or common law marks owned by JST Performance, LLC, a Delaware
limited liability company d/b/a Rigid Industries. 11-13521-C
