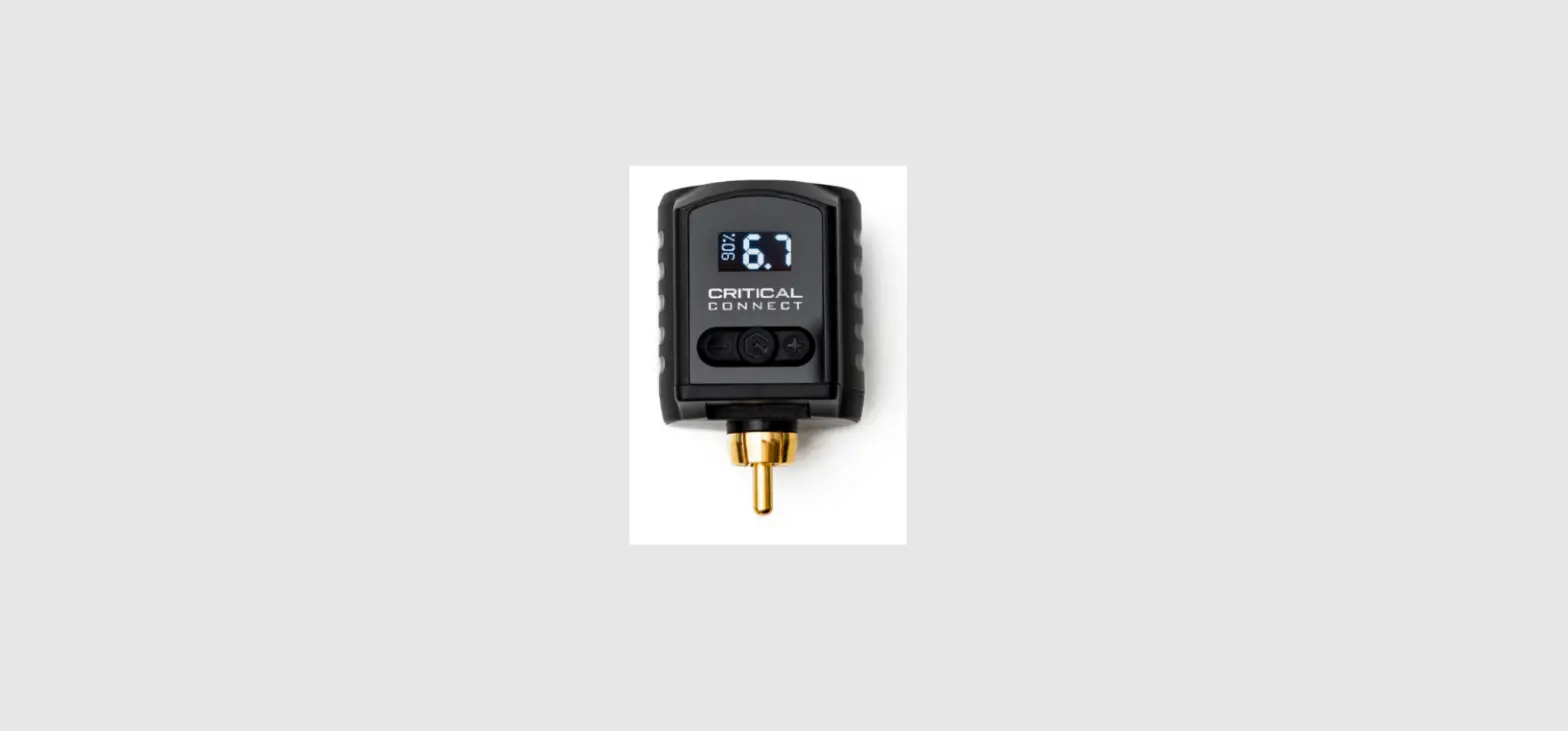

Critical Tatto Connect Universal Shorty Battery Pack Bundle With Footswitch User Manual

CRITICAL TATTO Connect Universal Shorty Battery Pack Bundle with Footswitch

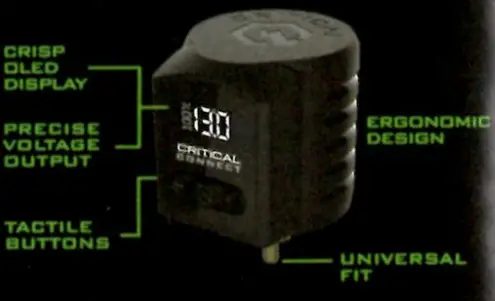

THE CRITICAL UNIVERSAL BATTERY IS THE FIRST WIRELESS BATTERY PACK THAT UTILIZES. THE CRITICAL CORE IS CREATED FOR CONSISTENT POWER AND EXTREME ACCURACY.

ENHANCED WITH CRITICAL CORE

PRECISE VOLTAGE

• NO SAG IN VOLTAGE DROP DURING
• ANY PART OF THE TATTOO SESSION

LOW BATTERY INDICATOR

• AT 5% CHARGE LIFE, A LOW BATTERY ICON IS DISPLAYED ALONG WITH A BEEP FOR 5 sECONDS AT EVERY MINUTE

OUTPUT INDICATOR

• FLASHING DECIMAL POINT INFORMS USER DEVICE IS IN USE

TEMPERATURE PROTECTION

• POWER SHUTS OFF 1F TEMPERATURE EVER REACHES AT uNSAFE LEvELS (176 F)

CRITICAL CORE

• SMART& ACCURATE

VERSATILE CHARGE CONNECTION

• EASY CHARGE CONNECTION WITH ANY USB-C CONNECTION

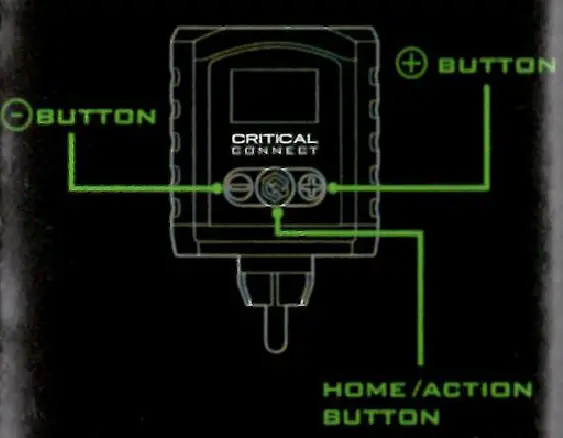

HOW TO USE

1. ATTACH CRITICAL UNIVERSAL BATTERY TO TATTOO MACHINE
2. TURN THE DEVICE ON BY HOLDING THE POWER BUTTON 3 SECONDS
3. SELECT DESIRED VOLTAGE BY USING +/- BUTTON
4. START THE DEVICE BY CLICKING THE POWER BUTTON 1 TIME
5. STOP DEVICE BY CLICKING PoWER BUTTON 1 TIME
6. TURN DEVICE OFF BY HOLDING PoWER BUTTON 3 SECONDS.

HOW TO PAIR

BATTERY TO FOOT SWITCH

CRITICAL CONNECT

TO ACCESS BLUETOOTH MENU

1. HOLD BOTH – AND +BUTTONS FOR 3 SECONDS TO ENTER BLUETOOTH MENU
2. CLICK +1 TIME FOR SEARCH MODE
3. QUICKLY TAP FOOT SWITCH (sold separately) 1 TIME TO PAIR WITH BATTERY PACK
4. CLICK BUTTON1 TIME To RETURN TO HOME MENU

BLUETOOTH MENU SYMBOLS

NOT PAIRED

• CLIGK ONGE TO SEARCH FOR
• CRITICAL CONNECT FOoT SWITCH

SEARCH MODE

• TAP FODT SWITCH ONCE DURING
• SEARCH MADE TO CONNECT

DEVICE NOT FoUND

• IF NO DEVICE Is PAIRED Or FOUND
• AFTER 30 SECONDS

Bluetooth PAIRED

• SUCCESSFULLY PAIRED
• CLICK ONCE TO UNPAIR THE DEVICE

HOME SCREEN

BATTERY TO FOOT SWITCH

CRITICAL CONNECT INDICATOR

• C” SYMBOL WILL BE VISIBLE ON HOME SCREEN WHEN BATTERY 1S PAIRED WITH FoOT SwITCH

MOMENTARY/CONTINUOUS MODE

• CLICK BOTH AND ONCE TO TOGGLE BETWEEN MODES ON THE FOOT SWITCH

• SOLID DECIMAL FOR CONTINUOUS
• HOLLOW DECIMAL FOR MOMENTARY

HOW TO PAIR

MULTIPLE BATTERIES

1. PAIR 1ST BATTERY TO FOOT SWITCH
2. DOUBLE CLICK TO ENTER STANDBY” MODE
3. TURN ON OR EXIT STANDBY BY DOLBLE CLICKING ON 2ND DEVICE
4. PAIR AND BATTERY TO FOOT SwITCH

ONLY 1 BATTERY CAN BE OPERATED AT A TIME PER FOOT SWITCH. ALL BATTERIES NOT IN UsE SHOULD BE ON STANDBY MODE OR OFF.

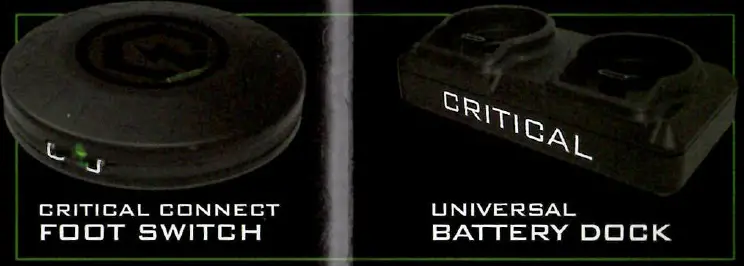

COMPATIBLE PRODUCTS

WARRANTY

• 12 MONTH WARRANTY

PATENT INFO

• US PATENT 10471246
• AU PATENT 2019359618
• CN PATENTS PENDING
• CA PATENTS PENDING

VIDEO TUTORIAL

• www.CRITICALTATTOO.COM/GRITICALCONNECT

SCAN QR CODE FOR VIDEO LINK

www.CRITICALTATTOC.COM
