Phrozen Aqua Red-clay 8k User Guide

【Phrozen Resin User Guide】

Phrozen Aqua Red-Clay 8K

Aqua Red-Clay 8K

Outline
Before printing the perfect object, it is important to first understand the material limitations we are handling and how it can be successfully printed under various conditions. With this in mind, Phrozen provides the following design suggestions to help you better understand the properties of each material and how you can best utilize them to bring your wildest creation to life.

Section 1 TDS

* All testing specimens are printed using Phrozen Sonic Mega 8K or Sonic Mini 8K, and post-cured using Phrozen Cure Mega.

Section 2 Printing

Printing Parameters

Cleaning

1. After removing the printed object from the building stage, use an ultrasonic cleaner and 95% alcohol for 60 seconds to remove uncured resin from the surface.
2. Make sure that the object has been thoroughly cleaned, then leave it in a cool, well-ventilated place for at least 30 minutes without exposure to light. Alternatively, you may gently apply compressed air to dry the printed object.
3. For hollowed models, make sure that you have cleaned every detail and inner parts thoroughly.

Post-Curing
For best precision and mechanical properties, use Phrozen Post-Curing Lamps (Cure V2, Cure Luna or Cure Mega) to cure the parts for at least 30 minutes.

Section 3 Design Specifications

※Note: All indicators are limited to each resin; the value will vary with different machines and environmental conditions.※

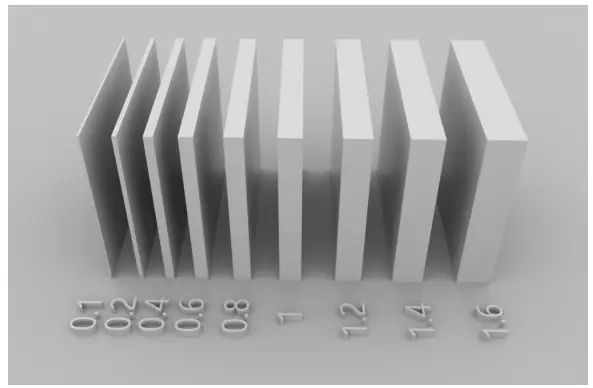

Minimum Unsupported Wall Thickness
This indicator shows the minimum wall thickness that can be printed independently with no support without causing any bending or breaking.
Recommended thickness：≥ 0.6 mm

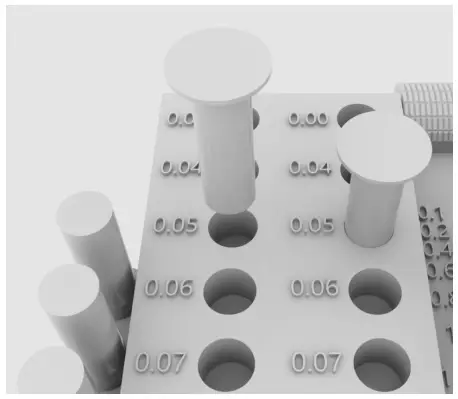

Size Tolerance, X-Y plane
This indicator shows the minimum dimensional tolerance between the hole and the column parallel to the XY plane.
Recommended tolerance：≥ 0.2 mm

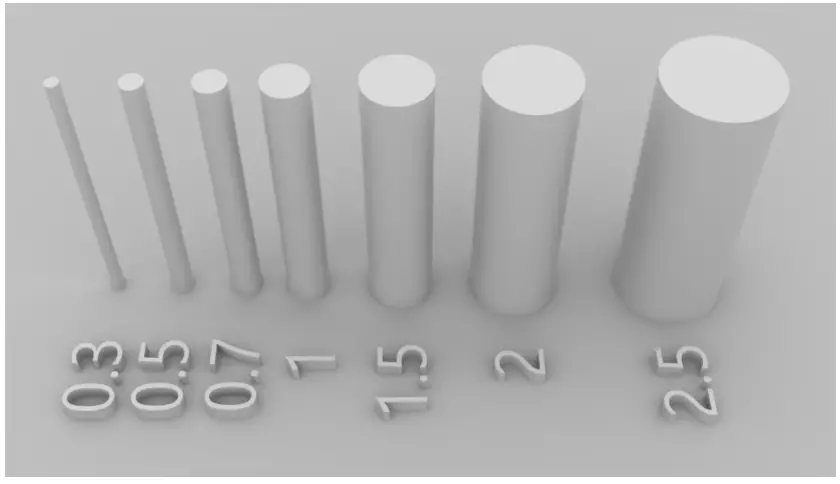

Minimum Pin Diameter
This indicator shows the minimum column diameter of pillars and supports that can be printed independently without bending or breaking.
Recommended diameter：≥ 0.5 mm

Minimum Hole Diameter, X-Y plane
This indicator shows the minimum hole diameter that can be successfully printed parallel to the XY plane.
Recommended diameter：≥ 0.7 mm

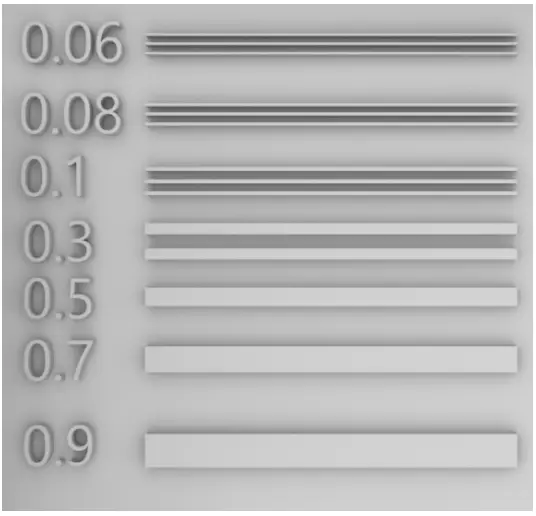

Minimum Embossed Detail Width, X-Y plane
This indicator shows the minimum line width that can successfully be printed with embossed details.
Recommended width： ≥ 0.06 mm

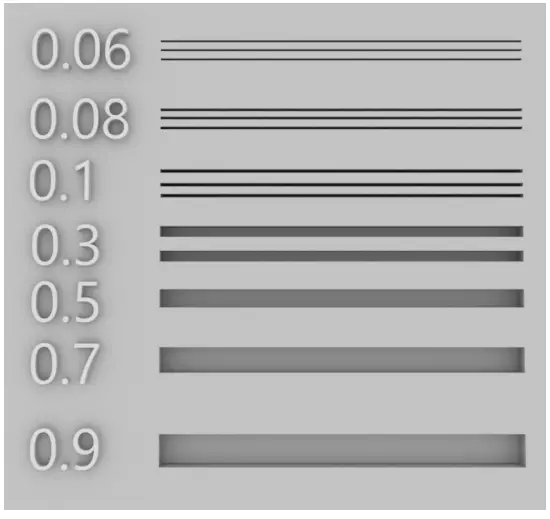

Minimum Engraved Detail Width, X-Y plane
This indicator shows the minimum line width that can successfully be printed with engraved details.
Recommended width： ≥ 0.3 mm

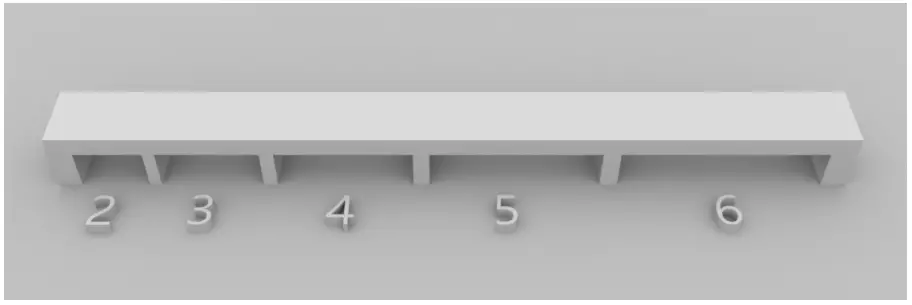

Maximum Horizontal Bridge Span
This indicator shows the maximum width between the supporting walls that can be printed without deforming the bridge.
Recommended width： ≤ 6 mm

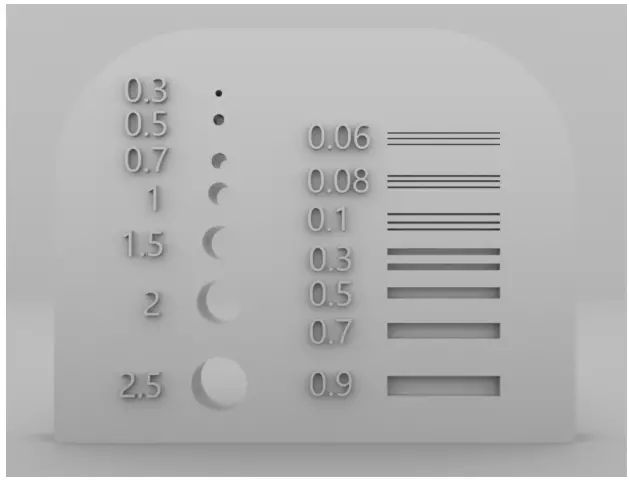

Minimum Hole Diameter and Engraved Detail Width, Z-axis, at 0.05mm Layer Height
This indicator shows the minimum hole diameter and engraving groove width that can be successfully printed on the Z axis with a layer thickness of 0.05 mm.
Recommended diameter：≥ 0.5 mm
Recommended width：≥ 0.06 mm

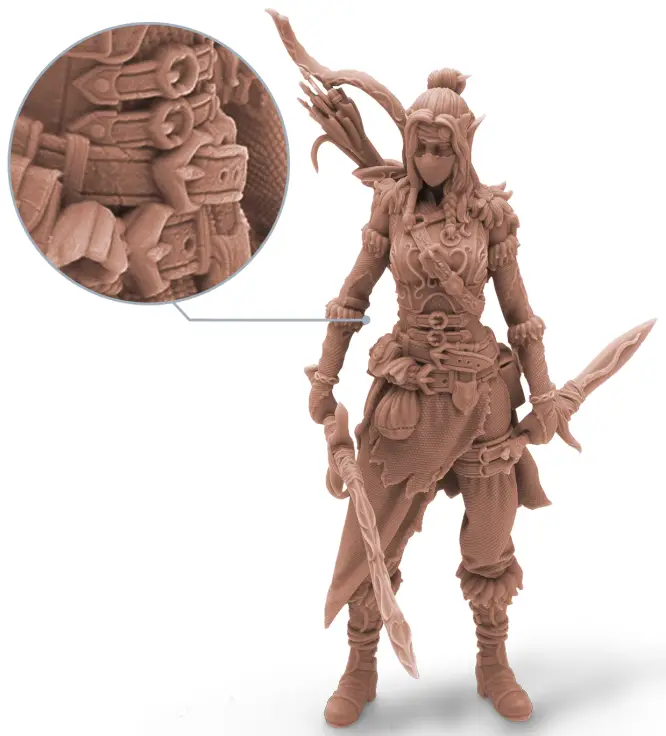

Section 4 Applications
