Phrozen 99531 Wash And Cure Kit User Guide

Phrozen Wash & Cure Kit User Guide
Washing Station Post Printing CleanerScan for other languages
https://phrozen3d.net/oT1AF

99531 Wash and Cure Kit

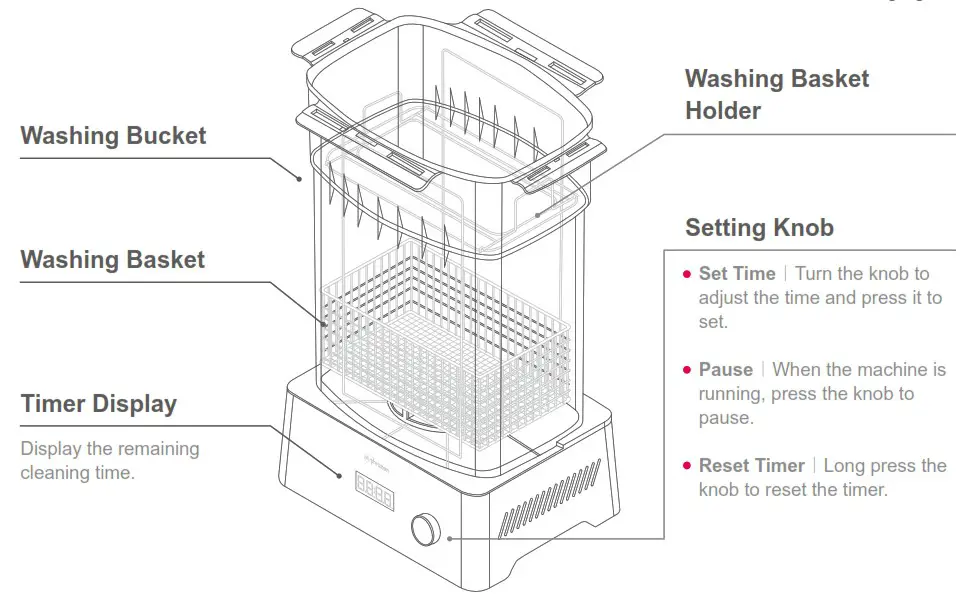

Specifications

Before You Start

• Place the machine on a clean and level surface.
• Put the washing basket into the bucket.
• Please make sure to wear protective goggles, gloves, masks, and long-sleeved clothing when handling the machine.
• Pour in an appropriate amount of alcohol (95%) or other cleaning fluid (Phrozen Wash).
• Cover the bucket when the machine is in use to avoid splashing and objects falling.
• Keep the bucket covered to avoid alcohol evaporation when the machine is not in use.

Instructions

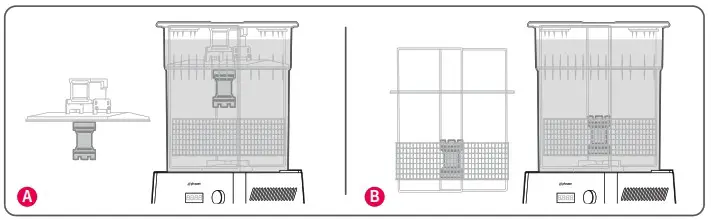

1. After printing is completed hang A the building plate with prints on the cleaning basket (if the building plate is smaller than 7”, use the basket  holder). B For building plate over 10” put the prints straight into the cleaning basket.
2. Turn the knob to adjust the time and press to set. It is recommended that each cleaning time should not exceed 30 seconds as overcleaning  might damage the prints.
3. After the timer stops, lift the basket vertically and take out the prints.
4. Leave prints to dry or use an air gun to accelerate the drying process.
5. For hollow and more complicated models, please make sure the prints are clean. If any residual resin was found, repeat steps 2-5.
6. After the cleaning process is completed, put prints into the curing machine to cure.

Note : Regularly replace 95% alcohol (cleaning fluid) for optimum results.

Warning

• Please disconnect the power before cleaning or replacing alcohol (cleaning fluid).
• DO NOT pour resins or other liquid except alcohol (cleaning fluid) into the cleaning bucket.
• Avoid direct contact with skin to prevent allergies.
• In case of contact with resin and alcohol (cleaning fluid), please rinse immediately with plenty of water.
• DO NOT remove prints from the bucket when the machine is running.

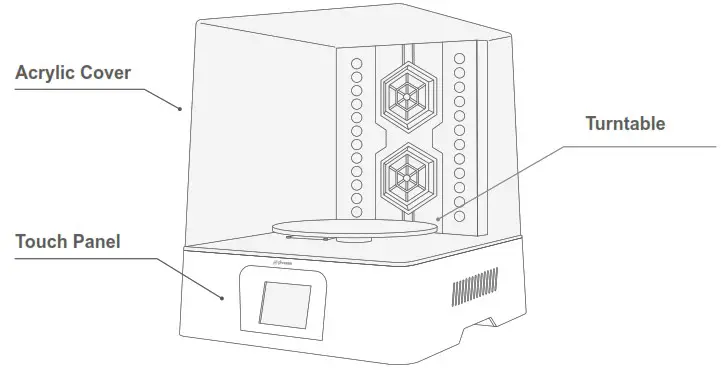

Specifications

Before You Start

• Place the machine on a clean and level surface.
• Install the turntable into the machine and connect the power.
• Please make sure to wear protective goggles when handling the machine.
• Do not remove or lift the acrylic cover when the machine is running.

Instructions

1. Make sure the model has been thoroughly cleaned without any residual resin before curing.

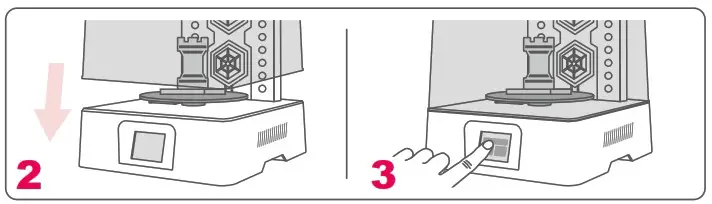

2. Place the model on the turntable and put the acrylic cover into place.

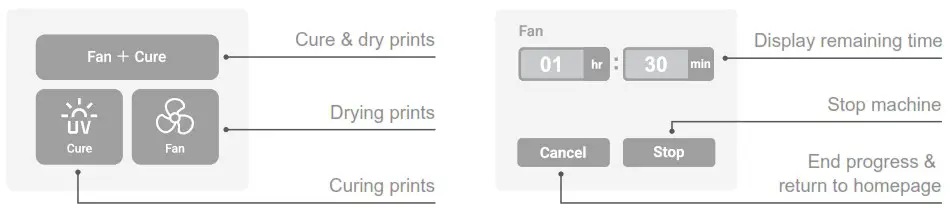

3. Select CURE, FAN, or FAN + CURE according to your needs.
4. Input the required time and press ENTER. Timer settings are available for up to two hours.
5. Please take out the model after the curing process ends.

Note : Cured model might reach higher temperatures; please remove it carefully.

Warning

• Disconnect the power cable before performing maintenance.
• DO NOT take off the acrylic cover while the machine is running.
• Avoid direct contact of resin and other cleaning fluid with skin to prevent allergies.
• In case of contact with resin and alcohol (cleaning fluid), please rinse immediately with plenty of water.
