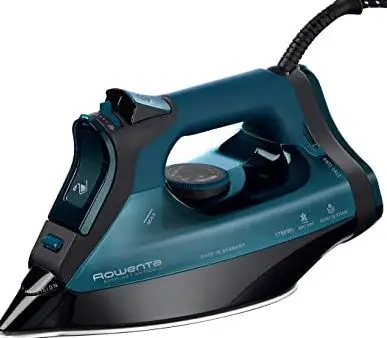

Rowenta DW7180 Stainless Steel Steam Iron

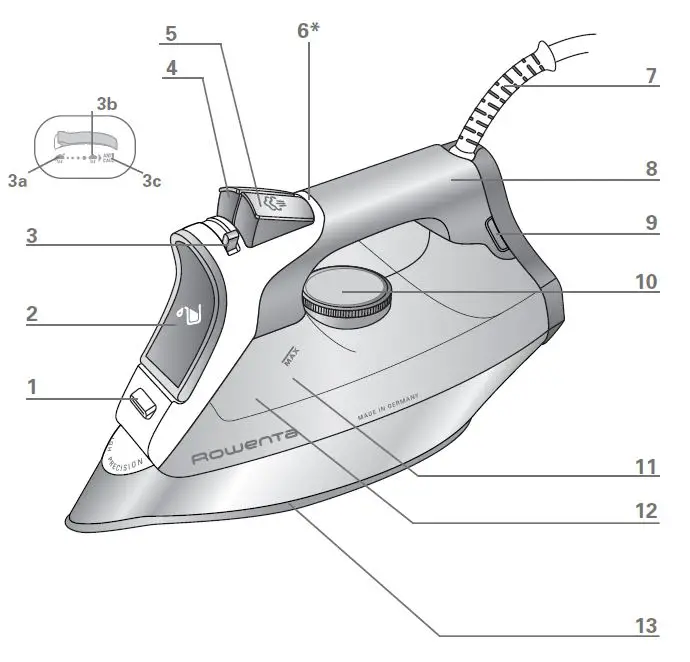

PARTS FEATURES
- Spray nozzle
- Filling inlet
- Variable steam control
- Dry ironing
- Steam max. position
- Anti Calc
- Spray button
- Burst of steam button
- Auto-off indicator light*
- Cord
- Handle
- Thermostat control light
- Temperature control dial
- Water tank
- Maximum water level indicator
- Soleplate
IMPORTANT INSTRUCTIONS
- Only use an iron for its intended use.
- To avoid the risk of electric shock, do not immerse the iron in water or other liquids.
- Always turn the iron OFF before plugging or unplugging the iron from the electrical outlet. Never pull on the cord to disconnect the iron from the electrical outlet; instead, grasp the plug and pull on the plug to disconnect the iron.
- Do not let the cord touch hot surfaces. Let the iron cool completely before putting the iron away. Coil the cord loosely around the iron when storing.
- Always disconnect the iron from the electrical outlet before filling the iron with water, emptying the water from the iron, and when the iron is not in use.
- Do not operate the iron with a damaged cord or in the event the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron. Take it to a qualified serviceman for examination and repair. Incorrect assembly might result in a risk of electric shock when the iron is used after reassembly.
- Close supervision is required for any appliance used by or near children. Do not leave the iron unattended while the iron is connected or on an ironing board.
- Burns can occur from touching hot metal parts, hot water, or steam. Use caution when you turn a STEAM IRON upside down – there might be hot water in the reservoir.
- To avoid a circuit overload, do not operate an iron on the same circuit with another high wattage appliance.
- If an extension cord is absolutely necessary, a cord with an ampere rating equal to or greater than the maximum rating of the iron shall be used. A cord rated for less amperage can result in a risk of fire or electric shock due to overheating. Care shall be taken to arrange the cord so that it cannot be pulled or be tripped over.
- This appliance is not intended for use by children and other persons whose physical, sensory, or mental capabilities or lack of experience and knowledge prevents them from using the appliance safely without supervision or instruction by a responsible person to ensure that they can use the appliance safely.
- Children should be supervised by the responsible person to ensure that they do not play with the appliance.
- The iron must be used and rested on a stable surface;
- When placing the iron on its stand, ensure that the surface on which the stand is placed is stable;
- The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking
What water may be used ?
Your iron has been designed to operate using untreated tap water. If in doubt, check with your local water authority. However, if your water is very hard, you can mix 50% untreated tap water with 50% distilled or demineralised water.
USE
Filling the water tank
Tilt the iron. Open the filling inlet Pour in water up to the max mark Close the filling inlet and return the iron to the horizontal
Setting the temperature
Set the iron temperature to suit the type of material using the temperature control dial
Temperature control: The temperature control light indicates that the soleplate is heating up. When the temperature control light goes off the set temperature is reached and you can begin ironing.
Dry ironing
Set the variable steam control to and set the temperature to suit the type of material (care points
Steam ironing
You can steam iron from temperature setting upwards. Steam function : The steam quantity can be set to between no steam (minimum steam quantity) and (maximum steam quantity) We recommend setting to maximum steam quantity only when the iron is at temperature setting
Burst of steam (from temperature setting upwards)
Press the burst of steam button to generate a powerful jet of steam Wait a few seconds between each burst before pressing the button again.
Vertical burst of steam (from temperature setting upwards)
Spray
Press the spray button to dampen stubborn creases
Anti-Drip system
This prevents water escaping from the soleplate when the temperature is too low.
Automatic electronic 3-position Auto-Off*
If, although switched on, the appliance is not moved, it will automatically switch off and the auto off light will blink after the following intervals
AFTER USE
Emptying
Unplug the iron , pour away remaining water and set steam control to . Open and close the steam control several times to prevent the valve hole into the steam chamber from scaling or blocking up.
Storing
Allow the appliance to cool down before storing the iron standing on its heel
MAINTENANCE AND CLEANING
Anti-scale system
Your iron contains an anti-scale cartridge to reduce scale deposits. This considerably prolongs the operational life of your iron. The anti-scale cartridge is an integral part of the water tank and does not need to be replaced.
Descale your steam iron easily
To prolong the steam performance, your iron is equipped with an integrated limescale collector. This collector, which is located on the iron’s support base, automatically collects limescale that forms inside the iron. It is recommended that you clean the collector every 2 months. The amount of scale collected will depend on the hardness of the water
Anti Calc function (prolongs the life of the iron)
The Anti Calc function flushes dirt and scale particles out of the steam chamber.
Cleaning the iron
When the appliance has cooled down, wipe it down with a damp cloth or sponge, as required. Remove the dirt from the soleplate with a damp cloth or sponge
PROBLEMS?
| Problems | Cause | Solution |
| The iron is plugged in, but the soleplate of the iron remains cold. | No mains supply. | Check that the mains plug is properly inserted or try plugging the iron into a different socket. |
| Temperature control set too low. | Set the temperature control to a higher temperature. | |
| The automatic electronic Auto-Off* is active. | Move your iron. | |
| None or too little steam is being emitted. | Steam control set on dry position . Not enough water in the water tank. Anti-Drip is active (§ 9). | Turn the steam control to the required setting area. Fill the water tank.
Wait for the soleplate to reach the correct temperature. |
| Brown streaks come through the holes inthe soleplate and stain the linen. | Residues in the steam chamber or on the soleplate. | Use the Anti Calc function then clean your iron. |
| Use of chemical descaling agents. | Do not add any descaling agents to the water in the water tank. Use the Anti Calc function and clean your iron. | |
| Fabric fibres have accumulated in the holes of the soleplate and are burning. | Clean the soleplate with a non-metallic sponge. Vacuum the holes of the soleplate from time to time. | |
| Your linen is not rinsed sufficiently or you have ironed a new garment before washing it. | Ensure linen is rinsed thoroughly to remove any soap deposits or chemicals on new garments which may be sucked by the iron. | |
| Use of starch. | Always spray starch onto the reverse side of the fabric to be ironed and clean your iron soleplate. | |
| Pure distilled / demineralised or softened water is being used. | Only use untreated tap water or mix half tap water with half distilled/demineralised water. Use the Anti Calc function and clean your iron. | |
| Iron is leaking. | Overuse of burst of steam button. | Allow more time between each burst. |
| Soleplate temperature too low . | Set the temperature control to a higher temperature. |
