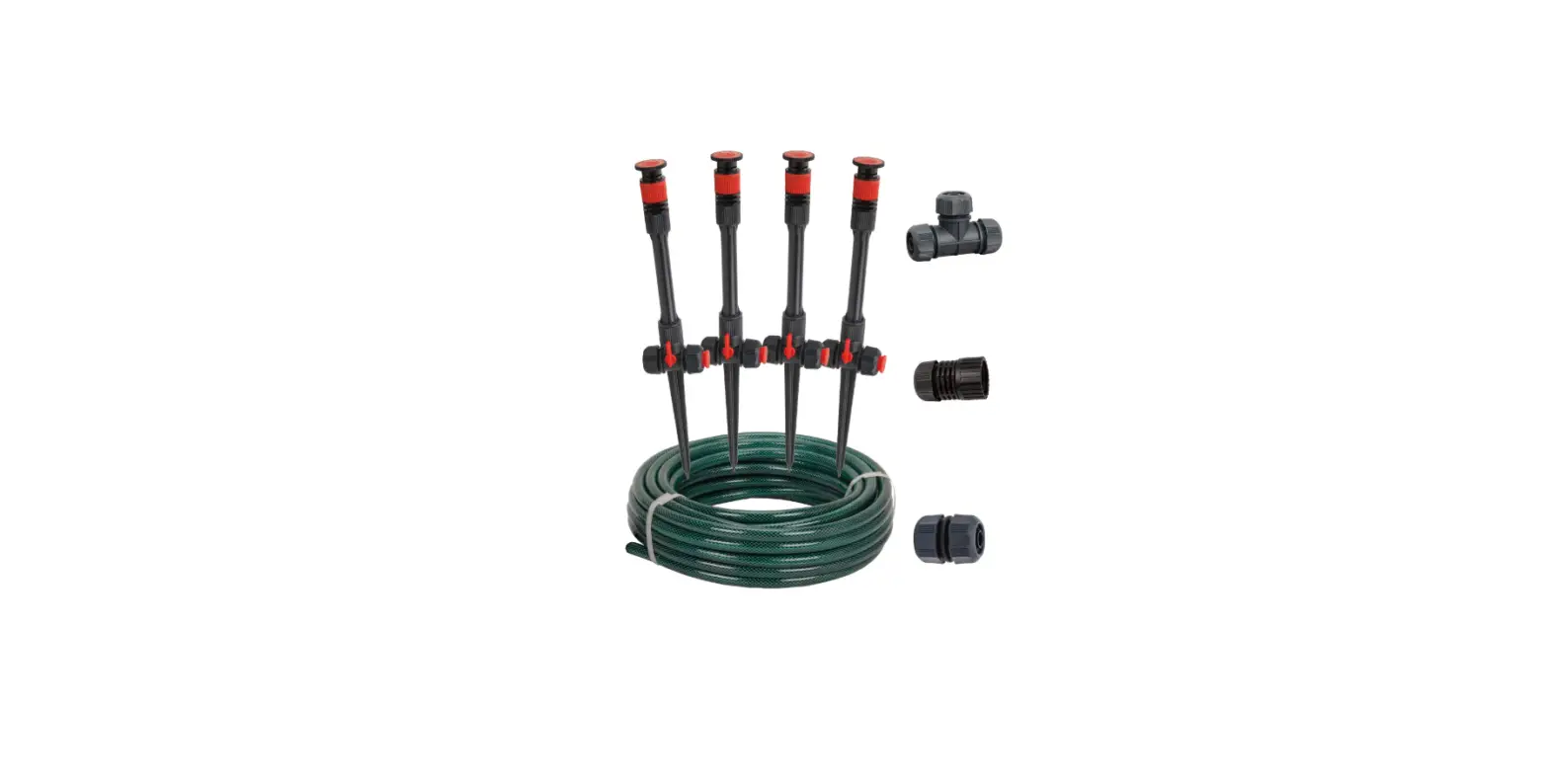

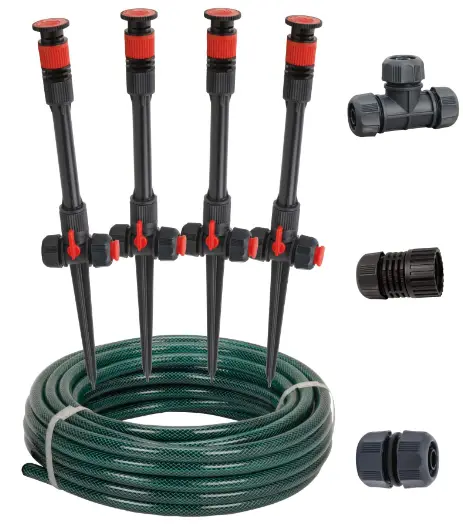

EDEN 98063EDAMZ Flex Design Sprinkler and Hose Set with Hose Mender
Place your multi-adjustable sprinklers throughout your garden to get water right where you want it. Once the system is in place, use a programmable water timer to set a watering schedule and let your system do all the work. The system is completely modular and can grow with your needs.

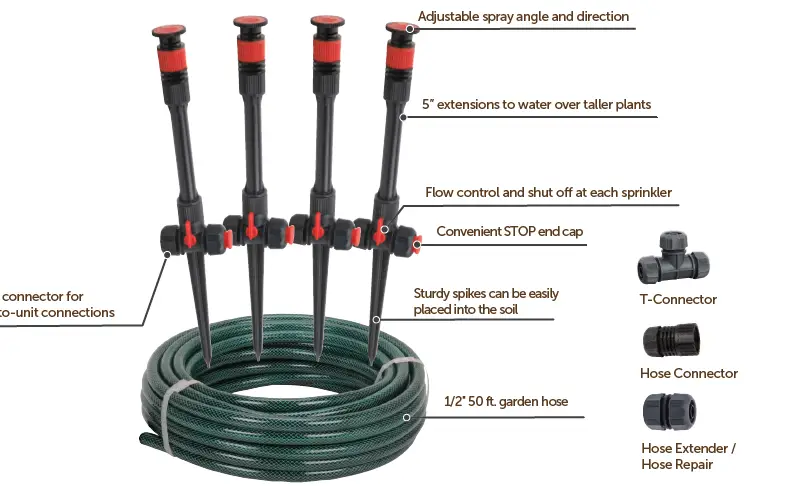

OVERVIEW

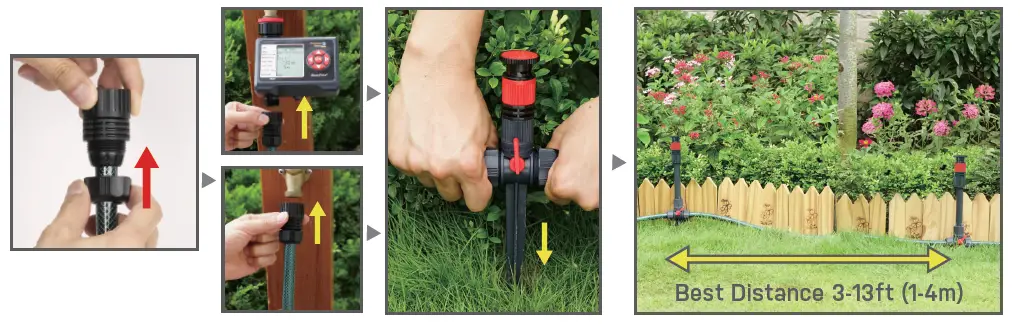

Get Started
- Attach the garden hose to the Hose Connector
- Connect the hose to your faucet or water timer

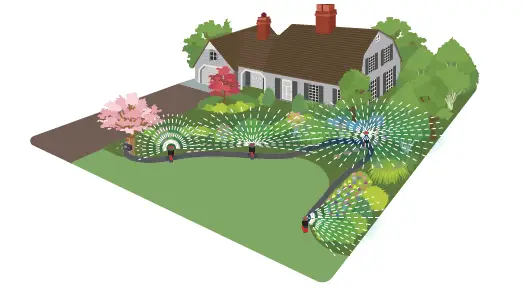

- Place the sprinklers in the area you want to waste
- Space sprinklers 3 – 13 ft. (1 – 4m) apart for best coverage. Each sprinkler waters up to 32 ft. diameter (10m)

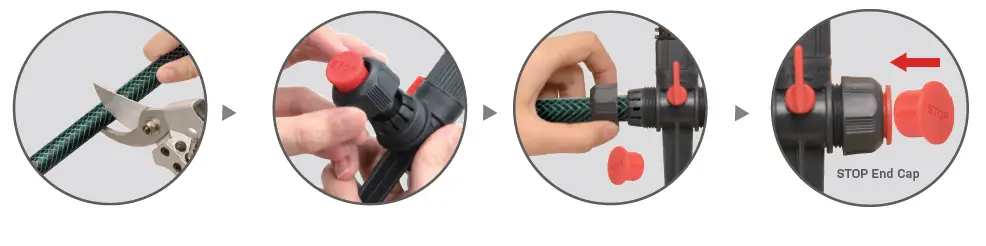

Connect the Sprinklers
- Cut the hose to match the distance between sprinklers
- Attach the hoses to the sprinkler by unscrewing the side hose connector
- Insert the hose into the side hose connection then tighten the connector
- Apply STOP End Cap at the end of circuit

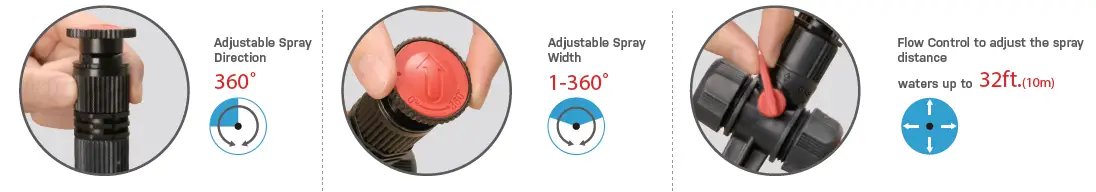

Adjust the Spray

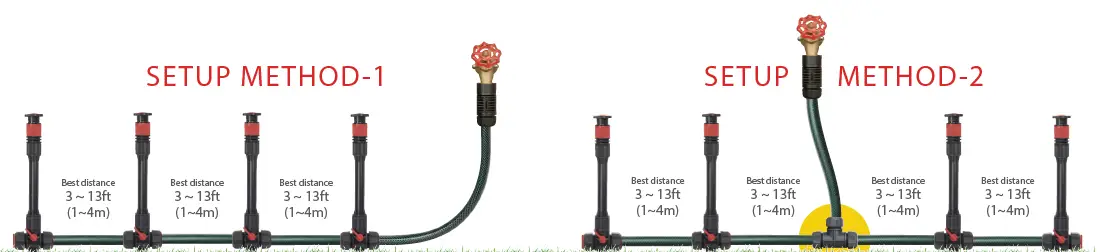

T-Connector Set Up
If your faucet is in the middle of your watering area, use the T-Connector to split the water flow into two directions.

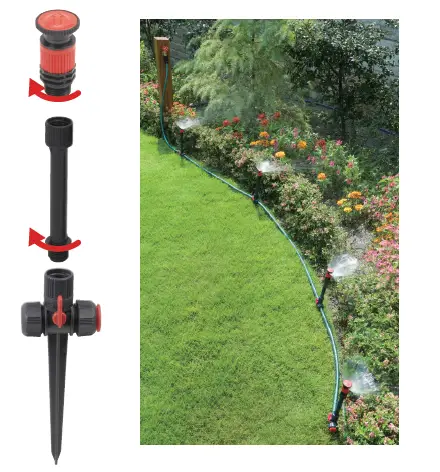

Add Height
Add the 5” extensions where needed to water over taller plants. Stack multiple extensions together to further increase the watering height (up to 2 max).
WARNING: This product can expose you to chemicals including styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
Reach further

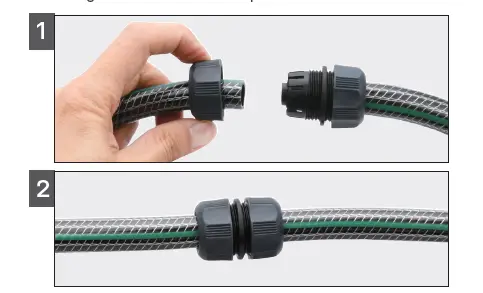

Use the Hose Extender/Hose Repair to extend the length of one hose or repair a broken hose
Turn the Water On!
