CRUX ACPLX-12Y Smart-Play Integration Lexus Vehicles without OEM Navigation Instruction Manual
PRODUCT FEATURES:
- Smart-Play Integration system allows connection of Android and other phones to the Lexus infotainment system.
- Made for Android Auto and CarPlay.
- Utilizes factory microphone for voice controls.

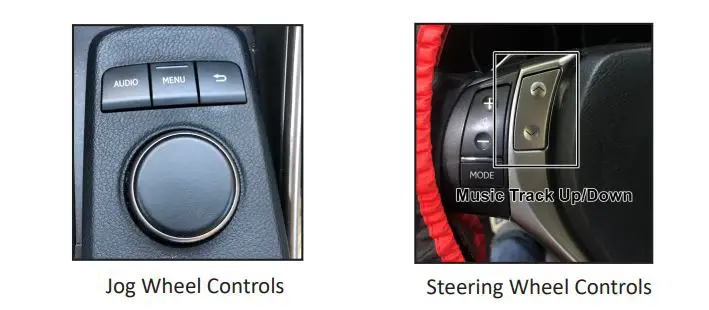

- Uses the factory Jog Wheel and steering wheel control buttons for Smart-Play controls.
- Connects to the factory Aux Input.

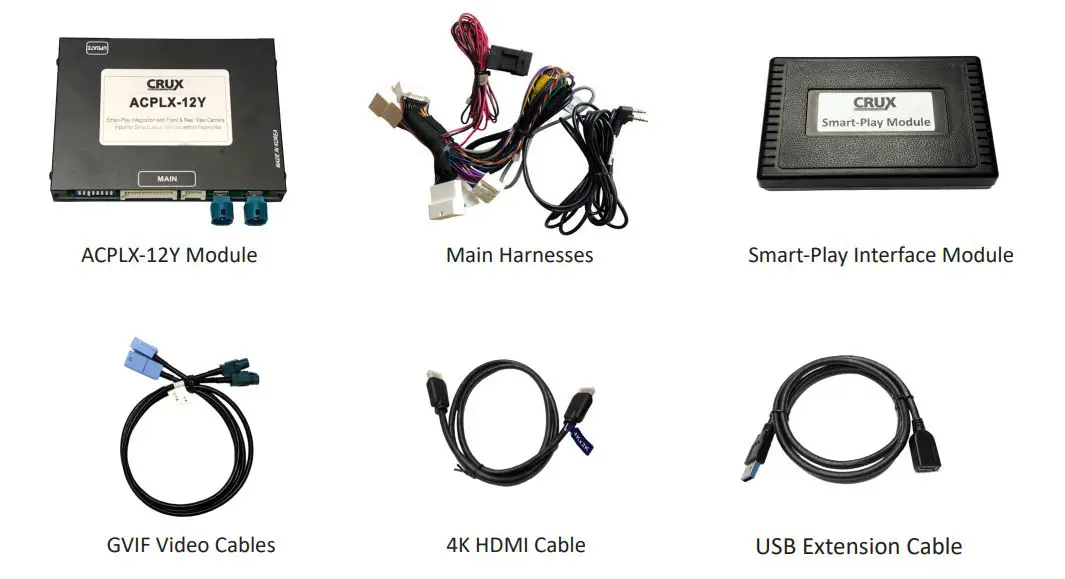

PARTS INCLUDED:

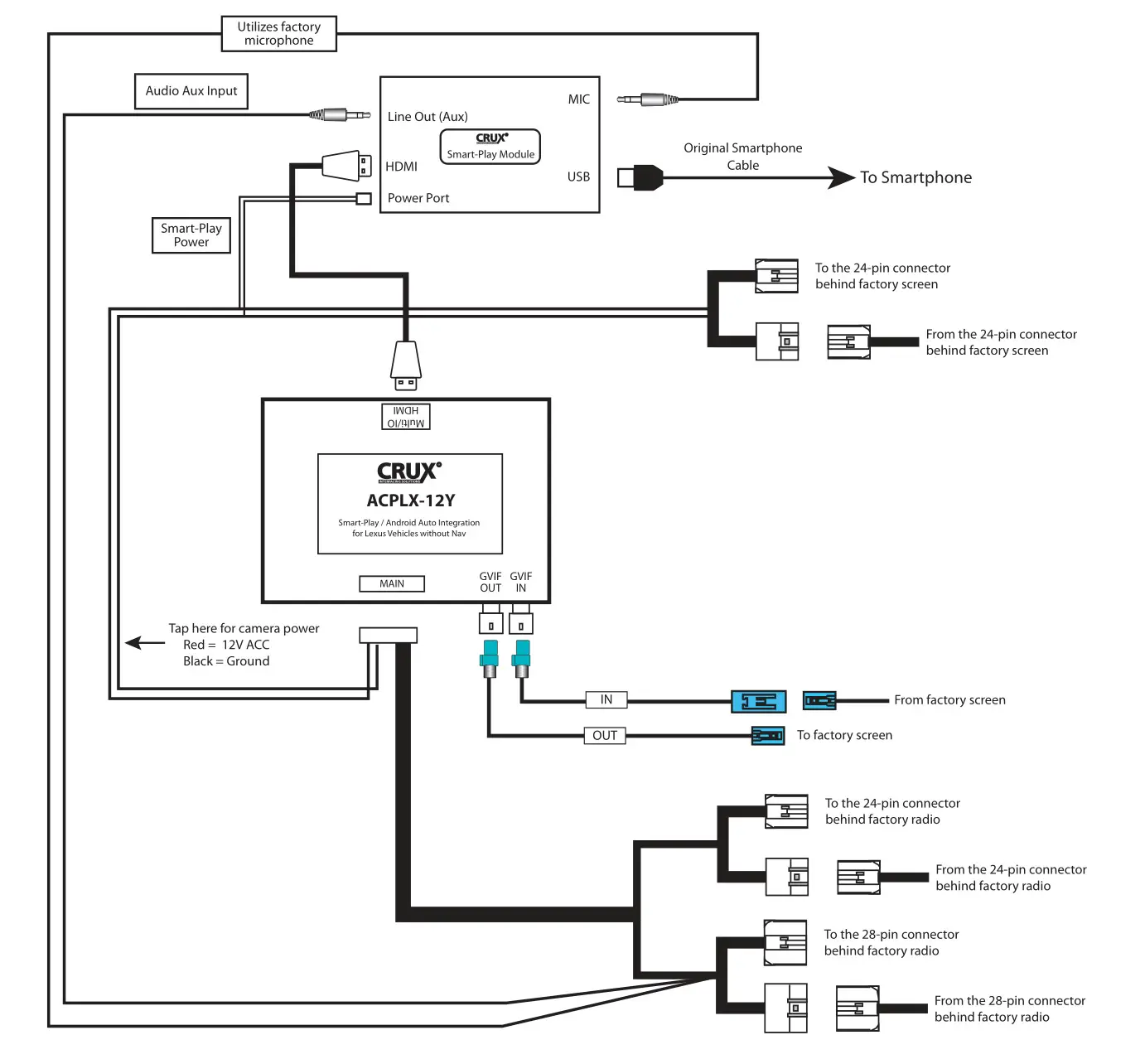

WIRING DIAGRAM:

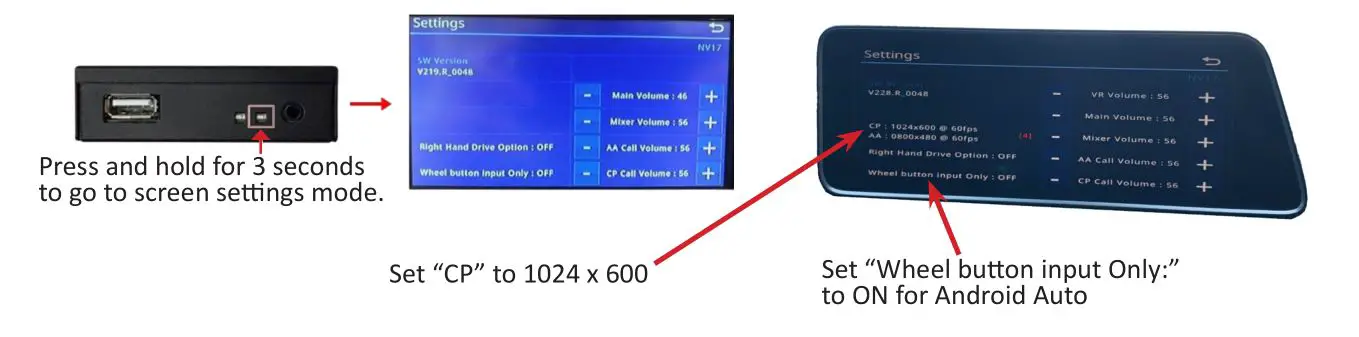

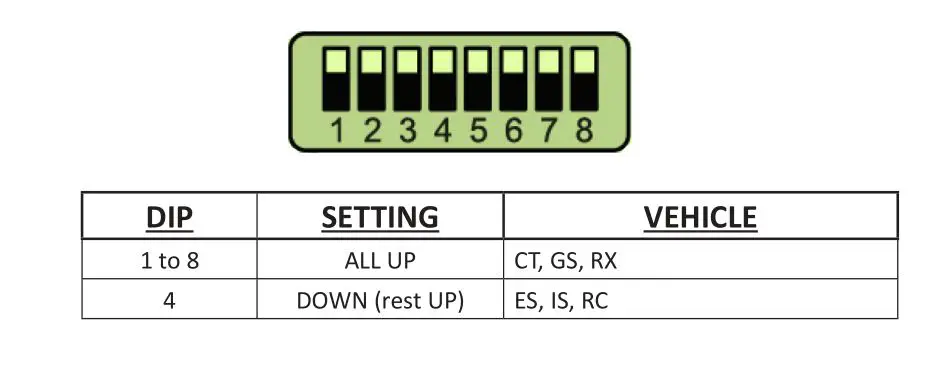

DIP SWITCH SETTINGS:
On vehicles with a 12.3” screen, you can change the screen resolution to show 5 horizontal App icons.

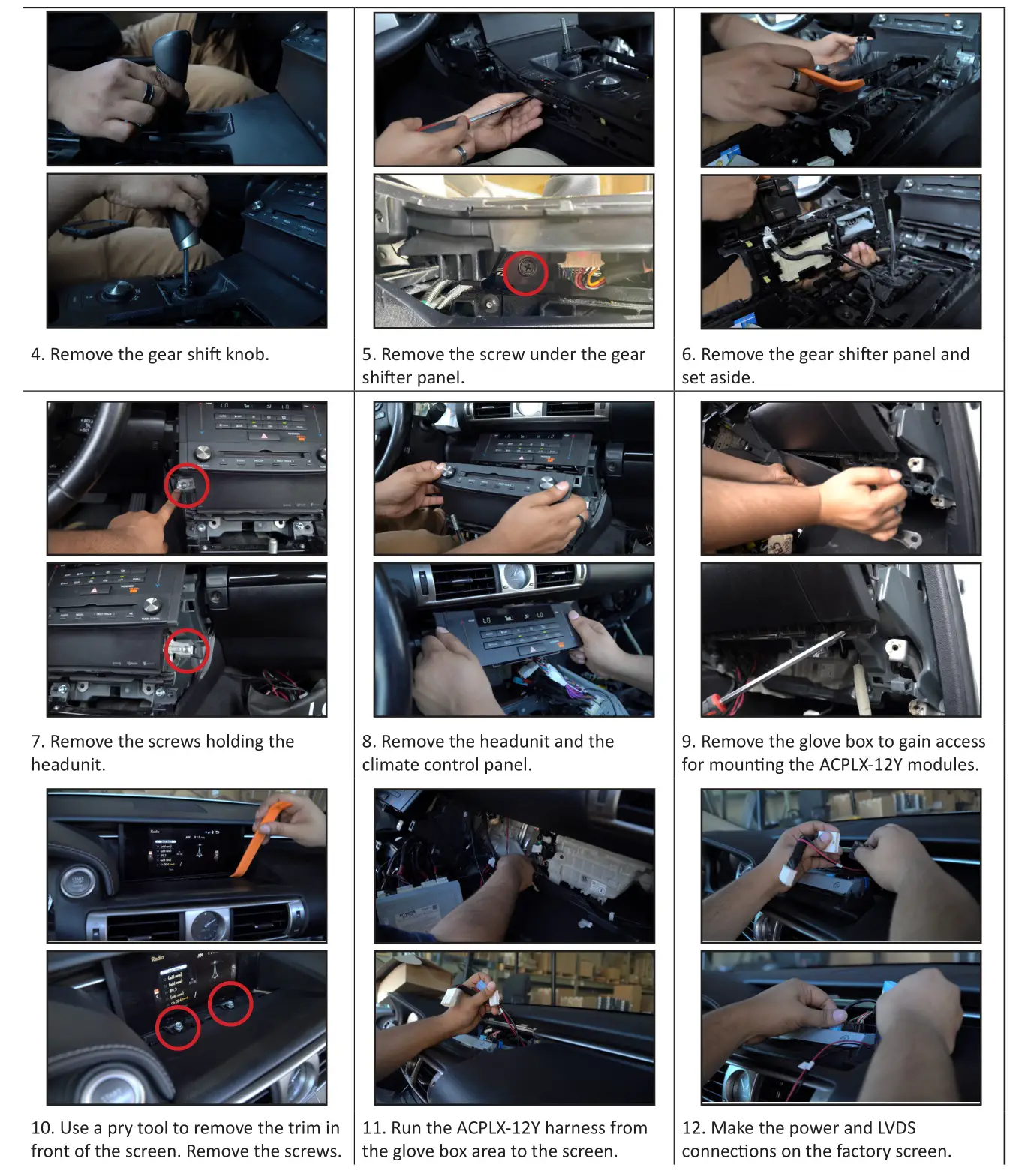

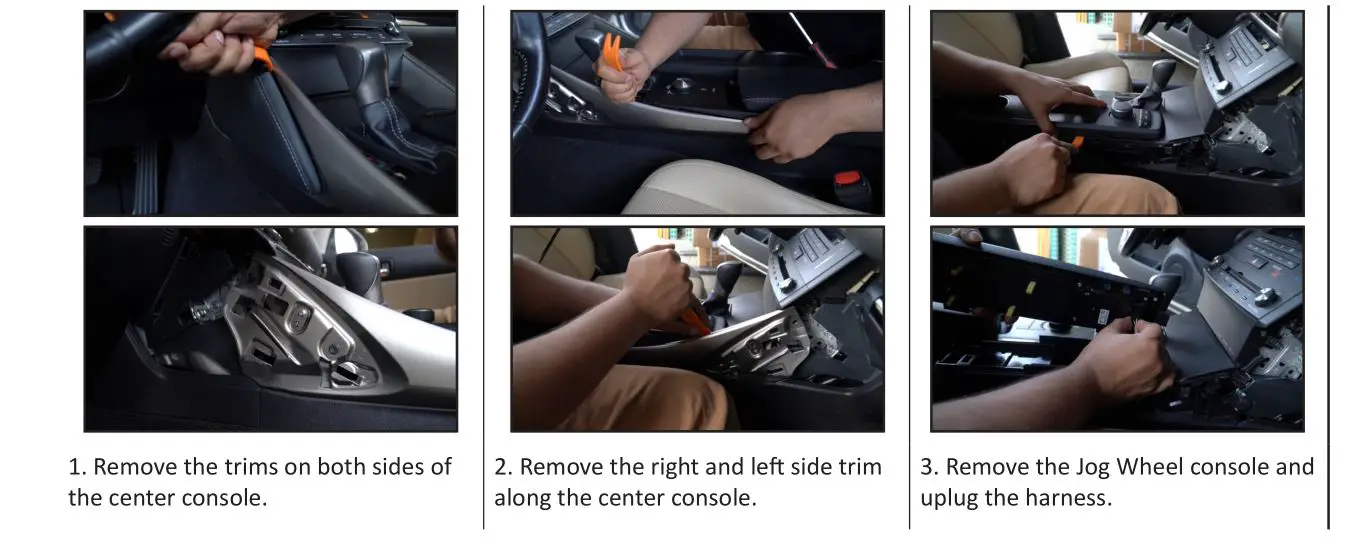

INSTALLATION INSTRUCTIONS:
NOTE: Connections are made behind the radio and behind the screen.
AUDIO INPUT TO VEHICLE:
The Smart-Play audio will connect to the vehicle’s audio system via the factory Aux input. Change the factory radio “Audio Source” to “AUX” in order for the Smart-Play audio to be heard on the factory audio system.
MICROPHONE CONNECTION:
The Smart-Play will utilize the vehicle’s factory microphone. Plug in the 3.5mm microphone connector on the ACPLX12Y harness to the Smart-Play module microphone port to use the factory microphone.

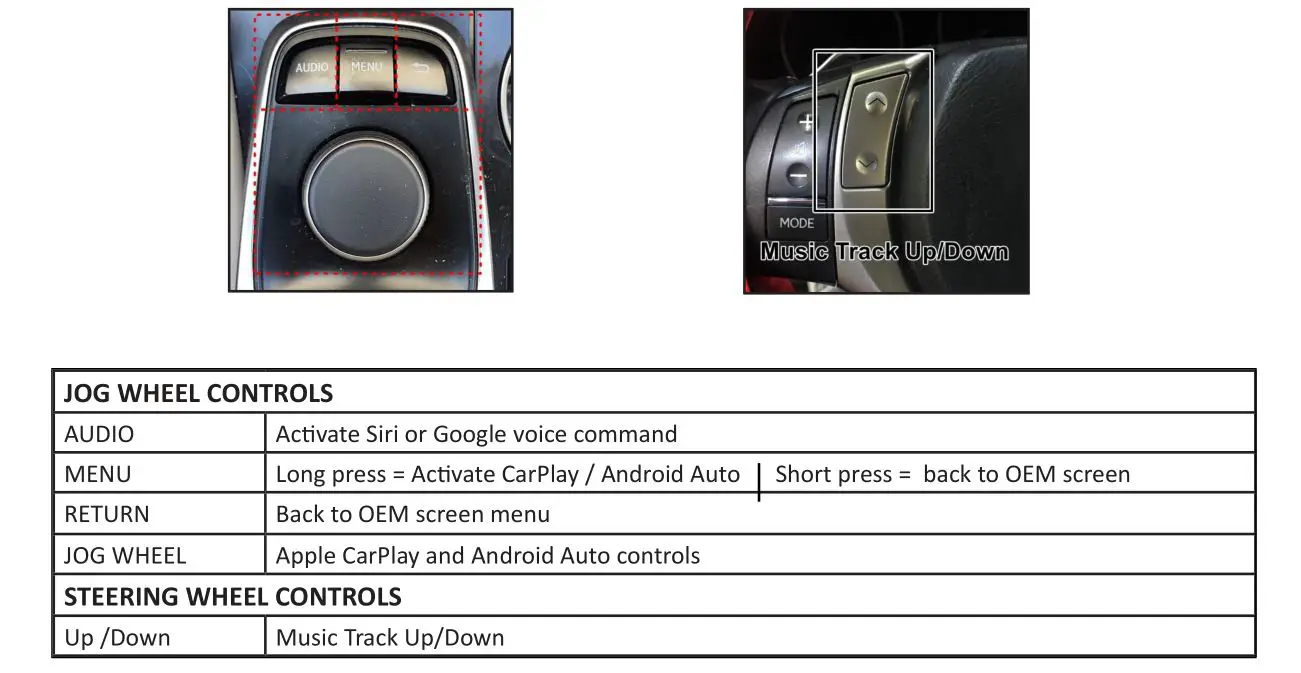

OPERATION:

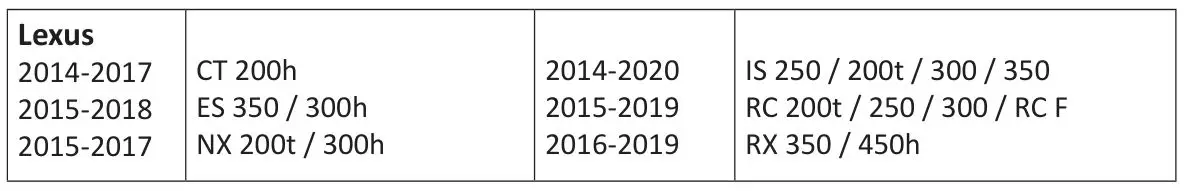

VEHICLE APPLICATIONS:
Compatible with Lexus vehicles without OEM Navigation.
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
