Ultrastar® He¹² and Ultrastar® DC HC520 TCG Enterprise HDD
FIPS 140-2 Cryptographic Module
Non-Proprietary Security Policy
Protection of Data at Rest

Cryptographic Module Overview

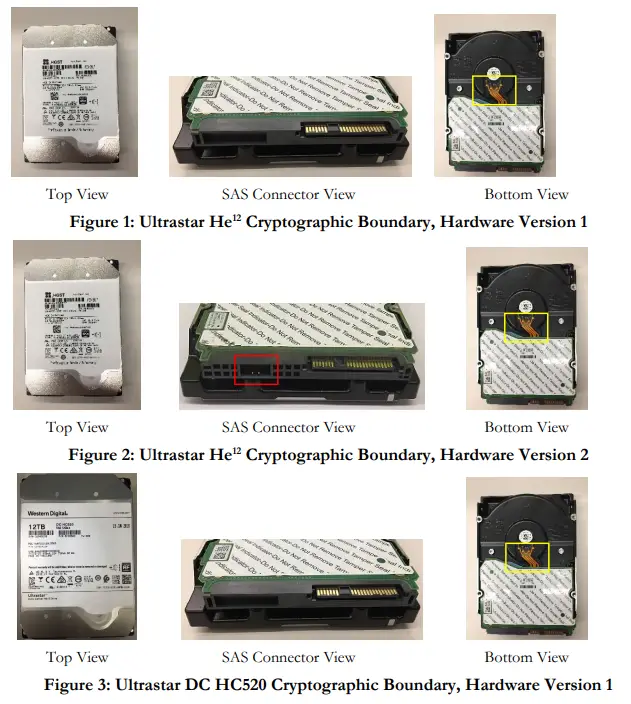

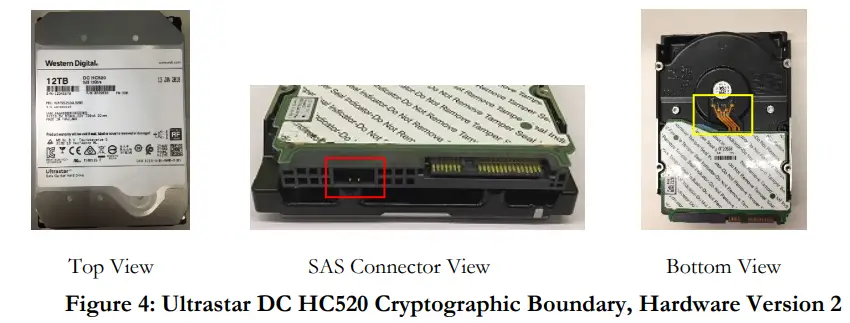

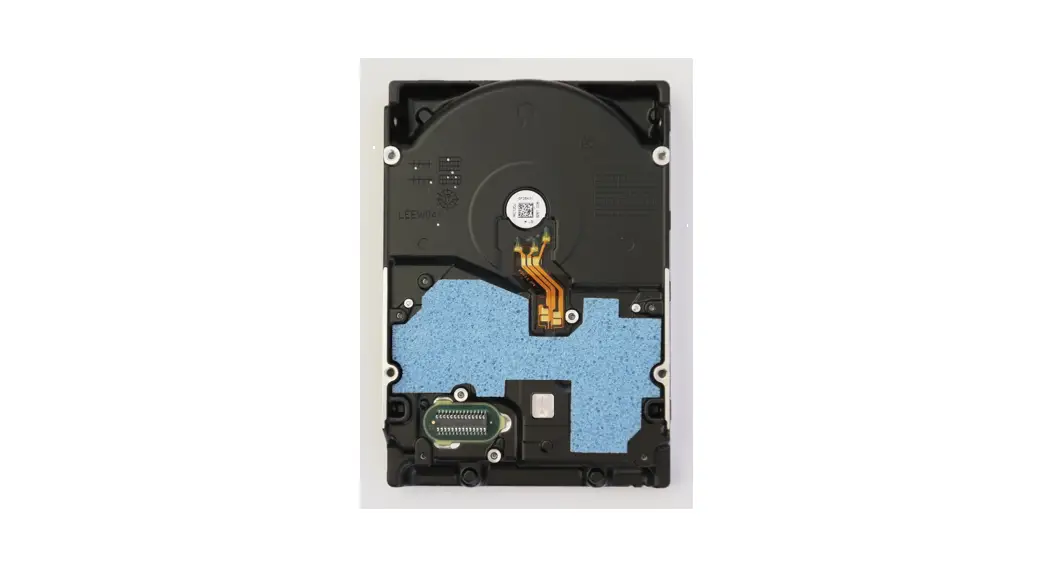

The self-encrypting Ultrastar® He¹² TCG Enterprise HDD and Ultrastar® DC HC520 TCG Enterprise HDD, hereafter referred to as “Ultrastar He¹² ”, “Ultrastar DC HC520” or “the Cryptographic Module” is a multi-chip embedded module that complies with FIPS 140-2 Level 2 security. The Cryptographic Module complies with the Trusted Computing Group (TCG) SSC: Enterprise Specification. The drive enclosure defines the cryptographic boundary. The SIO port pins outlined by the red boxes within the SAS connector view of Figure 2 and Figure 4 are disabled in FIPS Approved Mode and non-Approved Mode. Except for the four-conductor motor control cable, shown in the yellow box of the bottom view of Figures 1 through Figure 4, all components within the cryptographic boundary were tested as compliant with FIPS 140-2 requirements. The control cable is not security relevant and therefore excluded from FIPS 140-2 requirements. The Ultrastar DC HC520 complies with the Advanced Format (AF) standard. The logical storage of user data is unaffected by the formatting method for drives that comply with the Advanced AF standard. 4Kn and 512e formatting organize user data on the physical media in the same manner. The emulation layer employed in 512e drives only services to organize the data in 512-byte chunks for processing by the host. Format method is not security relevant and therefore excluded from FIPS 140-2 requirements.

1.1 Models
The Cryptographic Module is available in several models that vary by storage capacity and block size. The validated models listed below in Table 1 define the models, characteristics, hardware version, and firmware version associated with each model.

Table 1 – Cryptographic Module Models

1.2 Security Level
The Cryptographic Module meets all requirements applicable to FIPS 140-2 Level 2 Security.

Modes of Operation

2.1 FIPS Approved Mode of Operation
Configuration and policy determine the Cryptographic Module’s mode of operation. The Cryptographic Module enters FIPS Approved Mode after successful completion of the Initialize Cryptographic service instructions provided in Section 7.2. The operator can determine if the Cryptographic Module is operating in a FIPS-approved mode by invoking the Get FIPS mode service¹. The Crypto Officer shall not enable the Makers Authority after the cryptographic module enters FIPS Approved mode. The cryptographic module is in FIPS non-Approved mode whenever a successful authentication to the Makers Authority occurs. If the Crypto Officer enables the Makers Authority after the module enters FIPS Approved mode, the Crypto Officer must also execute the TCG Revert Method to zeroize the cryptographic module. If the Crypto Officer, subsequently, executes the Initialize Cryptographic service instructions provided in Section 7.2 with the intent of placing the cryptographic module in FIPS Approved mode, the Crypto Officer must first execute the TCG Revert Method to zeroize the cryptographic module. The Crypto Officer could enable the maintenance of logical access after the cryptographic module enters FIPS Approved mode. However, security rule #11 of section 7.1 (e.g., CSPs zeroization) shall be followed; the Module
will temporarily enter into a non-Approved mode of operation.
The Ultrastar DC HC520 Product Specification provides information on how to execute the Initialize Cryptographic service as well as the Zeroize (TCG Revert) service.

2.2 Approved Algorithms
The Cryptographic Module supports the following FIPS Approved algorithms. All algorithms and key lengths comply with NIST SP 800-131A.

¹A return value of 1 indicates that the cryptographic module is operating in FIPS Approved mode.
²Tested AES ECB-128. However, the cryptographic module does not use this algorithm.
³Tested AES XTS-128. However, the cryptographic module does not use this algorithm.

Table 3 – FIPS Approved Algorithms

Table 4 – Approved Cryptographic Functions Tested with Vendor Affirmation

The Cryptographic Module supports the following non-Approved but allowed algorithm:

• A hardware NDRNG seeds the Approved [SP800 90A] CTR_DRBG. Available entropy does not modify the bit strength of cryptographic keys generated by the CTR_DRBG. Each 2-bit NDRNG sample contains at least 1.1247-bit of min-entropy. Each time the CTR_DRBG is instantiated or reseeded, one thousand twenty-four (1024) 2-bit samples seed the CTR_DRBG. This equates to 2048 bits of entropy data and translates to 1151 bits of min-entropy. A min-entropy of 1151 bits is sufficient to assert that the CTR_DRBG has a bit security of 256 bits. A security strength of 256 bits exceeds the minimum requirement of 112 bits of security strength established by NIST.

Ports and Interfaces

The drive uses the standard 29-pin Serial Attached SCSI (SAS) connector that conforms to the mechanical requirements of SFF 8680. Table 5 below identifies the  Cryptographic Module’s ports and interfaces. The Cryptographic Module does not provide a maintenance access interface.

Table 5 – FIPS 140-2 Ports and Interfaces

4. Identification and Authentication Policy
The Cryptographic Module enforces role separation by requiring a role identifier and an authentication credential (Personal Identification Number or PIN). The Cryptographic Module enforces the following FIPS140-2 operator roles.
4.1 Crypto Officer
4.1.1 Secure ID (SID) Authority
This TCG authority initializes the Cryptographic Module. Section 11.3.1 of the TCG Storage Security Subsystem Class: Enterprise Specification defines this role.
4.1.2 EraseMaster Authority
This TCG authority can selectively zeroize bands within the Cryptographic Module. Section 11.4.1 of the TCG Storage Security Subsystem Class: Enterprise Specification defines this role. The TCG EraseMaster authority can disable Users and erase LBA bands (user data regions).
4.2 BandMaster Authority (User)
User roles correspond to Bandmaster Authorities. Section 11.4.1 of the TCG Storage Security Subsystem Class: Enterprise Specification provides a definition. Users have the authority to lock, unlock, and configure LBA bands (user data regions) and to issue read and write commands to the SED. The TCG EraseMaster authority can disable a Bandmaster.
4.3 Anybody
Services are provided that do not require authentication. With one exception, these do not disclose, modify, or substitute Critical Security Parameters, use an Approved security function, or otherwise affect the security of the Cryptographic Module. The excepted service is the Generate Random service, which provides output from an instance of the SP800-90A DRBG.
4.4 Makers
For failure analysis purposes, the vendor can enable a logical diagnostic port to perform diagnostics and gather data on the failure. A power cycle automatically disables the logical diagnostic port. An operator must authenticate to the SID authority and the Makers authority to enable the logical diagnostic port. The Cryptographic Module is in FIPS
non-Approved mode whenever the Crypto Officer enables the Makers authority. The vendor performs failure analysis within the vendor’s facility. Makers’ authentication data shall not leave the vendor’s facilities. During normal operation, the Crypto Officer disables the Makers authority when invoking the Initialize Cryptographic Module
service.

4.5 Maintenance
For failure analysis purposes, the vendor can enable a privileged mode to perform diagnostics and gather drive health and failure data. Power cycling the module automatically negates the Maintenance role authentication. After authentication, Vendor Unique Commands (VUC) support diagnostic functions for testing the drive media and the SCSI bus integrity. Operators authenticated to the maintenance role cannot modify the operational environment.
The following table maps TCG authorities to FIPS 140-2 roles.

Table 6 – Roles, Required Identification, and Authentication

Table 7 – Authentication Mechanism Strengths

Access Control Policy

5.1 Roles and Services

Table 8 – Authenticated CM Services (Approved and Non-Approved Mode)

5.2 Unauthenticated Services
Table 9 – Unauthenticated Services lists the unauthenticated services the Cryptographic Module provides.

5.3 Definition of Critical Security Parameters (CSPs)
The Cryptographic Module contains the CSPs listed in Table 10 – CSPs and Private Keys. Zeroization of CSPs complies with the purge requirements for SCSI hard disk drives within [SP800 88], Guidelines for Media Sanitization.

Table 10 – CSPs and Private Keys

5.4 Definition of Public Security Parameters
The Cryptographic Module contains two public keys. The cryptographic module uses the public keys to verify the digital signature of a firmware download image. If the digital signature verification process fails when utilizing the primary public key, the cryptographic module attempts to use the second public key to verify the digital signature. The cryptographic module rejects the downloaded firmware image if both attempts to verify the digital signature fail.

Table 11 – Public Security Parameters

5.5 SP800-132 Key Derivation Function Affirmations
The Cryptographic Module deploys a [SP800-132] Password-Based Key Derivation Function (PBKDF).

• The cryptographic module complies with Option 2a within SP800-132.
• The Cryptographic Module tracks TCG Credentials (PINs) by hashing a 256-bit Salt and PIN. The Cryptographic Module stores the SHA256 digest and associated salt in the Reserved Area.
• Security policy rules set the minimum PIN length at 32 bytes. The cryptographic module allows values from 0x00 to 0xFF for each byte of a PIN
• The upper bound for the probability of guessing a PIN is 2-256. The difficulty of guessing the PIN is equivalent to a brute-force attack.
• KEKs ([SP800 132] Master Keys) derive from passing a TCG Credential PIN ([SP800 132] Password) and a 256-bit KDF salt through an [SP800 132] PBKDF. The Cryptographic Module creates a unique KEK for each LBA Band. The KEK generation process utilizes the HMAC-SHA-256 algorithm. Each KEK has a security strength of 128-bits against a collision attack
• Each 256-bit Salt is a random number generated using the [SP800-90A] DRBG.
• The sole use of a KEK is to wrap and unwrap its associated Media Encryption Key (MEK), which is utilized by storage applications.

5.6 Definition of CSP Modes of Access
Table 12 – CSP Access Rights within Roles & Services defines the relationship between access to Critical Security Parameters (CSPs) and the different Cryptographic Module services. The definitions provided below define the access modes listed in Table 12.

• G = Generate: The Cryptographic Module generates a CSP from the [SP800-90A] DRBG, derives a CSP with the Key Derivation Function or hashes authentication data with SHA-256.
• I = Input: The Cryptographic Module imports a CSP or PSP from outside the cryptographic boundary.
• O = Output: The Cryptographic Module does not support the output of CSPs outside the cryptographic boundary. The Cryptographic module outputs the value of selective PSPs.
• E = Execute: The module executes a service that uses the CSP or PSP.
• S = Store: The Cryptographic Module stores a CSP or PSP persistently on media within the cryptographic module.
• Z = Zeroize: The Cryptographic Module zeroizes a CSP or PSP that is stored in volatile or non-volatile memory.

Table 12 – CSP Access Rights within Roles & Services

Operational Environment

The Cryptographic Module operating environment is non-modifiable. Therefore, the FIPS 140-2 operational environment requirements are not applicable to this module. While operational, the code working set cannot be added, deleted, or modified. For firmware upgrades, the Cryptographic Module uses an authenticated download service to upgrade its firmware in its entirety. If the download operation is successful, authorized, and verified, the Cryptographic Module will begin operating with the new code working set. Firmware loaded into the module that is not on the FIPS 140-2 certificate is out of the scope of this validation and requires a separate FIPS 140-2 validation.

Security Rules

The Cryptographic Module enforces applicable FIPS 140-2 Level 2 security requirements. This section documents the security rules that the Cryptographic Module enforces.

7.1 Invariant Rules

1. The Cryptographic Module supports two distinct types of operator roles: Crypto Officer and User. The module also supports an additional role, the Makers role. Initialization disables the Makers role.
2. Cryptographic Module power cycles clear all existing authentications.
3. After the Cryptographic Module has successfully completed all self-tests and initialized according to the instructions provided in Section 7.2, it is in FIPS Approved mode. The Crypto Officer shall not enable the Makers Authority after the cryptographic module enters FIPS Approved mode.
4. When the Cryptographic Module is unable to authenticate TCG Credentials, operators do not have access to any cryptographic service other than the unauthenticated Generate Random service.
5. The Cryptographic Module performs the following tests. Upon failure of any test, the Cryptographic Module enters a soft error state. The Cryptographic module reports the error condition by transmitting a UEC via the [SCSI] protocol. After entering the soft error state, the cryptographic module does not process functional commands unless a power cycle occurs.
   A. Power up Self-Tests
   1) Firmware Integrity 32-bit EDC
   2) Firmware AES-ECB Encrypt KAT, AES Cert. #3880
   3) Firmware AES-ECB Decrypt KAT, AES Cert. #3880
   4) RSA 2048 PSS Verify KAT, RSA Cert. #1978
   5) DRBG KAT
   8 , DRBG Cert. #1108
   6) SHA-256 KAT, SHS Cert. #3203
   7) HMAC-SHA-256 KAT, HMAC Cert. #2522
   8) Hardware AES-ECB Encrypt KAT, AES Cert. #3881
   9) Hardware AES-ECB Decrypt KAT, AES Cert. #3881
   10) HW/FW SHA-256 KAT, SHS Cert. #3204
   11) Firmware Key Wrap KAT, KW-AE, AES Cert. #3880
   12) Firmware Key Wrap KAT, KW-AD, AES Cert. #3880
   B. Conditional Tests
   1) The Cryptographic Module performs a Continuous Random Number Generator test on the DRBG.
   2) The Cryptographic Module performs a Continuous Random Number Generator test on the hardware NDRNG entropy source.
   3) The Cryptographic Module performs an Adaptive Proportion test and a Repetition Count test on the hardware NDRNG entropy source that complies with SP800-90B.
   4) The Cryptographic Module performs a key comparison test on XTS-AES Key1 and XTS-AES Key2 that satisfies IG A.9 XTS-AES Key Generation Requirements.
   5) Firmware Download Test, RSA 2048 PSS (Cert. RSA 1978), SHA-256 (Cert. SHS 3204)
6. An operator can command the Cryptographic Module to perform the power-up self-test by power cycling the device.
7. Power-up self-tests do not require operator action.
8. Data output is inhibited during key generation, self-tests, zeroization, and error states.
9. Status information does not contain CSPs or sensitive data that if misused, could compromise the Cryptographic Module.
10. The zeroization service deletes all plaintext keys and CSPs.
11. The Cryptographic Module supports a maintenance role. The operator must execute the TCG Revert Method to zeroize the cryptographic module before entering the maintenance role. The operator must also execute the TCG Revert Method to zeroize the cryptographic module after exiting the maintenance role.
12. The Cryptographic Module does not support manual key entry.
13. The Cryptographic Module does not have any external input/output devices used for the entry/output of data.
14. The Cryptographic Module does not output plaintext CSPs.
15. The Cryptographic Module does not output intermediate key values.
16. The Cryptographic Module does not support concurrent operators.
17. The End Session service deletes the current operator authentication. The Cryptographic Module requires operators to re-authenticate upon execution of the End Session service.
18. The host shall authenticate to LBA Bands after a power cycle.
19. The Crypto Officer shall not enable the Makers Authority after the cryptographic module enters FIPS Approved mode.
20. The Crypto Officer shall assure that all host-issued User PINs are 32 bytes in length.
21. After a Firmware Download, the CO shall disable the firmware download port by executing “Set ‘Firmware_Dload_Port.PortLocked = True’ ”.

7.2 Initialization Rules
The Crypto Officer shall follow the instructions provided in the FIPS 140 Crypto Officer Instructions section of the Ultrastar DC HC520 Product Specification and the Delivery & Operation (Crypto Officer’s) Manual for acceptance and end-of-life procedures.

The Crypto Officer shall initialize the module’s cryptographic services by executing the TCG methods listed below.

1. start session and SyncSession using the ‘Admin SP’
2. Get MSID
3. Use the MSID to authenticate to the SID
   a. An authentication failure indicates that a tamper event has occurred for the Cryptographic Module
4. Set ‘SID PIN’ to an organizational value
5. Set ‘Makers.Enabled = FALSE’
6. Set ‘Firmware_Dload_Port.Portlock = True
7. Set ‘Firmware_Dload_Port.LockOnReset = PowerCycle’
8. EndSession
9. start session and SyncSession using the ‘Locking SP’
10. Use the MSID to authenticate to the EraseMaster
    a. An authentication failure indicates that a tamper event has occurred for the Cryptographic Module
11. Set ‘EraseMaster PIN’ to a new value
12. Erase Band0
13. Use the MSID to authenticate to the BandMaster0
    a. An authentication failure indicates that a tamper event has occurred for the Cryptographic Module.
14. Set ‘BandMaster0 PIN’ to a new value
15. As required by organizational policy, repeat steps 13 to 14 for each LBA band
16. EndSession
17. Power cycle or reset the Cryptographic Module

The instructions provided above accomplish the following.

• Establish authentication data for the TCG Authorities by replacing the MSID (default PIN value).
• Erase the LBA Bands. When the Cryptographic Module erases LBA bands it also cryptographically erases the Media Encryption Keys associated with each LBA band.
• Establish the LBA Bands. When the Cryptographic Module establishes LBA bands it also generates a unique Media Encryption Key for each LBA band.
• Disable the Makers Authority
• Lock the Firmware Download service and set the Firmware Download service to lock automatically after a power cycle.

At the end of the initialization process, the Cryptographic Module will be in FIPS Approved mode. While in FIPS
In approved mode, only an authenticated Crypto Officer can change the state of the firmware download service.

7.3 Zeroization Rules
The Crypto Officer shall use the TCG Revert Method to perform the zeroization service. After successfully executing TCG Revert the Crypto Officer shall power cycle the module. Power cycling the module assures the erasure of all CSPs stored in volatile memory. Reverting and power cycling the cryptographic module zeroizes all Critical Security
Parameters.

Physical Security Policy

8.1 Mechanisms
The Cryptographic Module does not make claims in the Physical Security area beyond FIPS 140-2 Security Level 2.

• All components are production-grade materials with standard passivation.
• The enclosure is opaque.
• Engineering design supports opacity requirements.

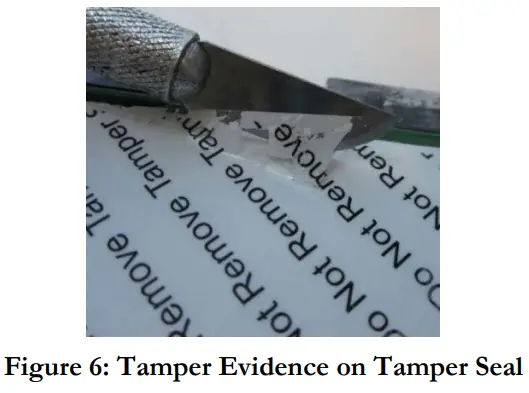

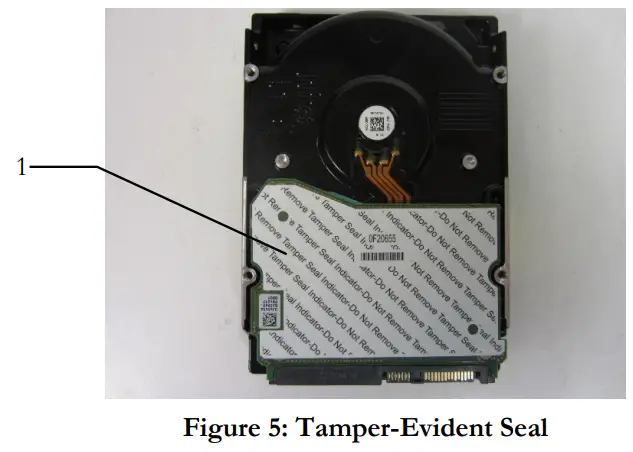

• Western Digital applies one (1) tamper-evident security seal during manufacturing.
• The tamper-evident security seal cannot be penetrated or removed and reapplied without evidence of tampering. In addition, the tamper-evident security seal is difficult to replicate.

8.2 Operator Responsibility
The Crypto Officer shall inspect the Cryptographic Module enclosure for evidence of tampering at least once a year. If the inspection reveals evidence of tampering, the Crypto Officer should return the module to Western Digital.

Mitigation of Other Attacks Policy

The cryptographic module is not designed to mitigate any specific attacks beyond the scope of the requirements within FIPS 140-2.

Definitions

• Allowed: NIST approved, i.e., recommended in a NIST Special Publication, or acceptable, i.e., no known security risk as opposed to deprecated, restricted and legacy-use. [SP800-131A] for terms
• Anybody: A formal TCG term for an unauthenticated role. [TCG Core]
• Approved: [FIPS140] approved or recommended in a NIST Special Publication.
• Approved mode of operation: A mode of the cryptographic module that employs only approved security functions. [FIPS140]
• Authenticate: Prove the identity of an Operator or the integrity of an object.
• Authorize Grant an authenticated Operator access to a service or an object.
• Ciphertext: Encrypted data transformed by an Approved security function.
• Confidentiality: A cryptographic property in that sensitive information is not disclosed to unauthorized parties.
• Credential: A formal TCG term for data used to authenticate an Operator. [TCG Core]
• Critical Security Parameter (CSP): Security-related information (e.g., secret and private cryptographic keys, and authentication data such as credentials and PINs) whose disclosure or modification can compromise the security of a cryptographic module. [FIPS140]
• Cryptographic Boundary: An explicitly defined continuous perimeter that establishes the physical bounds of a cryptographic module and contains all the hardware, software, and/or firmware components of a cryptographic module. [FIPS140]
• Cryptographic key (Key): An input parameter to an Approved cryptographic algorithm
• Cryptographic Module: The set of hardware, software, and/or firmware used to implement approved security functions contained within the cryptographic boundary. [FIPS140]
• Crypto Officer: An Operator performing cryptographic initialization and management functions. [FIPS140]
• Data at Rest: User data residing on the storage device media when the storage device is powered off.
• Discovery: A TCG method that provides the properties of the TCG device. [TCG Enterprise]
• Integrity: A cryptographic property that sensitive data has not been modified or deleted in an unauthorized and undetected manner.
• Interface: A logical entry or exit point of a cryptographic module that provides access to the cryptographic module for logical information flows. [FIPS140]
• Key Derivation Function (KDF): An Approved cryptographic algorithm by which one or more keys are derived from a shared secret and other information.
• Key Encrypting Key (KEK): A cryptographic key that is used to encrypt or decrypt other keys.
• Key management: The activities involving the handling of cryptographic keys and other related security parameters (e.g., authentication data) during the entire life cycle of the Cryptographic Module.
• Key Wrap: An Approved cryptographic algorithm that uses a KEK to provide Confidentiality and Integrity.
• LBA Band: A formal [TCG Core] term that defines a contiguous logical block range (sequential LBAs) to store encrypted User Data; bands do not overlap, and each has its own unique encryption key and other settable properties.
• Manufactured SID (MSID): A unique default value that vendors assign to each SED during manufacturing. An externally visible MSID value is not required if the user can derive the MSID from other information printed on the drive. The MSID is readable with the TCG protocol. It is the initial and default value for all TCG credentials. [TCG Core]
• Method: A TCG command or message. [TCG Core]
• Operator: A consumer, either human or automated, of cryptographic services that is external to the Cryptographic Module. [FIPS140]
• Personal Identification Number (PIN): A formal TCG term designating a string of octets used to authenticate an identity. [TCG Core]
• Plaintext: Unencrypted data.
• Port: A physical entry or exit point of a cryptographic module that provides access to the Cryptographic Module for physical signals. [FIPS140]
• PSID (Physical Security Identifier): a SED unique value that is printed on the Cryptographic Module’s label and is used as authentication data and proof of physical presence for the Zeroize service.
• Public Security Parameters (PSP): Public information whose modification can compromise the security of the cryptographic module (e.g., a public key).
• Read Data: An external request to transfer User Data from the SED. [SCSI Block]
• Reserved Area: Private data on the Storage Medium that is not accessible outside the Cryptographic Boundary.
• Security Identifier (SID): A TCG authority used by the Crypto Officer. [TCG Core]
• Self-Encrypting Drive (SED): A storage device that provides data storage services, which automatically encrypts all user data written to the device and automatically decrypts all user data read from the device.
• Session: A formal TCG term that envelops the lifetime of an Operator’s authentication. [TCG Core]
• Storage Medium: The non-volatile, persistent storage location of a SED; it is partitioned into two disjoint sets, a User Data area and a Reserved Area.
• User: An Operator that consumes cryptographic services. [FIPS140]
• User Data: Data transferred from/to a SED using the Read Data and Write Data commands. [SCSI Block]
• Write Data: An external request to transfer User Data to a SED. [SCSI Block]
• Zero: Invalidate a Critical Security Parameter. [FIPS140]

Acronyms

• CO: Cryptographic Office [FIPS140]
• CRC: Cyclic Redundancy Check
• CSP: Critical Security Parameter [FIPS140]
• DRAM: Dynamic Random Access Memory
• DRBG: Deterministic Random Bit Generator
• EDC: Error Detection Code
• EMI: Electromagnetic Interference
• FIPS: Federal Information Processing Standard
• HDD: Hard Disk Drive
• KAT: Known Answer Test
• KDF: Key Derivation Function
• LBA: Logical Block Address
• MEK: Media Encryption Key
• MSID: Manufactured Security Identifier
• NDRNG: Non-deterministic Random Number Generator
• NIST: National Institute of Standards and Technology
• PIN: Personal Identification Number
• PSID: Physical Security Identifier
• PSP: Public Security Parameter
• SAS: Serial Attached SCSI
• SCSI: Small Computer System Interface
• SED: Self-encrypting Drive
• SID: TCG Security Identifier, the authority representing the Cryptographic Module owner
• SSD: Solid-state Drive
• TCG: Trusted Computing Group
• UEC: Universal Error Code
• VUC: Vendor Unique Command
• XTS: A mode of AES that utilizes “Tweakable” block ciphers

References

12.1 NIST Specifications

• [AES] Advanced Encryption Standard, FIPS PUB 197, NIST, November 2001
• [DSS] Digital Signature Standard, FIPS PUB 186-4, NIST, July 2013
• [FIPS140] Security Requirements for Cryptographic Modules, FIPS PUB 140-2, NIST, December 2002
• [HMAC] The Keyed-Hash Message Authentication Code, FIPS PUB 198-1, July 2008
• [SHA] Secure Hash Standard (SHS), FIPS PUB 180-4, NIST, August 2015
• [SP800-38E] Recommendation for Block Cipher Modes of Operation: The XTS-AES Mode for Confidentiality on Storage Devices, SP800-38E, NIST, January 2010
• [SP800-38F] Recommendation for Block Cipher Modes of Operation: Methods for Key Wrapping, NIST, December 2012
• [SP800-57] Recommendation for Key Management – Part I General (Revision 4), NIST, January 2016
• [SP800 88] Guidelines for Media Sanitization, NIST, December 2014
• [SP800-90A] Recommendation for Random Number Generation Using Deterministic Random Bit Generators (Revision 1), NIST, June 2015
• [SP800-90B] Recommendation for Entropy Sources Used for Random Bit Generation, NIST, January 2018
• [SP800 131A] Transitions: Recommendation for Transitioning the Use of Cryptographic Algorithms and Key Lengths (Revision 2), NIST, March 2019
• [SP800-132] Recommendation for Password-Based Key Derivation, NIST, December 2010
• [SP800 133] Recommendation for Cryptographic Key Generation, NIST (Revision 2), June 2020

12.2 Trusted Computing Group Specifications

• [TCG Core] TCG Storage Architecture Core Specification, Version 2.0 Revision 1.0 (April 20, 2009)
• [TCG Enterprise] TCG Storage Security Subsystem Class: Enterprise Specification, Version 1.00 Revision 3.00 (January 10, 2011)
• [TCG App Note] TCG Storage Application Note: Encrypting Storage Devices Compliant with SSC: Enterprise, Version 1.00 Revision 1.00 Final
• [TCG Opal] TCG Storage Security Subsystem Class: Opal Specification, Version 2.00 Final Revision 1.00 (February 24, 2012)
• TCG Storage Interface Interactions Specification (SIIS), Version 1.02, (2011)

12.3 International Committee on Information Technology Standards T10 Technical Committee Standards

• [SCSI Core] SCSI Primary Commands (SPC-5)
• [SCSI Block] SCSI Block Commands (SBC-3)
• [SAS] Serial Attached SCSI (SAS-4)
• [SFSC] Security Features for SCSI Commands

12.4 Western Digital Documents

• [Product Specification] Ultrastar DC HC520 (He12) SAS OEM Specification, Version 1.3, January 2020,
  https://shop.westerndigital.com/c/data-center-drives
• [Datasheet] Ultrastar DC HC520 Datasheet, (August 2019), https://shop.westerndigital.com/c/data-centerdrives
• [D&O] Delivery & Operation (Crypto Officer) Manual, Version: 0.12, January 7, 2017

12.5 SCSI Commands

Table 13 – SCSI Commands

FIPS 140- 2 Security Policy
Western Digital
