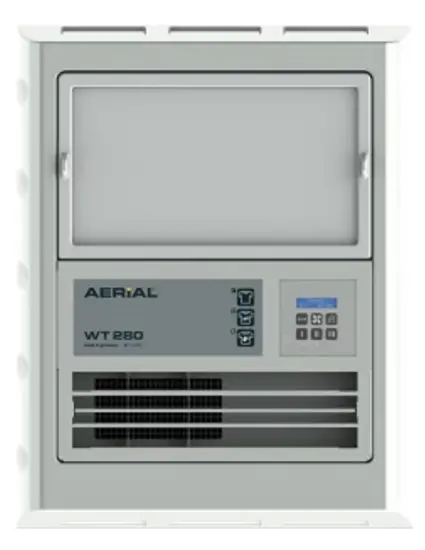

Aerial Wt 230 Indoor Air Laundry Dryer Instruction Manual

Instruction for use
Indoor air laundry dryer
WT 230
WT 240
WT 250
WT 280

Instructions for use

This instruction manual shall not be reproduced, copied, and distributed, neither in parts nor completely, without the manufacturer’s written permit.

All rights reserved.

The instruction manual is based on technical and product-specific parameters. The manufacturer reserves the right to add supplementary information to the instruction manual.

Using a device outside the specified conditions and contrary to its designated use will lead to the forfeiture of all warranty claims.

As of 10_2020

Notes on this instruction manual

This instruction manual is part of the product. It contains all important information on how to transport, install, operate, store and dispose of the device from AERIAL properly and safely. Keep this instruction manual in a safe place.

Target groups

This instruction manual addresses the users and operators of the devices manufactured by AERIAL. They must have read and understood the instruction manual. The physical and psychological preconditions for proper and safety-conscious handling of the devices must always be guaranteed.
The “Connection by electrical professionals” chapter is intended only for trained electrical professionals (e.g. electricians).

Conventions

Warnings
In this instruction manual, you will find information intended to warn you of possible hazards at the beginning of a specific action.

DANGER	Type and source of hazard This symbol in connection with the signal word “DANGER” refers to a life-threatening situation. Failure to observe this warning will result in serious, fatal injury. This arrow marks precise steps to avert the danger which must always be performed.
WARNING	Type and source of hazard This symbol in connection with the signal word “WARNING” refers to a dangerous situation. Failure to observe this warning can result in life-threatening injury and death. This arrow marks precise steps to avert the danger that must be performed.
CAUTION	Type and source of hazard This symbol in connection with the word “CAUTION” warns of minor or moderate injury and potential material damage. Measures to prevent personal injury or material damage are described here.

In this box, you find tips and information concerning the use of the device.

Designated use

The indoor air laundry dryers WT 230/240/250/280 are intended for air dehumidification and laundry drying in closed rooms.

The indoor air laundry dryers are designed exclusively for use at atmospheric pressure. Operating the dehumidifiers within the limits of designated use also involves observing the specified operating conditions (refer to page 36). Any use of the device going beyond the designated use specified above is considered contrary to its designated use.

Misuse is concerned if the WT indoor air laundry dryer is used for purposes not included in designated use. In these cases, the manufacturer does not assume any liability for personal and material damage.

Safety

Safety devices

The WT series indoor air laundry dryers were subjected to thorough safety testing.
Improper operation or misuse will cause danger to

• the operator,
•  the machine and other material properties of the user,
• efficient operation of the machine.

All persons involved in the installation, commissioning, operation, maintenance, and servicing of the devices must

• be properly qualified,
• closely observe the instructions set out in this manual.

Hazards from accessories

Wastewater hoses, power cables, and air filters must be properly installed and must not disable the protection devices of the indoor air laundry dryers. The operating elements must always be accessible.

Authorized operator

Indoor air laundry dryers may only be operated by persons commissioned and instructed by the user. In the working area, the operator is responsible for third parties. For all activities on the device, the responsibilities must be clearly defined and observed. Unclear competencies are a safety risk.

User

The user must

• make the instruction manual accessible to the operator,
• and make sure that the operator has read and understood the instruction manual.

Safety instructions

The devices must not be used under the following conditions:

•  In rooms with potentially explosive atmospheres.
• in rooms with aggressive atmospheres, e.g. ammonia, wood acids.
• In rooms with water with a pH value below 7.0 or above 7.4.
  In case of low ph values, there is a risk of corrosion on all metals and risk of damage to mortar-containing materials (joints). Higher pH values cause mucous membrane irritations and increased lime deposits.
• In rooms with salt or liquids with a salt content > 1%.
• In most areas of indoor swimming pools.
• in rooms with ozone-treated air.
• in rooms with high solvent concentration.
• in rooms with extreme dust load.
• The laundry dryer must always be stored in a dry environment.

Please note that excessive additional air movements in the room may impair the function of the laundry dryer because they could disturb the airflow of the laundry dryer.
In addition, the following must be observed when using the indoor air laundry dryer:

• Only trained electrical professionals (e.g. electricians) are permitted to work on electrical components, especially when connecting to the electric circuit.
• The device must always be transported by two people, or suitable lifting gear must be used.
• Original spare parts or spare parts approved by the manufacturer shall exclusively be used.

Model

The indoor air laundry dryer is available in two models and various sizes. The two models can be identified by their item numbers (on the identification plate) and differ as follows:

Construction

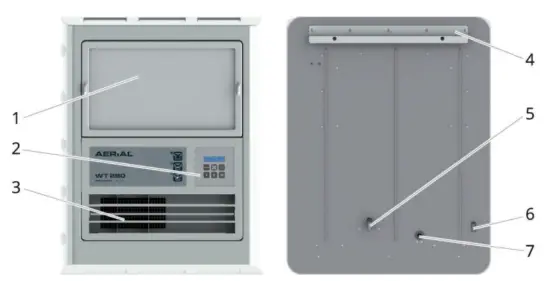

Fig. 1: AERIAL WT series – overview

How long the indoor air laundry dryer must be used to dry a room or a certain amount of laundry or to reach a certain humidity depends on the ambient conditions in the room
in which the device is installed.

Transport and installation

Transport

DANGER	Danger to life due to electric shock Touching live parts can lead to death. Before moving the indoor air laundry dryer, always switch it off at the on/off switch and, depending on the model, pull the mains plug out of the socket or have it disconnected from the electrical circuit by a trained electrical professional (e.g. electrician).
WARNING	Cutting and crushing hazard When the air filter has been removed cutting injuries from the sharp edges of the heat exchanger may occur. Two people are needed to carry the indoor air laundry dryer, or suitable lifting gear must be used for transport. Wear protective gloves when changing the air filter. Do not reach into the inlet screen.
WARNING	Danger of injury The indoor air laundry dryer is heavy. Loss of stability or uncontrolled movements may cause serious injuries and material damage. Lift the device with a colleague and use suitable lifting and transport equipment. In the case of wall mounting use suitable holders and fastening elements according to the weight.
CAUTION	Material damage Pulling the power cable may damage the cable. Before transporting the indoor air laundry dryer, depending on the model, always pull out the mains plug or have all electrical connections disconnected from the electrical circuit by a trained electrical professional (e.g. electrician).

1. Transport the indoor air laundry dryer to the place of installation using suitable lifting gear or have it carried by two persons.
2. Remove the packaging material completely and dispose of it according to the local regulations.
3. Check the delivery for completeness.

Package contents

• Indoor air laundry dryer
• Wall mounting rail with mounting bolts and sound insulation anchors
• One instruction manual

Operating conditions

Series WT 230/240/250/280 indoor air laundry dryers are suitable for use in residential buildings, cellars, garages, waterworks, and storage rooms. They work without problems in the temperature range from +5 to +32 °C and at a relative humidity in range from 40% to 99%.

Erection and installation

The series WT 230/240/250/280 indoor air laundry dryers are designed for stationary use and wall mounting.

The indoor air laundry dryer may only be used for the purpose of air dehumidification and laundry drying.

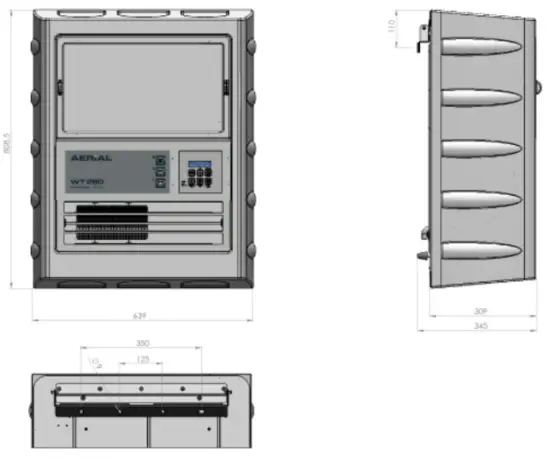

Fig. 2: Dimensional drawing

Select place of installation

When selecting the place of installation ensure

• that an outlet for draining off the condensate is available (refer to section “Installation of condensate drain hose”, from page 41 onwards).
• that there is a suitable socket or a suitable power connection close by depending on the model (see section “Connection”, from page 39).
• that optimum air circulation in the entire room is guaranteed.
• that the drying racks are placed longitudinally or radially to the air outlet of the indoor air laundry dryer.

CAUTION

The danger of damage to the device Insufficient air circulation can result in damage to the device and inefficient operation. Install the indoor air laundry dryer in such a way that free air circulation is ensured. Ensure that the air filter and air outlet are not covered. The free space in front of the front panel must be at least 0.5 meters.

Wall mounting

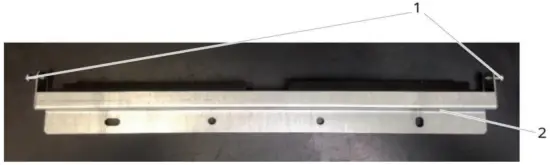

Fig. 3: Wall rail

The scope of delivery includes one wall rail (Fig. 3) and suitable bolts and sound insulation anchors.

WARNING

The danger of loss of stability or dropping from the wall The indoor air laundry dryer is heavy. A fall or uncontrolled movements may cause serious injuries and material damage. In case of wall mounting use suitable provided rail and fastening elements suitable for the weight.

1. Attach the wall rail straightly aligned (use spirit level!) and securely to a suitable wall using four bolts.
   Above the rail, a clearance of about 30 cm to the ceiling is required to enable mounting of the indoor air laundry dryer in the wall rail without problems.
2. Lift the indoor air laundry dryer from the top into the wall rail in such a way that the mounting bar on the rear side (page 34,34 Fig 1, item 4) engages in the wall rail.


   CAUTION

   Damage to the device The indoor air laundry dryer must be aligned along all axes. Check the position of the indoor air laundry dryer using a spirit level.

3. Fix the indoor air laundry dryer using the two lateral fixing screws on the wall rail.

DANGER

Danger to life due to electric shock Prior to commissioning the technical data of the indoor air laundry dryer must be compared with the conditions prevailing in the room of installation! Use exclusively the original power cable! In case of loss or damage, original power cables are available from your supplier. Work on electrical parts of the indoor air laundry dryer may only be carried out by the manufacturer or by authorized qualified electricians.

The following items must be checked prior to the electrical connection of the indoor air laundry dryer:

•  Is the mains voltage in conformity with the voltage of the device?
•  Are socket and supply systems sufficiently fused?
•  Has an RCCB been installed?
•  Is the appliance coupler suitable for the building socket outlet?
•  Is the socket-outlet used grounded properly?

1.  Connect the power cable of the indoor air laundry dryer to a suitable power outlet.

Model without mains plug: Connection by an electrical professional

This chapter is intended only for trained electrical professionals (e.g. electricians).

DANGER

Danger to life due to electric shock Prior to commissioning the technical data of the indoor air laundry dryer must be compared with the conditions prevailing in the room of installation! Use exclusively the original power cable! In case of loss or damage, original power cables are available from your supplier. The device must only be connected by a trained electrical professional (e.g. electrician). Work on electrical parts of the indoor air laundry dryer may only be carried out by the manufacturer or by authorized qualified electricians.

The following items must be checked prior to the electrical connection of the indoor air laundry dryer:

•  Is the mains voltage in conformity with the voltage of the device?
•  Is the supply system sufficiently fused?
•  Has an RCCB been installed?

1.  Make sure that the cables cannot believe, e.g. by switching off the relevant fuse.
2. Use a suitable voltage detector to ensure that none of the cables are live.
3. Connect the electric cable of the indoor air laundry dryer to the electric circuit as directed.
   1. Connect earth wire;
   2. Connect neutral wire;
   3. Connect phase.

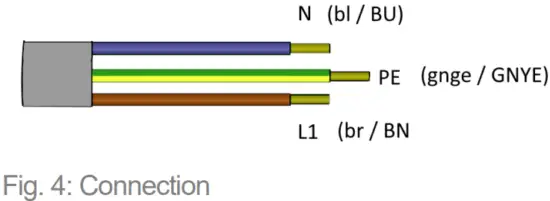

   N = blue = neutral wire PE = green/yellow = earth wire L1 = brown = phase

4. Restore the power supply and check that it is working.

Installation of the condensate drain hose

CAUTION

Material damage In case of incorrect installation of the condensate drain hose, water may flow into the room. Ensure that the condensate can always be reliably collected or discharged. A slope of 5 cm minimum per meter of the hose must be guaranteed.

The series WT 230/240/250/280 indoor air laundry dryers are equipped with a drain pipe for connecting a condensate drain hose 15 x 2 mm (page 34, Fig. 1, item 5).

1. Connect the drain hose to the drain pipe.
2. Attach the drain hose safely to an outlet.
3. Ensure that the hose is laid with a slope of at least 5 cm per meter of hose from the device.

Operation and operator control

CAUTION

The danger of injury and damage to the appliance Inadmissible ambient conditions and improper operation of the device may constitute a risk. Read the instruction manual before commissioning the indoor air laundry dryer.

Operating elements

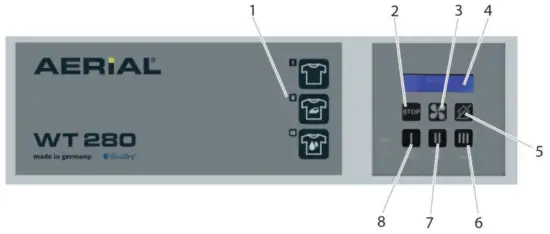

Fig. 5: Operating panel

Operating modes

Room dehumidification
The “Room dehumidification” mode is activated and set via the ES button, see section Operation, page 44.

Laundry dryer
All laundry dryer programs and the functions of the buttons on the operating panel are described in the section Operation, page 44.

Automatic defrosting
During dehumidification, ice may build up on the evaporator. The series WT
230/240/250/280 indoor air laundry dryers are equipped with an automatic hot-gas defrosting system.

Commissioning

To commission the indoor air laundry dryer to proceed as follows:

1. Mount the indoor air laundry dryer, see page 35.
2. Make sure that the indoor air laundry dryer is connected, see page 35.
3. Make sure that the drain hose has been fitted correctly and is laid into a drain (see section “Installation of condensate drain hose“, from page 41).
   For drying and keeping rooms with wood furnishing or paintings, antiques, etc. dry, minimum moisture of 55 – 60% must be observed.
   For living space, climate conditions of 20 – 25 °C and 50 – 60% relative humidity are recommended.
   In case of doubt please contact your technical advisor.
4. Switch on the indoor air laundry dryer via the On/Off switch (s. page 34, Fig.1, item 6). The following indication appears in the display:

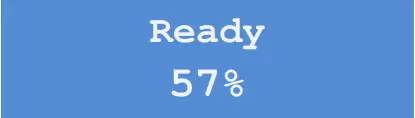

5. Select a program or drying mode on the operating panel.

In addition, you can steer the drying air manually in different directions via the pivotable baffle plates.

For detailed information concerning the operation of the indoor air laundry dryer please refer to the chapter Operation, page 44.

Operation

Button	Press briefly	Press for 5 s	Display
	Program “cupboard dry”		cupboard dry 37% P1=46%
		Time-limited drying: 30 min.	Drying 30 min
	Program “iron dry”		iron dry 37% P2=58%
		Time-limited drying: 60 min.	Drying 60 min
	Program “predried”		predried  37% P3=65%
		Time-limited drying: 90 min.	Drying 90 min
	Switch the unit off: 1. Compressor off 2. Fan off		Unit switches off Indicator flashes
		Operating hours, serial number of electronics system	234 h SN:12345678
	Fast-drying button		green LED on, when active
Setting the language
Button	Press briefly	Press for 5 s	Display
	Switch off unit		Unit switches off
		Open language selection	Language German
	Select language (DE, FR, IT, EN)		Language English
	Save language selection		Language English

Set room dehumidification

Button	Press briefly	Display
ES button	Press 1 x desired room humidity = 35%	Ready37% ES 35%
	Press 2 x desired room humidity = 40%	Ready 37% ES 40%
	Press 3 x desired room humidity = 45%	Ready 37% ES 45%
	etc. after pressing 7 x: terminate ES mode	Ready 37%

Calibrate hygrostat

Correct calibration of the hygrostat requires special knowledge. Please ask the person commissioned and instructed by the user (e. g. caretaker).

Step	Button	Function	Display
1		Switch off unit	Unit switches off
2	+	Open hygrostat calibration	Calibrating HY
3		Select the program to be calibrated	Calibrating P2 56%
4		Increase calibration value step by step	Calibrating P2 58%
5		Reduce calibration value step by step	Calibrating P2 54%
6		Save calibration value	Saved

Maintenance and care

Maintenance work

Cleaning intervals depend largely on the operating conditions. Therefore check your indoor air laundry dryer after every drying process.
In order to guarantee the trouble-free functioning of the indoor air laundry dryer, it must be cleaned at regular intervals, and in particular, the air filter must be checked. Proceed as follows:

• Remove and clean the air filter, and replace it if necessary (see page 34, Fig. 1, item 1).

WARNING	The danger of injury by electric shock and risk of material damage The indoor air laundry dryer may only be repaired by trained specialized staff. Within the warranty period, any work on the dehumidifier shall only be carried out by the manufacturer or persons commissioned by the manufacturer. Any work carried out by unauthorized persons shall lead to the forfeiture of all warranty claims!
WARNING	Cutting and crushing hazard When the air filter has been removed cutting injuries from the sharp edges of the heat exchanger may occur. Two people are needed to carry the indoor air laundry dryer, or suitable lifting gear must be used for transport. Wear protective gloves when changing the air filter. Do not reach into the inlet screen.

•  Visual inspection: drain pipe and connected hose.
• The clean casing on the outside with a moist cloth.
• Insert a new or clean filter. Only use an original filter to ensure that the indoor air laundry dryer works properly.

Troubleshooting

If problems arise with the indoor air laundry dryer please check the following points. Should the fault not be located please contact your technical advisor.

WARNING

The danger of injury by electric shock and risk of material damage The indoor air laundry dryer may only be repaired by trained specialized staff. Within the warranty period, any work on the dehumidifier shall only be carried out by the manufacturer or persons commissioned by the manufacturer. Any work carried out by unauthorized persons shall lead to the forfeiture of all warranty claims!

WARNING	The danger of injury due to contact with hot components of the cooling circuit Work on inside components may only be carried out by the manufacturer or personnel authorized by the manufacturer.
WARNING	The danger of injury from flammable refrigerants and toxicity Work on inside components may only be carried out by the manufacturer or personnel authorized by the manufacturer.
WARNING	The danger of suffocation due to refrigerant leakage in closed rooms during maintenance work Work on inside components may only be carried out by the manufacturer or personnel authorized by the manufacturer.
WARNING	The danger of injury from rotating fan blade Repairs or maintenance work may only be carried out by the manufacturer or personnel authorized by the manufacturer.

Error messages

Faults

Decommissioning, storage, and disposal

Decommissioning

If you do not need the indoor air laundry dryer for a longer period of time you can shut it down for some time. To do so proceed as follows:

1. Switch off the indoor air laundry dryer via the On/Off switch (s. page 35, Fig.1, item 6).
2.  A model with mains plug: Pull the power plug
3. Cover the indoor air laundry dryer with a cloth.

Storage

To store the indoor air laundry dryer proceed as follows:

1. Store the indoor air laundry dryer in conformity with the specified operating conditions (refer to page 36).

Disposal

Please do not dispose of these indoor air laundry dryers with domestic waste, nor in the countryside.
We dispose of these AERIAL indoor air laundry dryers for you, free of charge and environmentally friendly. Please contact us.
Alternatively, your local disposal company will dispose of the indoor air laundry dryer in an environmentally friendly manner.

Specifications

The components installed in an indoor air laundry dryer decide on its dehumidifying performance. Since these components can never be completely identical the actual performance according to DIN EN 810 may deviate by up to 5% from the specified performance.

EC Declaration of Conformity

EC Declaration of Conformity

according to EC machinery directive 2006/42/EC, Annex II, 1. A

Description and identification of the machine

It is expressly declared that the machine is in conformity with all relevant provisions of the following EC directives or regulations:

Reference to the applied harmonized standards as referred to in Article 7(2):

Norderstedt, 3-11-2017
Place, date

Signature
Manfred Föhlisch

References

• AERIAL dehumidifier, building dehumidifiers, drying technology
