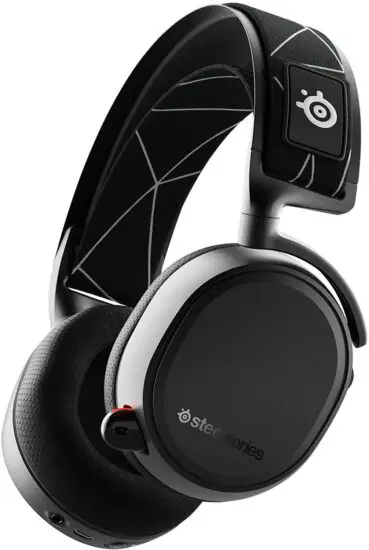

steelseries Arctis 9 Wireless Bluetooth Gaming Headset for PC User Guide

WELCOME TO ARCTIS

Your new headset is the result of our unyielding pursuit of perfection for over 15 years. We poured our hearts into creating the best possible gaming headset by pushing the boundaries of sound quality, mic clarity, comfort, and style. Arctis is our glory; now go chase yours.

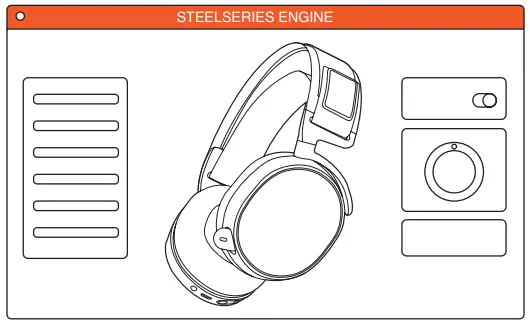

STEELSERIES ENGINE

Download SteelSeries Engine to customize your audio settings and check for firmware updates:
steelseries.com/engine

PACKAGE CONTENTS

Arctis 9
Wireless Transmitter
USB Charging Cable

SYSTEM REQUIREMENTS // COMPATIBILITY

PC
Playstation
Switch

STEELSERIES ENGINE SOFTWARE REQUIREMENTS

Platforms*
Windows 7+
Mac OS X 10.8+
Some software features available on Windows 10 only

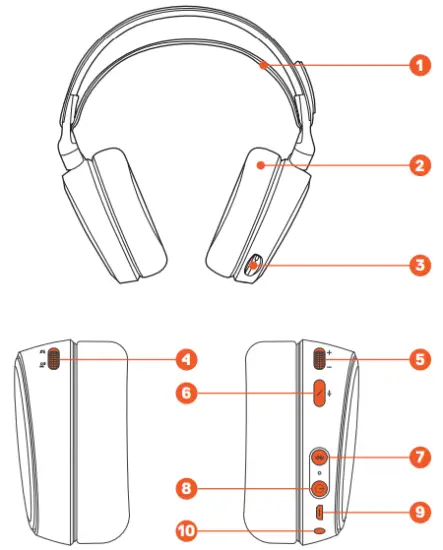

PRODUCT OVERVIEW

1. Ski Goggle Headband*
2. Airweave Ear Cushions*
3. ClearCast Microphone
4. ChatMix Dial
5. Volume Wheel
6. Microphone Mute Button
7. Bluetooth Button
8. Power Button
9. Micro-USB Jack for charging and firmware updates
10. Headphone Share Jack
11. USB Charging Cable

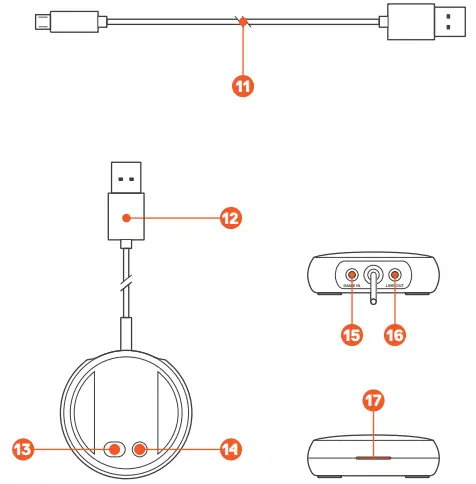

    WIRELESS TRANSMITTER
12. USB Plug
13. PC / Playstation Mode Switch
14. Pairing Button
15. Game In Jack
16. Line Out Jack
17. LED


Find accessories and replacement parts at steelseries.com/gaming-accessories

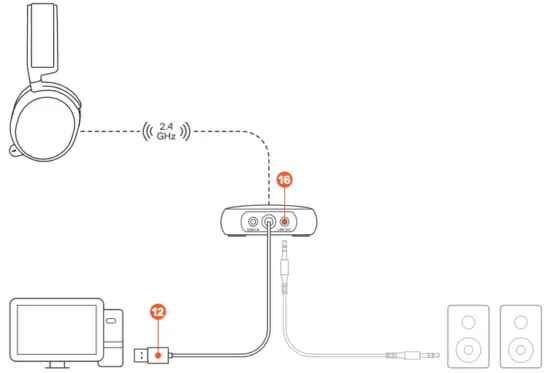

SETUP – PC

HARDWARE INSTALLATION

Connect the Wireless Transmitter’s USB Plug 12 to the PC.
Optional: Connect a 3.5 mm audio cable (not included) from the Wireless Transmitter’s Line Out Jack 16 to a pair of speakers for automatic switching when the headset power is toggled.

WIRELESS TRANSMITTER SETTINGS

Toggle the PC / Playstation Mode Switch 13 on the bottom of the wireless transmitter to PC. The Wireless Transmitter LED 17 will turn white.

WINDOWS SOUND SETTINGS

1. Under “Playback”, highlight Arctis 9 Game Audio and select “Set Default”.
2. Select Arctis 9 Chat Audio and select “Set Default Communications Device”.
3. Under “Recording”, highlight Arctis 9 Chat Audio and select “Set Default”.

SETUP – PLAYSTATION / SWITCH (TV MODE)

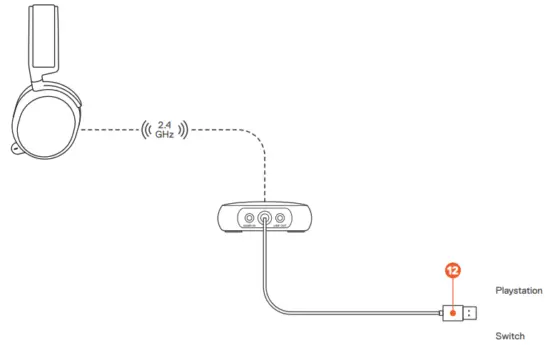

HARDWARE INSTALLATION

Connect the Wireless Transmitter’s USB Plug 12 to the USB port on the Playstation / Switch dock.

ChatMix feature only available on PC.

WIRELESS TRANSMITTER SETTINGS

For use with the Playstation / Switch in docked mode, toggle PC / Playstation Mode Switch 13 on the bottom of the wireless transmitter to Playstation. The Wireless Transmitter LED 17 will turn blue.

ADDITIONAL SETTINGS NEEDED FOR PS4 AUDIO

PS4 SETTING > Devices > Audio Devices
Output to Headphones
All Audio

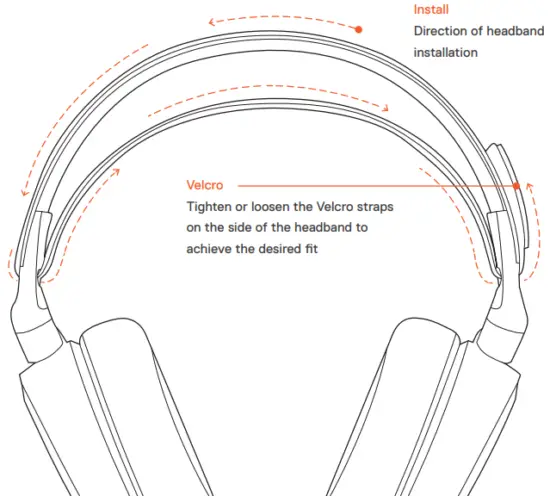

SKI GOGGLE HEADBAND

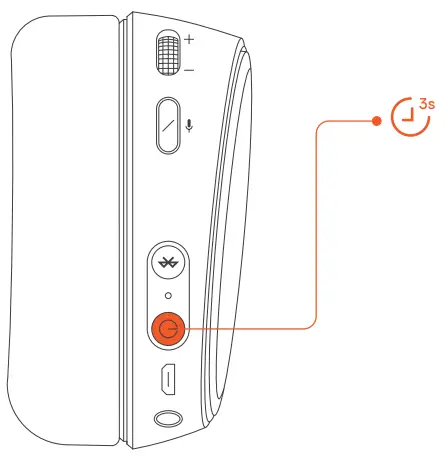

POWER ON / OFF

NO
To power on the headset, press and hold the Power Button 8 for at least 3 seconds. You will hear a tone, and the Headset LED will illuminate.

OFF
To power off the headset, press and hold the Power Button 8 for at least 3 seconds.

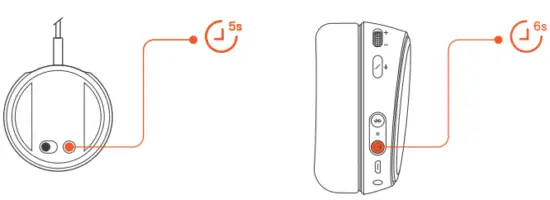

2.4 GHZ PAIRING

Note: The headset is already paired to the transmitter when it arrives.

1. Press and hold the Wireless Transmitter’s Pairing Button 14 for 5 seconds until the LED 17 begins blinking rapidly
2. With the headset off, press and hold the Power Button 8 for 6 seconds


BLUETOOTH

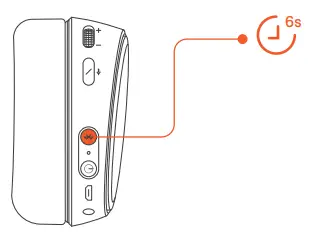

PAIRING

1. With the headset powered on, press and hold the Bluetooth Button 7 for 6 seconds. The headset LED will rapidly blink blue.
2. In your device’s Bluetooth settings, scan for available devices and select “Arctis 9”.

CONTROL

Answer/end voice call
single · press Bluetooth button 7
Play/pause music
single · press Bluetooth button 7
Next track
double ·· press Bluetooth button 7
Previous track
triple ··· press Bluetooth button 7

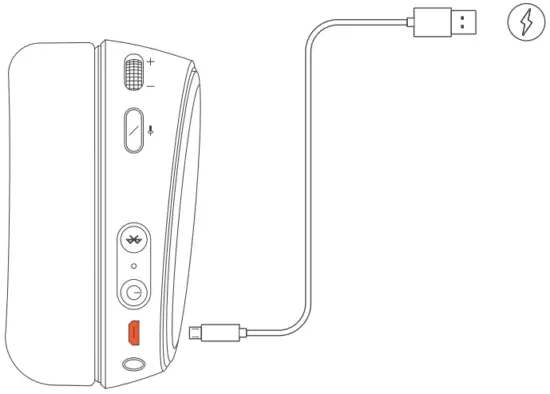

CHARGING

To charge the headset, connect the USB Charging Cable 11 to the Micro-USB Jack 9 on the headset, and plug the other end into any USB power source.

The color of the Headset LED indicates the battery level.

Green 100–50 %
Yellow 49–20 %
Red 19–10 %
Red (fast blink) 9–1 %

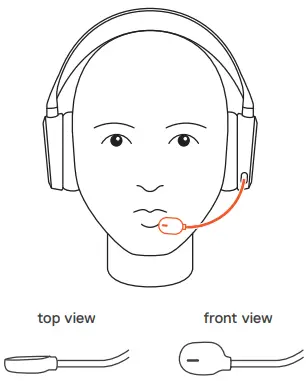

MICROPHONE

RETRACTABLE MICROPHONE

POSITIONING
Position the ClearCast Microphone 3 close to the corner of your mouth with the flat surface facing you

REGULATORY

Europe – EU Declaration of Conformity
Hereby, SteelSeries ApS. declares that the equipment which is compliance with directive RoHS 2.0 (2015/863/EU), R.E.D (2014/53/EU), EMC Directive (2014/30/EU), and LVD (2014/35/EU) which are issued by the Commission of the European Community.

The full text of the EU declaration of conformity is available at the following internet address: https://steelseries.com/

Operating Temperature: 0 to + 40 °C

SteelSeries ApS. hereby confirms, to date, based on the feedback from our suppliers indicates that our products shipping to the EU territory comply with REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals – (EC) 1907/2006) compliance program. We are fully committed to offering REACH compliance on the products and posting accurate REACH compliance status for the all of products.

Frequency bands and Powers (Headset and Transceiver)

a. Frequency band(s) in which the radio equipment operates:
BT and WIFI: 2.400 – 2.4835 GHz
b. Maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment operates:
EIRP: л/4-DQPSK: 3.18 dBm (Headset-WIFI)
EIRP: 8DPSK: 2.46 dBm (Headset-Bluetooth)
EIRP: GFSK: 4.87 dBm (Headset-Bluetooth)
EIRP: л/4-DQPSK: 3.13 dBm (Transceiver-WIFI)
c. Firmware Version: 0.9.5.0

WEEE
This product must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product.

Safety Guideline for Lithium Battery
This battery must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product.

“CAUTION!” Risk of explosion if battery pack is not replace by same type as specified by the manufacturer.
Please keep follow all listed important warnings and cautions below while using this battery pack to avoid any damage or hazard.

1. The battery polarity (+) and (-) shall not be connected and charged reversely. Risk of explosion if the battery polarity (+) and (-) is reversed.
2. Please keep this battery pack away from fire and high heat sources due to explosion might happen. Do not place your battery pack close to any heater or hot location.
3. This battery pack shall not be hit or impacted. This battery pack shall not be dealt with any sharp or keen objects either.
4. This battery pack shall not be exposed to moisture, dripping or splashing.
5. If any electrolyte flow out of this battery pack when touch the user’s eyes and skin, please seek medical advice immediately.

 Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Radiation Exposure Statement:
The device has been evaluated to meet general RF exposure requirement, the device can be used in portable exposure condition without restriction.

FCC Caution:
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Headset FCC ID: ZHK-HS00018
Transceiver FCC ID: ZHK-HS00018TX

More information and support from https://steelseries.com/

Industry Canada Statement

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

1. this device may not cause interference, and
2. this device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter, except tested built-in radios.

The County Code Selection feature is disabled for products marketed in the US/ Canada.

Radiation Exposure Statement:
The device has been evaluated to meet general RF exposure requirement, The device can be used in portable exposure condition without restriction.

Headset IC: 9638A-HS00018
Transceiver IC: 9638A-HS00018TX
a. Frequency band(s) in which the radio equipment operates: 2.400 – 2.4835 GHz
b. Maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment operates:

• Conducted Peak Power/ л/4-DQPSK: 0.34 dBm (Headset-WIFI)
• Conducted Peak Power/ 8DPSK: 0.42 dBm (Headset-Bluetooth)
• Conducted Peak Power/GFSK: 0.31 dBm (Headset-Bluetooth)
• Conducted Peak Power/ л/4-DQPSK: 0.51 dBm (Transceiver-WIFI)

c. Firmware Version: 0.9.5.0

1. SteelSeries ApS.
2. Wireless Headset/ Transceiver
3. HS-00018/HS-00018TX
4. R-R-SS4-HS-00018/ R-R-SS4-HS-00018TX
5. SteelSeries ApS./China

SteelSeries Products and Australian Consumer Law

repair, replacement, or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Should your product be defective, you can make a claim under Australian consumer law.
SteelSeries will provide its own remedies equivalent to those remedies in the consumer guarantee provisions of the Australian Consumer Law at any time within 24 months of the date of purchase. For the avoidance of doubt, SteelSeries acknowledges that the Australian Consumer Law may provide for remedies beyond 24 months for a number of its products.

Summary of Australian statutory consumer guarantees

Consumer guarantees in relation to goods

The goods will be of acceptable quality, The goods will be fit for a particular purpose, The goods will match their description, The goods will match the sample or demonstration model, You have title to the goods, You have undisturbed possession of the goods, There are no undisclosed securities on the goods.

Consumer guarantees in relation to services

We will provide the services with due care and skill, The services will be fit for a particular purpose, The services will be provided within a reasonable time.

For SteelSeries-branded goods, in addition to the above, we also guarantee that we will provide repairs or spare parts for a reasonable time. Under Australian consumer law, the remedy you are entitled to if a product fails to meet a consumer guarantee will depend on whether the failure to comply with the guarantee is major or minor.
Minor failures to comply with a consumer guarantee can normally be fixed or resolved in a reasonable amount of time. In this case, the seller can choose to offer you a refund, replacement, repair or, in the case of services, resupply. If the seller does not fix the problem or takes too long, you may be able to get it fixed by someone else and recover the costs from the seller depending on the circumstances.

Remedies for major failure with goods

Return the product and ask for a refund, Return the product and ask for an identical replacement, or one of similar value if reasonably available, Keep the product and ask for compensation for the drop in value caused by the problem.

Remedies for major failure with services

Cancel the contract and pay a reasonable amount for the work done, or seek a refund, For money already paid, keep the contract and negotiate a reduced price for the drop in value of the service — this may mean asking for some of your money back if you have already paid.
For goods, there is a major failure to comply with a consumer guarantee when:

• You would not have purchased the product if you had known about the problem.
• The product is significantly different from the description, sample or demonstration model you were shown.
• The product is substantially unfit for its normal purpose and cannot easily be made fit within a reasonable time.
• The product is substantially unfit for a purpose that you told the supplier about, and cannot easily be made fit within a reasonable time.
• The product is unsafe.

For services, there is a major failure to comply with a consumer guarantee when:

• You would not have engaged the service if you had known the nature and extent of the problem.
• The service does not meet the reasonable expectations for that type of service, and the problem cannot be rectified within a reasonable time.
• You told the supplier that you wanted the service for a specific purpose, which was not fulfilled, and the problem could not be easily rectified within a reasonable time.
• You told the supplier that you wanted a specific result, yet the service and end result failed to meet your specifications and could not be easily rectified within a reasonable time.
• The supply of the service has created an unsafe situation.

For information on Australian consumer laws, please visit Australian consumer law website at
http://www.consumerlaw.gov.au

Importer Name and Address: Ingram Micro Pty LTD / Level1, 61 Dunning Avenue. Rosebery NSW 2018
Telephone technical support: +61-2-9381-6000

This product is compliant with requirements of Circular No. 30/2011/TT-BCT Regulations “STIPULATING TEMPORARILY THE PERMISSIBLE CONTENT LIMITATION OF SOME TOXIC CHEMICALS IN THE ELECTRONIC, ELECTRICAL PRODUCTS”

    ACMA Compliance
(Australia/ New-Zealand)

Custom Union Compliance.

Direct Current

Singapore approval (IMDA)

Malaysia Approval (SIRIM)

More information and support at steelseries.com

SteelSeries serial numbers:

The SteelSeries serial numbers consist of 19 digits with below breakdown
61484 XXX 30 XX 20 00001
a b

a Production week
b Production year

Product Name: Wireless Headset
Model No: HS-00018
Rated: 5V 500 mA

Accessories information

Product Name: Transceiver
Model No: HS-00018TX
Rated: 5V 200 mA

Made in China

learn more at steelseries.com
