SPECIFICATIONS
Application: Subwoofer
Basket Type: Cast iron with black sanded finish
Cone: Ultra stiff black non-pressed paper cone
Dust Cap: Polypropylene dust cap
Surround Style: High density thick stitched foam
Magnet Weight: 60 oz
2.5″ Single 4-Ohm 4-Layer Black Aluminum Voice Coil
Impedance: 4 ohm
CEA / RMS / Peak Watts: 500 /1000 /2000
Frequency Response: 28.6Hz – 1KHz
TECHINCAL DATA
Cut-out Diameter: 13.93″ (354mm)
Mounting Depth: 5.98″ (151.89mm)
Gap Plate Inside Diameter: 3.34″ (85mm)
Gap Plate Outside Diameter: 6.69″ (170mm)
Gap Plate Thickness: 0.98″ (25mm)
Yoke Outside Diameter: 6.14″ (156mm)
Yoke Pole Diameter: 2.4″ (60mm)
Yoke Thickness: 0.23″ (6mm)
Washer Diameter: 0.23″” (6mm)
Weight:13.4 lbs
RECOMMENDED BOX DIMENSIONS
Sealed enclosure: 1.5 -1.5 cubic feet
Vented Enclosure: 2.3 – 3.5 cubic feet

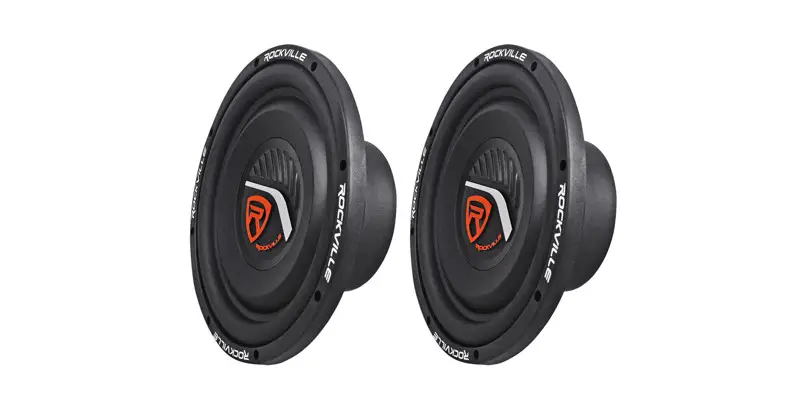

W15K5S4
15″ 4-OHV SVC SURWOOFER
2000W
PEAK POWER
TS PARAMETERS
- Re: 3.52 Ohm
- Le: 1.241mH
- L2: 2.098mH
- R2: 19.56 Ohm
- Cmes: 927.52pF
- Lces: 24.93mH
- Res: 31.48 Ohm
- fs: 36.08Hz
- Mms: 130.02g
- Mmd (Sd): 197.293g
- Rms: 5.894kg/s
- Cms: 0.117mm/N
- Kms: 8.53N/mm
- BI: 14.582N/A
- Lambda s: 0.002
- Qtp: 0.621
- Qms: 6.959
- Qes: 0.68
- Qts: 0.619
- Vas: 107.32391 (3.79 cu ft)
- nO: 0.55%
- Lm: 89.61dB
- Lnom: 90.16dB
- Sd: 804.25cm2
- rmse Z: 5.29%
- rmse Hx: 2.68%
- xmax: 8mm
WOOFER WIRING CONFIGURATIONS
Use the diagrams below to determine which amplifier is best compatible with your subwoofers, and to determine the best way to wire your subwoofers to your amplifier.

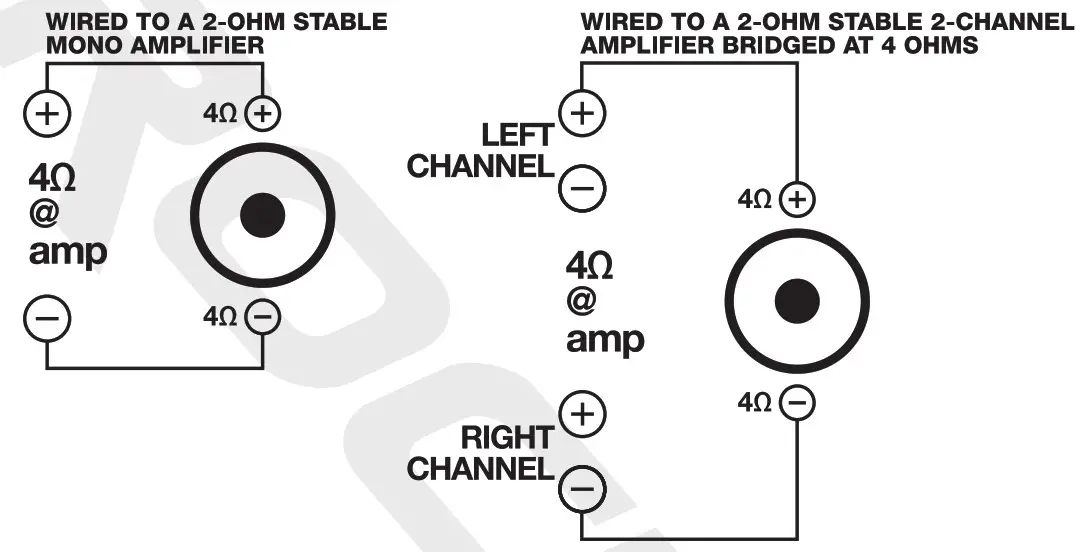

ONE 4Ω SVC WOOFER
Wiring one SVC sub to an amp is the most basic type of wiring. The best option is to always match the exact impedance of the sub to the exact impedance the amp is stable at. For an SVC 4-ohm sub, we recommend that you wire it to a 2-ohm stable mono amp or you can use a 2-channel amp that is stable at 4 ohms when bridged.

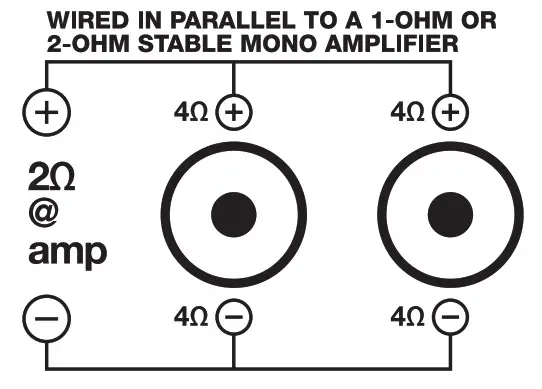

TWO 4Ω SVC WOOFERS
The best way to wire two SVC 4-ohm subs is to run them in parallel, bringing the load down to 2 ohm. You can use a mono amplifier that is stable at 1 ohm or 2 ohms without a problem.
