OWNER’S MANUAL
SLC-8S
8” SUBWOOFER – SVC 4 OHMS
SLC-8S
Specifications
Nominal Diameter……………8..”
Nominal Impedance ……………………..4ohms
RMS Power Handling ……………………………………..200Watts
MAX Power Handling ……………………………………..400Watts
Sensitivity (1w/1m) ………………………………………..84B

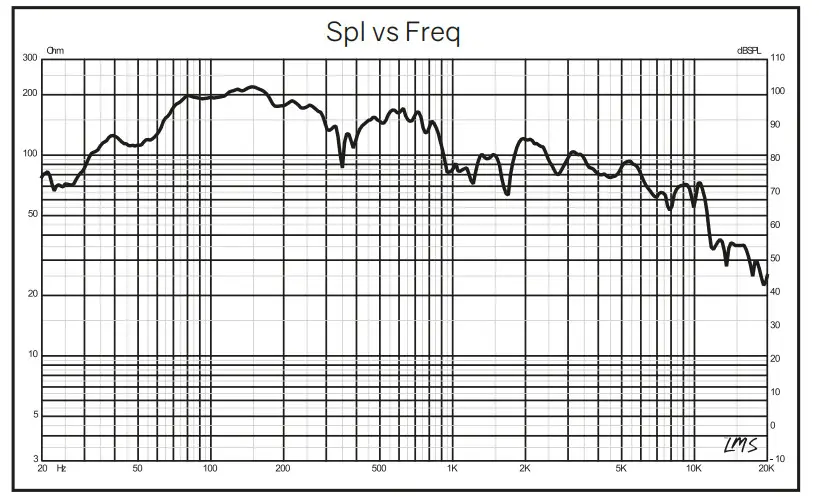

Frequency Response………………………………………35Hz-45KHz
Recommended Lo Pass Crossover…………………..1..2..0..H.. z
Motor
Voice Coil Diameter………………………………………..2..”/508mm
Voice Coil Former Material ……………………………..Aluminum
Winding Material ……………………………………………CCAW
Cone Material………………………………………………..Paper
Dust Cap Material…………………………………………..Paper
Surround Material………………………………………….. Foam
Basket Material ……………………………………………..Steel
Basket Color/Finish………………………………………..Glossy black
Magnet Material……………………………………………..Ferrite
Magnet Weight………………………………………………38Oz
| Thiele & Small Parameters | |
| Equivalent Volume | Vas…………………7.786 L |
| Excursion (one way) | Xmax……………..13.5 mm |
| Free Air Resonance | Fs …………………..50 Hz |
| Mechanical Factor | Qms ……………..6.875 |
| Electrical Factor | Yes………………..0.889 |
| Total Factor | Qts………………….0.787 |
| Moving Mass | MMS……………….115.524 g |
| Compliance | Cms……………….0.034 mm/N |
| Bl Factor | Bl ……………………8.568 |
| Voice Coil Inductance | Le……………………0.455 mH |
| Diaphragm Area | Sd……………………201.23 cm2 |
| Dc Resistance | Re……………………3.4 ohms |
| Efficiency Bandwith Product | EBP…………………56.24 |

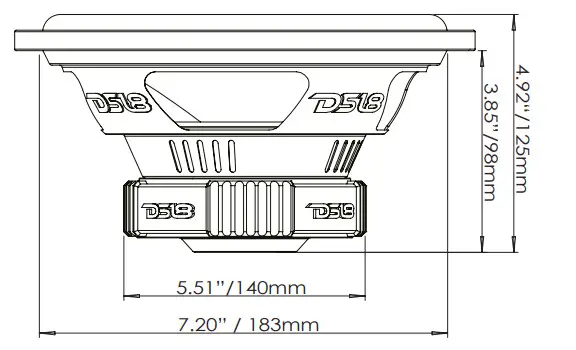

Measurement
Measurement

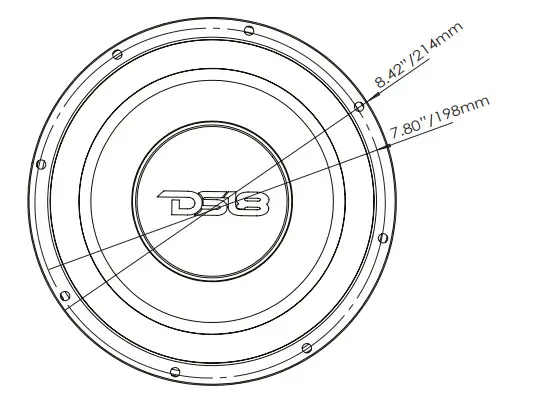

Overall Diameter……………………………………………..8.42″ / 214mm
Overall Depth……………………………………………………4.92” / 125mm
Front Mount Baffle Cutout……………………………………………….7.20” / 183mm
Mouting Depth………………………………………………….. 3.85” / 98mm
Motor Diameter……………………………………………………….. 5.51” / 140mm
FOR MORE INFORMATION PLEASE VISIT
DS18.COM
WE LIKE IT LOUD
