APBMW
OWNER’S
MANUAL
COAX – SYSTEM – SUB
audison.com
BMW is a trademark of
BMW AG (Bayerische Motoren
Werke Aktiengesellschaft)
Congratulations on purchasing our product. Your satisfaction is the first requirement that our products must meet: the same satisfaction as the one gained by those who long for experiencing the car audio emotion. This manual has been drawn to provide the main instructions required to install and use the system properly. However, the range of possible applications is wide; for further information, please feel free to contact your trusted dealer or our technical support at the email [email protected] Before installing the components, please carefully read all of the instructions contained in this manual. Failure to respect these instructions may cause unintentional harm or damage to the product.
- All components must be firmly secured to the vehicle structure. Do the same when installing any custom structures you may have built. Confirm your installation is solid and safe. A component coming loose while driving may cause serious damage to the passengers, as well as to other vehicles.
- Always wear protective eyewear when using tools, as splints or product residue may become airborne.
- In order to avoid incidental damage, keep the product in the original packaging until you are ready for the final installation.
- Do not carry out any installation inside the engine compartment.
- Before starting with the installation turn the head unit and all other audio system devices off, avoiding any possible damage.
- Make sure that the location you choose to install the components does not interfere with the normal operation of any mechanical or electrical devices of the vehicle.
- Do not install loudspeakers where they may be exposed to water, excessive humidity, dust or dirt.
- Do not install the tweeter without the protective grille.
- Do not install the components or make cable run close to electronic or mechanical devices of the vehicle.
- Be very cautious when drilling or cutting into the vehicle chassis, making sure there are no cables or structural elements essential to the vehicle underneath or in the selected area.
- When routing cables, make sure that the cable does not come in contact with sharp edges or near-moving mechanical devices. Make sure that it is firmly attached and protected along its entire length and that its insulation is self-extinguishing.
- Only use cables with the proper section (AWG) indicated herein.
- When running the cable through a hole in the chassis of the vehicle, protect the cable with a rubber ring (grommet). Be sure to provide proper protection for cables running close to heat-generating devices.
- Do not run the wires outside of the vehicle.
- Use top-quality cables, connectors, and accessories such as found in the Connection catalog.
- Warranty certificate: For more information visit the Audison website.
USE COMMON SENSE AND PRACTICE SAFE SOUND. PLEASE REMEMBER THAT LONG EXPOSURE TO EXCESSIVELY HIGH SOUND PRESSURE LEVELS MAY DAMAGE YOUR HEARING. SAFETY MUST BE AT THE FOREFRONT WHILE DRIVING.
Information on electrical and electronic equipment waste (for those European countries which organize the separate collection of waste)
Products that are marked with a wheeled bin with an X through it can not be disposed of together with ordinary domestic waste. These electrical and electronic products must be recycled in proper facilities, capable of managing the disposal of these products and components. In order to know where and how to deliver these products to the nearest recycling/disposal site please contact your local municipal office. Recycling and disposing of waste in a proper way contributes to the protection of the environment and prevents harmful effects on health.

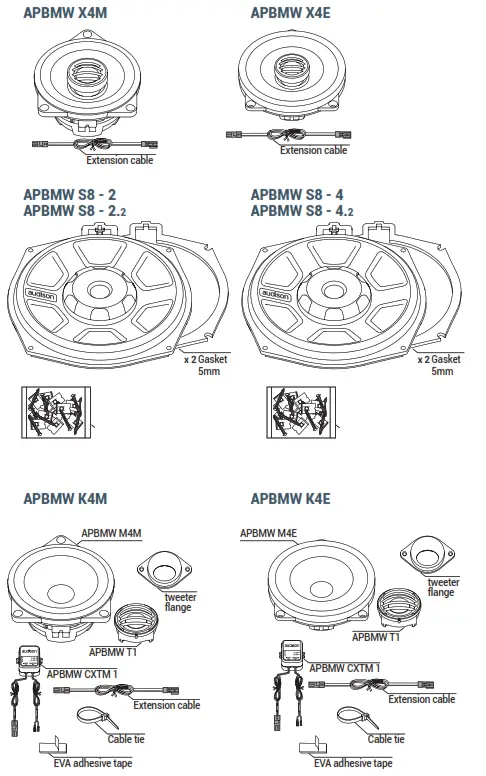

Packaging contents

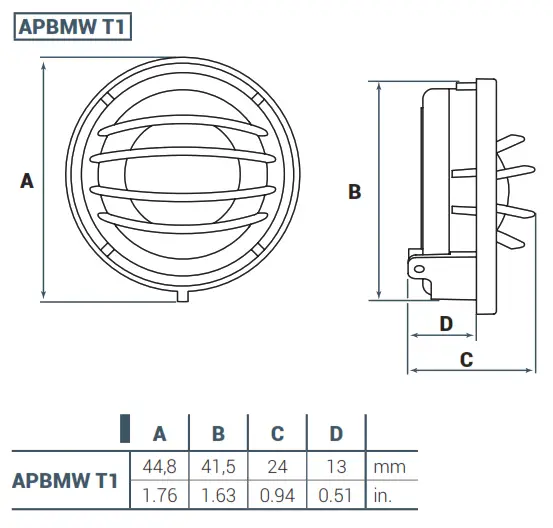

Size
Factory cut-out mounting
For detailed installation instructions
visit: http://www.audison.eu/Prima/SoundPack
APBMW X4E – APBMW X4M – APBMW K4E – APBMW K4M

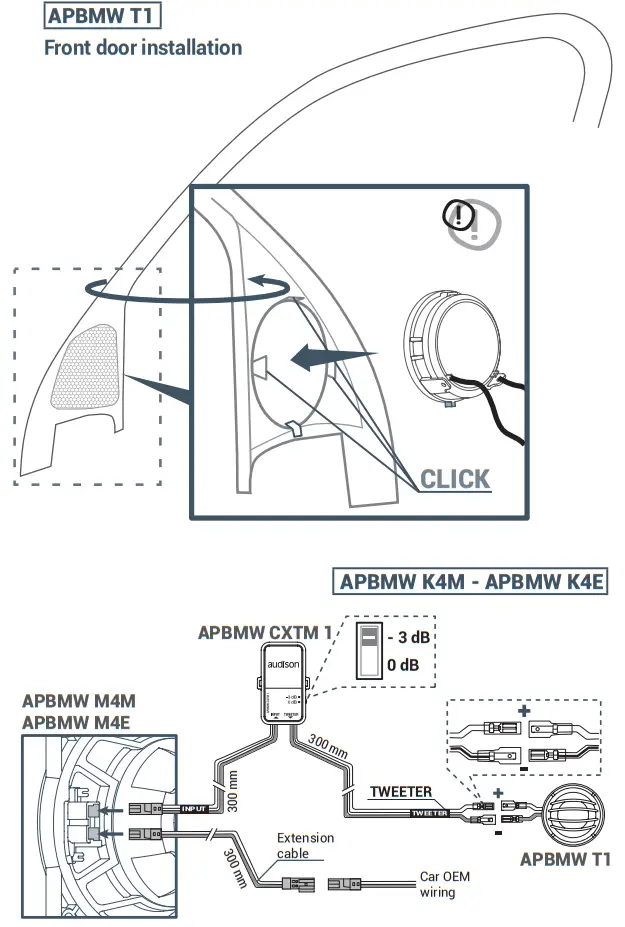

Option 1 – Trim installation
For detailed installation instructions
visit: http://www.audison.eu/Prima/SoundPack

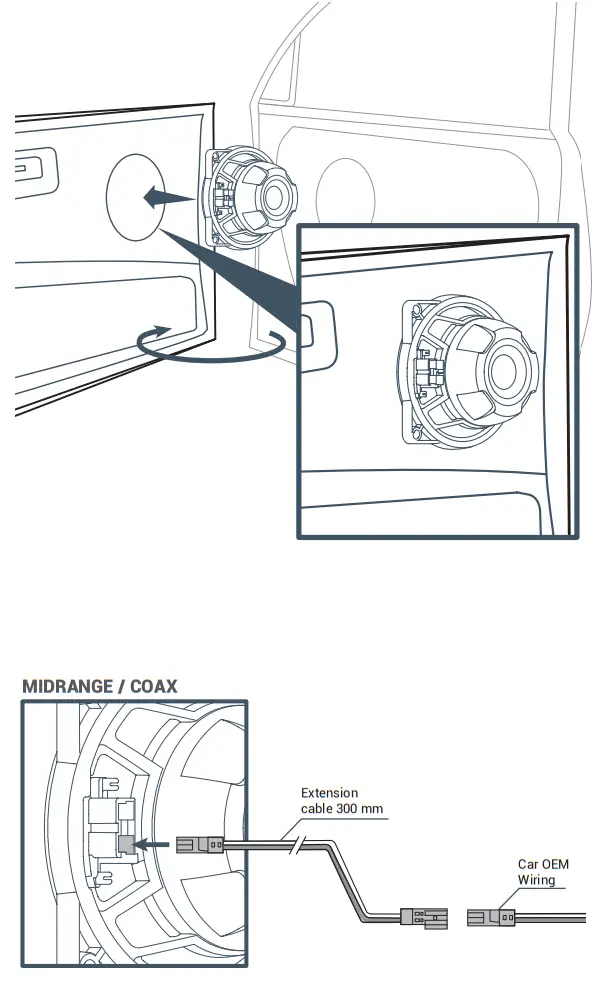

Option 2 – Door installation
Adapter is necessary for some car models. For adapter selection according to car model see compatibility
list at: http://www.audison.eu/Prima/SoundPack
APBMW K4M

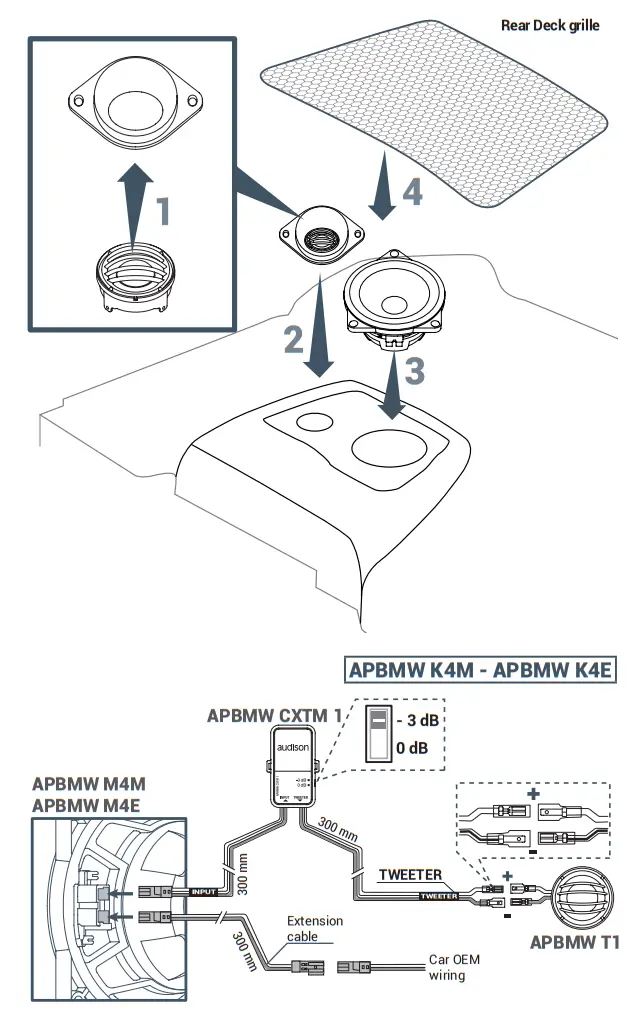

Rear deck installation
For detailed installation instructions
visit: http://www.audison.eu/Prima/SoundPack

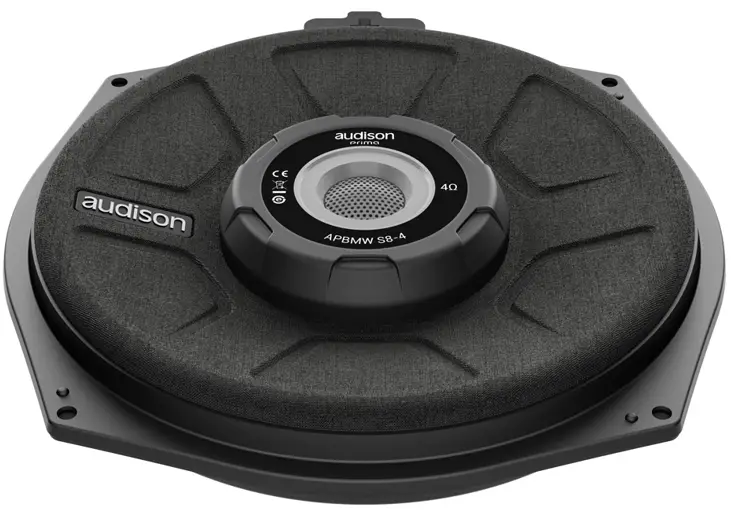

APBMW S8-2 / APBMW S8-4 /
APBMW S8-2.2 / APBMW S8-4.2
For detailed installation instructions
visit: http://www.audison.eu/Prima/SoundPack

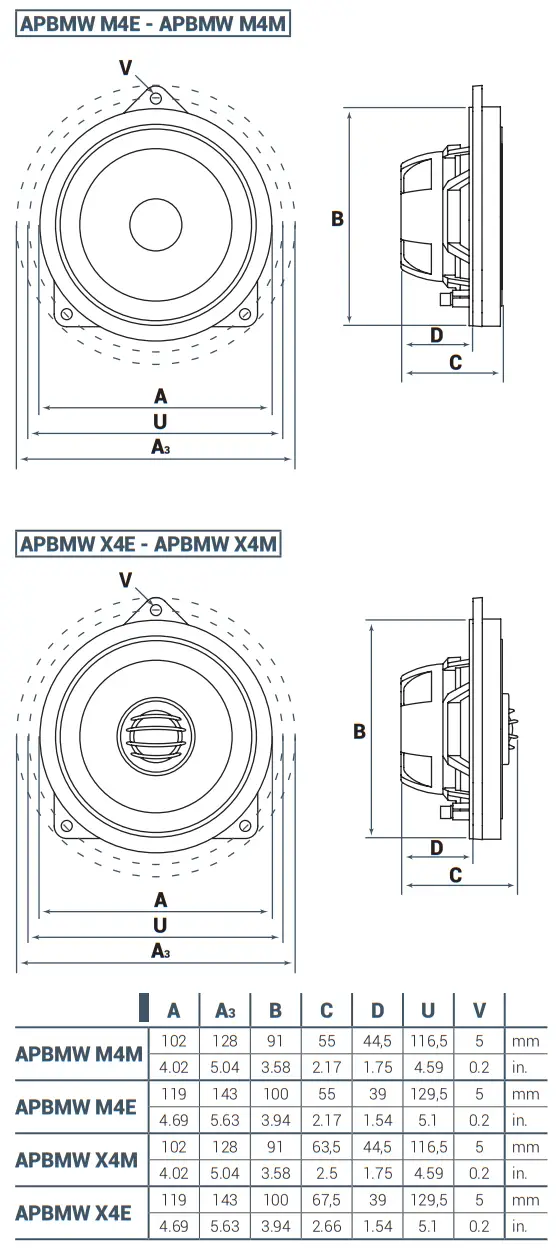

Size
Electro-Acoustic parameter
| APBMW Ti | APBMW M4E | APBMW X4M | APBMW X4E | APBMW S8-2 | APBMW S8-4 | APBMW S8-2.2 | APBMW S8-4.2 | |
| D mm | 29 | 80 | 80 | 159 | 159 | 159 | 159 | |
| Sd Cm2 | 50,3 | 50,3 | 198,6 | 198,6 | 198,6 | 198,6 | ||
| Xmax | – | 0,5 | as | 7 | 7 | 7 | 7 | |
| Re o | 3,7 | 3,3 | 3,4 | 2,2 | 3,8 | 2,2 | 3,8 | |
| Fs Hz | 1,6k | 90 | 100 | 45 | 40 | 40 | 40 | |
| Le mH | – | 0,32 | 0,32 | 0,32 | 0,6 | 0,3 | 0,5 | |
| Vas i | – | 1,8 | 1,9 | 16,3 | 21 | 22,3 | 21 | |
| Mms | – | 6,4 | 5,1 | 41 | 43 | 42 | 43 | |
| Cm s mmm | – | 0,5 | 0,53 | 0,3 | 0,38 | 0,4 | 0,41 | |
| BL T•rn | – | 4,8 | 5 | 5,6 | 6 | 5,6 | 6,3 | |
| oats | – | 0,48 | 0,4 | 0,61 | 0,72 | 0,5 | 0,65 | |
| Qes | – | 0,51 | 0,42 | 0,83 | 1,14 | 0,67 | 0,96 | |
| Qms | 8,2 | 7,1 | 2,3 | 2 | 2,1 | 2 | ||
| dB Spl 1 (2.83V/1m) | 90 | 88 | 88 | 91 | 88 | 91 | 88 | |
Tekniske specifikationer
| Component | Size | Power handling | Impedance | Frequency response | |||
| >lead | snonuguao | ||||||
| mm (in.) | W | W | 0 | Hz | |||
| • APBMW X4M | Two way coaxial | Midrange 100 (4) | 80 | 40 | 4 | 100 ÷ 22k | |
| Tweeter diaphragm 24 (a9) | |||||||
| APBMW X4E | Two way coaxial | Midrange 100 (4) | 80 | 40 | 4 | 100 ÷ 22k | |
| Tweeter diaphragm 24 (0.9) | |||||||
| APBMW S8-2 | Subwoofer | 200 (8) | 300 | 150 | 2 | 40 ÷ 500 | |
| APBMW S8-4 | Subwoofer | 200 (8) | 300 | 150 | 4 | 35 ÷ 500 | |
| APBMW S8-2.2 | Subwoofer | 200 (8) | 300 | 150 | 2 | 40 ÷ 500 | |
| APBMW S8-4.2 | Subwoofer | 200 (8) | 300 | 150 | 4 | 40 ÷ 500 | |
| APBMW K4M | Two way System | APBMW M4M | Midrange 100 (4) | 100 | 50 | 4 | 90 ÷ 23k |
| APBMW T1 | Tweeter diaphragm 29 (1 .14) | ||||||
| APBMW K4E | Two way System | APBMW M4E | Midrange 100 (4) | 100 | 50 | 4 | 90 ÷ 23k |
| APBMW T1 | Tweeter diaphragm 29 (1 .14) | ||||||

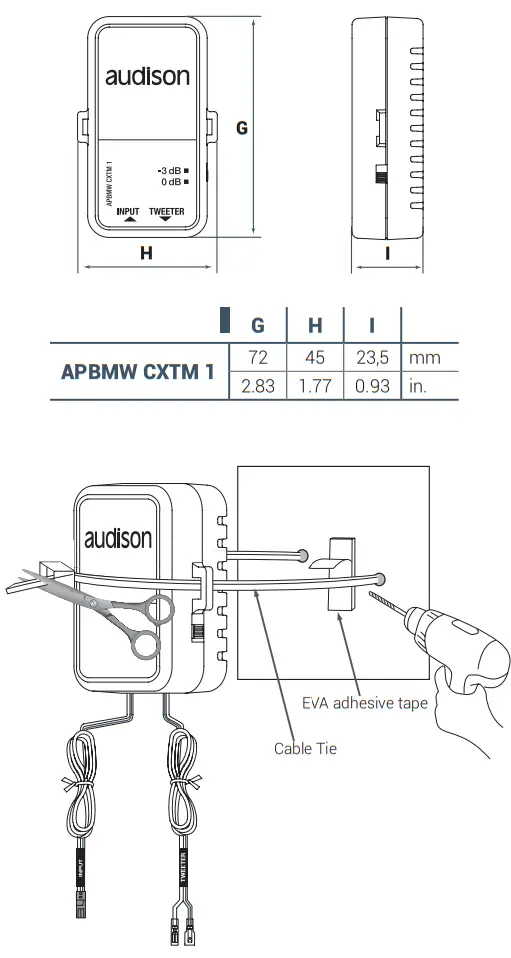

| !Component | Specific component | Size | Crossover weight | Type – Cutoff |
| mm (in.) | Kg (lb.) | |||
| APBMW CXTM Crossover | APBMW T1 | 72x 45x 23,5 (2.83 x1.77 x0.93) | 0’055 (0.12) | Hi-Pass: 6 KHz @ 6dB/Oct. |
| Magnet size | Voice coil 0 | Magnet | Cone | Weight of one component |
| mm (in.) | mm (in.) | Kg (lb.) | ||
| 50 x 29 x 3 (1.97 x 1.14 x 0.12) | 25 (1) | Neodymium | Pressed-paper cone | 0,464 (1.02) |
| 19,5 x 3 (0.77 x 0.12) | 20 (0.8) | Neodymium | Tetolon | |
| 50 x 29 x 3 (1.97 x 1.14 x 0.12) | 25 (1) | Neodymium | Pressed-paper cone | 0,5 (1.1) |
| 19,5 x 3 (0.77 x 0.12) | 20 (0.8) | Neodymium | Tetolon | |
| 48 x 18 x 7 (1.89 x 0.71 x 0.28) | 50 (2) | Neodymium | Paper | 1,21 (2.67) |
| 48 x 18 x 7 (1.89 x 0.71 x 0.28) | 50 (2) | Neodymium | Paper | 1,21 (2.67) |
| 48 x 18 x 7 (1.89 x 0.71 x 0.28) | 50 (2) | Neodymium | Paper | 1,21 (2.67) |
| 48 x 18 x 7 (1.89 x 0.71 x 0.28) | 50 (2) | Neodymium | Paper | 1,21 (2.67) |
| 50 x 29 x 3 (1.97 x 1.14 x 0.12) | 25 (1) | Neodymium | Pressed-paper cone | 0,426 (0.94) |
| 24,5 x 4 (0.96 x 0.16) | 25 (1) | Neodymium | Tetolon | 0,06 (0.13) |
| 50 x 29 x 3 (1.97 x 1.14 x 0.12) | 25 (1) | Neodymium | Pressed-paper cone | 0,462 (1.02) |
| 24,5 x 4 (0.96 x 0.16) | 25 (1) | Neodymium | Tetolon | 0,06 (0.13) |
Note
……………………….
………………………
……………………….
PART OF ELETTROMEDIA – 62018 Potenza Picena (MC) Italy – T +39 0733 870 870 – F +39 0733 870 880 –
www.Elettromedia.it
Esec_Owners manual Speaker APBMW_22revD.indd 36
All Specifications Subject to Change Without Notice
JBL015_22.REV.D
