Klarstein 10034128 Touchless Rubbish Collector Sensor Trash Bin Instruction Manual (+ PDF)

Home » Blog » Klarstein 10034128 Touchless Rubbish Collector Sensor Trash Bin Instruction Manual

www.klarstein.com

TOUCHLESS | CLEANSMAN | CLEANTON
Sensor Trash Bin
10034128 10034131 10034132 10034133
10034134 10034135 10034136

Dear Customer,
Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

https://use.berlin/10034128

TECHNICAL DATA

Item number	10034128
Power supply	6 AA Batterien
Capacity	72 L
Dimensions (L x W x H)	42 cm x 31,5 cm x 82.5 cm

Item number	10034131	10034132	10034133	10034134
Colour	chrome	chrome	black	black
Capacity	30 L	50 L	30 L	50 L
Power supply

Item number	10034135	10034136
Colour	chrome	black
Capacity	50 L
Power supply	4 AA Batterien

Contents hide

1 SAFETY INSTRUCTIONS

2 DEVICE OVERVIEW (TOUCHLESS)

2.1 OPERATION

3 DEVICE OVERVIEW (CLEANSMAN|CLEANTON)

3.1 OPERATION

4 HINTS ON DISPOSAL

5 MANUFACTURER & IMPORTER (UK)

6 Documents / Resources

7 Related Posts

SAFETY INSTRUCTIONS

Do not clean the trash bin with water, as electronic components are contained in the product. Only clean the trash bin with a slightly damp sponge or cloth.
Do not place the device in direct sunlight, otherwise the sensor may not react.
Do not force the lid during opening.
Disassembly, repair and modification of the product are prohibited.
When the battery is empty, always replace all batteries at once.
Do not place any objects on the lid of the trash bin.

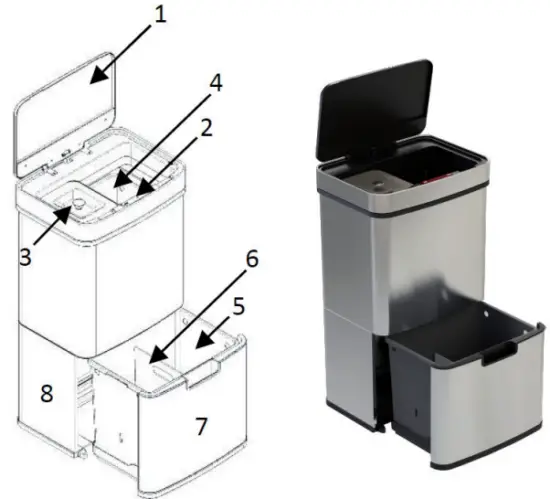

DEVICE OVERVIEW (TOUCHLESS)

1	Lid with automatic or semi-automatic opening
2	Sensor window with automatic or manual opening and closing function
3	Removable container (4 litres) equipped with a lid and bag fixing ring. Located on the left under the lid and used for household waste.
4	Removable container (40 litres). Located on the right under the lid.
5	Removable container (25 litres) with access via drawer.
6	Removable partition wall. Can be used either above or below.
7	Housing
8	Drawer on wheels.

OPERATION

Open the battery cover on the bottom of the cover and insert 6 AA batteries. Then close the battery cover.
Turn on the power switch located on the back of the cover.
If you want to throw the garbage away, move your hand about 15 cm over the lid and it will open. The lid closes automatically after 5 seconds. The cover remains open as long as your hand or an object (bin liner) is in the sensor area.
If you want the lid to remain open, press the OPEN button on the sensor window.
Press the CLOSE button to close the cover again. The automatic opening will then be active again.
Pull out the bottom drawer to place recycling waste. The top bin is used for nonrecyclable household waste.
We recommend the use of 50 litre bin liners.

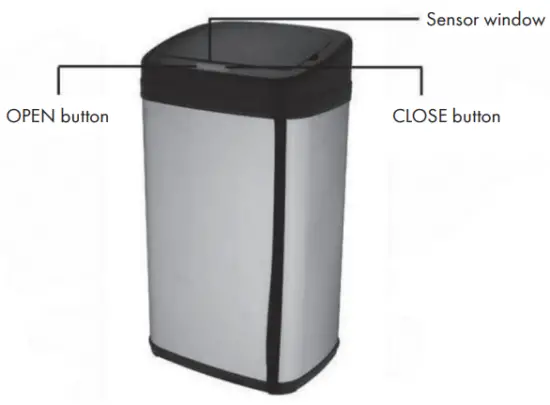

DEVICE OVERVIEW (CLEANSMAN|CLEANTON)

OPERATION

Open the battery cover on the bottom of the cover and insert 4 AA batteries. Then close the battery cover.
Turn on the power switch located on the back of the cover. The power light will illuminate for 3 seconds.
If you want to throw the garbage away, move your hand about 15-25 cm over the lid and it will open. The lid closes automatically after 5 seconds. The cover remains open as long as your hand or an object (bin liner) is in the sensor area.
If you want the lid to remain open, press the OPEN button on the sensor window.
Press the CLOSE button to close the cover again. The automatic opening will then be active again.
As long as the trash can is in standby mode, the operating light flashes red every 3 seconds. When the lid is open, the operating light illuminates green. When the cover closes, the operating lamp lights red. If you have pressed the OPEN button, the operating light flashes every 3 seconds.

Note: If the operating light flashes yellow, the batteries are nearly empty. If you open the bin 20 times a day, the batteries will last about 3 months.

HINTS ON DISPOSAL

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.
