Forney Mpn4737425011 Fc-i Flux-cored Welder User Guide

EASY WELD™

CAT# 261
QUICK START GUIDE

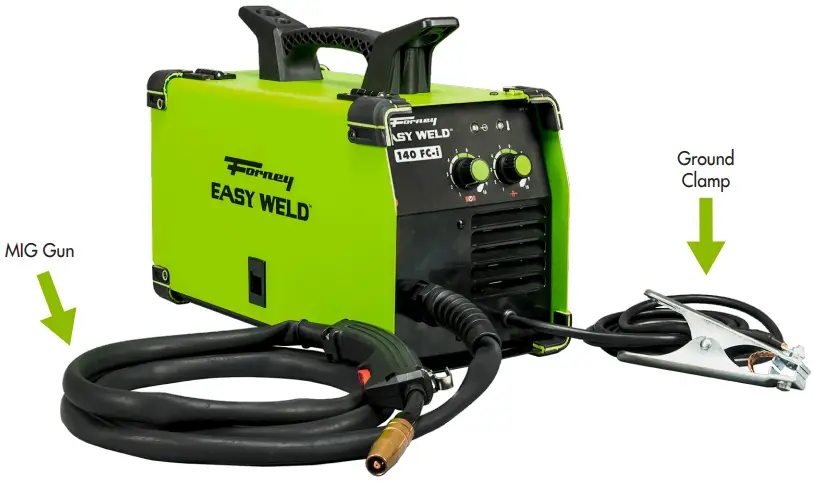

140 FC-i FLUX-CORED WELDER
(DESIGNED FOR MILD STEEL WELDING ONLY)

1. Read the user manual

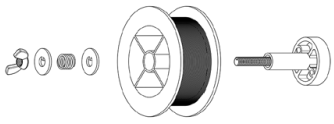

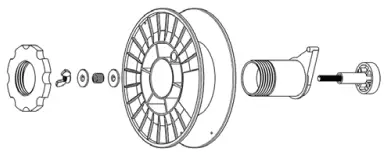

2. Install wire spool
   0.030″ (0.8mm) diameter

   8″ (200mm) wire spool

   4″ (100mm) wire spool

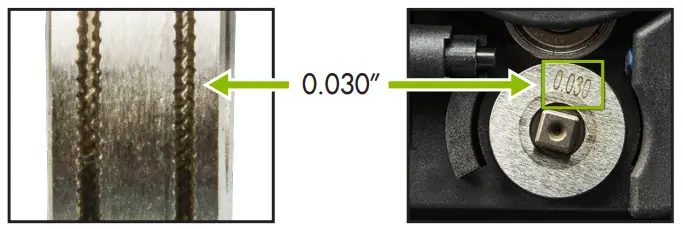

3. Set drive roll
   Face the side marked 0.030″ away from the machine

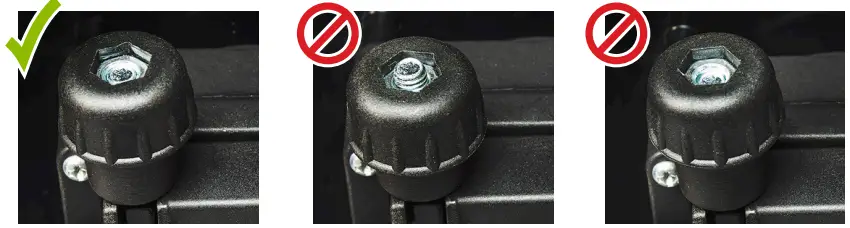

4. Feed wire and set pressure
   For proper tension align the tops of the screw and nut together

5. Connect to Input Power
   • Generator OK with continuous output > 4,000 W
   • Extension cord: #12 AWG or larger; 25′ (8m) or shorter
6. Remove consumables and depress trigger until wire comes out. Replace consumables.

7. Adjust wire feed speed ( ) and voltage ( )
   See chart on welder for correct settings

8. With contact tip 1/4″ from metal, depress trigger completely to initiate the arc


FIND FLUX-CORED WELDING TIPS AT WWW.ASKFORNEY.COM

QUESTIONS OR TROUBLE? Contact Forney Industries at 1-800-521-6038
