QUICK REFERENCE GUIDE > RS9120WRU2
Integrated Refrigerator
Freezer, 90.6cm, Ice & Water
Series 7 | Integrated
Panel Ready | Right Hinge

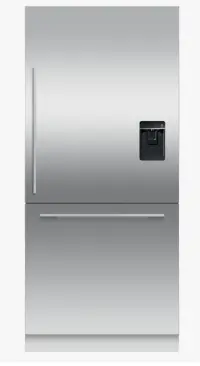

RS9120WRU2 Integrated Refrigerator Freezer
Choose a roomy refrigerator in stylish stainless steel, including slimline water dispenser. Fits flush into surrounding cabinetry.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- Stainless steel door panel purchased separately – with water dispenser option available
- Water dispenser available with stainless steel door panel accessory
- Spacious bottom freezer with full extension drawer, and Internal ice maker with boost function

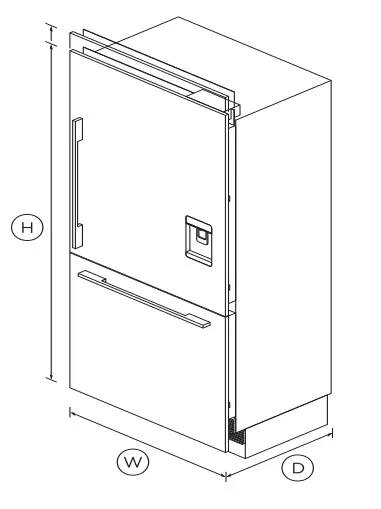

DIMENSIONS
| Height | 2028 mm |
| Width | 906 mm |
| Depth | 606 mm |
FEATURES & BENEFITS
ActiveSmart™ Foodcare
ActiveSmart™ Foodcare learns how you live. It is technology
which understands how you use your refrigerator and adjusts
temperature, airflow and humidity inside to help keep food
fresher for longer.
Ice maker
Fresh ice is always available for you in a dedicated freezer bin.
Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.
Water on tap
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water and doesn’t take up any storage space in your fridge.
Simple storage
This refrigerator is designed to make it simple for you to store, access and remove food. Storage bins give you full access inside when they’re pulled open and can be easily removed to clean. Our flexible shelving also gives you more storage options.
Easy installation
Our integrated products are easy to install, whether you are renovating your kitchen or designing a new one. Adjustable front and rear feet allow for uneven floors alongside adjustable door panels that can be customised to match your kitchen.
Clever energy
Your refrigerator adapts to daily use by cooling and defrosting only when needed. This ActiveSmart™ technology means better energy efficiency without compromising on food care.
SPECIFICATIONS
Accessories (sold separately)
| Contemporary round handle | 25339 |
| Contemporary square handle | 24989 |
| Joiner kit | 25702 |
| Matching Replacement Water | Models 24xxx, 25xxx-A, 25xxx- |
| Square fine aluminium handle | 25857 |
| Square fine black handle kit | 25900 |
| Stainless steel door panel | 25792 (2028mm) or 25789 |
Capacity
| Freezer | 145L |
| Refrigerator | 332L |
| Total net volume | 477L |
Consumption
| Energy consumption | 303kWh/year |
| Energy rating | E |
Freezer features
| Automatic ice maker | • |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Ice Boost | • |
| Ice bin and scoop | • |
| LED lighting | • |
| Large plastic bin | • |
| Slide Out Pastry Tray | • |
| Small plastic bins | 2 |
Performance
| ActiveSmart™ Foodcare | • |
| ActiveSmart™ technology | • |
| Adaptive defrost | • |
| Frost free | • |
| Frost free freezer | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| Noise emissions | 42dBA |
| Noise emissions class | D |
| R600a refrigerant | • |
| Sabbath mode | • |
Power Requirements
| Supply frequency | 50Hz |
| Supply voltage | 220V |
Product dimensions
| Depth | 606 mm |
| Depth (less door) | 606 mm |
| Height | 2028 mm |
| Width | 906 mm |
Refrigerator features
| Adjustable door shelves | 6 |
| Adjustable glass shelves | 3 |
| Covered door shelves | 2 |
| Deli storage bins | 1 |
| Door alarm | • |
| Fruit and vegetable bins | 2 |
| Full extension runners | • |
| Humidity controlled crisper | • |
| LED lighting | • |
| SmartTouch control panel | • |
| Soft close doors | • |
| Spill proof removable bins | • |
| Stackable bottle holders | 4 |
| Ultra slim water dispenser | • |
Warranty
| Parts and labour | 5 years |
| Sealed system parts only | 5 years |
| SKU | 26089 |
TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
User Guide590256H_F&P_SERVWARRANTY_GLO.indd (fisherpaykel.com)Installation GuideDual Installation Guide845689C-activesmart-integrated-refrigerator-freezer-dual-install-guide-RS9120W-RS36W80.pdf (fisherpaykel.com)
