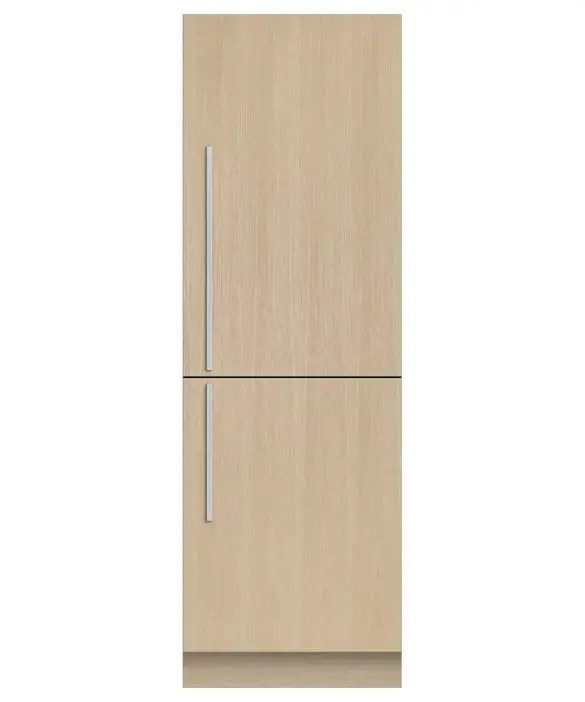

RS2474BRU1 Integrated Refrigerator Freezer
User Guide
A slim profile, perfect for compact kitchens, or pair with other Integrated models for generous chilled and frozen storage.
- Flush fit design with 3/16 gaps and custom height installation Convenient access to fresh, chilled water and ice with internal water dispenser and ice maker
- Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory
- Easy-to-use touch-control panel and Wi-Fi capability
DIMENSIONS
| Height | 73 5/8″ |
| Width | 23 5/16″ |
| Depth | 22 11/16″ |
FEATURES & BENEFITS
PERFECT FIT
These models fit flush, with only 3/16″ gaps around them and no visible hinges or grilles. Our Integrated models can be seamlessly hidden behind your cabinetry, or you can purchase our stainless steel door panel.
INTERNAL WATER DISPENSER AND ICE MAKER
Both the water dispenser and ice maker are located inside this Integrated model, leaving an uninterrupted exterior that blends in seamlessly with surrounding cabinetry. The slimline water dispenser is flush fit in order to maximize internal storage space, with a temperature-controlled flow and an angled water delivery to reduce drips and spills.
MIX & MATCH
These modular refrigerators and freezers can be mixed and matched, with different sizes and finishes. Installed side by side or individually throughout the kitchen, you can create a cooling solution to suit your lifestyle. Customize with your own kitchen cabinetry and handles, or purchase our stainless steel door panel and handle options.
CLEVER ENERGY
ActiveSmart™ Foodcare learns how you live. It is technology that understands how you use your freezer and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
FLEXIBLE STORAGE
Designed to make it simple for you to store, access and remove food, this refrigerator includes LED-lit adjustable cantilevered shelving and full extension bins in the freezer.
SIMPLE INSTALLATION
Our Integrated products are easy to install, whether you are renovating your kitchen or designing a new one. Adjustable front and rear feet allow for uneven floors alongside adjustable door panels that can be customized to match your kitchen. These models are designed to easily slide into place as separate units – a perfect fit for European design kitchens.
EASE OF USE
Using the intuitive touch-sensitive control panel, you can easily adjust the temperature to suit. Beautiful to use, the door is family safe with a soft-close mechanism.
SPECIFICATIONS
| Accessories | |
| 23″ Stainless steel toe kick | AKRS2304 |
| 47″ Stainless steel toe kick | AKRS4704 |
| 71″ Stainless steel toe kick | AKRS7104 |
| Hinge change (from right hinge | Included |
| Joiner kit | AJRS74LR |
| Professional round flush handle | AHP3RDB74 |
| Replacement water filter | 847200 |
| Square fine aluminium handle | AHD5RDB74 |
| Square fine black handle kit | AHD5RDB74B |
| Stainless Steel Door Panel Set | RD2474BR (right hinge), |
| Capacity | |
| Total gross capacity | 10.7cu ft |
| Volume freezer | 4.3cu ft |
| Volume refrigerator | 6.4cu ft |
| Consumption | |
| Energy rating | Energy star Most efficient |
| Energy usage | 382kWh/year |
| Features | |
| Adjustable door shelves | 4 |
| Adjustable glass cantilevered | • |
| Covered door shelves | 1 |
| Door alarm | • |
| Internal water dispenser | • |
| LED bin lighting | • |
| LED ceiling lighting | • |
| LED side lighting | • |
| SmartTouch control panel | • |
| Stackable bottle holders | 2 |
| Water tank capacity | 30.7oz |
| Wi-Fi connectivity | • |
| Freezer Features | |
| Automatic ice maker | • |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Freezer bins | 3 |
| Ice Boost | • |
| Ice making rate per day | 2.2lbs |
| LED bin lighting | • |
| LED ceiling lighting | • |
| LED side lighting | • |
| Minimum inside width of | 23 5/8″ |
| Minimum internal depth of | 24″ |
| Minimum internal height of | 74″ |
| Performance | |
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| Dual evaporator | • |
| Frost free | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| Sabbath mode | • |
| Power requirements | |
| Rated current | 10A |
| Supply frequency | 60Hz |
| Supply voltage | 115V |
| Product dimensions | |
| Depth | 22 11/16″ |
| Height | 73 5/8″ |
| Width | 23 5/16″ |
| Warranty | |
| Parts and labour | 2 years |
| Sealed system parts only | 5 years |
| SKU | 26205 |
