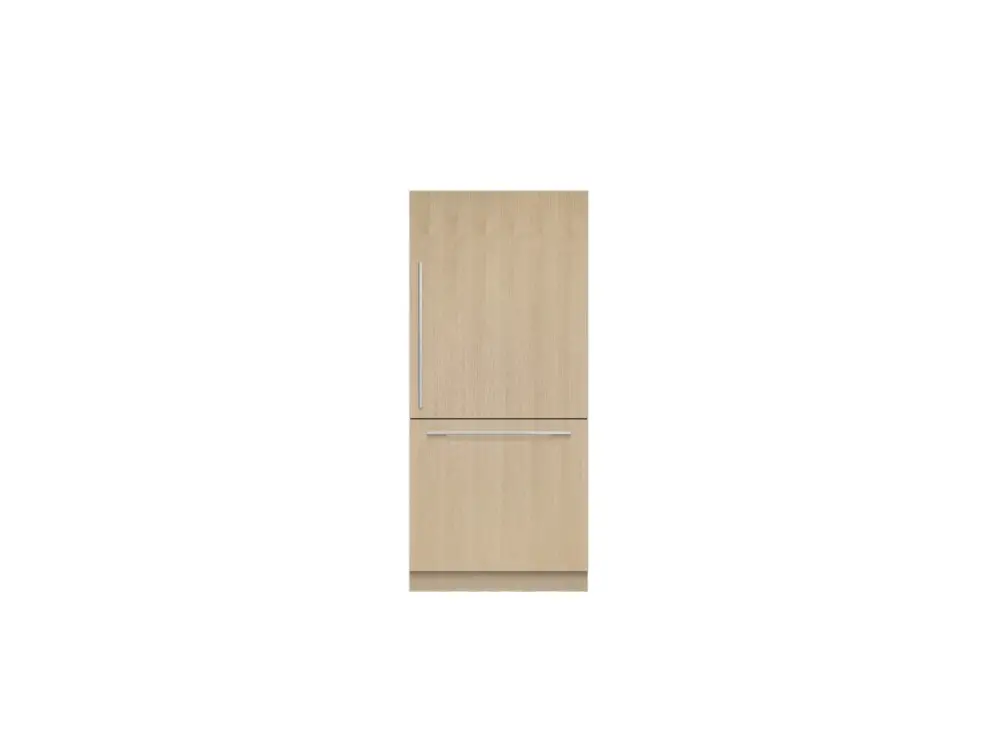

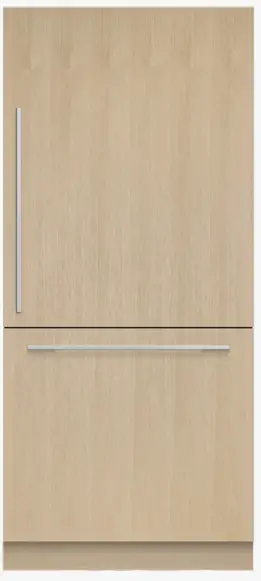

RS9120WRJ2 Integrated Refrigerator Freezer
User Guide
RS9120WRJ2 Integrated Refrigerator Freezer
QUICK REFERENCE GUIDE > RS9120WRJ2
Integrated Refrigerator Freezer, 90.6cm, Ice
Series 7 | Integrated
Panel Ready | Right HingeChoose a roomy refrigerator with ice maker. Fits flush with your custom cabinetry or with our stainless steel panels.
- ActiveSmartTM technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- Customise with your own kitchen cabinetry or purchase our stainless steel door panel accessory
- Internal ice maker with boost feature for busy times
- Spacious bottom freezer with full extension drawer gives easy access to frozen goods

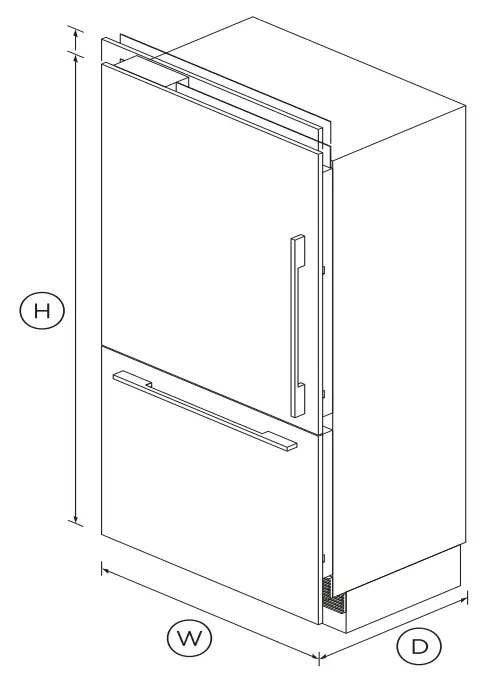

DIMENSIONS
| Height | 2028 mm |
| Width | 906 mm |
| Depth | 606 mm |
FEATURES & BENEFITS
ActiveSmartTM Foodcare
ActiveSmartTM Foodcare learns how you live. It is technology which understands how you use your refrigerator and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
Ice maker
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.
Easy installation
Our integrated products are easy to install, whether you are renovating your kitchen or designing a new one. Adjustable front and rear feet allow for uneven floors alongside adjustable door panels that can be customised to match your kitchen.
Simple storage
This refrigerator is designed to make it simple for you to store, access and remove food. Storage bins give you full access inside when they’re pulled open and can be easily removed to clean. Our flexible shelving also gives you more storage options.
Ice maker
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.
SPECIFICATIONS
| Accessories (sold separately) | |
| Contemporary round handle | 25339 |
| Contemporary square handle | 24989 |
| Joiner kit | 25702 |
| Replacement water filter | Models 24xxx, 25xxx-A, 25xxx- |
| Square fine aluminium handle | 25857 |
| Square fine black handle kit | 25900 |
| Stainless steel door panel | Left hinge = 25790 (2028mm) |
| Capacity | |
| Freezer | 145L |
| Refrigerator | 332L |
| Total net volume | 477L |
| Consumption | |
| Energy consumption | 303kWh/year |
| Energy rating | E |
| Freezer features | |
| Automatic ice maker | • |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Ice Boost | • |
| Ice bin and scoop | • |
| LED lighting | • |
| Large plastic bin | • |
| Slide Out Pastry Tray | • |
| Small plastic bins | 2 |
| Performance | |
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| Frost free freezer | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| Noise emissions | 42dBA |
| Noise emissions class | D |
| R600a refrigerant | • |
| Sabbath mode | • |
| Power Requirements | |
| Supply frequency | 50Hz |
| Supply voltage | 220V |
| Product dimensions | |
| Depth | 606 mm |
| Depth (less door) | 606 mm |
| Height | 2028 mm |
| Width | 906 mm |
| Refrigerator features | |
| Adjustable door shelves | 6 |
| Adjustable glass shelves | 3 |
| Covered door shelves | 2 |
| Door alarm | • |
| Fruit and vegetable bins | 2 |
| Humidity controlled crisper | • |
| LED lighting | • |
| SmartTouch control panel | • |
| Soft close doors | • |
| Stackable bottle holders | 4 |
| Warranty | |
| Parts and labour | 5 years |
| Sealed system parts only | 5 years |
| SKU | 26088 |
TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
