Sw-motech Kft.01.278.60100/b Aero Abs Side Case Set Instruction Manual

ANBAUANLEITUNG
mounting instructions
KFT.01.278.60100/B
beinhaltet
KFT.01.278.200
KFT.00.152.22500/B
BC.HTA.00.675.12000/B
QLS.00.046.10101/B
KFT.01.278.200
Revision: 02
Instruction Manual

Mounting Instructions

This product is designed only for mounting on vehicles in their original condition. We do not guarantee compatibility with accessories from other manufacturers.
German safety regulations require that no metal edge with a radius of less than 2.5 mm be exposed while driving a motorcycle. The side carriers should not be used when luggage is not attached to them.
SW MOTECH products should be installed by a qualified, experienced motorcyle technician. If you are unsure of your ability to properly install a product, please have the product installed by your local motorcycle dealer.
SW MOTECH takes no responsibility for damages caused by improper installation.
All screws, bolts and nuts, including all replacement hardware provided by SW MOTECH, should be tightened to the torque specified in the OEM maintenance manual for your motorcycle. If no torque specifications are provided in the OEM maintenance manual, the following torques may be used:

All screws. bolts and nuts should be checked regularly to ensure that all are tightened to the proper torque.
Medium strength liquid thread-locker (i.e., “Locktite”) should be used to secure all screws, bolts and nuts.
Maximum load: 12.5 kg (27.5 lbs) per side carrier (inclusive case and adapter kit). The manufacturer’s maximum load of the motorbike is still valid. Maximum speed with mounted cases: 130 km/h (8o mph). Subject to change. Not responsible for typos.

SWMOTECH products should be installed by a qualified, experienced motorcycle technician. If you are unsure of your ability to properly install a product, please have the product installed by your local motorcycle dealer. SW Motech takes no responsibility for damages caused by improper installation.
All screws, bolts and nuts, including all replacement hardware provided by SWMOTECH, should be tightened to the torque specified in the OEM maintenance manual for your motorcycle.
If no torque specifications are provided in the OEM maintenance manual, the following torques may be used:

All screws, bolts and nuts should be checked after driving the first so km to ensure that all are tightened to the proper torque.
Medium strength liquid thread-locker (i.e., “Locktite”) should be used to secure all screws, bolts and nuts.

AERO ABS side case set

Thank you for choosing this premium product from SW-MOTECH.
Please visit our webshop for additional information, such as application charts and PDF mounting instructions. Any other documents that may be required (e.g. ABE certifications), are also available for download at our webshop.
Installation and/or maintenance of this product require good technical understanding! For your own safety SW-MOTECH recommends having installation and/or servicing carried out by a specialist workshop!
SW-MOTECH assumes no liability for damage caused by improper installation and/or maintenance work!
Carefully follow all the directions given in the mounting instructions and pay attention to all relevant information in the vehicle manual during assembly.
Nonconformance can lead to vehicle damage or even endanger the driver!
These mounting instructions are written based on our current state of knowledge. Legal requirements for accuracy do not exist.
This product was developed for vehicles in their factory setting. Compatibility with original accessory parts or other manufacturers’ accessory parts is not guaranteed. Furthermore, BEFORE installing this product, make sure that all moving parts (e.g. the chain) are in the original state of maintenance.
Installed accessories can change the driving behaviour and/or stability of your vehicle.

GENERAL INFORMATION

Observe the country-specific regulations concerning vehicle registration /operation as well as TUV regulations if applicable. If required, register installed parts in the vehicle documents through an appropriate inspection authority.
PREPARATION: Read the mounting instructions carefully and make sure that all items of the parts list are included. Make sure that your vehicle is parked safely and cannot fall over. Turn off the engine and remove the ignition key.
Let the motor/ exhaust cool off if necessary. Disconnect the vehicle battery when working on the electrical system. Use appropriate tools. Have another person to help you.
FUNCTION CHECK: This is a universal product. For this reason make sure BEFORE the first use, that the product can be fixed properly and used without problems with your vehicle type. After fixation also make sure that no moving parts are obstructed and the function of the vehicle is not hindered in any way.
Lamps as taillight and turn signals must not be limited in their function. Cables and hoses must not rub and/or be pinched. Before starting to ride, perform a comprehensive check of all functions.

PRODUCT SPECIFIC INFORMATION

ATTENTION: Riding with this product may affect the motorcycles driving and braking performance!
ATTENTION: Depending on the location of fixation, cornering and ground clearance can be reduced by using this product!
ATTENTION: Before riding and at each stop (every 200 km) check proper fixation of the product!

Maximum Load	Maximum Speed
10 KG (22 lbs) per case	130 km/h (80 mph)

ATTENTION: The maximum load of the used SW-MOTECH side carrier must not be exceeded (refer mounting instructions of the side carrier)!
The maximum vehicle load specified by the manufacturer must not be exceeded!
ATTENTION
NOT FOR OFFROAD-USE!

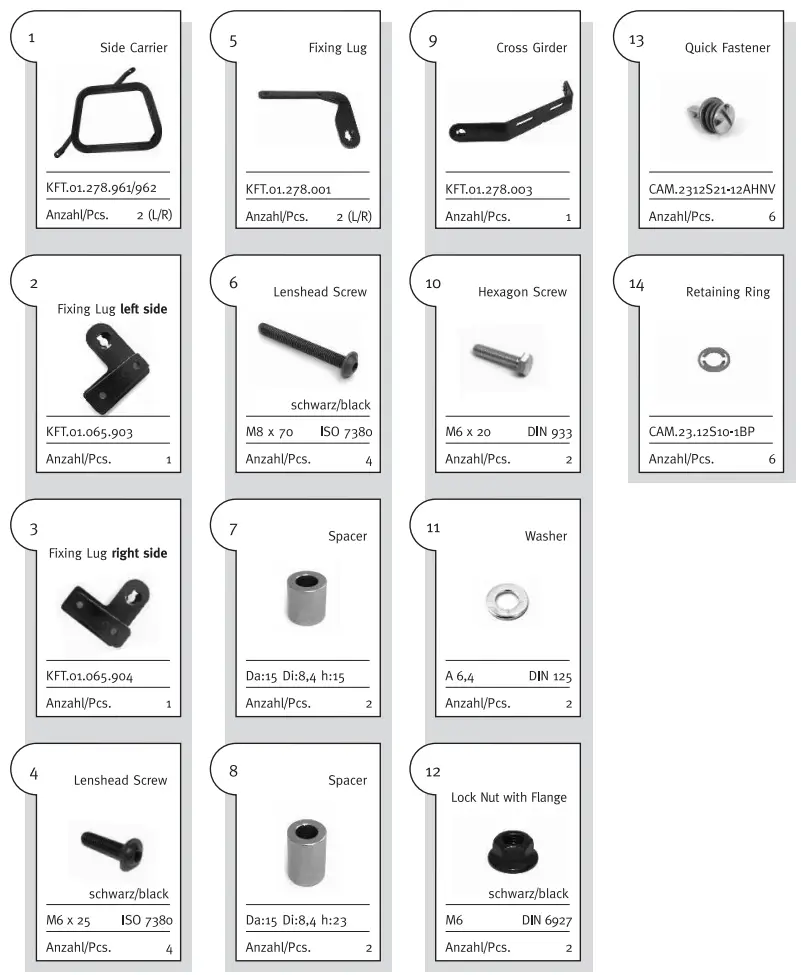

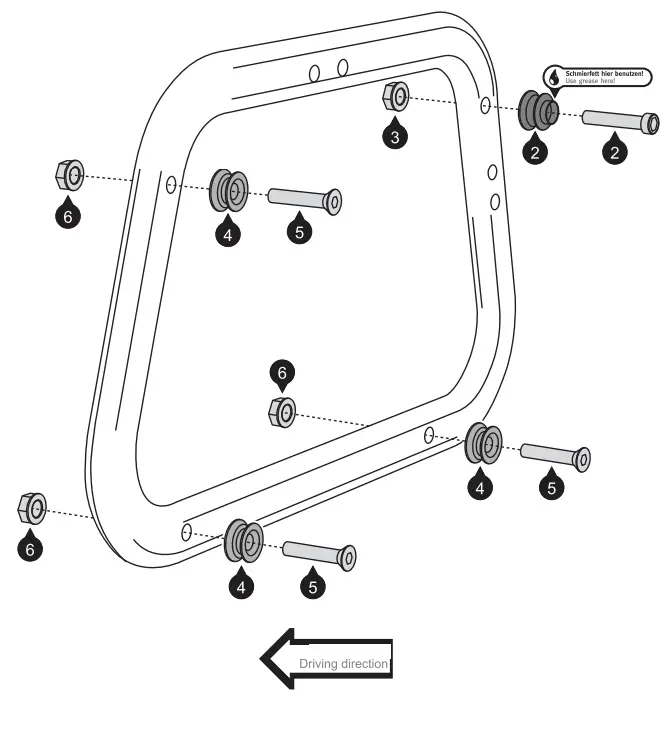

PARTS LIST

* All  measurements in millimeters
** The gond number indicates the total quantity0f the patin the delivery
*** No torquspecifications Use the torque defined by vehicle manufacturer!The standard torque in this table can be used as long as within the vehicle manufacturer’s specifications.

CARE

To clean the side cases, use warm, soapy water and a soft, clean cloth Rinse with clean water.
Do NOT use strong cleaning agents, rough cleaning tools or high pressure washer!
Clean the side cases after riding in salty conditions, to avoid damage from salt.
Hard to open zippers can be loosened with a small amount of talcum powder.
ATTENTION: Surface materials can experience color changes or fading when exposed to direct sunlight for extended periods of time and by environmental factors [e.g., SMOG, acid rain, etc.l! SW-MOTECH assumes no liability for this.

MOUNTING

Step [1]: Place the four locking openings of the side case [1] onto the guide bolts of the mounted SW-MOTECH side carrier Step [2] Press the side case slightly downward, until it properly rests on the side carrier
ATTENTION: Make sure that all four guide bolts engage at the same time! Pay attention to the clearly audible snap sound of the locking mechanism and that the red marking under the slider is not visible!
To release press the slider downward.

ATTENTION: All components of the side case must not contact any hot or moving parts of the vehicle! All parts should also remain 5 cm away from hot parts of the vehicle and remain clear of the exhaust stream! After mounting, make sure there are no clearance issues while the suspension is both compressed and extended.
Step [3l To protect the mounted side case against theft, open it [1].
Then press the locking button and turn it according to the arrow mark until the locking button engages Step [4] Then tock the closed zipper with the included lock [2]. We recommend leaving the locking button in the closed position during the ride.

Use the included waterproof inner bag [3l to protect your luggage from moisture

For an easier loading of the side case [1l, open the buckles and hook and loop fasteners of the opening reductions, as shown in the drawing.

ATTENTION: Make sure weight is evenly distributed between the left and right side if you want to use both side cases! Make sure that the loading is secured against shifting during the ride!
ATTENTION: Never store pointy or sharp-edged objects, which could cause injury to persons or damage to the vehicle/side case!

MOUNTING INSTRUCTIONS

Art.-Nr /Item No.
QLS.00.095.1000*/B
QLS.00.046.1010*/B
Revision. 00 01 -2021

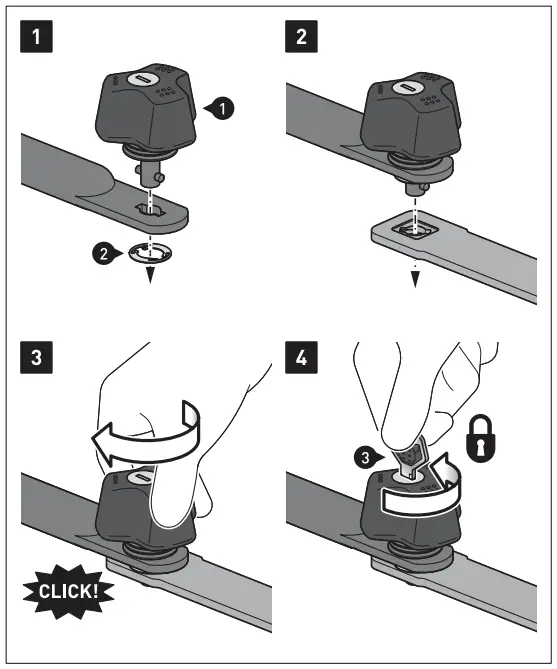

Anti-theft protection for PRO I EVO side carrier

ATTENTION

NEVER lubricate lock cylinders with oil! Use graphite powder only!

Errors ad omissions excepted. Technical ad design modifications are subject to chage
SW-MOTECH GmbH & Co. KG
Ernteweg 8/10
35282 Rauschenberg
Germany
Tel./ phone+ 49 [0]6425 / 8168 – 050
Fax/ fax+ 49 [0]6425 / 8168- 10
[email protected]
www.sw-motech.com
